Ultimate Guide to Robot Cable Solutions: From Sweeping Robot Sensor Wiring Harnesses to Heavy Duty Robot Cable Assemblies

In the rapidly evolving landscape of Industry 4.0 and advanced robotics, the reliability of a robotic system is fundamentally dictated by its internal nervous system: the wiring harness. Whether we are discussing the microscopic precision required for a modern smart home appliance or the rugged durability demanded by an automotive welding robotic arm in an extreme industrial environment, uninterrupted power and signal transmission is non-negotiable.

As the automation industry pushes the boundaries of continuous operation, procurement managers and automation engineers are constantly seeking superior connectivity solutions that prevent costly downtime. Our manufacturing capabilities cover the entire spectrum of robotic connectivity. From the highly sensitive sweeping robot sensor wiring harness designed for compact spaces and rapid signal relay, to the ultra-rugged heavy duty robot cable assembly engineered to withstand millions of torsional movements in harsh factories, we provide tailored solutions that drive the future of automation.

Deep Dive: Heavy Duty Robot Cable Assemblies

While a sweeping robot sensor wiring harness requires ultra-flexibility in a microscopic footprint to process spatial data, industrial robots face a different set of extreme challenges. Heavy duty robotic systems operate in aggressive environments involving constant motion, high friction, and exposure to industrial chemicals.

Classification of Robotic Cables

Heavy duty robot cable assemblies can be broadly categorized based on their application and mechanical endurance:

• By Application:
  • Power Cables: Delivering high voltage and current to drive servo motors.

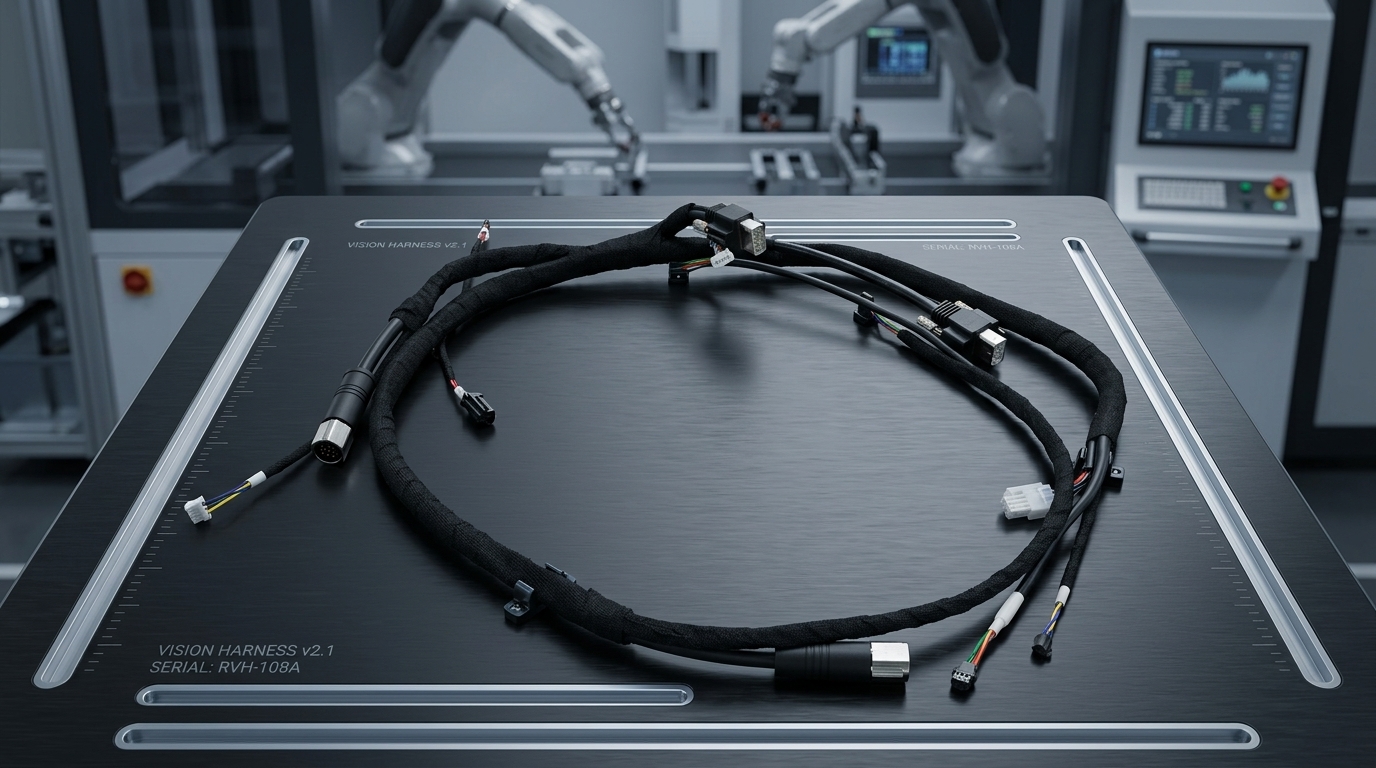

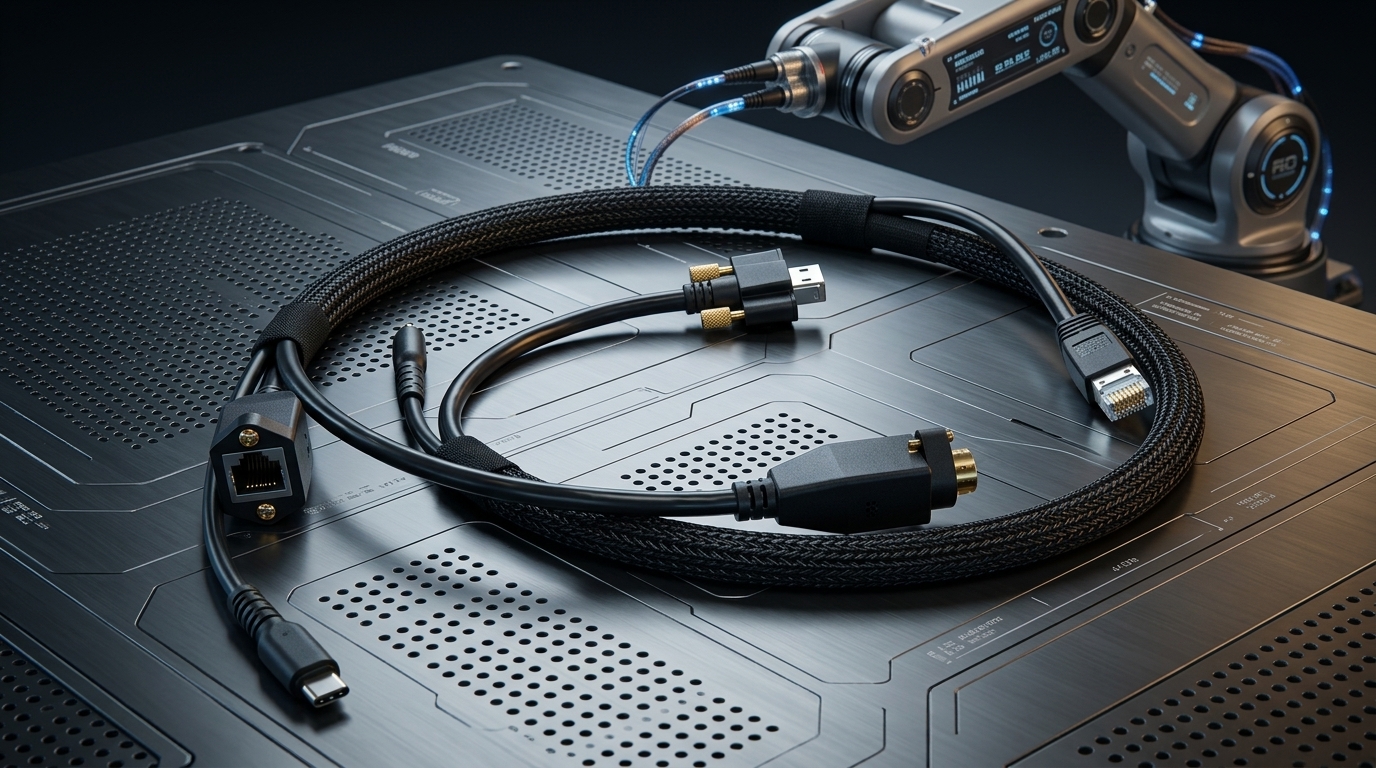

  • Signal & Data Cables: Transmitting encoder feedback, vision system data, and sensor inputs with zero latency.
  • Hybrid Cables: Integrating power, signal, and pneumatic lines into a single, space-saving jacket.
• By Mechanical Flexibility:
  • Torsion Cables (3D): Designed for the robotic arm's primary axes (Axes 1-6), capable of twisting up to ±360°/m.

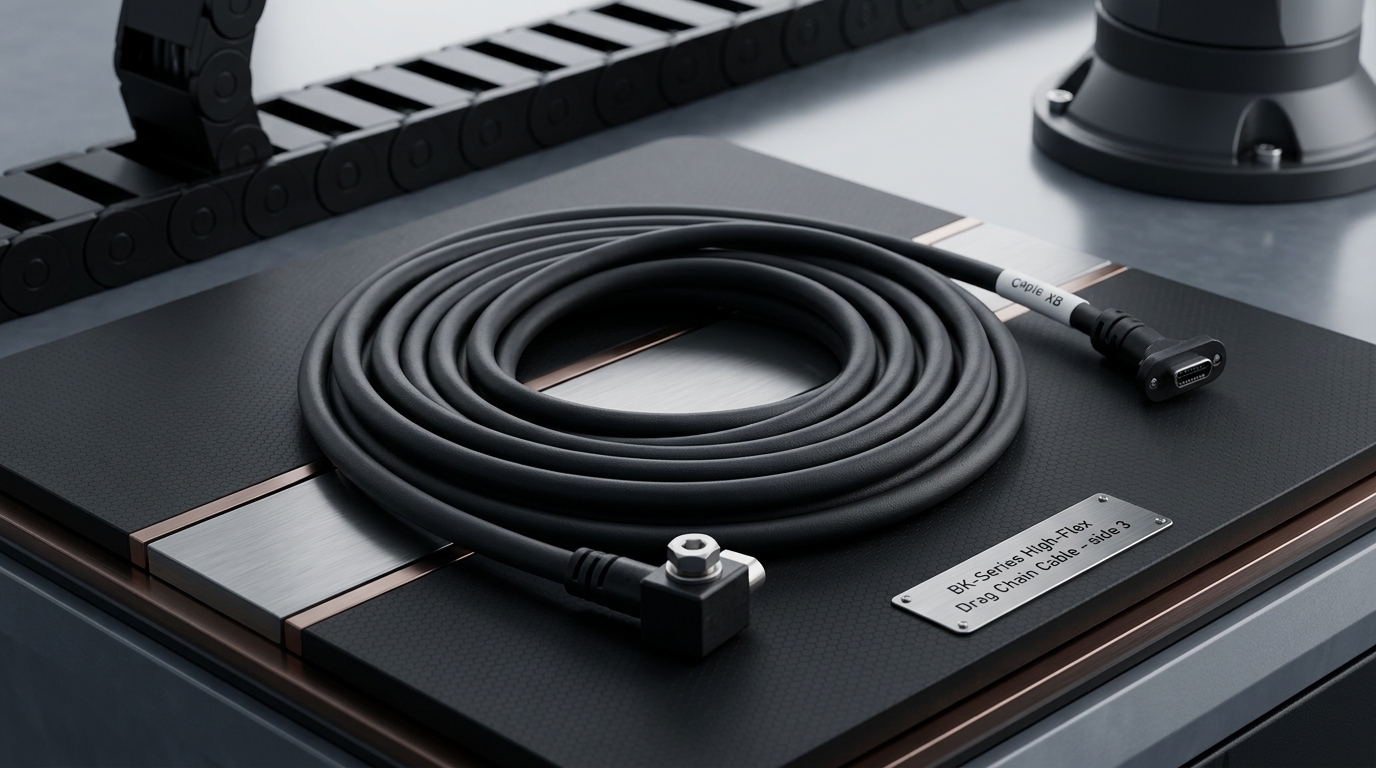

  • Bending Cables (2D): Used for linear tracks or drag chains, engineered for millions of continuous bending cycles.

Core Features & Technical Advantages

Our heavy duty robot cable assemblies are engineered to conquer the toughest industrial pain points:

• High-Frequency Torsion & Continuous Bending: Utilizing specialized stranded bare copper conductors and PTFE/PUR jacketing to survive over 10 million flex cycles without conductor breakage.
• Superior EMI/RFI Shielding: Braided tinned copper shielding ensures that high-speed signal transmissions remain stable and uncorrupted, even under heavy dynamic stress and nearby electromagnetic interference.
• Extreme Environmental Resistance: The outer sheaths are highly resistant to weld slag, cutting oils, hydraulic fluids, UV radiation, and extreme temperature fluctuations (from -40°C to +90°C).

Usage Scenarios in Extreme Conditions

Our robust cable assemblies are the lifeline for various high-stress applications:

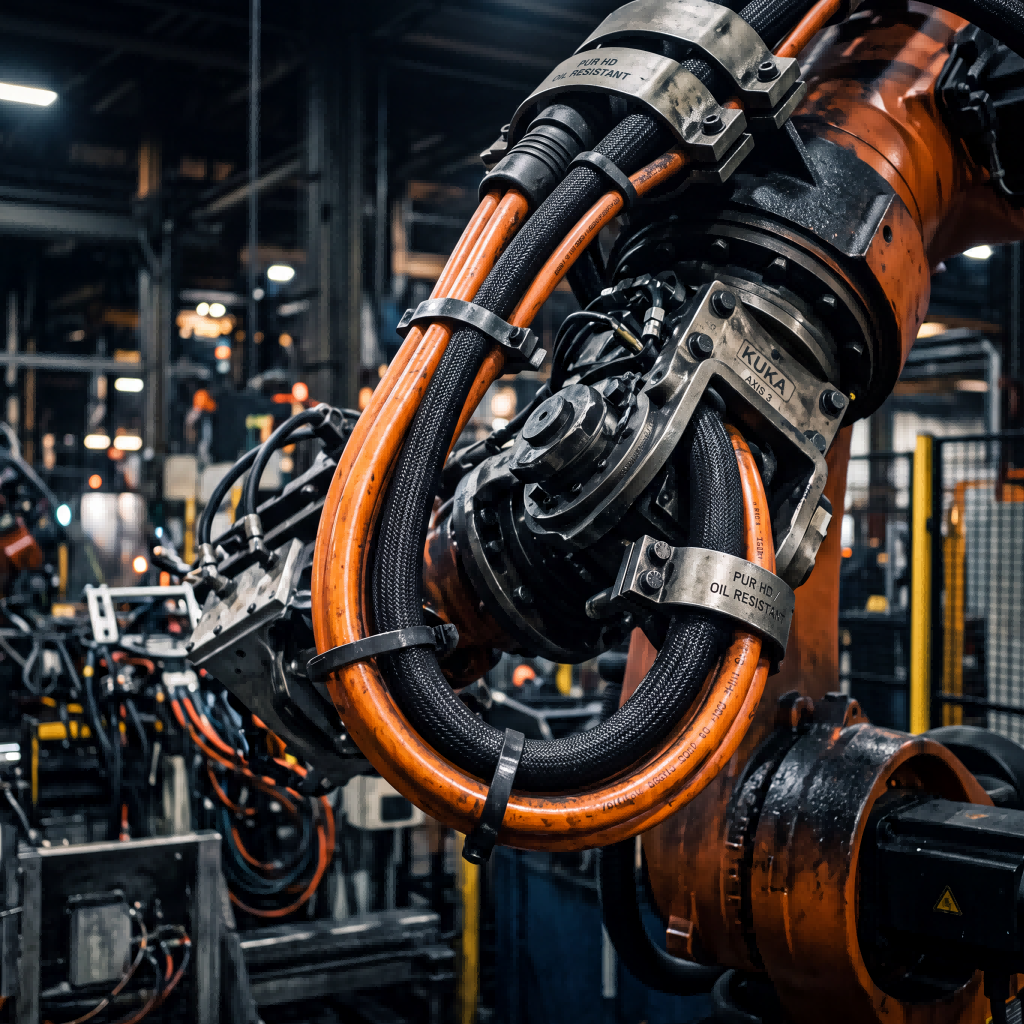

• Automotive Welding Lines: Spot welding and arc welding robots where weld sparks and high temperatures are constant threats.
• CNC Machining Centers: Material handling robots exposed to continuous mechanical movement and corrosive cutting fluids.
• Automated Guided Vehicles (AGVs) & AMRs: Demanding continuous flexing and vibration resistance during heavy payload transportation.
• Foundries & Extreme Temperature Factories: Environments where standard PVC cables would melt or become brittle.

Functions & Working Principle

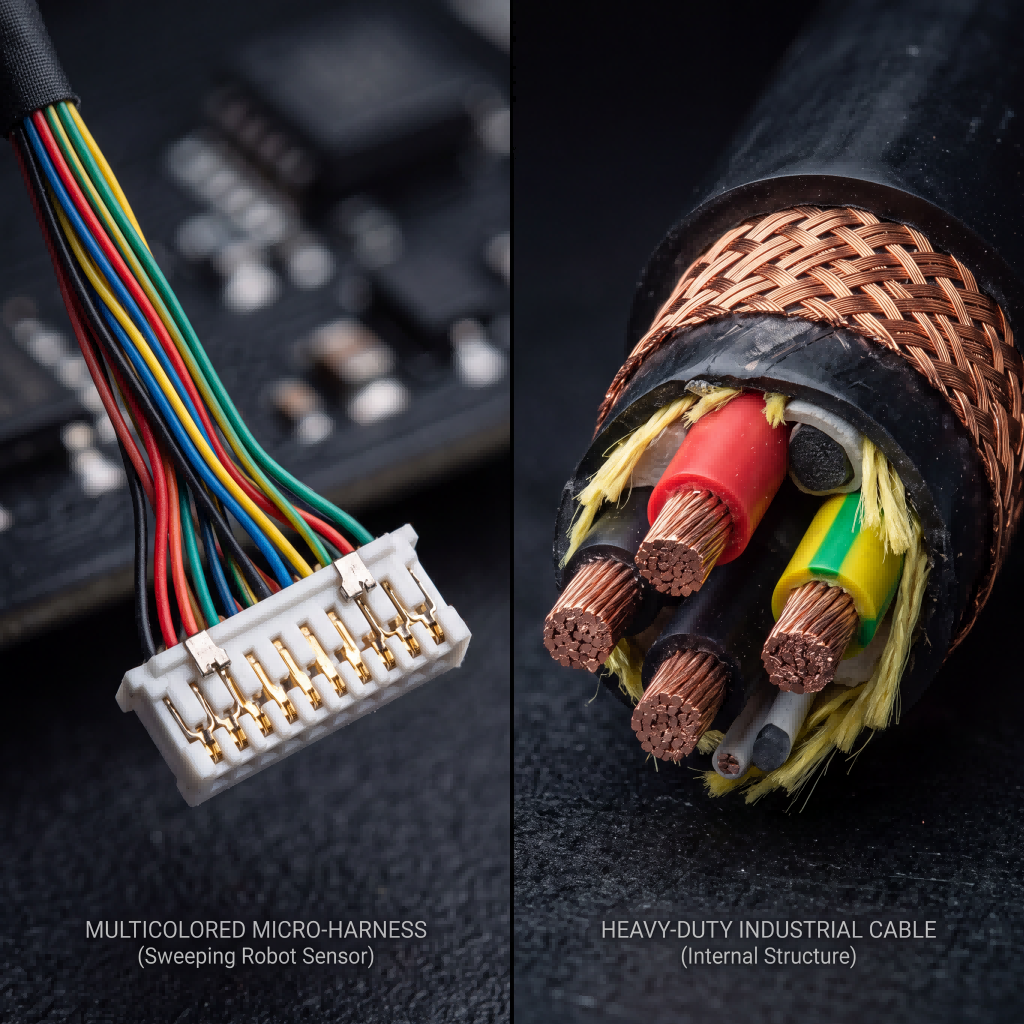

The working principle of a heavy duty robot cable assembly relies on its unique structural design. Unlike standard cables, robotic cables utilize a core-twisting technique with optimal pitch lengths. This allows the internal conductors to glide smoothly over one another during high-speed multi-axis movements. Combined with specialized slip agents and load-absorbing aramid fibers (like Kevlar), the assembly effectively dissipates mechanical stress. This ensures that whether the system is transferring micro-ampere signals from a sensor or high-voltage power to a servo drive, the electrical integrity remains 100% stable, eliminating the risk of sudden automated line halts.

Comprehensive Technical Specifications

To meet the rigorous demands of B2B procurement and engineering standards, we meticulously source and manufacture our assemblies according to precise specifications. Below are the standard technical parameters we provide:

Table 1: Wire & Cable Specifications

Table 2: Connector Specifications

Your Trusted Custom Robot Wiring Harness Manufacturer

Finding a reliable partner capable of crossing the chasm between delicate smart-home sensor wiring and robust industrial cable assemblies is rare. As a premier custom robot wiring harness manufacturer, we pride ourselves on delivering uncompromising quality and flexibility to global B2B clients.

Why Choose Our Manufacturing Services?

• ISO9001 Certified Quality: Every cable assembly undergoes rigorous electrical, mechanical, and environmental testing. Our ISO9001 certified production lines guarantee 100% traceability and zero-defect delivery.
• Comprehensive OEM/ODM Support: Whether you need a simple sweeping robot sensor wiring harness or a complex, multi-branch hybrid assembly for a 6-axis robotic arm, we manufacture strictly to your blueprints or assist in co-developing new specs.
• Low Minimum Order Quantity (Small Batch Production): We understand that R&D and prototyping require flexibility. We fully support small batch production runs to help you test and validate your robotic designs without massive upfront capital investment.
• Professional Design & Engineering Team: Our in-house engineers possess decades of experience in automation connectivity. We provide free design consultations, 3D CAD modeling, and rapid prototyping to optimize your cable routing and prolong the lifespan of your robotic systems.
• One-Stop Solution: From raw cable extrusion and precision cutting to terminal crimping, connector molding, and final testing, we control the entire supply chain. This one-stop approach reduces lead times and significantly lowers your procurement costs.

Elevate Your Automation with Premium Connectivity

In the high-stakes world of robotics and automation, a faulty cable is the weakest link that can bring an entire production line to a halt. Don't let subpar wiring compromise your innovative designs. From micro-sensor connections to heavy-duty power transmissions, we have the expertise, the certifications, and the manufacturing capacity to power your success.

Ready to upgrade your robotic systems? Contact our engineering team today for a free technical consultation, custom CAD designs, or to request a sample of our heavy duty robot cable assembly. Let us build the reliable nervous system your robots deserve.
