High-Performance Custom Robot Vacuum Wiring Harness: The Core of Smart Home Appliance Stability
As the global demand for intelligent smart home appliances continues to surge, R&D engineers and B2B hardware solution providers are facing stricter requirements for internal component reliability. At the heart of these complex robotic systems lies the custom robot vacuum wiring harness.
Acting as the central nervous system of the device, the custom robot vacuum wiring harness plays an absolutely critical role in signal acquisition, power distribution, and precise motion control. A flawlessly engineered cable assembly ensures that the machine avoids short circuits, voltage drops, or signal interference during heavy-duty cleaning cycles, thereby directly determining the whole-machine running stability and extending the product's lifespan.
5 Essential Types of Custom Robot Vacuum Wiring Harnesses
To accommodate the complex internal architecture of modern smart cleaners, we engineer highly specialized cable assemblies tailored for specific working environments.
1. Flexible Wire Harness for Motion Control
The drive wheels and main sweeping brushes of a vacuum bot require constant dynamic movement. Our flexible wire harness is manufactured using ultra-fine stranded copper wires and highly durable TPE/Silicone insulation, designed specifically for high flex-life. It endures millions of continuous bending cycles, guaranteeing uninterrupted motion control even in the most compact chassis spaces.
2. High-Temperature Cable Assembly
High-suction BLDC (Brushless DC) motors and auto-emptying base stations generate significant heat during operation. The high-temperature cable assembly utilizes Teflon (PTFE) or specialized silicone jacketing that withstands extreme thermal environments. This prevents insulation melting and thermal degradation, ensuring absolute safety for high-load power transmission.

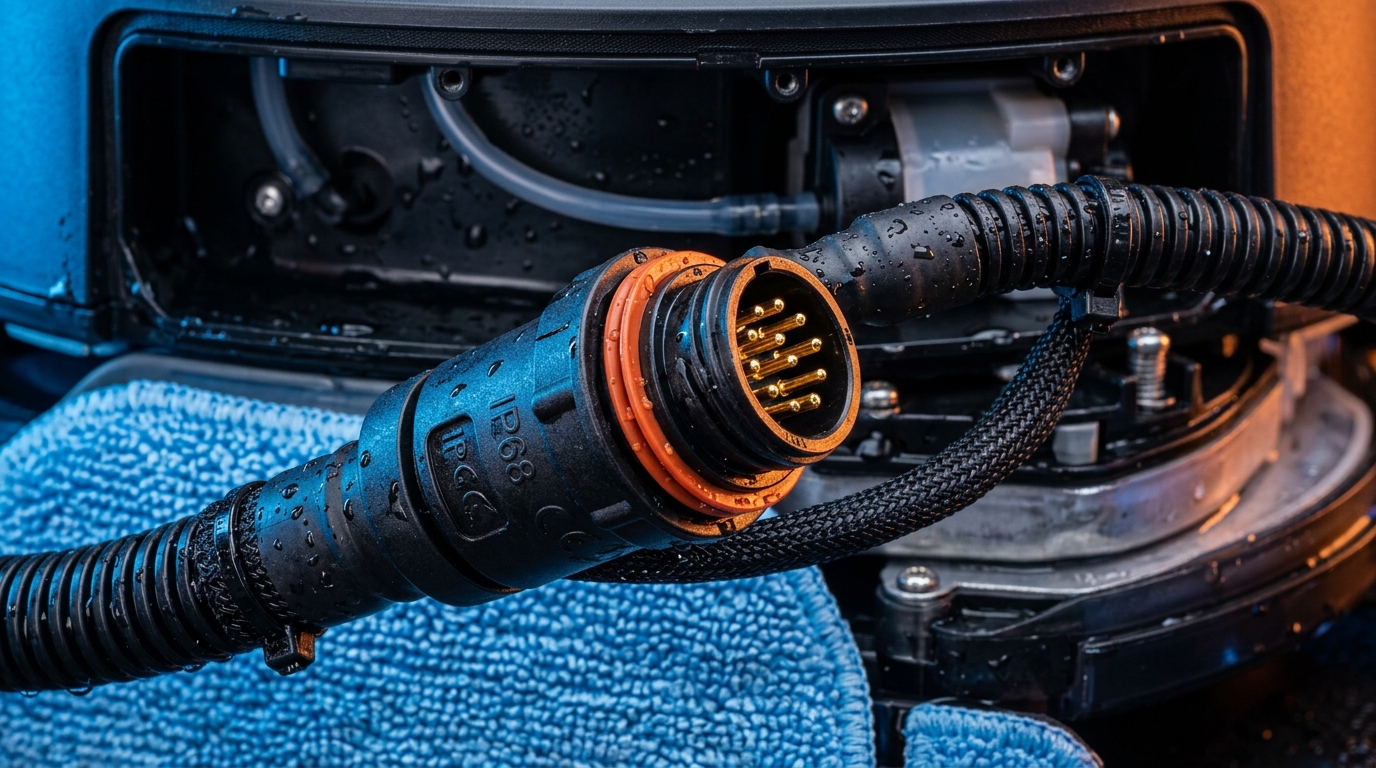

3. Waterproof Connector Wiring for Mopping Bots
With the evolution of hybrid vacuum and mop robots, liquid management is a major engineering challenge. Our waterproof connector wiring harnesses (rated IP67/IP68) are specifically deployed around internal water tanks, electronic pumps, and moisture-prone areas. Utilizing precision-sealed rubber O-rings and anti-corrosion terminals, these harnesses entirely eliminate the risk of electrical shorts caused by water ingress.
4. Robot Vacuum Battery Cable
Stable power delivery is the foundation of robotic autonomy. The robot vacuum battery cable is engineered with heavy-gauge wires (typically 14-18 AWG) and secure locking connectors (such as XT60 or Molex Mini-Fit) to handle the high transient currents required by high-capacity Lithium-ion battery packs. This optimized power distribution guarantees minimal resistance and prevents voltage drops during peak suction modes.
5. Robot Vacuum Sensor Wiring
Precise navigation relies on real-time data from LiDAR, cliff sensors, infrared receivers, and bump bumpers. The robot vacuum sensor wiring is dedicated to highly sensitive signal acquisition. We utilize twisted pair configurations and braided EMI (Electromagnetic Interference) shielding to protect low-voltage data transmission, ensuring the robot processes environmental mapping without data loss or latency.
Technical Specifications of Our Custom Robot Vacuum Wiring Harness
To meet the rigorous standards of global smart appliance brands, our custom assemblies comply with strict electronic industry parameters.
| Harness Category | Wire Gauge (AWG) | Typical Connector Type | Temp Rating | Voltage Rating | Key Technical Feature |
|---|---|---|---|---|---|
| Flexible Wire Harness | 22 AWG - 26 AWG | JST PH/XH, Molex Micro-Fit | -20°C to +105°C | 300V | High flex-life (>1,000,000 bending cycles) |
| High-Temperature Cable | 18 AWG - 24 AWG | TE Connectivity, AMP | -60°C to +200°C | 600V | Teflon/Silicone insulation, fire retardant |
| Waterproof Connector | 20 AWG - 24 AWG | M8/M12, Custom IP-rated | -20°C to +85°C | 300V | IP67/IP68 sealed rings, anti-corrosion pins |
| Battery Cable | 14 AWG - 18 AWG | XT60, Molex Mini-Fit Jr. | -20°C to +105°C | 600V | High current capacity, secure locking latch |
| Sensor Wiring | 26 AWG - 30 AWG | JST SH/GH (1.0/1.25mm pitch) | -20°C to +80°C | 30V | Twisted pair, foil/braid EMI shielding |
Why Choose Us as Your Custom Robot Vacuum Wire Harness Manufacturer?
Finding a reliable B2B supply chain partner is crucial for solving your product stability and customization pain points. As an industry-leading custom robot vacuum wire harness manufacturer, we seamlessly bridge the gap between engineering concepts and mass manufacturing.

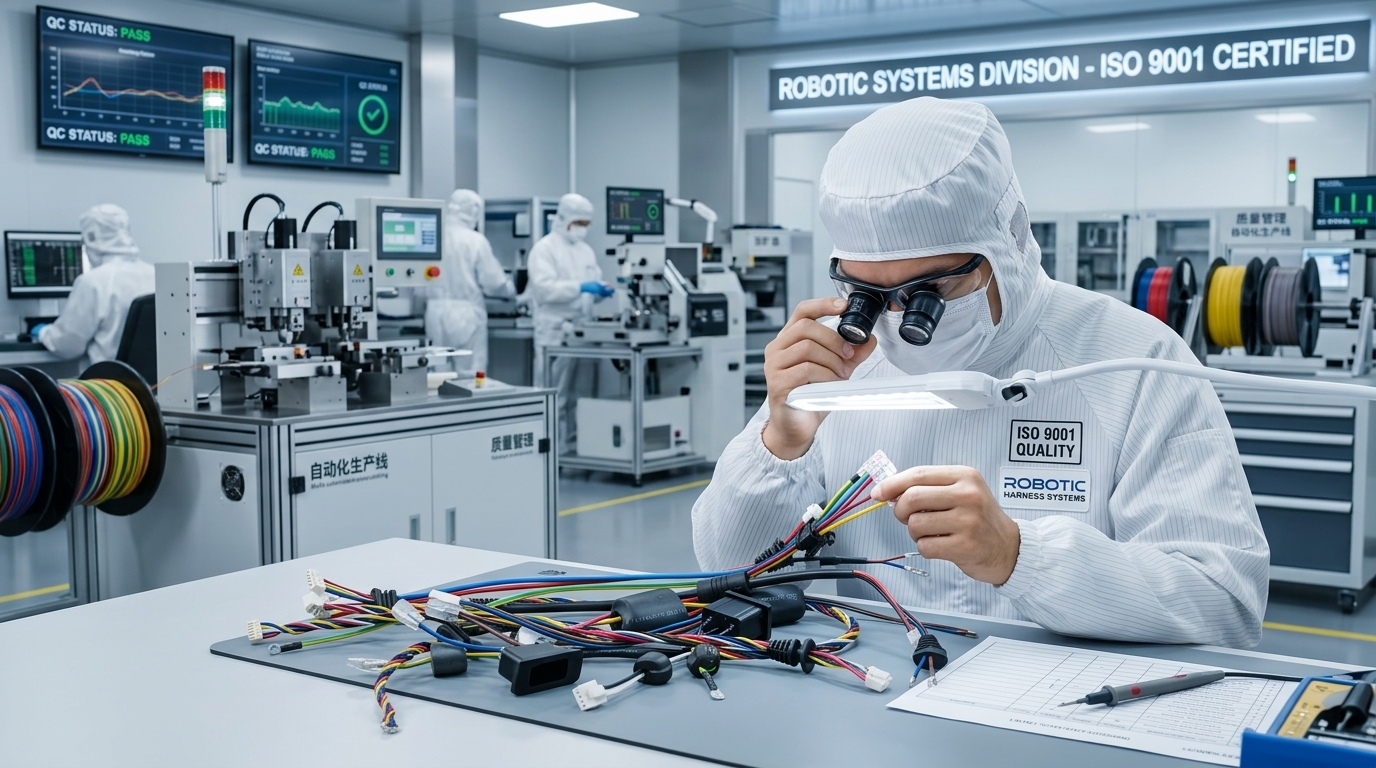

- ISO9001 Certified Quality: From raw copper wire drawing to terminal crimping and final continuity testing, our source factory operates under strict ISO9001 quality management systems, ensuring a zero-defect rate for your production line.
- Professional Design Team: We don't just manufacture; we co-engineer. Our specialized design team offers one-stop custom solutions, assisting your R&D engineers in optimizing wire routing, selecting the right AWG, and overcoming EMI challenges within compact spaces.
- Low MOQ & Agile Manufacturing: We deeply understand the iterative nature of smart appliance R&D. We proudly support low MOQ (small batch production) and fast prototyping, allowing brands to test and validate their designs before committing to massive volumes.
- End-to-End Customization: Whether you need a specific waterproof connector or a highly specialized sensor cable, we strictly follow your BOM and drawings to deliver precise OEM/ODM customized services.
Ready to upgrade your smart home appliance's internal architecture? Do not let a poorly designed cable compromise your high-end robotic vacuum. Partner with a professional custom robot vacuum wire harness manufacturer today.
Contact Us Now for a Free Technical Consultation and Quotation!
