Premium Robot Drag Chain High-Speed Data Harnesses for Industrial Automation

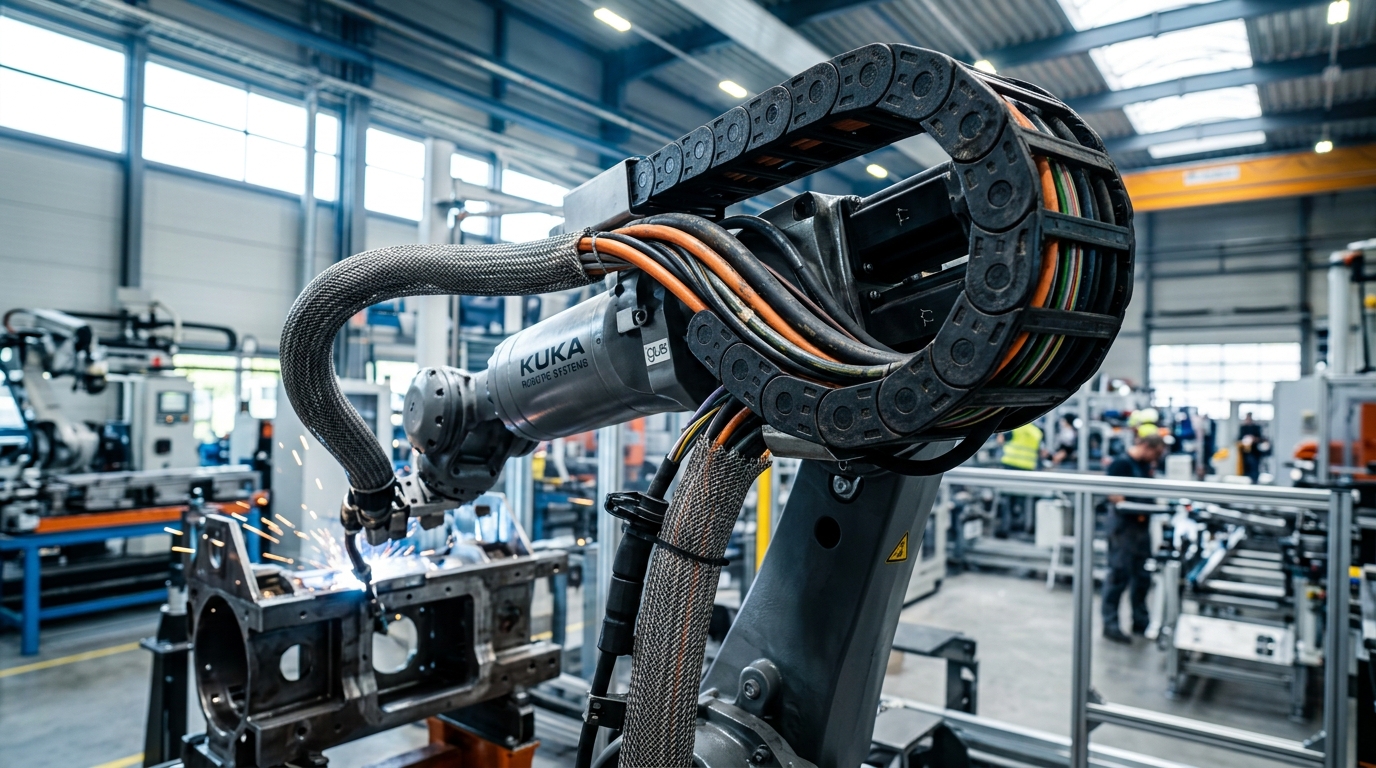

In the rapid evolution of Industry 4.0, reliable communication between robotic components is the lifeblood of automated manufacturing. At the core of this seamless communication is the robot drag chain high-speed data harness. Specifically engineered for dynamic operating environments, these specialized cable assemblies are designed to endure continuous, high-frequency reciprocating motion while guaranteeing zero-latency, high-speed data transmission. Unlike standard industrial cables, continuous flex data harnesses prevent signal degradation, mechanical failure, and production downtime, making them an indispensable component for modern industrial robots, CNC machineries, and automated production lines.
Classifications of Robotic Drag Chain Cables
To meet diverse industrial automation requirements, robotic cable harnesses are generally categorized based on their application and transmission protocols:
- Industrial Ethernet Cables (Cat5e/Cat6a/Cat7): Designed for high-speed network communication between PLCs and robot controllers.
- Machine Vision System Cables: Including GigE and USB 3.0 drag chain cables, essential for real-time image data transmission in automated inspection.
- Servo Encoder Cables: Used to transmit precise positional feedback from the robot's servo motors to the drive system.
- Sensor Data Cables: High-flexibility multi-core cables designed for proximity, temperature, and pressure sensors.

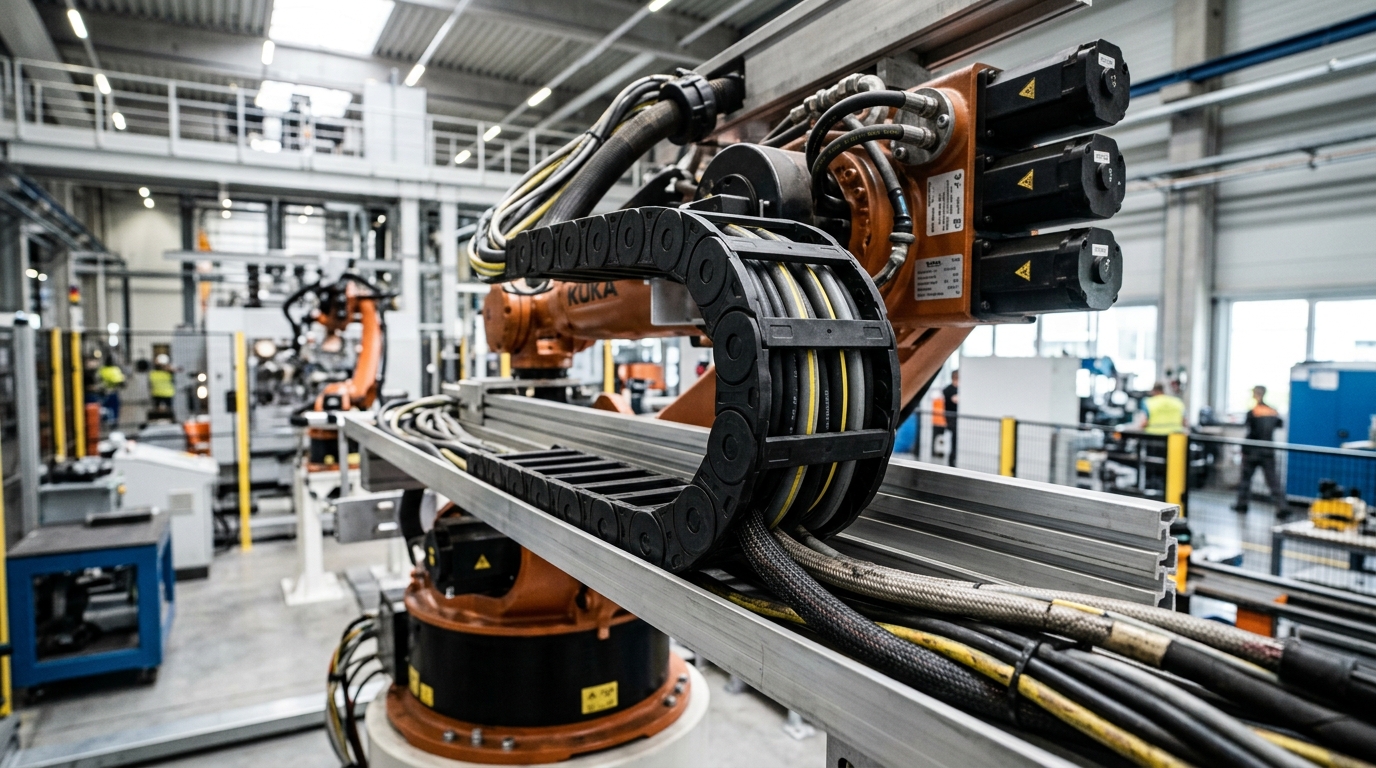

Key Features of High-Flex Data Harnesses
Our robot drag chain high-speed data harnesses are engineered to outperform standard cables in extreme environments. The core characteristics include:
- Exceptional Bending Resistance: Capable of withstanding millions of bending cycles (typically >10 million) without structural degradation or signal loss.
- Superior EMI/RFI Shielding: Highly dense tinned copper braiding ensures data integrity in electromagnetically noisy factory environments.
- High-Speed Signal Integrity: Low capacitance insulation materials are utilized to support high-frequency data rates required by modern automation protocols.
- Harsh Environment Durability: Utilizing specialized PUR or TPE outer jackets, these cables are highly resistant to industrial oils, coolants, abrasion, UV, and flame.
Working Principles & Core Functions
The working principle of a robot drag chain cable relies on its specialized mechanical construction. Standard cables experience severe torsional stress and friction when subjected to continuous movement, leading to "corkscrewing" or conductor breakage.
High-flex data harnesses solve this through optimized pitch stranding, PTFE wrapping tapes, and strain-relief cores. When moving inside the drag chain, the structural layers glide smoothly against one another, neutralizing mechanical stress. Its primary function is to serve as the highly reliable "nervous system" of the machine, continuously delivering critical operational data, video feeds, and control signals from end-of-arm tooling (EOAT) to the central processing unit, regardless of the speed or acceleration of the robotic arm.
Common Application Scenarios
Due to their extreme durability and reliable data transfer capabilities, these cable assemblies are widely adopted in:
- Automated Guided Vehicles (AGVs) & Autonomous Mobile Robots (AMRs)
- High-Speed Pick-and-Place Gantry Robots
- CNC Machining Centers & Laser Cutting Equipment
- Automated Packaging and Sorting Conveyor Systems
- Semiconductor Manufacturing Equipment
Technical Specifications
To ensure seamless integration into your existing automated systems, our cable harnesses are manufactured strictly according to international industrial standards. Below are the standard reference specifications for our high-speed data harnesses.
Wire Specifications
| Feature | Specification Details |
|---|---|
| Conductor Material | Bare copper or tinned copper, ultra-fine stranded (Class 6) |
| Insulation Material | Specialized PE, FEP, or TPE (Low capacitance) |
| Shielding | Aluminum foil + Tinned copper braid (Coverage ≥85%) |
| Outer Jacket | PUR (Polyurethane) / Special PVC |
| Min. Bending Radius | 5x to 7.5x cable diameter (Dynamic applications) |
| Flexing Life Cycle | 10,000,000 to 20,000,000 cycles |
| Operating Temperature | -40°C to +80°C (Dynamic) |
| Standard Compliance | CE, RoHS, UL, DESINA |
Connector Specifications
| Feature | Specification Details |
|---|---|
| Connector Types | M8, M12, RJ45, USB, D-Sub, or Custom Plugs |
| IP Protection Rating | IP67 / IP68 (Mating conditions) |
| Mating Cycles | ≥ 500 to 1,000 cycles |
| Contact Material | Gold-plated brass / Copper alloy |
| Housing Material | Zinc die-cast (shielded) or Industrial-grade TPU |
| Locking Mechanism | Threaded coupling, Push-pull, or Snap-in |
Why Choose Us as Your Robot Cable Harness Manufacturer?
Finding a reliable supplier for continuous flex robotic cables is crucial for maintaining your brand's reputation and equipment lifespan. As a professional wire harness manufacturing factory, we bring decades of expertise in industrial connectivity.
- Certified Quality Assurance: We operate under a strict ISO9001 quality management system. Every single cable assembly undergoes rigorous continuity, high-voltage, and bending tests before shipment.
- Tailored to Your Needs: We specialize in customization services. Whether you need specific lengths, hybrid cable designs (power + data), or unique connector pinouts, our engineering team provides complete one-stop solutions.
- Flexible Manufacturing: Unlike highly rigid large-scale factories, we fully support small batch production and low MOQs. We empower R&D teams and automation integrators to test and prototype without heavy financial burdens.
- Expert Design Team: Our dedicated engineers work closely with your project managers to analyze your drag chain dimensions, acceleration rates, and data protocols to design the most cost-effective and durable harness solution.
Contact Us for Custom Solutions
Don't let subpar cabling compromise your advanced automation systems. Partner with a dedicated industrial wire harness expert.
Ready to upgrade your robotic connectivity? Send us your technical drawings or project requirements today! Our engineering team will provide a comprehensive technical analysis and a competitive quote within 24 hours. Contact us now to secure your highly reliable robot drag chain high-speed data harness solutions.
