High-Performance Robot LiDAR Power Supply Harness Solutions
In the rapidly evolving field of autonomous technology, the perception system is the "eye" of any intelligent machine. At the core of this system is the robot LiDAR power supply harness, a mission-critical component designed to deliver stable power transmission and guarantee highly reliable data signal interaction. Whether you are developing autonomous guided vehicles (AGVs) or sophisticated robotic arms, choosing the right robot radar power wiring assembly is essential for preventing system failure, ensuring precise environmental mapping, and maintaining the continuous, stable operation of robotic perception systems in harsh environments.
Working Principles: Ensuring Power and Signal Integrity
The fundamental working principle of an industrial robot LiDAR power cable revolves around synchronous power delivery and high-speed data transmission without cross-talk.
- Stable Power Distribution: LiDAR sensors require continuous, low-ripple voltage to operate rotating lasers and photodetectors precisely. The harness utilizes low-resistance copper conductors to minimize voltage drop, ensuring the radar receives a constant power supply even during high-load robotic movements.
- Reliable Signal Interaction: As the LiDAR generates millions of data points per second, the harness must transmit this point-cloud data back to the central processing unit (CPU). Specialized twisted-pair configurations and multi-layer shielding protocols are implemented to isolate the power lines from the data lines, guaranteeing zero data loss and latency-free communication.
Classification of LiDAR Power Cables
To meet the diverse requirements of different robotic applications, our harnesses are categorized into several distinct types:
- Standard Indoor AGV Harnesses: Designed with highly flexible PVC jackets for environments where robots perform repetitive movements in controlled warehouse settings.
- Heavy-Duty Outdoor Harnesses: Engineered with UV-resistant and waterproof (IP67/IP68) materials, perfect for agricultural robots and outdoor patrol units.
- High-Speed Data Transmission Harnesses: Integrated with advanced coaxial or Ethernet-grade cabling specifically for 3D LiDARs requiring massive data bandwidth.

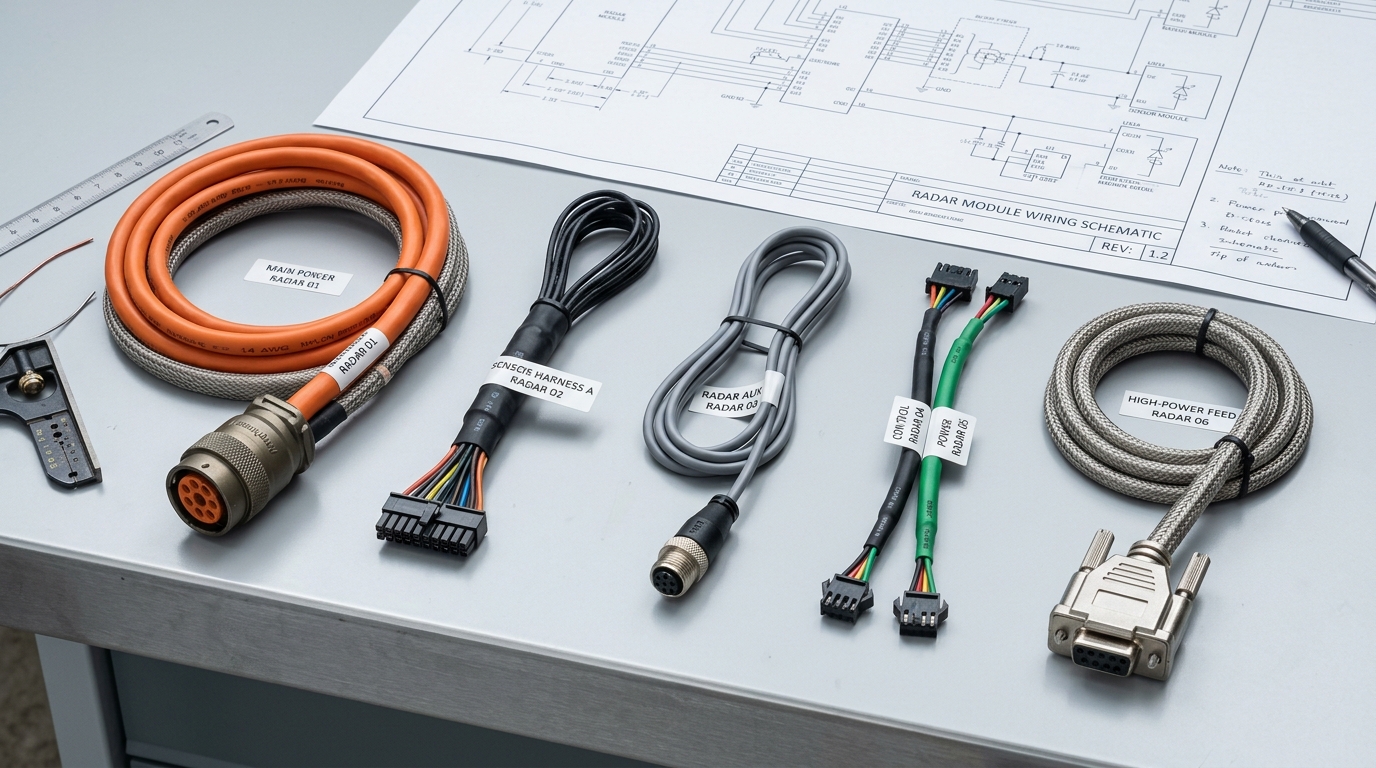

- Hybrid Power & Data Assemblies: All-in-one customized solutions that combine power, ground, Ethernet, and serial communication into a single, compact robot radar power wiring assembly.
Core Features & Technical Advantages

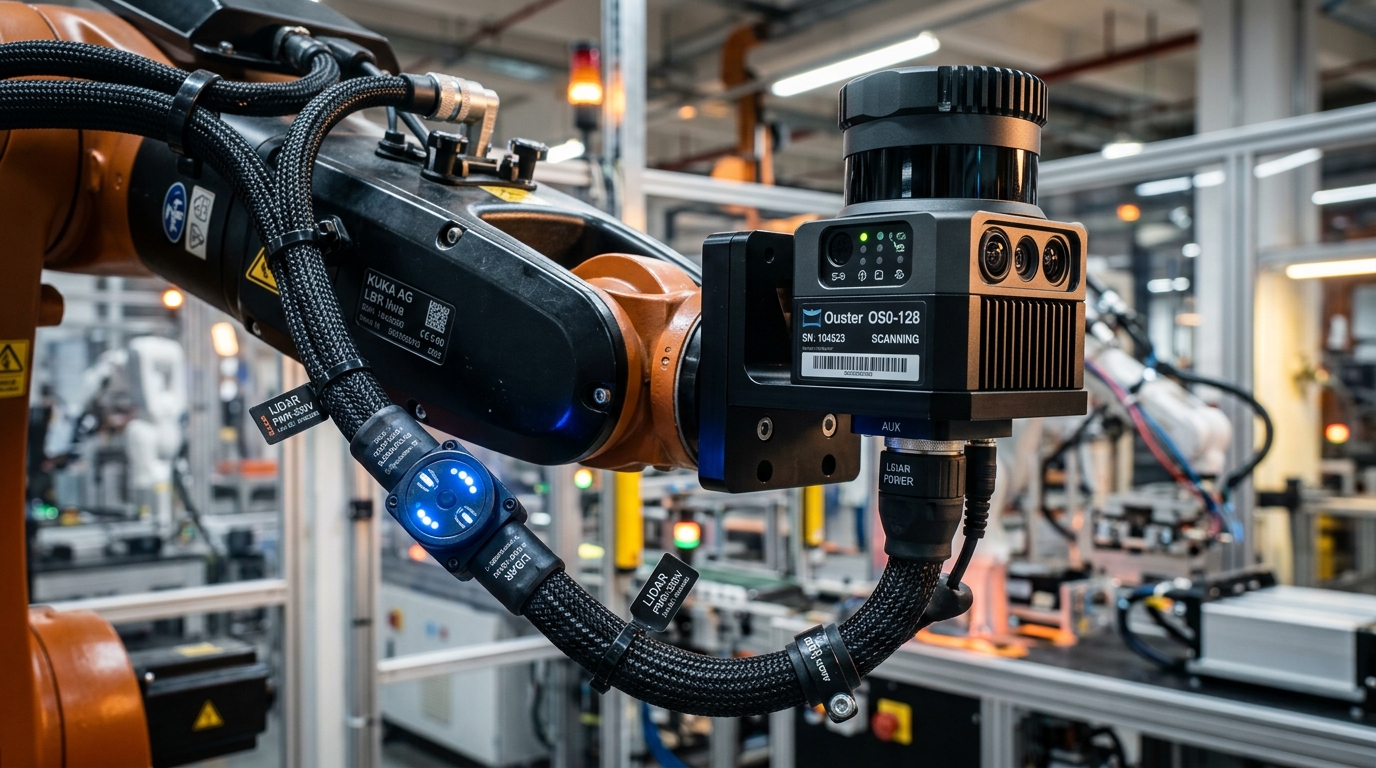

When sourcing an anti-interference robot radar power harness, durability and precision are non-negotiable. Our products are engineered with the following advantages:
- Superior Anti-Interference Capabilities: Utilizing double-shielded structures (aluminum foil + tinned copper braiding) to block Electromagnetic Interference (EMI) and Radio Frequency Interference (RFI) generated by robot motors.
- Extreme Durability & Flex Life: Manufactured with specialized robotic-grade PUR/TPE jackets, offering a bending lifespan of over 10 million cycles, making them the ultimate rugged radar power wiring for mobile robot applications.
- Harsh Environment Resilience: Resistant to oil, chemicals, extreme temperatures (-40°C to +105°C), and mechanical abrasion.
- Secure Connectivity: Equipped with aviation-grade, snap-in, or threaded locking connectors to prevent accidental disconnections caused by severe vibrations.
Key Applications & Use Cases
A custom LiDAR power cable for autonomous robot integration is widely utilized across multiple advanced sectors:
- Autonomous Mobile Robots (AMRs) & AGVs: Providing steady power to navigation radars for precise warehouse logistics and obstacle avoidance.
- Industrial Robotic Arms: Serving as the lifeline for vision-guided robotic arms in automotive manufacturing and precision welding.
- Unmanned Cleaning & Delivery Robots: Ensuring commercial service robots maintain constant spatial awareness in complex human environments.
- Agricultural & Patrol Drones/Robots: Delivering weather-proof power solutions for outdoor terrain mapping and security surveillance.
Technical Specifications
Below are the standard technical specifications for our high-quality LiDAR harnesses.
| Specification Category | Technical Parameters & Details |
|---|---|
| Conductor Material | High-purity Oxygen-Free bare or tinned copper (OFC) |
| Wire Gauge (Power) | 18 AWG to 24 AWG (Customizable based on current load) |
| Wire Gauge (Data) | 24 AWG to 28 AWG (Twisted pairs) |
| Insulation & Jacket | PUR, TPE, PVC, or Teflon (Halogen-free options available) |
| Shielding Type | Aluminum foil + High-density tinned copper braid (Coverage ≥ 85%) |
| Connector Type | M8, M12, RJ45, JST, Molex, Hirose, or Custom Aviation Plugs |
| Operating Voltage | 12V / 24V / 48V DC |
| Current Rating | 2A to 10A (Depending on configuration) |
| Operating Temperature | -40°C to +105°C |
| Bending Radius | Static: 5 x OD |
| Ingress Protection | Up to IP67 / IP68 (Mated condition) |
| Bending Cycles | > 10,000,000 cycles (Drag chain compatible) |
Partner with a Leading Wire Harness Factory
As a professional wire harness manufacturing factory with strict ISO9001 quality management system certification, we understand the unique pain points of B2B procurement and R&D engineering. Finding a reliable supplier for an industrial robot LiDAR power cable shouldn't be a bottleneck in your project timeline.
Why Choose Our Manufacturing Capabilities?
- Professional Design Team: We don't just manufacture; we co-design. Our engineers provide overall turn-key solutions, from schematic drafting to prototyping, ensuring precise match with your robot's mechanical structure.
- Deep Customization: Need a highly specific custom LiDAR power cable for autonomous robot deployment? We customize wire lengths, shielding levels, connector brands, and pinouts to your exact specifications.
- Low MOQ Support: We strongly support innovation. Whether you need a small batch for R&D prototyping or mass production for global deployment, we offer flexible low Minimum Order Quantities (MOQ).
- Rigorous Quality Control: Every single harness undergoes 100% electrical testing, continuity checks, and high-voltage resistance tests before shipment.
Ready to upgrade your robot's perception system? Don't compromise on your data and power integrity. Contact our engineering team today to discuss your specific requirements, get a free technical consultation, and receive a competitive quote for your next custom wiring project.
