The Nervous System of Smart Cleaning: Why Your Robot Vacuum Needs Superior Wire Harnesses

In the rapidly evolving smart home appliance industry, the internal connectivity of an automated cleaning device dictates its lifespan, performance, and safety. As the central nervous system of the device, the control wire harness assumes the critical roles of signal acquisition, precise power distribution, and motion control. Even a minor electrical fault or signal delay can lead to navigation failures, charging errors, or complete system breakdown.

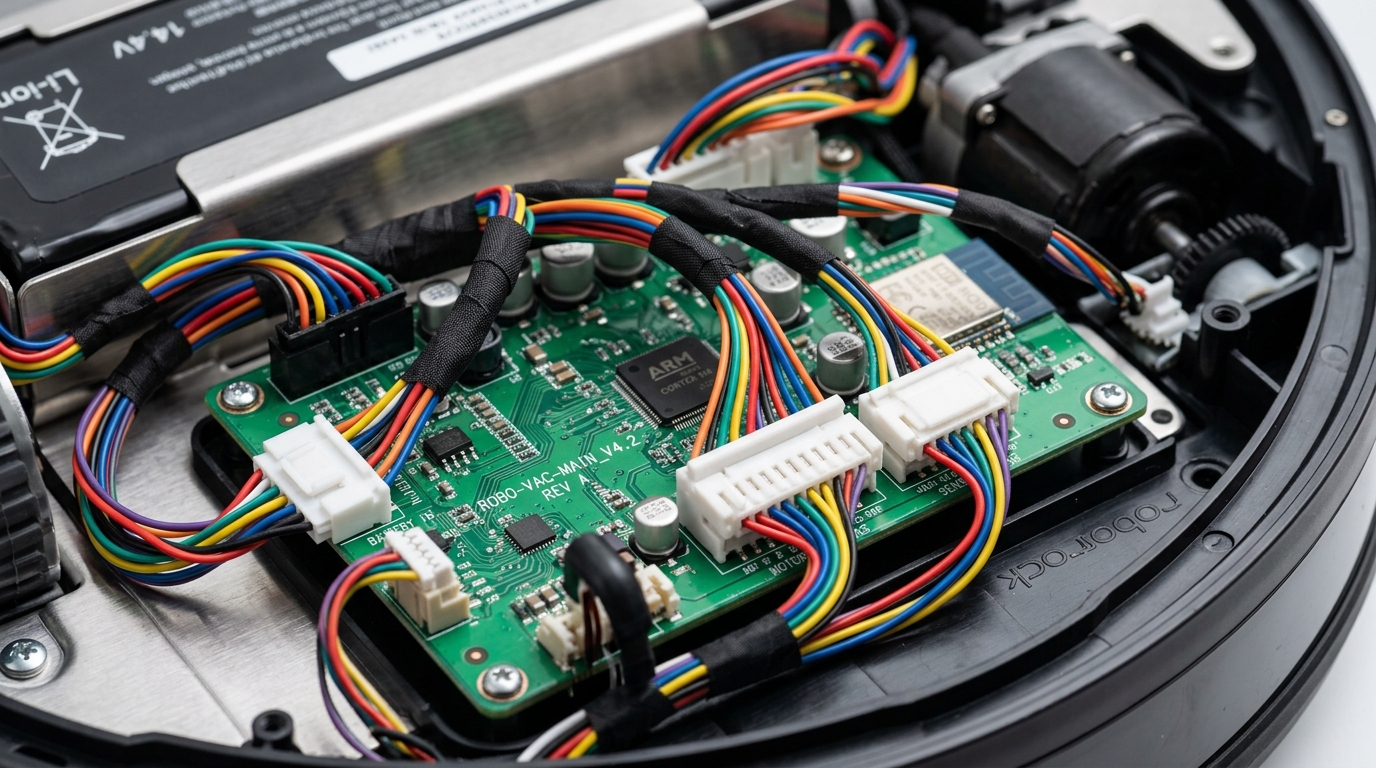

As a professional robot vacuum wire harness manufacturer, we understand the rigorous mechanical and electrical demands that engineers and supply chain managers face. With our ISO9001-certified quality management system, an expert in-house design team, and highly flexible manufacturing capabilities, we deliver premium custom solutions tailored to your specific engineering blueprints. Whether you are developing next-generation auto-empty dock wiring or require support for low volume production to test a new prototype, our facility is equipped to provide end-to-end OEM and ODM manufacturing that guarantees optimal operational stability for your smart cleaning appliances.

6 Core Classifications of Robot Vacuum Wire Harnesses

The internal architecture of a robotic vacuum cleaner requires a sophisticated network of cables, each engineered for specific environmental and electrical stresses. As an experienced robot vacuum wire harness manufacturer, we categorize our custom wiring solutions into six primary types:

Signal Wire Harness

• Features: Utilizing ultra-fine, multi-strand copper wires with superior shielding to prevent electromagnetic interference (EMI).
• Usage Scenarios: Connecting the motherboard to infrared sensors, LiDAR arrays, cliff sensors, and physical bumper switches.
• Functions: Ensures real-time, lossless signal transmission for precise mapping, obstacle avoidance, and spatial navigation.

Motor Power Wire Harness

• Features: Balanced gauge wires designed to handle continuous moderate current with high resistance to vibration and thermal fluctuation.
• Usage Scenarios: Wiring for the side brushes, main rolling brush, and the left/right driving wheels.
• Functions: Delivers stable power to motion-control motors, ensuring smooth locomotion and consistent sweeping performance across various floor textures.

High-Current Drive Wire Harness

• Features: Thicker gauge (low AWG) copper wire with high-temperature resistant insulation (e.g., Teflon or cross-linked PVC) to manage heat dissipation safely.
• Usage Scenarios: Directly powering the main vacuum brushless DC (BLDC) suction motor.
• Functions: Safely handles the high startup and continuous running currents required to generate maximum suction power without risking cable degradation or fire hazards.

Main Battery Power Wire Harness

• Features: Heavy-duty, high-flexibility cables featuring secure, anti-loosening locking connectors to withstand constant mobility.
• Usage Scenarios: The primary link between the lithium-ion battery pack and the central power distribution board (PCB).
• Functions: Manages the core energy output of the entire system, ensuring stable voltage delivery and preventing power drops during intense cleaning cycles.

Charging Circuit Wire Harness

• Features: Corrosion-resistant, low-resistance wiring designed for frequent docking and undocking.
• Usage Scenarios: Connecting the external charging contacts on the bottom or back of the robot to the internal Battery Management System (BMS), as well as integrating auto-empty dock wiring.
• Functions: Facilitates safe, efficient recharging while supporting data handshakes between the robot and the smart dock, protecting against overcharging and short circuits.

High-Flex Drag Chain Wire Harness

• Features: Manufactured with specialized alloy copper and highly durable PUR/TPE jackets, tested for millions of bending cycles without structural fatigue.
• Usage Scenarios: Deployed in constantly moving components, such as the rotating LiDAR turret or articulating mopping pads.
• Functions: Provides enduring mechanical flexibility and electrical continuity in high-stress, repetitive motion environments, drastically reducing robot vacuum maintenance rates.

Technical Specifications & Working Principles

To meet the exacting standards of global B2B procurement managers and R&D engineers, we utilize only industry-leading materials and components. Below are the structural parameters we adhere to as a top-tier robot vacuum wire harness manufacturer.

Wire Specifications

Connector Specifications

Working Principles The operational integrity of a smart vacuum relies on a delicate balance of electrical physics and mechanical engineering. The signal harnesses act as neural pathways, carrying low-voltage telemetry data from environmental sensors to the MCU (Microcontroller Unit) at microsecond speeds. Simultaneously, the power harnesses function as the cardiovascular system; the battery wire harness delivers raw voltage to the PCB, which is then dynamically routed through the high-current and motor wire harnesses to drive the wheels and suction fans. By matching the precise AWG, insulation type, and connector locking mechanisms, we eliminate voltage drops, prevent EMI signal corruption, and ensure the robot survives constant vibration and thermal cycling.

Why Choose Us as Your Trusted Robot Vacuum Wire Harness Manufacturer?

Procuring reliable internal wiring is a critical decision that impacts your brand's reputation. As a dedicated robot vacuum wire harness manufacturer, we are committed to bridging the gap between innovative smart home appliance engineering and flawless manufacturing execution.

• ISO9001 Quality Certified: Every wire harness undergoes rigorous automated optical inspection (AOI), continuity testing, and impedance checks to guarantee zero defects.
• Custom Solutions & OEM/ODM: From bespoke connector molding to specialized EMI shielding, we manufacture exactly to your technical drawings.
• Low Volume Production Supported: We understand the agile nature of hardware development. We welcome small batch orders for NPI (New Product Introduction) and prototype testing, scaling up seamlessly as your product hits the market.
• Professional Design Team: Our in-house engineers collaborate directly with your R&D department, offering one-stop solutions from DFM (Design for Manufacturing) optimization to final mass production.

Do not let inferior wiring compromise your smart home innovations. Contact our engineering sales team today to request a quote, secure custom samples, and partner with a robot vacuum wire harness manufacturer that drives your product's success.
