The Ultimate Guide to Custom Robot Wire Harnesses & Cable Assemblies
If you think of a robot's mechanical structure as its skeleton and the central controller as its brain, then the robot wire harness is undoubtedly its nervous system. Just as a biological neural network transmits vital impulses throughout the body, a robotic cable assembly acts as the critical lifeline for automation equipment. It shoulders the dual responsibility of power delivery and continuous signal transmission. By seamlessly connecting controllers, advanced sensors, and servo motors, the quality of this "neural network" directly dictates the robot's motion precision, operational stability, and overall lifespan.
As automation scales across industries, off-the-shelf cables often fall short of meeting the rigorous twisting, bending, and harsh environmental demands of modern robotics. This is where a Professional Wire Harness Factory comes into play, delivering Custom Solutions engineered for your specific application.
What is a Robotic Wire Harness?
A robotic wire harness is a meticulously engineered bundle of cables, wires, and connectors designed to withstand extreme dynamic stress. Unlike standard wiring, robotic harnesses are built to endure millions of flexing and torsional cycles without experiencing continuity failure, insulation breakdown, or electromagnetic interference (EMI).
Working Principle & Core Functions
The harness routes electrical power to drive the servo motors while simultaneously carrying delicate data signals from encoders and sensors back to the controller. This requires specialized shielding and jacketing materials to ensure that high-voltage power lines do not interfere with low-voltage data signals, guaranteeing zero-latency communication and absolute precision in robotic movements.
Classifications and Applications of Robot Cable Assemblies
Depending on the kinematic requirements of the robot, cable assemblies are generally categorized into three main types:

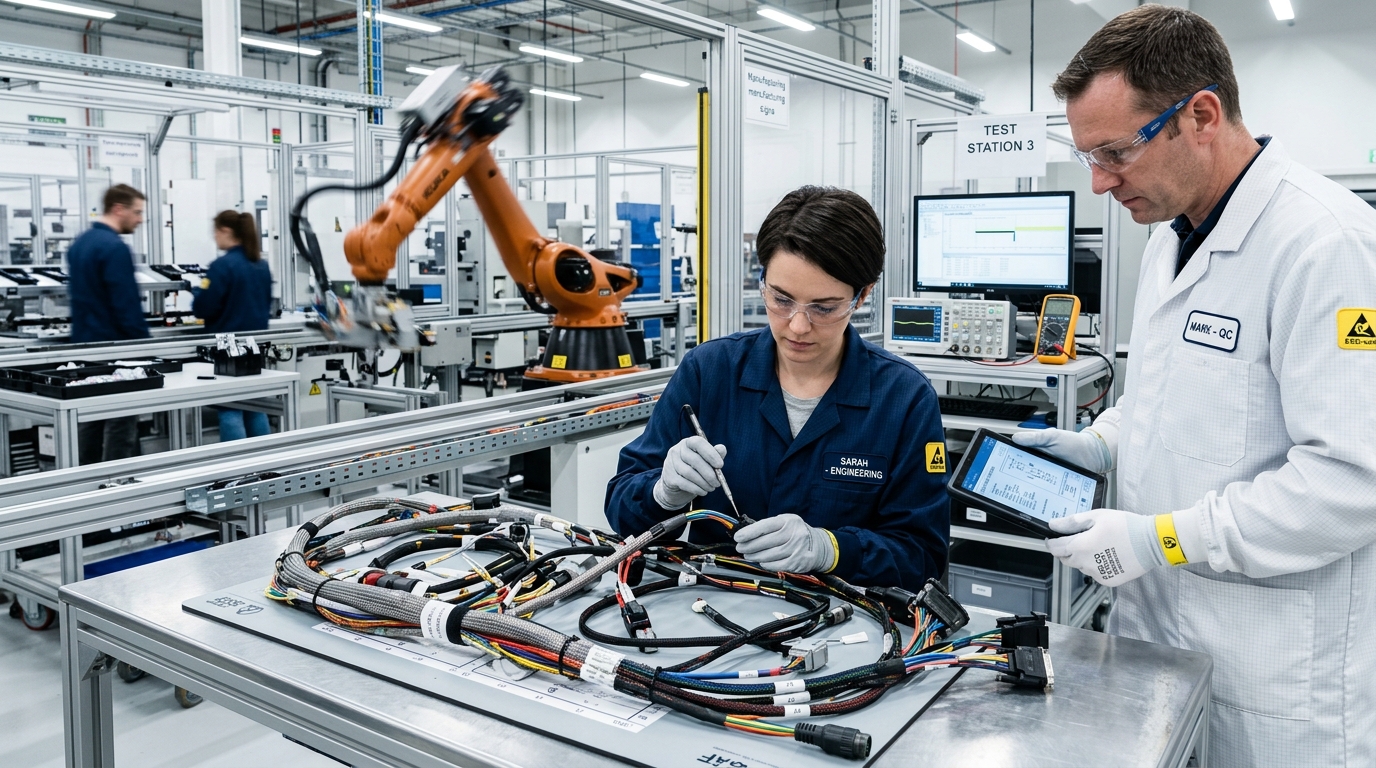

1. Torsion & High-Flex Cables (Dynamic Applications)
Designed for 6-axis industrial articulated robots, these cables endure constant twisting and bending. They are heavily utilized in welding, painting, and material handling robots.
2. Track & Drag Chain Cables (Linear Motion)
Used primarily in Cartesian robots and gantry systems, these harnesses are engineered to move back and forth along a linear axis inside a cable carrier.
3. Static Internal Wiring
Applied within the stationary base or control cabinets of robotic cells. While they don't experience dynamic movement, they require superior heat resistance and space-saving designs.
Technical Specifications: Wires and Connectors
To guarantee peak performance, every component must be carefully selected. Below are the standard specifications we offer for our custom robotic harnesses.

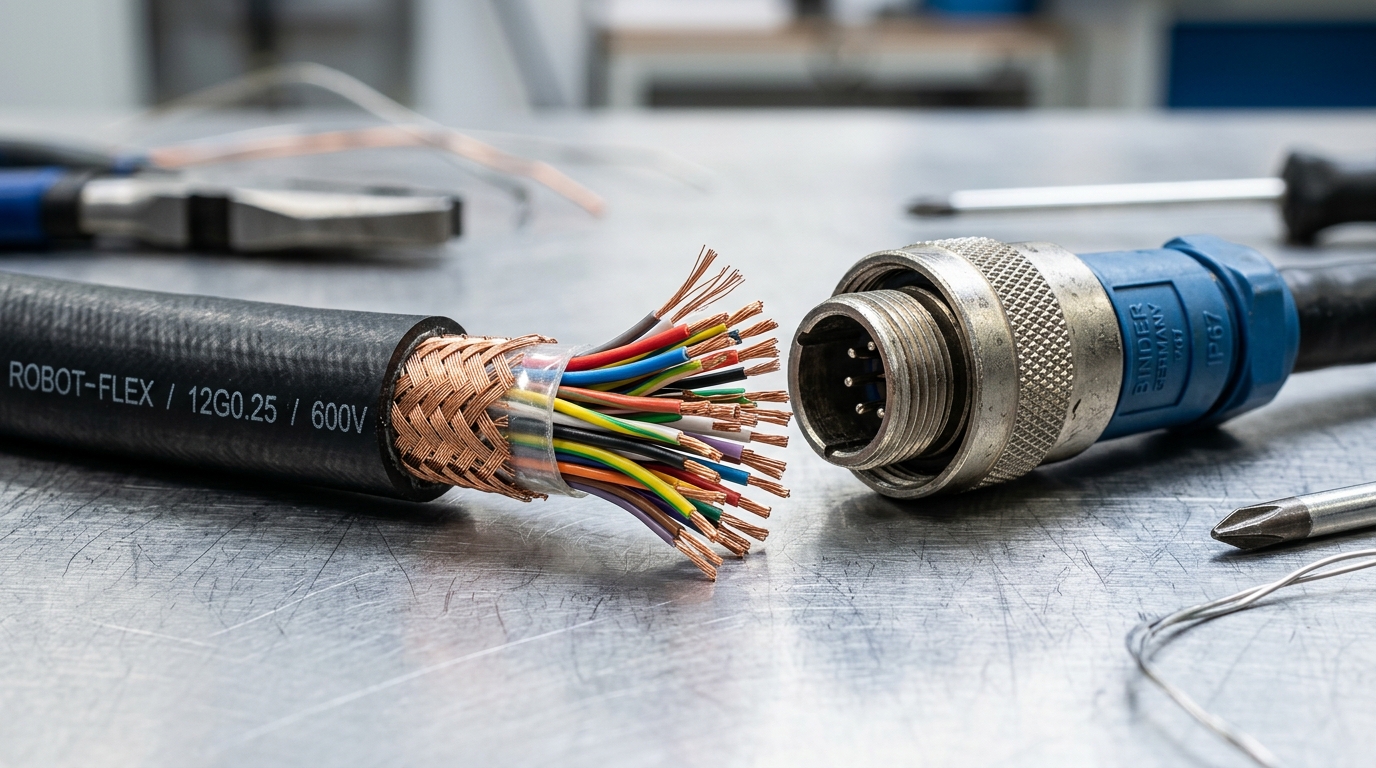

Wire & Cable Specifications
| Feature / Component | Specification Details | Application / Benefit |
|---|---|---|
| Conductor Material | Bare Copper, Tinned Copper, Silver-Plated Copper | High conductivity and corrosion resistance |
| Wire Gauge (AWG) | 30 AWG to 2 AWG (Customizable) | Accommodates both micro-sensors and high-power servo motors |
| Insulation / Jacket | PUR, TPE, PVC, Teflon (PTFE) | PUR/TPE for extreme high-flex and oil resistance; Teflon for high heat |
| Flexing Cycles | 5 Million to 20+ Million Cycles | Ensures maximum longevity in dynamic, continuous-motion robots |
| Shielding | Tinned Copper Braid (>85% coverage), Aluminum Foil | Prevents EMI/RFI, ensuring flawless signal transmission |
| Voltage Rating | 300V / 600V / 1000V | Safe power delivery tailored to specific robotic systems |
Connector Specifications
| Connector Attribute | Specification Details | Application / Benefit |
|---|---|---|
| Supported Brands | TE Connectivity, Molex, Amphenol, JST, Harting | Guarantees compatibility with global robotic platforms (Fanuc, ABB, KUKA) |
| Connector Types | Heavy-Duty Rectangular, Circular (M8/M12/M23), D-Sub | Secure, vibration-proof mating for industrial environments |
| IP Rating | IP65, IP67, IP68, IP69K | Waterproof, dustproof, and suitable for washdown environments |
| Locking Mechanism | Threaded, Push-Pull, Bayonet | Prevents accidental disconnection during high-speed robotic movements |
Why Choose Us as Your Professional Wire Harness Factory?
Designing the perfect nervous system for your robotic equipment requires deep engineering expertise and rigorous quality control. As a trusted OEM manufacturer, we provide end-to-end value for B2B buyers, automation engineers, and robotics developers.
- ISO9001 Certified Quality: Quality is not just a buzzword; it's engineered into every cable. Being ISO9001 Certified, we adhere to strict international manufacturing standards, ensuring that every harness undergoes rigorous continuity, high-voltage (hipot), and pull-force testing before leaving our facility.
- Expert Design Team: Our Expert Design Team collaborates directly with your R&D engineers. We assist in cable routing design, material selection, and 3D modeling to prevent premature cable wear and optimize the lifespan of your robotic systems.
- 100% Custom Solutions: We don't just sell standard cables. From specialized shielding against welding spatter to hybrid cables combining power, Ethernet, and pneumatic tubes, we deliver fully Custom Solutions tailored to your exact CAD drawings and operational environment.
- Low Volume Production Supported: We understand that developing new robots involves prototyping and testing. Unlike rigid mega-factories, our agile manufacturing lines ensure that Low Volume Production Supported is a reality. Whether you need 10 prototypes or 10,000 mass-produced units, we scale with your business.
Ready to Upgrade Your Robot's Neural Network?
Don't let a subpar cable assembly be the weak link in your sophisticated robotic system. Partner with an industry-leading manufacturer dedicated to precision, durability, and customization.
Contact us today to share your project specifications. Our engineers are ready to provide a comprehensive design review and a competitive quote for your next robotic wire harness project!
