The Ultimate Guide to Industrial Robot Wiring Harnesses: Powering Industry 4.0 Automation
In the era of Industry 4.0 and smart manufacturing, automated systems are executing highly complex tasks with unprecedented precision. At the core of these sophisticated machines lies a critical component: the industrial robot wiring harness. Functioning as the central nervous system of automation, this advanced cable assembly ensures the flawless transmission of power, data, and control signals.
As automated production lines operate 24/7, the demand for highly durable, flexible, and interference-resistant cables has never been higher. Modern robotics face brutal operating conditions—from continuous high-frequency torsion and extreme bending to exposure to industrial oils, chemicals, and dense metallic dust. A standard cable would fail within days under such mechanical stress. Therefore, an engineered industrial robot wiring harness is absolutely indispensable for maintaining operational uptime, preventing catastrophic machine failures, and driving maximum ROI for automation integrators.
Engineering & Technical Anatomy of Robotic Cables
As a specialized custom industrial robot wiring harness manufacturer, we engineer our products to survive the most demanding mechanical and environmental extremes. Understanding the technical architecture of these harnesses is vital for purchasing managers and R&D engineers aiming to optimize their automated systems.
Classifications of Robotic Wiring Harnesses
Depending on the specific architectural requirements of the robotic system, our harnesses are generally categorized into three main types:
- Power Wiring Harnesses: Designed to deliver stable high-voltage currents to servo motors, ensuring consistent kinetic energy without voltage drops.
- Signal & Data Wiring Harnesses: Utilizing twisted pairs and robust shielding to transmit real-time telemetry, encoder feedback, and sensor data with zero latency.
- Hybrid Wiring Harnesses: Custom composite cables that integrate power, signal, and pneumatic/hydraulic tubes into a single, space-saving jacket, ideal for 6-axis articulated robots.
Key Features and Material Advantages
A premium industrial robot wiring harness stands out due to its distinct mechanical resilience:
- Extreme Flexibility & Torsion Resistance: Engineered with ultra-fine stranded bare copper or tinned copper conductors, capable of enduring over 10 to 20 million bending cycles and ±\pm± 180°/m to ±\pm± 360°/m continuous torsion.
- Harsh Environment Durability: Jacketed in advanced polyurethanes (PUR) or specialized thermoplastic elastomers (TPE), making them highly resistant to mineral oils, coolants, UV radiation, weld slag, and abrasive dust.

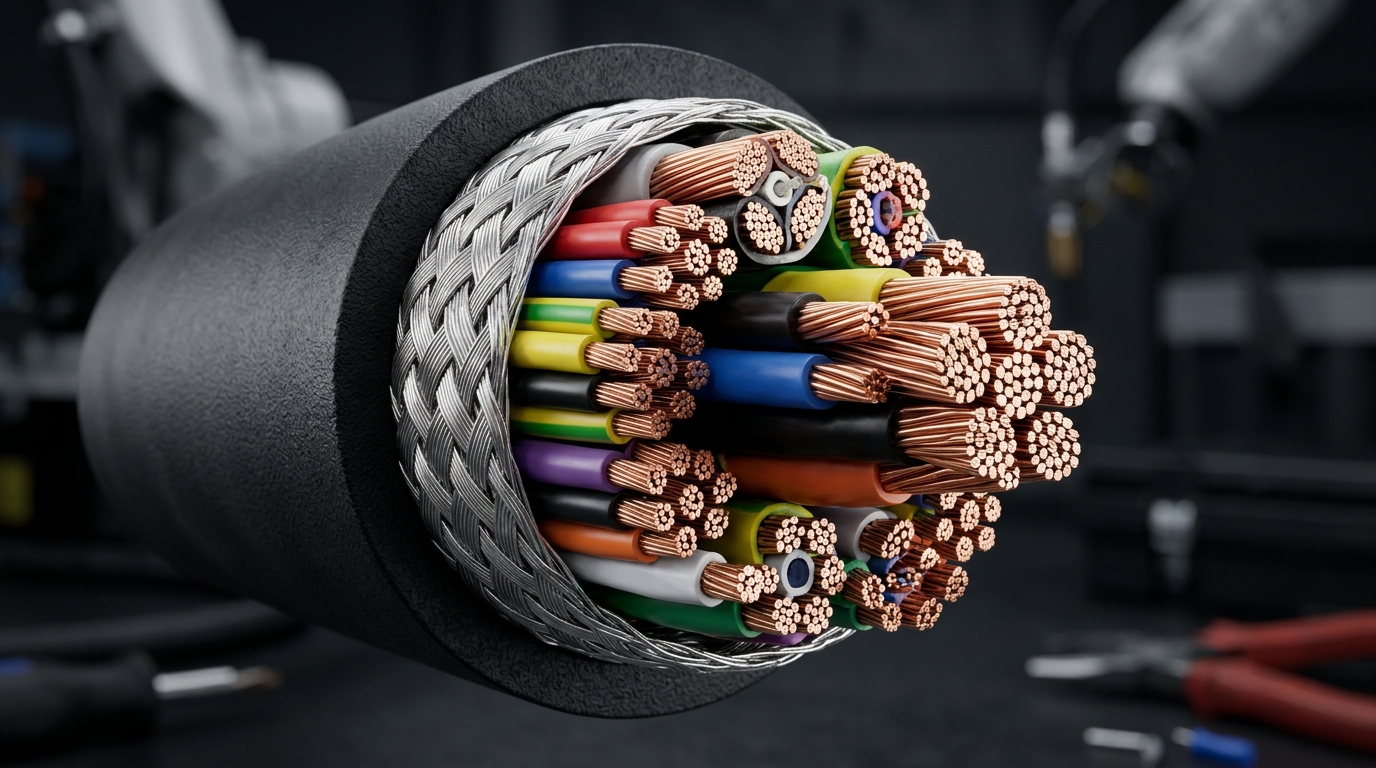

- Electromagnetic Interference (EMI) Shielding: Featuring high-density tinned copper braiding and aluminum foil wrapping to guarantee signal integrity in factory environments saturated with electrical noise.
Working Principles and Core Functions
The primary function of the industrial robot wiring harness is to bridge the main programmable logic controller (PLC) or robot controller with the dynamic actuators and end-of-arm tooling (EOAT). As the robot moves through complex spatial trajectories, the internal conductors smoothly glide against each other within a PTFE wrap or specialized fleece tape, minimizing internal friction. This prevents "corkscrewing" or conductor breakage, ensuring that critical power and data packets flow uninterrupted during continuous 3D motion.
Application Scenarios Across Industries
Our highly customized solutions are deployed across a vast array of automated sectors:

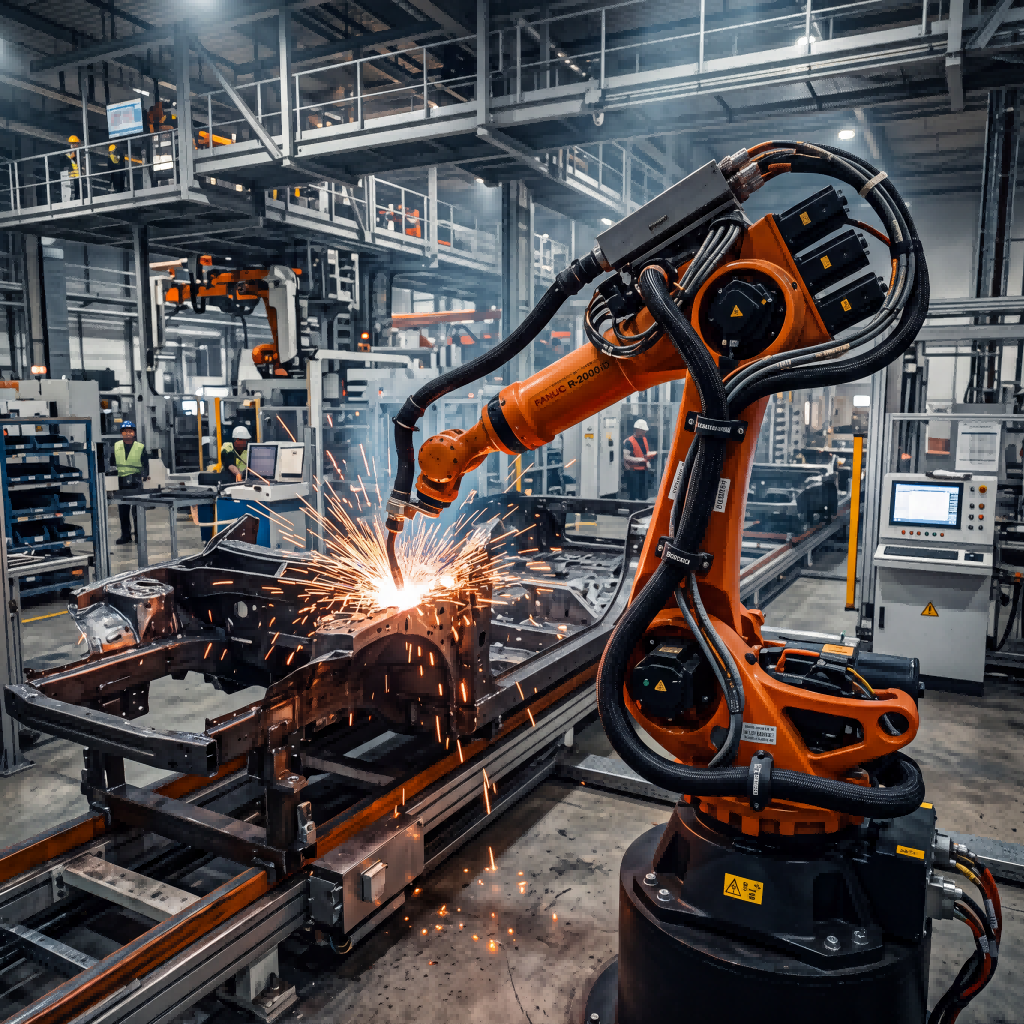

- Automotive Manufacturing: Heavy-duty harnesses for spot-welding robots and automated painting arms.
- Logistics & Packaging: Flexible cables for high-speed pick-and-place delta robots and palletizers.
- Automated Cleaning & Maintenance: The same advanced high-flex technology is scaled and adapted to create ultra-reliable components like the sensor wiring harness for sweeping robots, guaranteeing precise navigation and obstacle avoidance in heavy-duty commercial and industrial floor cleaning applications.
Technical Specifications: Wires and Connectors
To guarantee uncompromised performance, every component must adhere to rigorous global industrial standards. Below are the comprehensive engineering specifications we utilize to construct our high-performance industrial robot wiring harness assemblies.
| Specification Category | Parameter / Technical Details | Materials / Industry Standards |
|---|---|---|
| Conductor Specs | 30 AWG to 2 AWG (Depending on Power/Signal needs) | Class 6 ultra-fine stranded bare/tinned copper |
| Insulation | Dielectric strength tailored to voltage requirements | TPE, FEP, or specialized PVC |
| Outer Jacket | High-abrasion, flame-retardant, halogen-free | Premium PUR, TPE (UL/CSA/CE certified) |
| Torsion Rating | ±\pm± 180°/m to ±\pm± 360°/m | Tested for >10,000,000 continuous cycles |
| Bending Radius | 5x to 7.5x cable diameter (Dynamic applications) | Highly flexible internal structural design |
| EMI Shielding | >85%>85\%>85% optical coverage | Tinned copper braid + Aluminum/Mylar foil |
| Circular Connectors | M8, M12, M23 (A, B, D, X-coded) | Gold-plated contacts, IP67/IP68 rated |
| Heavy-Duty Connectors | Multi-pin rectangular industrial inserts (e.g., Harting style) | Die-cast aluminum alloy housings, IP65+ |
| Servo/Encoder Plugs | D-Sub, RJ45, customized molding | Over-molded strain relief structures |
| Operating Temp. | -40°C to +90°C (Dynamic); up to +125°C (Static) | Withstands extreme industrial fluctuations |
Why Choose Us as Your Custom Industrial Robot Wiring Harness Manufacturer?
As a seasoned custom industrial robot wiring harness manufacturer, we understand that off-the-shelf cables rarely meet the stringent demands of highly specialized robotic integration. We don't just supply cables; we deliver fully engineered connectivity solutions optimized for your specific automation architecture.
Here is why top-tier industrial equipment manufacturers and B2B procurement managers trust us with their automated systems:
- ISO9001 Certified Quality: Our entire manufacturing process is governed by strict ISO9001 quality management systems. Every harness undergoes rigorous 100% testing, including continuity, high-voltage, pull-force, and dynamic flex-cycle testing before leaving our facility.
- Comprehensive OEM & ODM Support: We specialize in bringing your blueprints to life. Whether you need a simple sensor array or a complex hybrid umbilical cable for a heavy-payload robot arm, we build to your exact specifications.
- Low Minimum Order Quantities (Small Batch Production): We understand that R&D prototyping and niche industrial equipment do not always require massive volumes. We proudly support small batch production to help you test and scale your innovations without massive upfront capital risk.
- Expert In-House Design Team: Struggling with routing issues, space constraints, or frequent cable failures? Our dedicated team of mechanical and electrical engineers will work closely with you to redesign your wire architecture, optimize materials, and provide a 3D simulation of the harness behavior.
- Rapid Prototyping & Turnaround: Time to market is critical. Our streamlined supply chain and agile production lines ensure you get your custom prototypes fast, keeping your engineering schedule on track.
Elevate Your Automation Reliability Today
Do not let inferior cabling become the bottleneck of your advanced robotic systems. Partner with a manufacturer that understands the harsh realities of industrial automation.
Contact us today to speak with our engineering team, request a custom sample, or get a highly competitive quote for your next industrial robot wiring harness project.
