The Ultimate Guide to Robot Vision Cable Harnesses: Enabling Flawless IIoT Automation
In the era of Industry 4.0 and the Industrial Internet of Things (IIoT), machine vision serves as the "eyes" of automated manufacturing. However, the reliability of these sophisticated systems heavily depends on their central nervous system: the Robot Vision Cable Harness.
A robot vision cable assembly is a highly specialized interconnect solution designed to link industrial cameras, optical sensors, and frame grabbers with Industrial PCs (IPCs) or main control units. Unlike standard commercial cables, industrial vision harnesses possess a high technical threshold. They must guarantee zero-packet-loss, high-bandwidth data transmission (often exceeding 10 Gbps) while enduring relentless dynamic motion, severe electromagnetic interference (EMI), and harsh factory environments. For automation system integrators (SI) and robotics engineers, specifying the correct vision cable is no longer an afterthought—it is a critical requirement for maintaining optimal system uptime and inspection accuracy.
Classification of Machine Vision Cable Assemblies
To meet diverse bandwidth and distance requirements, robot vision cables are categorized by their communication protocols and connector interfaces:
- GigE Vision Cables: Utilizing Cat5e, Cat6, or Cat6a standards, these cables provide excellent long-distance transmission (up to 100 meters) and support Power over Ethernet (PoE). They frequently utilize robust M12 X-coded or locking RJ45 connectors.
- Camera Link Assemblies: Designed for ultra-high-throughput real-time imaging, featuring SDR (Mini Camera Link) or MDR connectors. They are ideal for high-resolution line-scan cameras.
- CoaXPress (CXP) Cables: Utilizing coaxial configurations (such as BNC or DIN 1.0/2.3 connectors) to deliver ultra-high frame rates and resolutions over long distances, often used in cutting-edge 3D scanning.
- USB 3.0 Vision Cables: Perfect for high-speed, short-distance plug-and-play applications. They typically feature Micro-B connectors with locking screws to prevent accidental disconnection during robotic movement.
- M12/M8 Sensor Harnesses: The backbone for industrial I/O, trigger signals, and strobe lighting power, ensuring synchronized image capture.
Working Principle & Core Functions
The core function of a vision system cable assembly is to maintain absolute signal integrity under extreme duress.

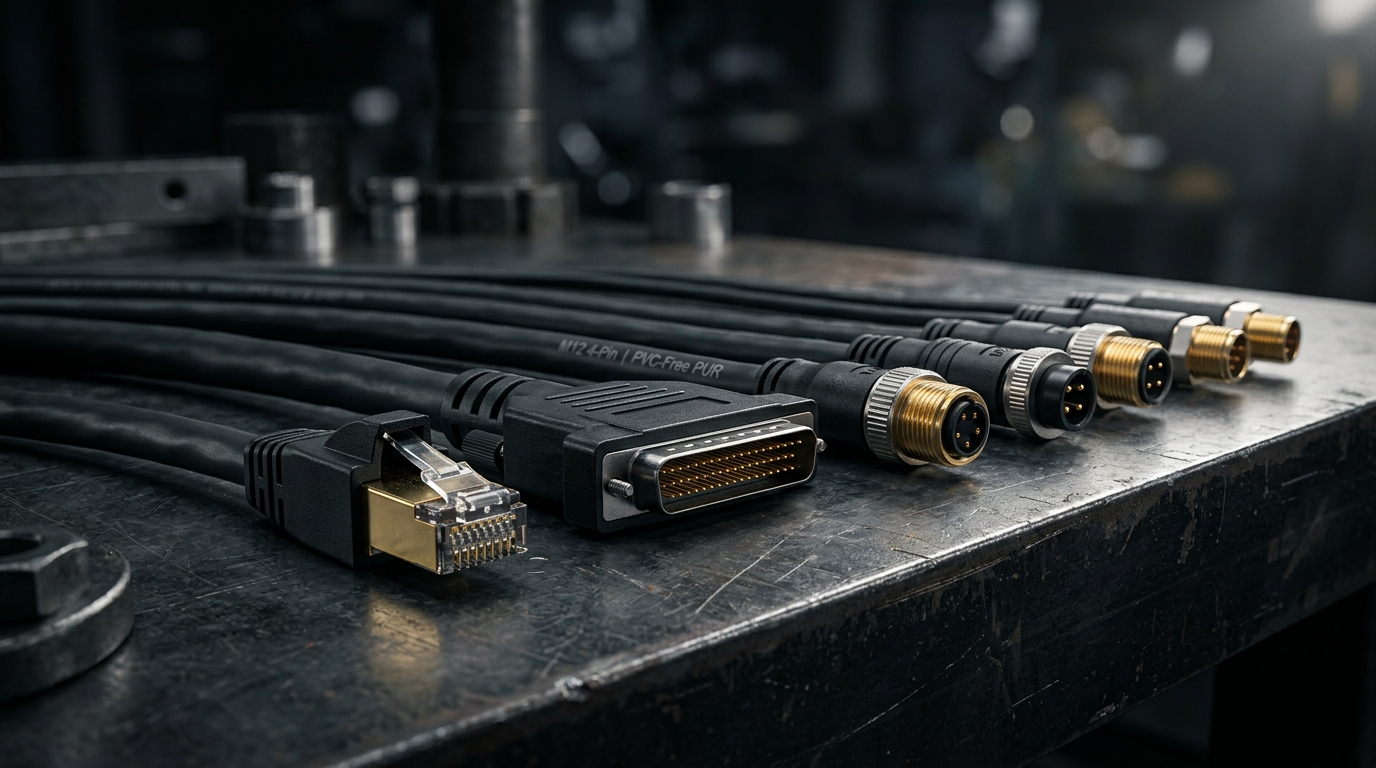

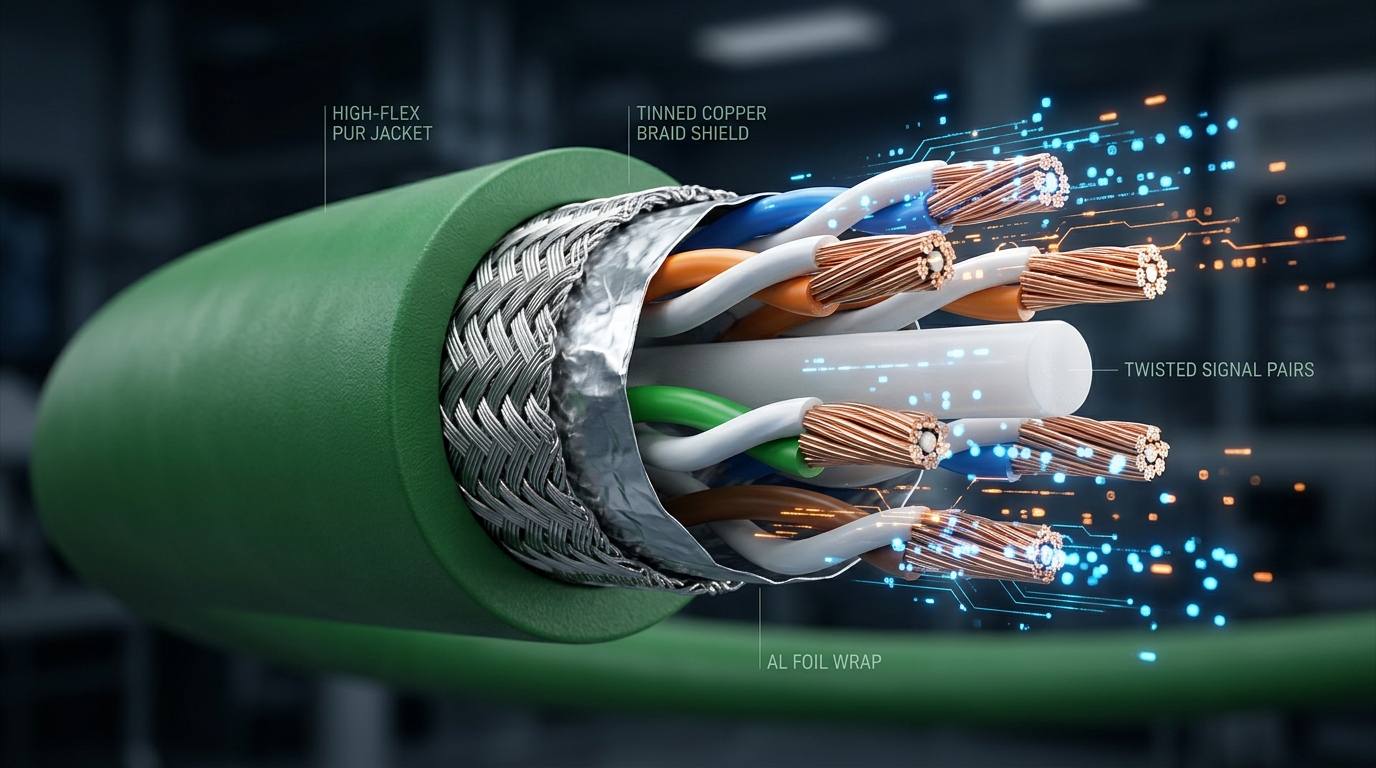

When a multi-axis robotic arm moves rapidly, standard cables suffer from impedance mismatching and micro-frictions between internal conductors, leading to signal attenuation and dropped frames. Professional robot vision cables solve this through precise impedance control and advanced shielding geometries. By incorporating 360-degree tinned copper braided shielding and aluminum foil wrapping, these harnesses effectively reject both Electromagnetic Interference (EMI) and Radio Frequency Interference (RFI) generated by nearby servo motors and high-voltage equipment. Furthermore, the specialized twisted-pair or coaxial internal structure guarantees that high-frequency data streams remain stable, ensuring the IPC receives uncorrupted visual data for instant algorithmic processing.
Key Features of Industrial Vision Cables
To survive in demanding manufacturing environments, high-quality vision cables are engineered with rigorous mechanical and electrical characteristics:
- High-Flexing & Drag Chain Capability: Built with ultra-fine stranded copper wire and PTFE/Teflon insulation, these cables are rated for 10 million to 20 million bending cycles (high-flexing cycles) in U-shaped drag chains without conductor breakage.
- Harsh Environment Resistance: Extruded with industrial-grade Polyurethane (PUR) or Polyvinyl Chloride (PVC) jackets, making them highly resistant to cutting oils, coolants, chemicals, and abrasion.
- High Protection Ratings (IP67/IP68): When mated correctly, the connectors provide a waterproof and dustproof seal, vital for washdown environments in food processing or CNC machining.
- Secure Locking Mechanisms: Utilizing thumbscrews, push-pull locking, or threaded coupling nuts to eliminate vibration-induced disconnections.
Primary Application Scenarios
Reliable visual communication is the bedrock of intelligent manufacturing. These custom cable assemblies are deployed in:
- Automated Optical Inspection (AOI): Ensuring flawless high-resolution image transmission for defect detection in PCB assembly and semiconductor packaging.
- Pick and Place Robotics: Providing high-flexibility for Delta and SCARA robots requiring rapid, repetitive multi-directional movements.
- 3D Vision Guided Positioning: Enabling precise spatial coordinates for automotive welding robots and automated bin-picking systems.
- Logistics & Barcode Scanning: Powering high-speed gigabit data transfer for conveyor belt sorting arrays.
Professional Specifications Table
Below are the industry-standard specifications we adhere to for our custom machine vision cable assemblies.
Technical Specifications: Wire & Connector Architecture
| Category | Parameter | Specification Standard |
|---|---|---|
| Wire Specifications | Conductor Material | Bare Copper / Tinned Copper (Ultra-fine stranded for high-flex) |
| Wire Gauge (AWG) | 22 AWG to 30 AWG (Depending on power/data requirements) | |
| Shielding Type | Double Shielded: Aluminum Foil + 360° Tinned Copper Braid (Coverage >85%) | |
| Jacket Material | PUR (Polyurethane) / Special PVC / TPE | |
| Flexing Lifespan | Standard: 5 Million cycles; High-Flex/Drag Chain: 10M - 20M+ cycles | |
| Operating Temperature | -40°C to +80°C (Dynamic) / -50°C to +90°C (Static) | |
| Flammability Rating | UL94 V-0 / VW-1 | |
| Connector Specifications | Supported Interfaces | RJ45, M12 (A/X-Code), M8, SDR/MDR, USB 3.0 Micro-B, BNC |
| Connector Brands | Compatible with Hirose, Binder, Telegärtner, Amphenol, or Custom OEM | |
| Locking Mechanism | M2/M3 Thumbscrews, Threaded Coupling, Push-Pull Latch | |
| Contact Plating | Gold-plated (Minimum 3μ" to 50μ" for optimal signal transmission) | |
| IP Rating (Mated) | IP67, IP68 (Specifically for M12, M8, and sealed RJ45 variants) |
Why Choose Us for Your Custom Solutions (B2B Factory Advantage)
Finding a reliable supplier for industrial-grade cabling can be challenging. As a specialized manufacturer, we bridge the gap between cutting-edge technology and scalable manufacturing. Here is why global automation integrators and B2B buyers trust our factory:
- Professional Cable Harness Factory: With over 10 years of dedicated experience in industrial interconnects, we manufacture 100% factory-tested cables that eliminate signal attenuation and EMI issues.
- ISO9001 Certified Quality System: From raw copper drawing to final connector overmolding, every step is rigorously monitored. All cables undergo comprehensive Fluke network testing, continuity checks, and bending lifespan simulations.
- Support for Customization (OEM/ODM): We do not just sell off-the-shelf products. Whether you need a specific length, custom pinout, unique angled connectors, or hybrid cables (power + data), we build to your exact blueprints.
- Support for Low MOQ (Small Batch Production): We understand the R&D and prototyping phases of robotics projects. We gladly support Low Minimum Order Quantities to help engineers validate their vision systems before mass production.
- Professional Engineering & Design Team: Our in-house technical experts provide free DFM (Design for Manufacturing) consulting. We assist you in selecting the correct AWG, shielding structures, and jacket materials to maximize your robot's uptime.
High-Converting Call to Action (CTA)
Do not let a substandard cable become the bottleneck of your multi-million-dollar machine vision system.
Ready to upgrade your robotic automation's reliability? Contact our engineering team today to discuss your specific requirements. Submit your technical drawings or specifications and receive a Free Design Consultation and a Custom RFQ within 24 hours!
