The Ultimate Guide to Industrial Control Wiring Harnesses: The Neural Network of Automation

In the era of Industry 4.0, the reliability of manufacturing equipment relies heavily on unseen components. Much like the human body depends on its nervous system to transmit brain signals to muscles, automated machinery depends on an industrial control wiring harness to operate seamlessly. Without this critical infrastructure, even the most advanced processors and mechanical actuators would be rendered useless.

Understanding the engineering behind an industrial equipment control cable assembly is essential for product engineers and procurement managers aiming to optimize machine performance, reduce downtime, and ensure long-term operational stability.

How It Works: The Core of Industrial Automation Control Wiring

At its fundamental level, industrial automation control wiring serves a dual purpose: power distribution and data communication. It acts as the bridge connecting sensors, actuators, human-machine interfaces (HMIs), and central processing units.

When a command is initiated, the machine control signal harness transmits low-voltage electrical impulses with zero latency. Simultaneously, dedicated power lines within the same harness assembly deliver the precise electrical current required to drive servo motors and pneumatic valves. This complex interplay ensures that mechanical components move with micrometer precision, completely free from signal degradation or power loss.

Technical Superiority: Materials and Physical Characteristics

To survive in harsh manufacturing environments, a factory automation equipment control wire must be engineered with uncompromising quality. Standard commercial wires simply cannot withstand the mechanical stress, chemical exposure, and electromagnetic interference (EMI) found on factory floors.

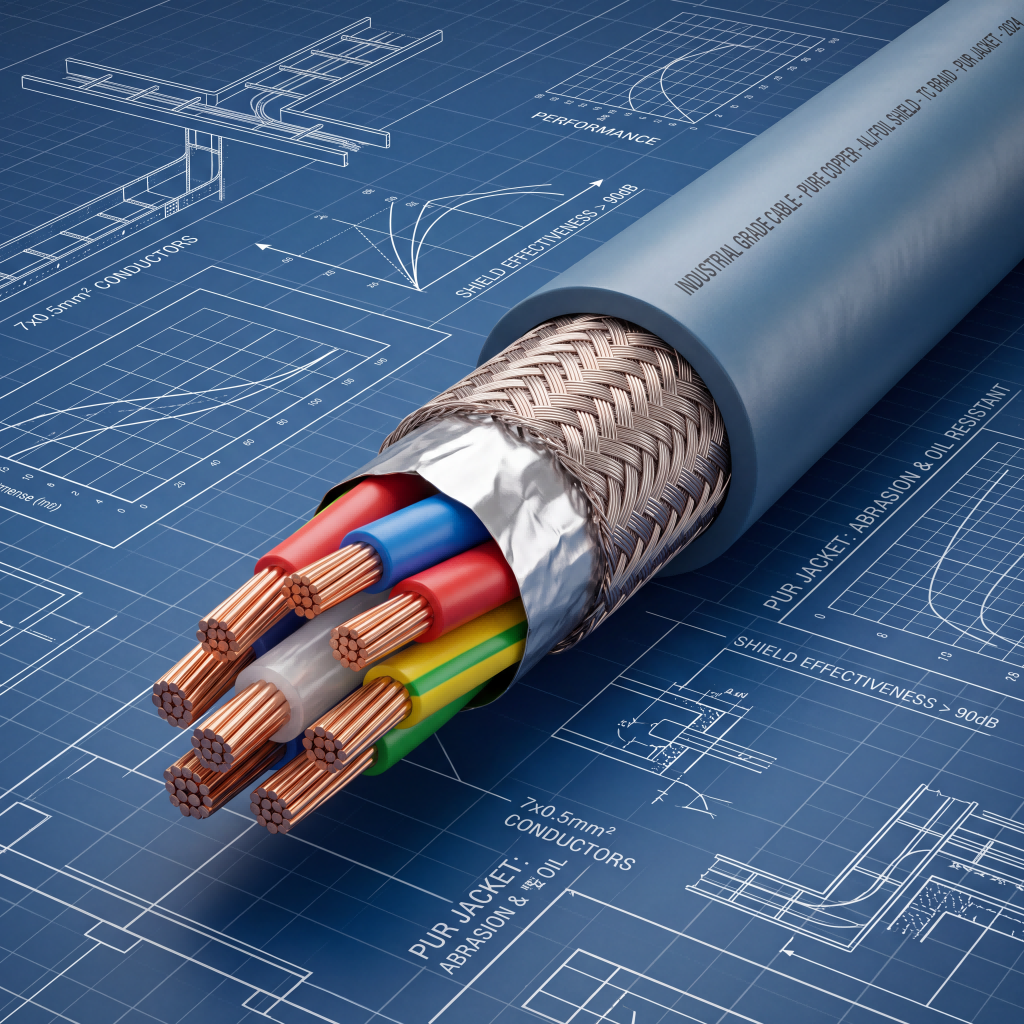

Premium Conductor Materials

• Pure Bare Copper: Delivers maximum electrical conductivity, ideal for high-current power transmission within industrial control cabinets.
• Tinned Copper: Offers superior resistance to oxidation and corrosion, ensuring long-term signal integrity in humid or chemically aggressive environments.

Advanced Insulation and Jacketing

• Flame Retardant & Temperature Resistant: Utilizing advanced polymers such as PUR (Polyurethane), PTFE (Teflon), and cross-linked PVC, our harnesses maintain structural integrity in extreme temperatures, completely resisting melting or combustion.
• Chemical & Oil Resistance: Specially formulated jackets prevent degradation when exposed to industrial lubricants, coolants, and cleaning solvents.

Unyielding Physical Resilience

• Anti-Interference (EMI/RFI Shielding): Featuring aluminum foil wrapping and tinned copper braiding, the shielding protects sensitive data lines from electromagnetic noise generated by heavy machinery.
• High Flex Life & Bending Resistance: Engineered for dynamic applications, these cables endure millions of bending cycles without conductor fatigue or jacket cracking.

Technical Specifications & Parameters

To assist engineers and system integrators in their design phase, below is a detailed specification matrix for our standard and custom assemblies.

Critical Application Scenarios in Modern Manufacturing

The design and configuration of a wiring harness vary drastically depending on its end-use environment.

CNC Machine Control Wiring Harness

Computer Numerical Control (CNC) machines require exceptional precision. A CNC machine control wiring harness must not only transmit high-speed multi-axis motion control signals but also withstand constant exposure to cutting fluids, metal shavings, and heavy vibrations. High oil resistance and robust EMI shielding are paramount here.

Industrial Robot Arm Control Cable

Robotics demand extreme mechanical flexibility. An industrial robot arm control cable is subjected to continuous torsion, bending, and twisting (often exceeding 10 million flex cycles). We utilize specialized TPE or PUR jackets and unique stranding techniques to prevent wire breakage during rapid, repetitive robotic movements.

PLC Control System Wiring Harness

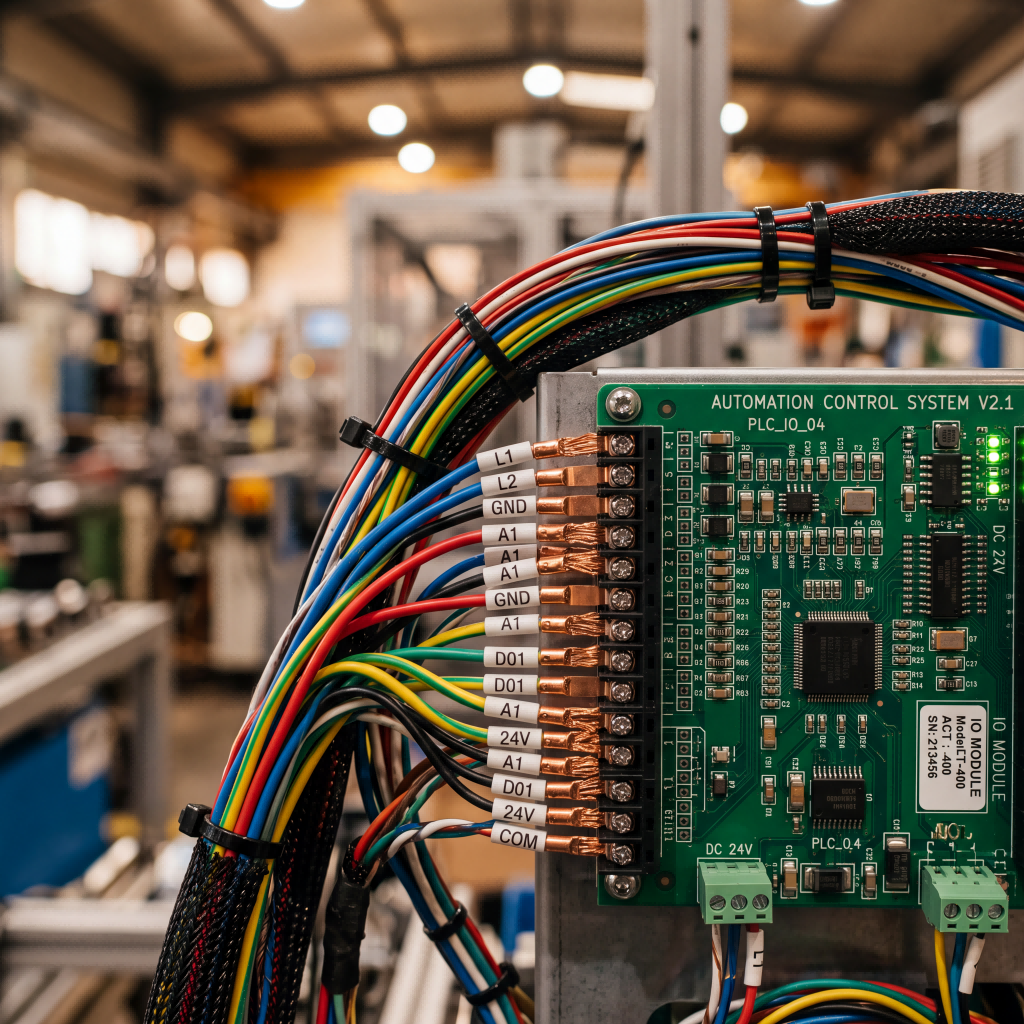

Programmable Logic Controllers (PLCs) are the brains behind factory automation. A PLC control system wiring harness typically features dense, multi-core signal wires that connect I/O modules to field devices. These harnesses prioritize zero-signal-loss transmission and secure, vibration-proof connector mating to prevent catastrophic system faults.

Your Trusted Custom Wiring Harness Manufacturer

Sourcing the right connective tissue for your automation equipment is a strategic decision. As a professional custom wiring harness manufacturer, we do more than just assemble wires; we engineer complete connectivity solutions tailored to your exact specifications.

Why partner with us?

• ISO9001 Certified Quality: Every harness undergoes rigorous electrical testing, including continuity, high-voltage, and pull-force tests, ensuring 100% defect-free delivery.
• Expert Design Team: Our in-house engineers collaborate with your R&D department to optimize wire routing, select the most cost-effective materials, and solve complex EMI or spatial challenges.
• OEM & ODM Services: From initial prototyping to full-scale mass production, we provide end-to-end manufacturing support for your proprietary equipment designs.
• Low MOQ (Minimum Order Quantity): We understand that specialized industrial equipment often requires small-batch runs. Our agile production lines support Low MOQ, empowering your rapid prototyping and scaling phases without heavy inventory burdens.

When your automated machinery demands flawless operation, generic cables are a liability. Invest in industrial-grade reliability. Contact our engineering team today with your schematics, and let us build the perfect neural network for your next-generation equipment.
