The Ultimate Guide to the Automotive Low Voltage Wiring Harness: Engineering, Applications, and Custom Solutions

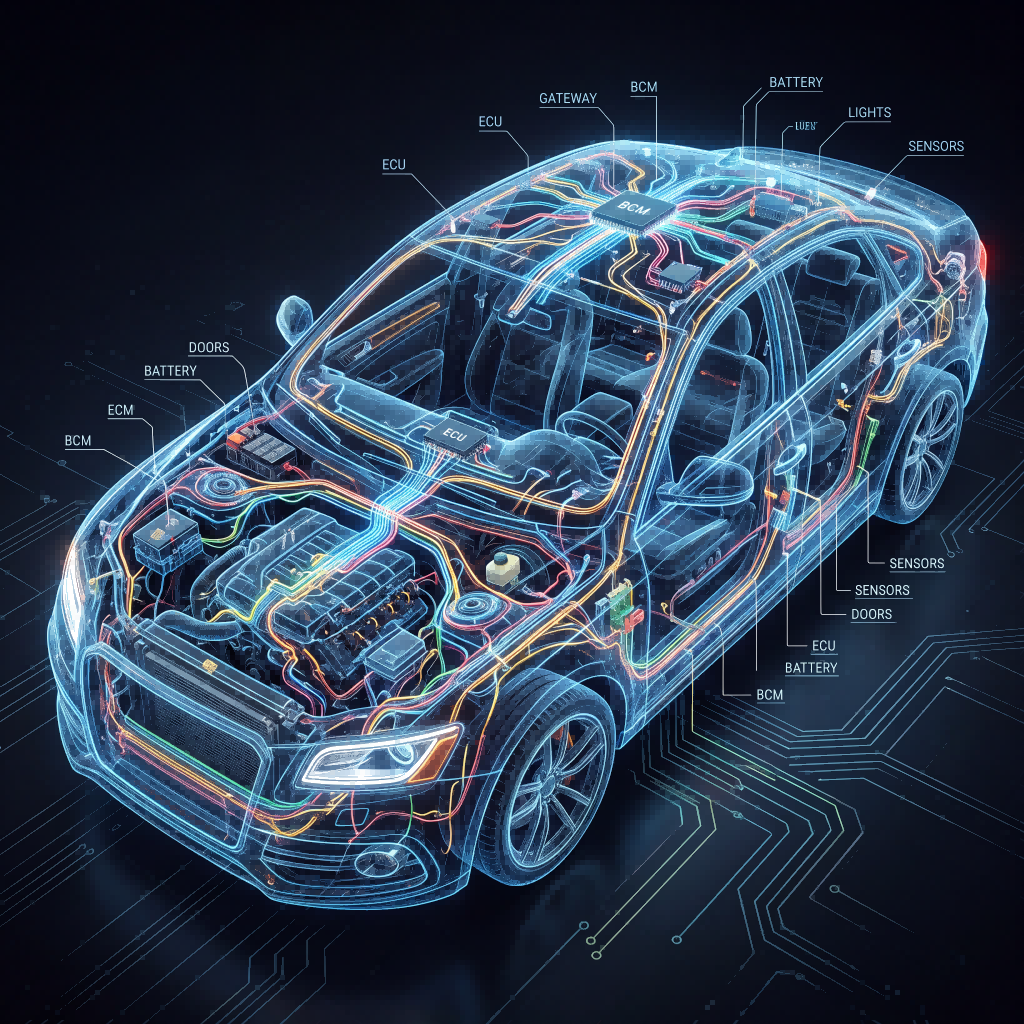

If the engine is the heart of a vehicle, the automotive low voltage wiring harness is undeniably its central nervous system. In the complex architecture of modern vehicles, from traditional internal combustion engine (ICE) cars to cutting-edge electric vehicles (EVs), the reliable transmission of power and data is non-negotiable.
Operating strictly under 60V (most commonly standard 12V or 24V systems), the automotive low voltage wiring harness acts as the core connection carrier. It bridges various electronic control units (ECUs), sensors, actuators, and power sources. A well-engineered harness guarantees vehicle safety, operational efficiency, and long-term durability.
In this comprehensive guide, we will explore the technical nuances, industry trends, and manufacturing specifications of modern auto wiring systems to help purchasing managers and engineers make informed sourcing decisions.
Classifications of the Auto Wiring Harness
Depending on their location and specific function, low voltage harnesses are categorized into several distinct types. Understanding these classifications is vital for engineers designing an automotive low voltage cable assembly.
Main Body Wiring Harness
This is the longest and most complex segment, routing throughout the vehicle cabin. It connects dashboards, interior lighting, power windows, and door locks. It requires exceptional flexibility and abrasion resistance due to the constant vibration of the chassis.
Engine Compartment Harness
Engineered to withstand extreme environments, this harness connects critical engine sensors and controllers. It is heavily insulated to resist high heat, automotive fluids, and severe mechanical stress.
EV Low Voltage Wiring Harness
The rise of electric mobility has introduced a specialized category: the EV low voltage wiring harness. While the high-voltage system handles propulsion, the EV low-voltage system manages critical auxiliary functions, including the Battery Management System (BMS), infotainment, ADAS (Advanced Driver Assistance Systems), and safety relays.
Automotive Low Voltage Signal Wiring Harness
Unlike power-carrying cables, an automotive low voltage signal wiring harness focuses purely on data integrity. These harnesses transmit sensitive micro-current signals from sensors to the ECU, requiring advanced shielding (such as twisted pair configurations) to prevent electromagnetic interference (EMI).
Features & Trending Topics in Modern Cable Assemblies
The standards for a reliable auto wiring harness have evolved drastically. Today's B2B buyers and automotive designers must prioritize the following features:
- Uncompromising Safety Standards: Automotive electrical systems must prevent short circuits and thermal events. Flame-retardant materials and rigorous continuity testing are mandatory to ensure passenger safety.
- Extreme Temperature Resistance: Wires must maintain flexibility in freezing conditions (-40°C) and resist melting in high-heat zones (+125°C to +150°C, depending on the routing).
- Weight Reduction for EV Adaptation: Range anxiety in EVs has pushed the industry toward lightweight materials. Manufacturers are increasingly utilizing ultra-thin wall cables and aluminum conductors to reduce the overall weight of the automotive low voltage cable assembly.
- Enhanced EMI Shielding: With cars becoming "computers on wheels," the automotive low voltage signal wiring harness requires robust shielding against signal crosstalk, ensuring flawless operation of autonomous driving sensors.
Functions & Working Principles
How exactly does this "neural network" function? The primary principle involves routing electrical energy from the 12V battery and alternator to designated electrical loads via precisely calculated wire gauges.
Simultaneously, the harness acts as a data highway. When a driver presses a button, or a sensor detects an obstacle, a low-voltage signal is generated. The automotive low voltage signal wiring harness carries this data directly to the vehicle's ECU. The ECU processes the data and sends a command back through the harness to an actuator, performing the desired action instantly. Proper crimping, waterproof connectors, and secure routing ensure this process happens without voltage drop or signal loss, even in harsh weather conditions.
Standard Specifications for Manufacturing
For engineers and Tier 1 buyers, technical specifications are the most critical aspect of procurement. Below are the common standard specifications utilized in producing a reliable auto wiring harness.
Wire Specifications (Low Voltage)
| Wire Standard | Voltage Rating | Operating Temperature Range | Insulation Material | Common Applications |
|---|---|---|---|---|
| FLRY (Standard) | 60V Max | -40°C to +105°C | PVC (Thin Wall) | Cabin interiors, general power, and signal routing. |
| TXL (SAE Standard) | 60V Max | -40°C to +125°C | XLPE (Cross-linked PE) | Engine compartments, high-temperature zones. |
| GXL (SAE Standard) | 60V Max | -40°C to +125°C | XLPE (Thick Wall) | Heavy-duty automotive applications, battery cables. |
| Twisted Pair | Micro-voltage | -40°C to +105°C | Varies (Shielded) | ADAS sensors, CAN bus, automotive low voltage signal wiring harness. |
Connector & Terminal Specifications
| Feature | Standard Requirement | Description |
|---|---|---|
| Ingress Protection | IP67 / IP69K | Completely dustproof and waterproof against high-pressure wash (essential for exterior routing). |
| Material | PA66 + GF (Glass Fiber) | High impact resistance, thermal stability, and chemical resistance to automotive fluids. |
| Terminal Plating | Tin, Silver, or Gold | Tin for general power; Gold/Silver for high-frequency signal transmission to prevent oxidation. |
| Pitch Size | 1.5mm to 6.3mm+ | Varies based on current load requirements. |
Partner with a Premier Custom Automotive Low Voltage Wiring Harness Manufacturer
Finding a reliable manufacturing partner is crucial to the success of your automotive project. As an industry-leading custom automotive low voltage wiring harness manufacturer, we bridge the gap between innovative design and scalable production.
Whether you are developing traditional ICE vehicles or require a highly specialized EV low voltage wiring harness, our facility is equipped to meet your exact demands.
Why Choose Our Manufacturing Solutions?
- ISO9001 Certified Quality: Every automotive low voltage cable assembly is manufactured under strict international quality control systems, ensuring 100% electrical testing and traceability.
- Comprehensive OEM & ODM Services: We don't just manufacture; we co-create. From reverse-engineering an existing auto wiring harness to building a brand-new architecture from scratch, we offer end-to-end OEM and ODM support.
- Low-Volume Production Support: We understand that R&D, prototyping, and niche vehicle manufacturing don't always require massive MOQs. We proudly support low-volume and mixed-batch production to accelerate your time-to-market.
- Professional Design Team: Our in-house engineering team provides complete turnkey solutions, assisting with schematic design, component selection, 3D routing, and cost-optimization.
Ready to Upgrade Your Vehicle's Electrical Architecture?
Do not compromise on the central nervous system of your vehicles. Contact us today to discuss your project requirements, request a prototype, or get a competitive quote for your custom automotive low voltage wiring harness. Let our engineering team bring your automotive vision to life!
