Custom Industrial Machine Screen Cable Harness Manufacturer
The Ultimate Guide to Industrial Machine Screen Cable Harness Solutions
In the complex ecosystem of modern automation, the industrial machine screen cable harness acts as the central nervous system connecting motherboards to display panels. This critical component ensures high-fidelity video signal transmission and stable power supply, making it an indispensable foundation for Human-Machine Interfaces (HMI). A premium industrial display screen wiring harness is purposefully engineered to eliminate signal attenuation and flickering, directly impacting the operational efficiency and reliability of heavy-duty industrial equipment.
Classification of Industrial Screen Harnesses
To meet diverse hardware requirements, we categorize screen wire assemblies primarily by their interface protocols and transmission capabilities:
LVDS (Low-Voltage Differential Signaling) Assemblies
The industrial LVDS display cable harness remains the industry standard for most TFT-LCD panels. It excels in long-distance, low-noise, and low-power transmission. By utilizing twisted copper pairs, LVDS cables successfully mitigate electromagnetic interference (EMI), making them perfect for standard industrial control panels and CNC machine interfaces.
eDP (Embedded DisplayPort) Assemblies
For next-generation 4K and high-refresh-rate industrial displays, the EDP industrial screen wiring harness is the optimal choice. eDP provides a higher bandwidth with fewer pins compared to LVDS, streamlining the harness footprint while delivering uncompressed, ultra-high-definition visual data essential for precision medical imaging and advanced robotics.
Key Features Built for Harsh Environments
Unlike standard commercial cables, an industrial equipment display cable assembly must endure extreme factory conditions.
- Thermal Resilience: Industrial environments often experience extreme temperature fluctuations. A high temperature resistant industrial display cable utilizes specialized insulation materials like Teflon (PTFE) or cross-linked PVC, allowing continuous operation in environments ranging from -40°C to +105°C (or higher).

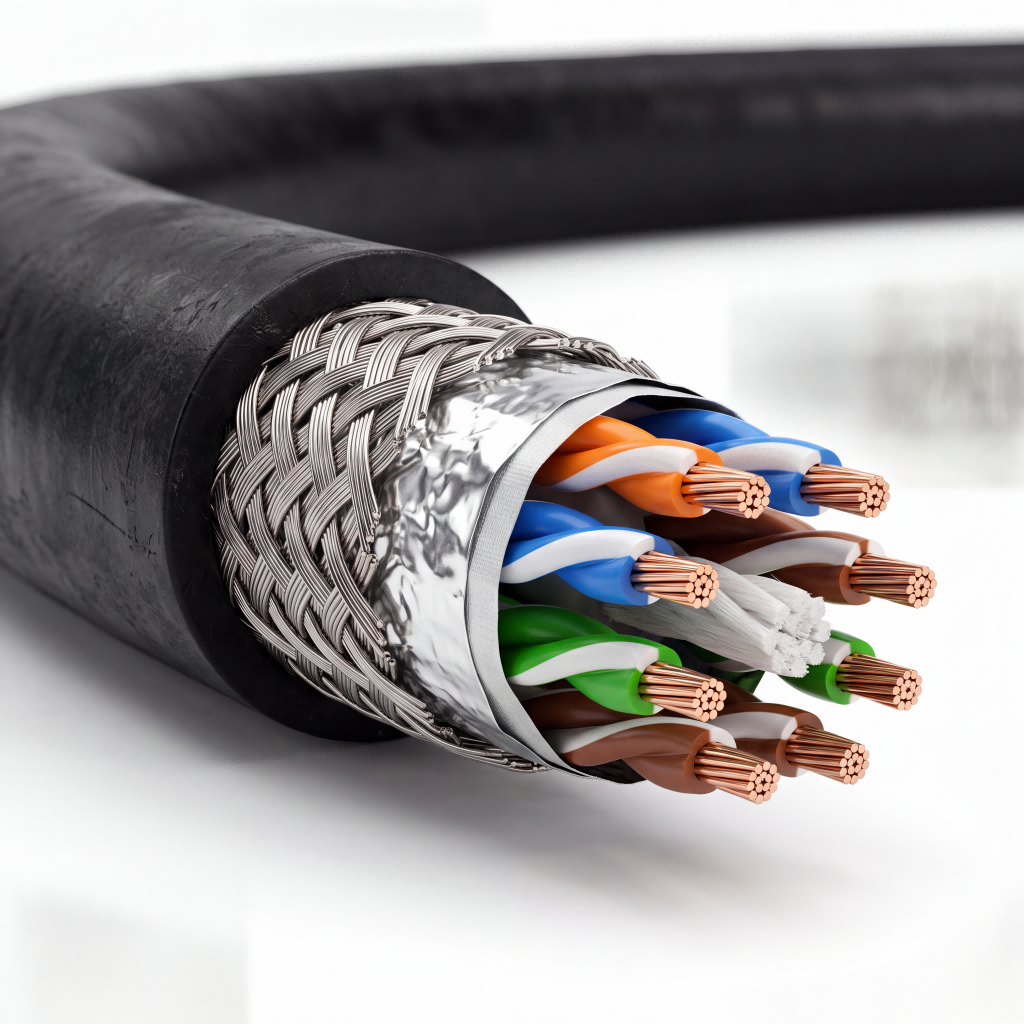

- Superior Anti-Interference: Factory floors are flooded with electrical noise from motors and inverters. A robust shielded industrial machine screen cable assembly incorporates tinned copper braiding and aluminum foil wrapping. This double-shielding technique creates a Faraday cage effect, completely blocking external EMI/RFI and ensuring zero signal distortion.
Critical Applications in Industrial Sectors
The reliability of display connectivity is non-negotiable in mission-critical scenarios. These harnesses are extensively deployed in:
- Industrial Automation: Connecting PLCs to HMI touch panels in assembly lines.
- Medical Equipment: Ensuring pixel-perfect signal transmission for diagnostic monitors.
- Outdoor Kiosks & Vending Machines: Providing weatherproof and durable connectivity.
- Heavy Machinery: Enduring high vibration and mechanical shock in mining or agricultural equipment.
Core Technical Specifications
To assist hardware engineers and sourcing managers in precise component matching, below are the standard specifications for our industrial display cables:
| Specification Category | Parameter Details |
|---|---|
| Wire Gauge (AWG) | 28 AWG, 30 AWG, 32 AWG, 36 AWG Micro-Coaxial |
| Temperature Rating | -40°C to +80°C / +105°C / +125°C (Customizable) |
| Voltage Rating | 30V / 300V / 600V (Depending on application) |
| Connector Brands/Types | JAE, Hirose (HRS), I-PEX, JST, Molex, TE Connectivity |
| Connector Pitch | 0.4mm, 0.5mm, 1.0mm, 1.25mm, 2.0mm |
| Shielding Design | Aluminum Foil + Tinned Copper Braid + Conductive Fabric |
| Jacket Material | PVC, TPE, PUR, Teflon (PTFE) |
| Certifications | UL, RoHS, REACH, CE |
Working Principle: Achieving Signal Integrity
The fundamental working principle of these harnesses relies on differential signaling. Instead of transmitting data as a single electrical voltage relative to ground, the harness transmits two complementary signals over a tightly twisted pair of wires. When external electromagnetic noise intersects the cable, it affects both wires equally. The receiving screen controller evaluates the difference between the two signals, effectively canceling out the noise. Combined with robust physical shielding, this mechanism guarantees flawless data integrity from the motherboard to the industrial display.
Your Trusted Partner for Display Wiring Solutions
Finding a reliable supplier for a custom industrial equipment display wiring harness is critical to your product's success. As a professional custom wiring harness manufacturer, we possess decades of expertise in providing top-tier connectivity solutions for global B2B clients.
- ISO9001 Certified Quality: Every harness undergoes rigorous continuity, impedance, and high-voltage testing before shipment.
- OEM/ODM Accepted: We manufacture exactly to your mechanical drawings, BOM, and electrical specifications.
- Strong Professional Design Team: Our engineers assist with reverse engineering, prototyping, and layout optimization to solve tight-space routing issues.
- Small Batch Production Supported: We understand the R&D cycle. We support a highly flexible, low MOQ policy to help you launch new industrial equipment without heavy inventory burdens.
Ready to upgrade your industrial display connectivity? Contact our engineering team today for a free technical consultation and a rapid quotation on your custom harness project.
