The Ultimate Guide to Stereo/Radio Wiring Harness: Plug & Play Custom Solutions
Upgrading a car’s audio system used to be a frustrating process involving spliced wires, electrical tape, and the constant risk of short circuits. Today, a high-quality Stereo/Radio Wiring Harness has revolutionized the automotive aftermarket industry. Whether you are a car audio shop owner, a brand distributor, or a B2B procurement manager, understanding the technical advantages of these harnesses is crucial for delivering top-tier products to your customers.
In this comprehensive guide, we will explore the working principles, technical specifications, and undeniable benefits of using a plug and play stereo harness for aftermarket radio installation without cutting wires.
What is a Stereo/Radio Wiring Harness?

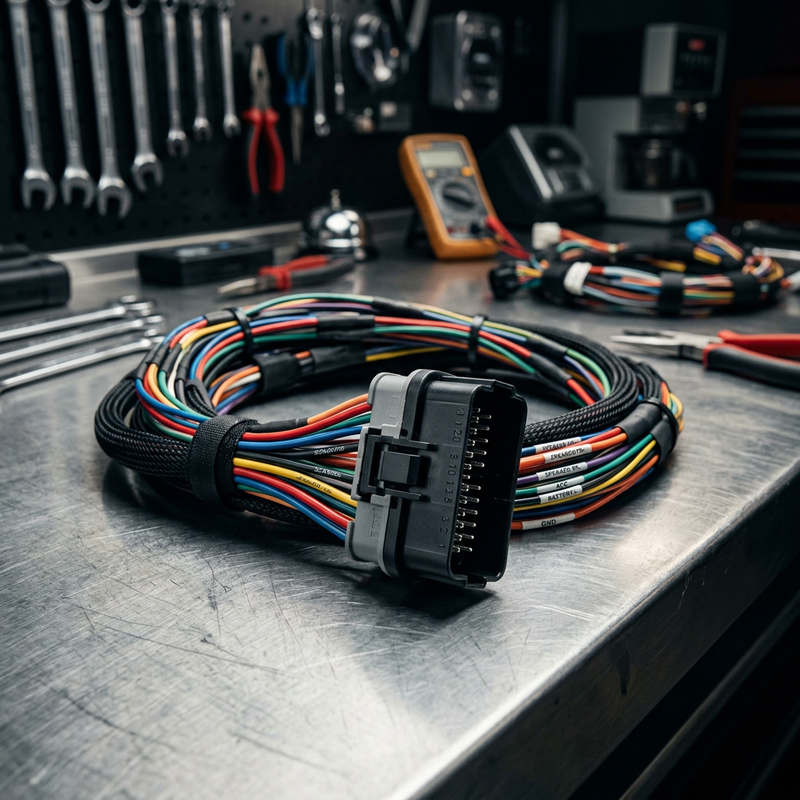

A Stereo/Radio Wiring Harness is an engineered electrical cable assembly designed to connect an aftermarket car stereo (head unit) to a vehicle's factory wiring system. It acts as a critical bridge, mapping the specific wiring schematic of the new radio to the proprietary connectors originally installed by the vehicle manufacturer.
Its primary function is to enable a seamless transition from factory audio to high-end aftermarket systems, ensuring steady power delivery, precise speaker phase alignment, and the retention of factory features like steering wheel controls.
How Does a Car Audio Wiring Harness Work? (Working Principle)
The working principle of a radio harness relies on precise pin-to-pin mapping and standardized electrical routing. When a vehicle leaves the factory, its audio wiring is terminated with a proprietary plastic connector.
An aftermarket stereo/radio wiring harness features an adapter that perfectly mates with this factory connector. On the other side of the harness are bare wires or ISO standard connectors that follow the universally recognized car radio wiring color codes (EIA standard). By matching the colors of the harness to the colors on the new aftermarket radio, technicians can complete the circuit for continuous 12V power, ignition power, ground, and all speaker channels, ensuring a flawless electrical flow without compromising the vehicle's native electrical system.
Key Classifications of Aftermarket Radio Harnesses
Depending on the vehicle and the audio system's complexity, stereo harnesses are generally categorized into three types:
- Standard ISO Harnesses: The most common type, converting proprietary factory plugs into standard ISO connectors for straightforward audio head unit upgrades.
- CAN-Bus Integration Harnesses: Equipped with a decoder module, these advanced harnesses retain factory features like steering wheel controls, reverse cameras, and factory amplifiers by communicating directly with the car's computer network.
- Amplifier Bypass/Integration Harnesses: Designed specifically for vehicles with premium factory sound systems (e.g., Bose, JBL), allowing installers to either bypass the factory amp or integrate the new head unit with it.
Why Choose a Plug and Play Stereo Harness? (Features & Pain Points Solved)
For decades, audio installers faced significant pain points: cutting factory wires caused irreversible damage, voided vehicle warranties, and frequently led to static noise or parasitic battery drains. A premium plug and play stereo harness solves all these issues:
- Zero Wire Cutting: Achieves a true aftermarket radio installation without cutting wires, preserving the vehicle's original wiring integrity and resale value.
- Time Efficiency: Reduces installation time by up to 70%, a massive profitability boost for car audio modification shops.
- Safety & Stability: Eliminates the risk of short circuits and electrical fires caused by poorly insulated spliced wires.
- Noise Reduction: High-quality copper conductors and secure pin terminals prevent impedance mismatches, eliminating the dreaded alternator whine or static noise.
Essential Technical Specifications
As a professional custom wiring harness manufacturer, we strictly adhere to international standards to ensure ultimate reliability. Below are the standard specifications for our stereo harnesses.

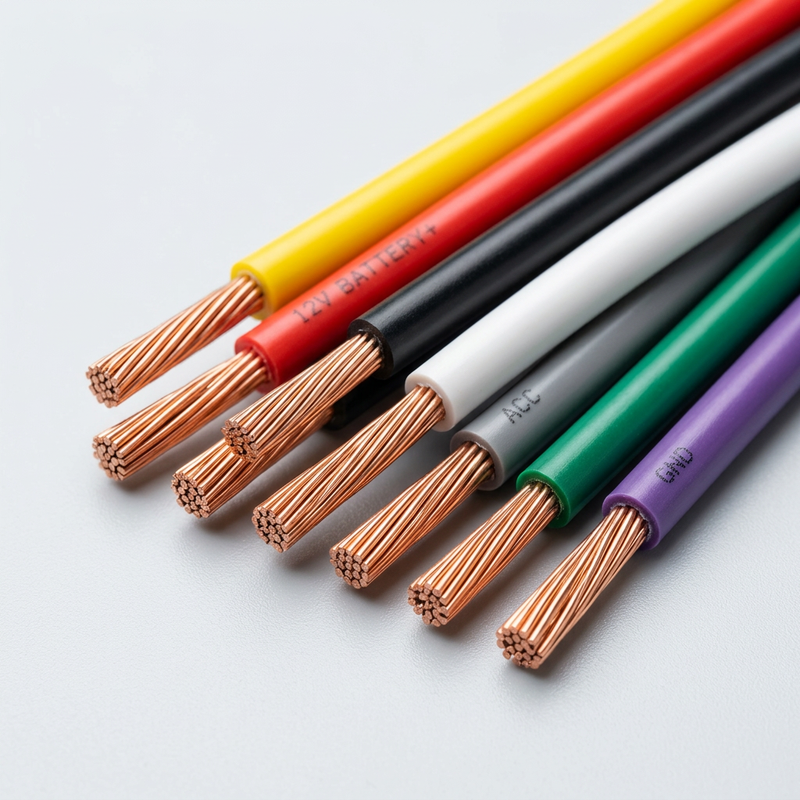

Table 1: Standard Wire Gauges (AWG) for Radio Harnesses
| Wire Function | Recommended Gauge | Material Standard | Core Purpose |
|---|---|---|---|
| Constant Power (12V+) | 14 AWG - 16 AWG | Pure Copper / OFC | Ensures sufficient current for the head unit memory and internal amp. |
| Ground (-) | 14 AWG - 16 AWG | Pure Copper / OFC | Provides a solid ground path to eliminate audio distortion and noise. |
| Ignition/Accessory | 18 AWG | Tinned Copper | Triggers the radio to turn on/off with the vehicle's key. |
| Speaker Outputs | 18 AWG - 20 AWG | Pure Copper / CCA | Delivers clean audio signals to front and rear door speakers. |
Table 2: EIA Standard Car Radio Wiring Color Codes
| Wire Color | Electrical Function | Description |
|---|---|---|
| Yellow | Constant 12V Power | Connects directly to the battery to retain radio memory/clock. |
| Red | Accessory 12V Power | Connects to ignition; turns the stereo on/off. |
| Black | Ground | Chassis ground connection. |
| Blue / Blue-White | Antenna / Amp Turn-on | Sends a 12V signal to activate an external amp or power antenna. |
| White / White-Black | Front Left Speaker | Positive (+) / Negative (-) |
| Gray / Gray-Black | Front Right Speaker | Positive (+) / Negative (-) |
| Green / Green-Black | Rear Left Speaker | Positive (+) / Negative (-) |
| Purple / Purple-Black | Rear Right Speaker | Positive (+) / Negative (-) |
Common Usage Scenarios in Automotive Audio Upgrades
- B2B Automotive Accessory Brands: Bundling model-specific wiring harnesses with their branded Android navigation screens or head units for a complete retail package.
- Professional Audio Modification Shops: Utilizing reliable plug-and-play adapters to increase vehicle turnover rate during busy seasons.
- Commercial Fleet Upgrades: Upgrading entire fleets with modern communication and navigation radios uniformly and safely.

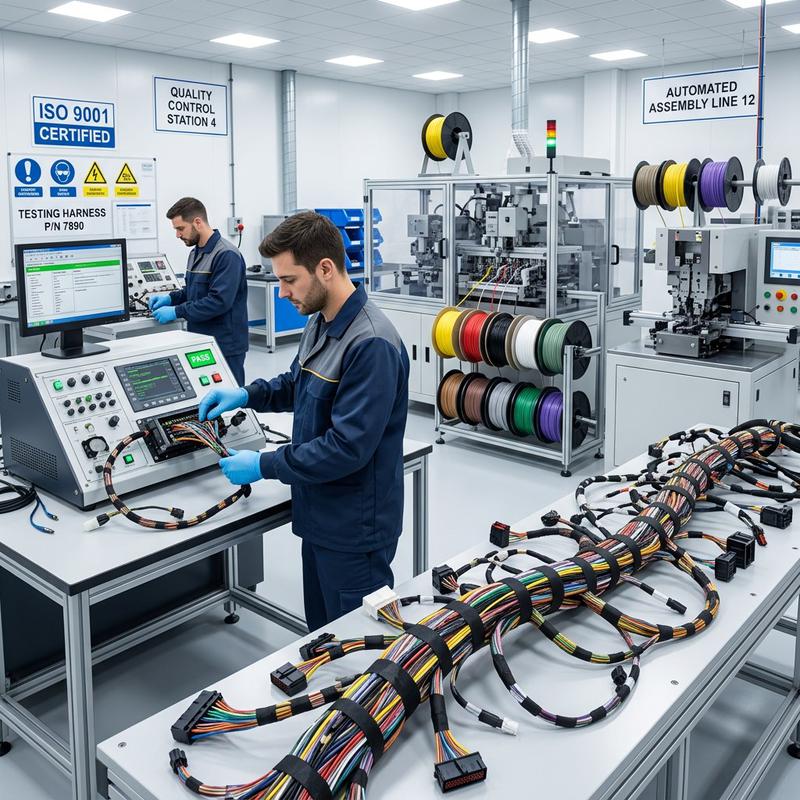

Your Trusted Custom Wiring Harness Manufacturer
When sourcing a Stereo/Radio Wiring Harness, the reliability of your supply chain is just as important as the product itself. As a premier custom wiring harness manufacturer, we provide robust hardware and software capabilities tailored to B2B buyers worldwide.
- ISO9001 Certified Quality: Every harness undergoes rigorous continuity, voltage drop, and pull-force testing to ensure zero defect rates.
- OEM & ODM Services: Whether you need a standard EIA color-coded harness or a complex CAN-Bus integrated solution, our in-house professional design team can engineer it to your exact blueprints.
- Flexible Low MOQ & Small Batch Customization: We understand market testing. We support small batch customization to help brand owners launch new products without massive inventory pressure.
- Premium Materials: We utilize automotive-grade cross-linked polyethylene (XLPE) wire insulation and OEM-grade PA66 plastic connectors for ultimate heat resistance and durability.
Partner With Us Today (Conclusion)
Upgrading an audio system shouldn't compromise a vehicle's safety. By utilizing a premium Stereo/Radio Wiring Harness, you guarantee an aftermarket radio installation without cutting wires, providing peace of mind to both installers and end-users.
Are you looking for a reliable manufacturing partner to elevate your automotive electrical product line? Contact our engineering team today for a free consultation, custom samples, and highly competitive wholesale pricing. Let us power your next big automotive audio project!
