The Ultimate Guide to EV Vehicle Inlet Harness: Engineering the Future of Safe and Efficient EV Charging
As global electric vehicle (EV) adoption accelerates, the demand for high-efficiency energy transfer, stringent charging safety standards, and weather-resistant materials has reached an all-time high. At the heart of this charging revolution lies a critical, yet often overlooked component: the EV Vehicle Inlet Harness.
Serving as the absolute core connection point between the external charging infrastructure and the vehicle's internal power matrix, the Electric Car Side Charging Port Wiring Harness is responsible for both high-voltage power transmission and low-voltage signal interaction. Whether you are an automotive OEM or a Tier 1 supplier, understanding the intricacies of assemblies like the SAE J1772 EV Charging Socket Cable Assembly is crucial for building reliable, market-ready EVs.
Classification of EV Vehicle Inlet Harnesses
EV charging inlet harnesses are primarily classified based on the regional charging standards and the type of current they handle:
- AC Charging Inlets (Type 1 & Type 2): The Type 1 standard, widely used in North America and Japan, utilizes the J1772 Vehicle Mounted Charging Socket With Cable. Type 2 is predominant in Europe.
- DC Fast Charging Inlets (CCS1, CCS2, CHAdeMO, NACS): Designed for rapid charging, integrating both AC and high-power DC pins for ultra-fast energy transfer.
- GB/T Standard Inlets: The national standard used exclusively in the Chinese EV market.
Key Features of Premium EV Inlet Cables
To meet the rigorous demands of modern EV charging safety standards, a high-quality Electric Car Side Charging Port Wiring Harness must possess the following features:
- Extreme Weather Resistance: Utilizing advanced elastomer materials (like TPU/TPE) that remain highly flexible in freezing temperatures (-40°C) and stable in extreme heat (+105°C).
- Superior Ingress Protection: IP67-rated waterproof and dustproof capabilities to ensure safe operation during heavy rain or snow.
- Flame Retardance: UL94 V-0 certification prevents thermal runaway and ensures maximum safety during high-current energy transfer.
- Ergonomic & Compact Design: Engineered for seamless integration into the vehicle’s chassis, minimizing space while maximizing electrical clearance.
Application Scenarios
Our custom charging socket cable assemblies are engineered for a wide array of electrified transportation platforms:
- Battery Electric Passenger Vehicles (BEVs): Primary charging interface for daily commuting and fast highway charging.
- Plug-in Hybrid Electric Vehicles (PHEVs): Utilizing the standard J1772 Vehicle Mounted Charging Socket With Cable for overnight residential AC charging.
- Commercial Electric Trucks & Buses: Heavy-duty applications requiring high continuous current and robust mechanical durability.
- Specialty Utility EVs: Golf carts, automated guided vehicles (AGVs), and industrial electric forklifts.
Core Functions & Working Principles

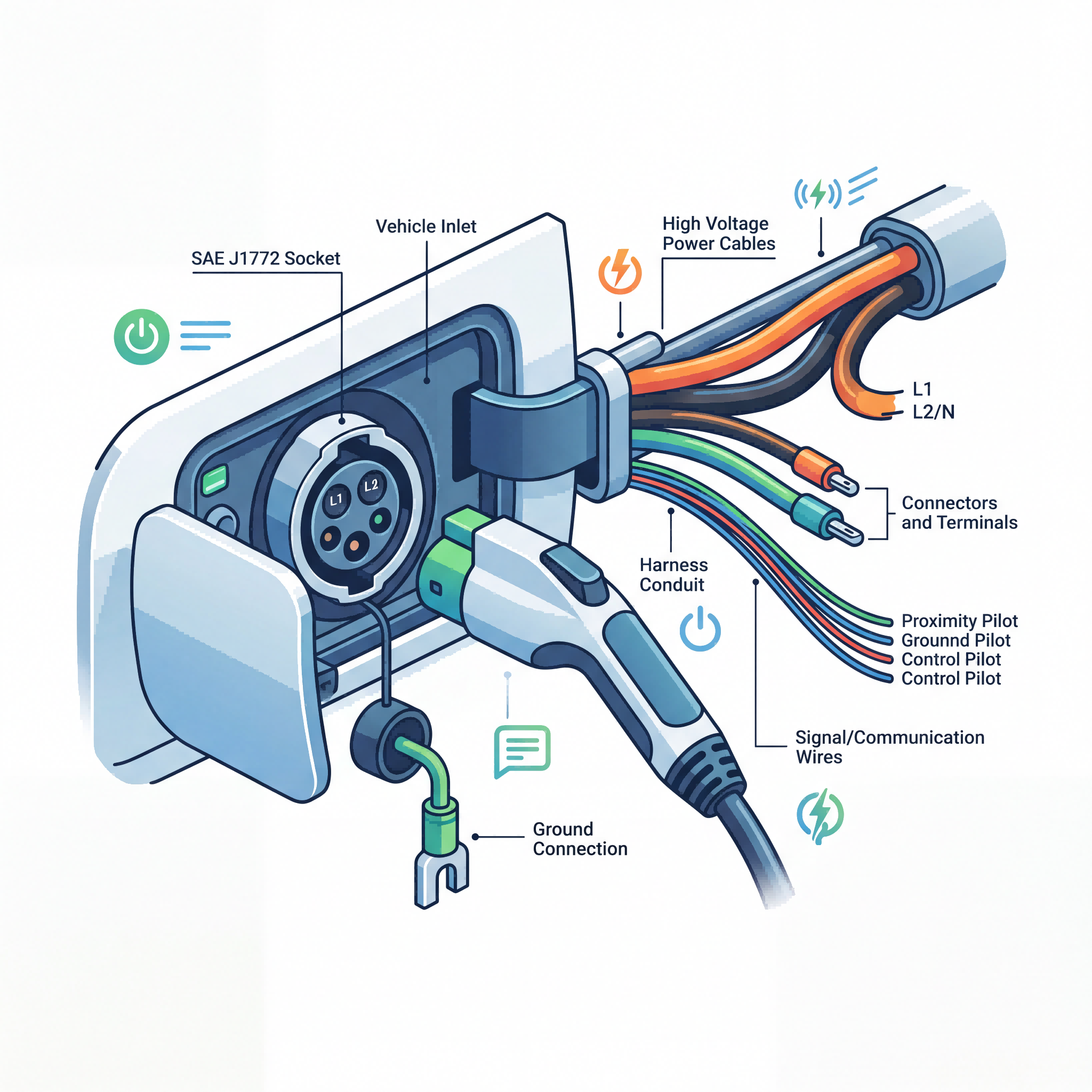

The EV Vehicle Inlet Harness acts as the crucial gateway for your vehicle. Its operation can be broken down into two main principles:
Power Transmission: When the EVSE (Electric Vehicle Supply Equipment) is plugged in, the heavy-gauge wires within the harness carry alternating current (AC) to the On-Board Charger (OBC), or direct current (DC) straight to the Battery Management System (BMS).

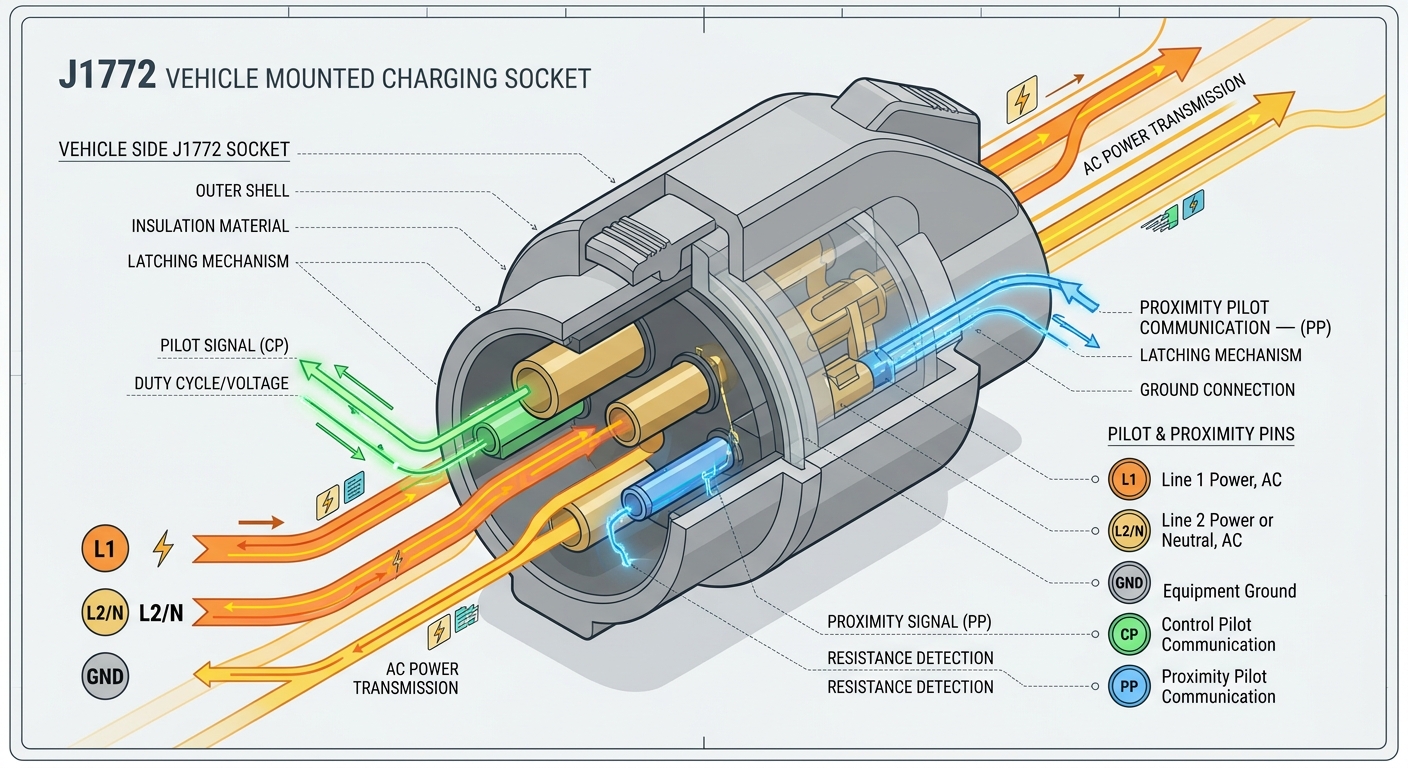

Signal Interaction & Safety Handshake: Before a single drop of high-voltage energy is transferred, the communication pins do the heavy lifting. In an SAE J1772 EV Charging Socket Cable Assembly, the Control Pilot (CP) and Proximity Pilot (PP) pins engage in a "handshake" protocol with the charging station. They verify the connection depth, check for grounding faults, and determine the maximum allowable current. If any safety parameter fails, the inlet harness immediately signals the vehicle's ECU to cut off the power, ensuring absolute charging safety.
Technical Specifications
For automotive engineers and procurement managers, precision is everything. Below are the standard specifications for our widely requested J1772 EV Inlet assemblies.
| Specification Category | Technical Details & Parameters |
|---|---|
| Connector Standard | SAE J1772 (Type 1) / IEC 62196-2 / CCS1 |
| Rated Voltage | 240V AC / 1000V DC (Depending on configuration) |
| Rated Current | 16A / 32A / 40A / 80A (AC) ; up to 250A (DC) |
| Wire Specs (Power) | 2×8 AWG + 1×10 AWG (Customizable for different loads) |
| Wire Specs (Signal) | 2×18 AWG (For CP and PP communication) |
| Insulation Material | XLPE / TPE / TPU (Halogen-free, UV-resistant) |
| Operating Temperature | -40°C to +105°C |
| Ingress Protection (IP) | IP67 (Mated condition) |
| Mechanical Life | > 10,000 No-load plug in/pull out cycles |
| Flame Retardant Rating | UL94 V-0 |
Why Choose Us: Your Custom Wiring Harness Manufacturer
Finding a reliable partner for high-voltage automotive systems is a strategic decision. As a seasoned custom wiring harness manufacturer, we provide more than just cables; we deliver total EV charging solutions tailored to your engineering constraints.
- ISO9001 & IATF16949 Compliant: Our manufacturing facilities strictly adhere to international automotive quality management systems, ensuring zero-defect production.
- Comprehensive OEM & ODM Support: From initial 3D modeling and prototyping to final mass production, our professional design team works closely with your engineers to develop custom housing and pin configurations.
- Small Batch Production Friendly: We understand the agile nature of modern EV development. We fully support small batch production runs for prototyping and localized testing.
- Turnkey Solutions: We provide end-to-end services, including harness layout design, terminal crimping, ultrasonic welding, and rigorous high-voltage electrical testing.
Ready to upgrade your EV's charging architecture? Contact our engineering team today to get a quote on custom EV Vehicle Inlet Harnesses and request your free sample prototype!
