Heavy Duty Collaborative Robot Main Harness: The Ultimate Custom Wiring Solution

Introduction: The "Veins and Nerves" of Modern Cobots

In the rapidly advancing field of industrial automation, a Heavy Duty Collaborative Robot Main Harness serves as the vital "veins and nerves" of the system. High-payload collaborative robots (cobots) require immense power to manipulate heavy loads while simultaneously relying on complex, low-latency signals to maintain safety and precision. The main harness integrates power distribution, signal transmission, and control cables into a single, highly durable conduit. Without a premium, intelligently designed Heavy Duty Collaborative Robot Main Harness, even the most advanced cobots can suffer from signal interference, mechanical failure, and costly downtime.

Types & Classifications of Cobot Harnesses

Depending on the specific engineering requirements and environmental demands, a Heavy Duty Collaborative Robot Main Harness can be classified into several categories:

• By Routing Configuration:

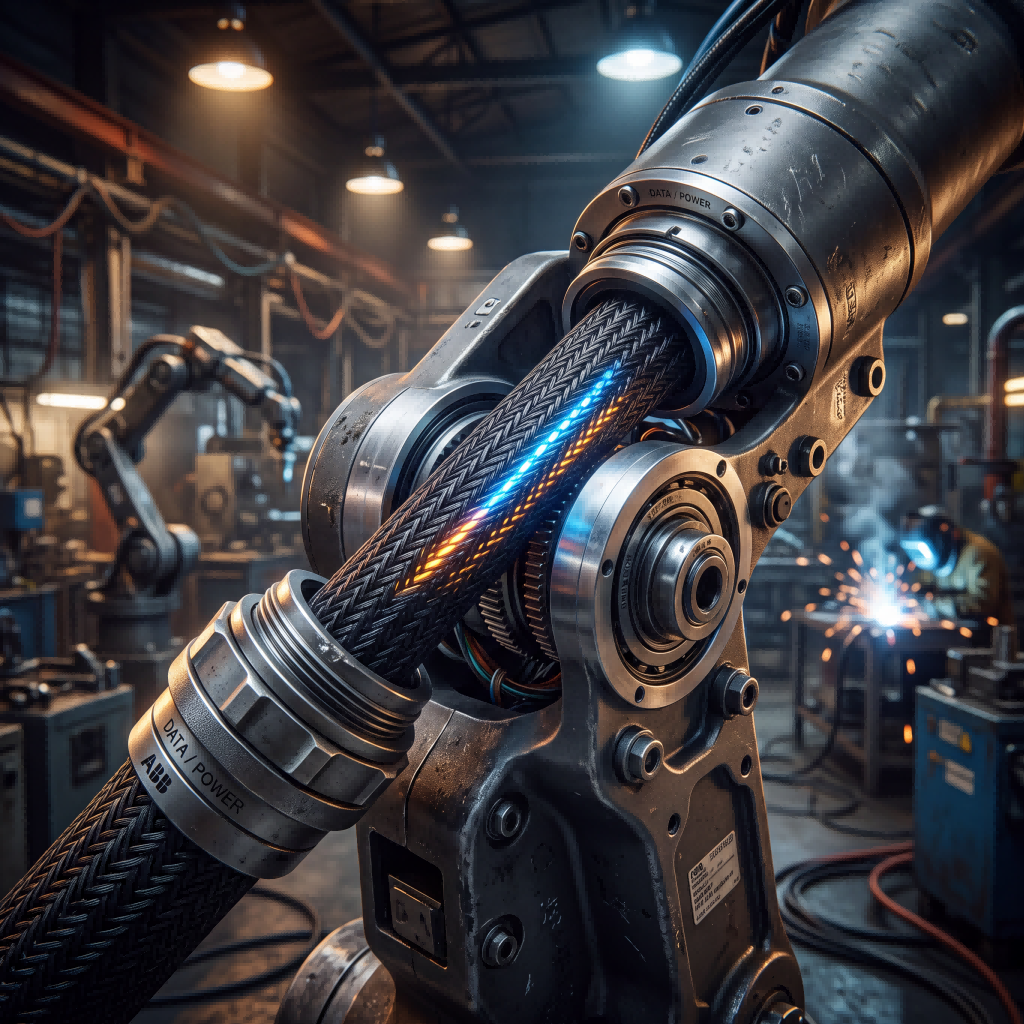

  • Internal Routing Harnesses: Specifically designed to pass through the hollow joints of cobot arms, minimizing external snagging hazards and optimizing spatial efficiency.
  • External Dress Packs: Built with ruggedized corrugated tubing to protect cables mounted on the exterior of the robot, ideal for retrofitting and easy maintenance.
• By Environmental Protection:
  • Weld-Spatter Resistant Harnesses: Coated in specialized PUR or Teflon jackets to withstand extreme heat and molten metal in robotic welding cells.
  • Cleanroom & Food-Grade Harnesses: Utilizing FDA-approved, low-outgassing materials for pharmaceutical or food packaging applications.

Key Features of a Heavy Duty Collaborative Robot Main Harness

A standard cable cannot survive the continuous, multi-axis movements of a heavy-payload cobot. Our Heavy Duty Collaborative Robot Main Harness is engineered with several critical features:

• Extreme Torsional & Bending Life: Engineered for highly dynamic applications, capable of withstanding over 20 million bending cycles and complex ±180°/m torsion.
• Maximum EMI/RFI Shielding: Heavy-duty applications often involve high-voltage interference. Our harnesses utilize optimized tinned copper braiding (over 85% coverage) to ensure pristine signal integrity for EtherCAT, PROFINET, or CAN bus protocols.
• Heavy Load & Pressure Resistance: Built with extruded internal fillers and specialized tension-relief Kevlar cores to prevent internal conductor breakage under mechanical stress.
• Compact Form Factor: Despite housing dozens of power and data lines, the harness is optimized to maintain a low profile, reducing dynamic friction.

Application Scenarios

A Heavy Duty Collaborative Robot Main Harness is essential in environments where precision meets brute force. Typical scenarios include:

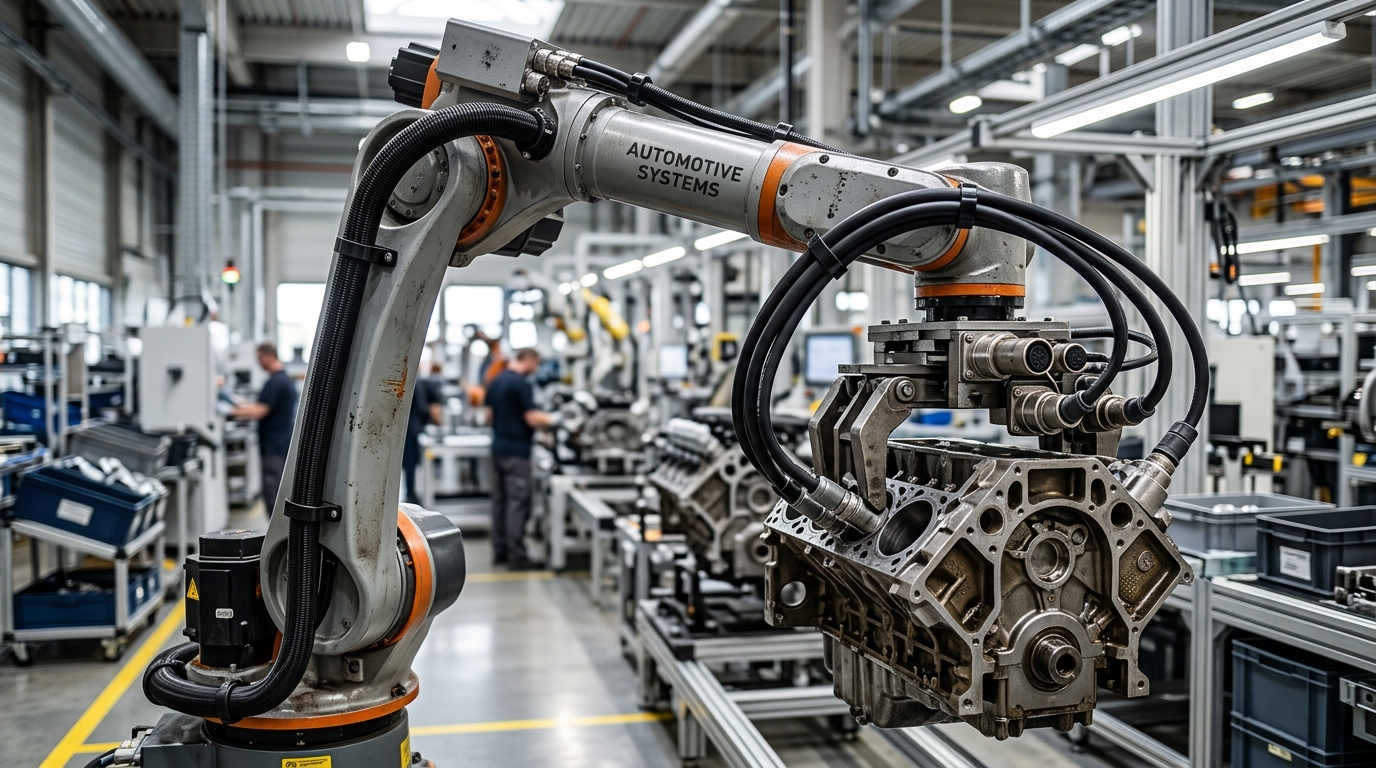

• Automotive Assembly: Operating high-torque nutrunners, handling heavy engine components, or performing automated visual inspections.
• Heavy Palletizing & Logistics: Supplying power and pneumatic signals to heavy-duty vacuum grippers handling 20kg to 50kg payloads in warehouses.
• CNC Machine Tending: Enduring continuous exposure to cutting fluids, oil, and metal shavings while loading and unloading heavy metal billets.

Functions & Working Principle

The core function of a Heavy Duty Collaborative Robot Main Harness is to facilitate flawless interaction between the robot controller, the servomotors in each joint, and the End-of-Arm Tooling (EOAT).

• Power Distribution: Thick-gauge copper conductors deliver high-current AC/DC power to heavy-duty servo motors without dangerous voltage drops.
• Signal Interaction: Twisted pair data cables relay encoder feedback, torque sensor data, and vision system inputs back to the main controller in milliseconds. The precise geometrical twisting and shielding prevent the high-power lines from corrupting the delicate sensor data, ensuring the cobot can stop instantly if it detects human contact.

Technical Specifications

To meet the stringent demands of robotics engineers, our Heavy Duty Collaborative Robot Main Harness adheres to the following baseline engineering parameters:

Why Choose Us: Your Trusted Custom Robot Wiring Harness Manufacturer

When sourcing a Heavy Duty Collaborative Robot Main Harness, you need more than just a supplier; you need a strategic engineering partner. As a leading custom robot wiring harness manufacturer, we provide unparalleled advantages to B2B buyers, project managers, and robotics engineers:

• ISO9001 Certified Quality: Our factory operates under strict ISO9001 quality management systems. Every harness undergoes rigorous continuity, Hi-Pot, and dynamic flex testing before shipping.
• Comprehensive Customization: We offer end-to-end bespoke solutions. Whether you need specific cable lengths, unique pinouts, or specialized hybrid cables (combining power, data, and pneumatics), our professional R&D design team will engineer a solution tailored perfectly to your robot model.
• OEM / ODM Support: We act as the silent powerhouse behind many leading robotics brands, offering full OEM and ODM services with strict confidentiality (NDA) agreements.
• Flexible Low MOQ: We understand that prototyping and specialized robotics projects require flexibility. We proudly support small batch production to help you test and scale your innovations without massive upfront inventory costs.

Conclusion & Actionable Call to Action

The reliability of your automated systems heavily depends on the quality of your cabling. Investing in a premium Heavy Duty Collaborative Robot Main Harness ensures maximum uptime, enhanced safety, and superior mechanical longevity for your robotic investments. Don't let a standard cable be the bottleneck in your heavy-duty applications.

Ready to upgrade your robotics cable management? Partner with a professional custom robot wiring harness manufacturer today. Contact our engineering team now to share your schematics, request a customized sample, or get a competitive quote for your next automation project!
