The Ultimate Guide to Automotive Panel Wiring Harness: Powering Modern Dashboards and EV Charging Systems

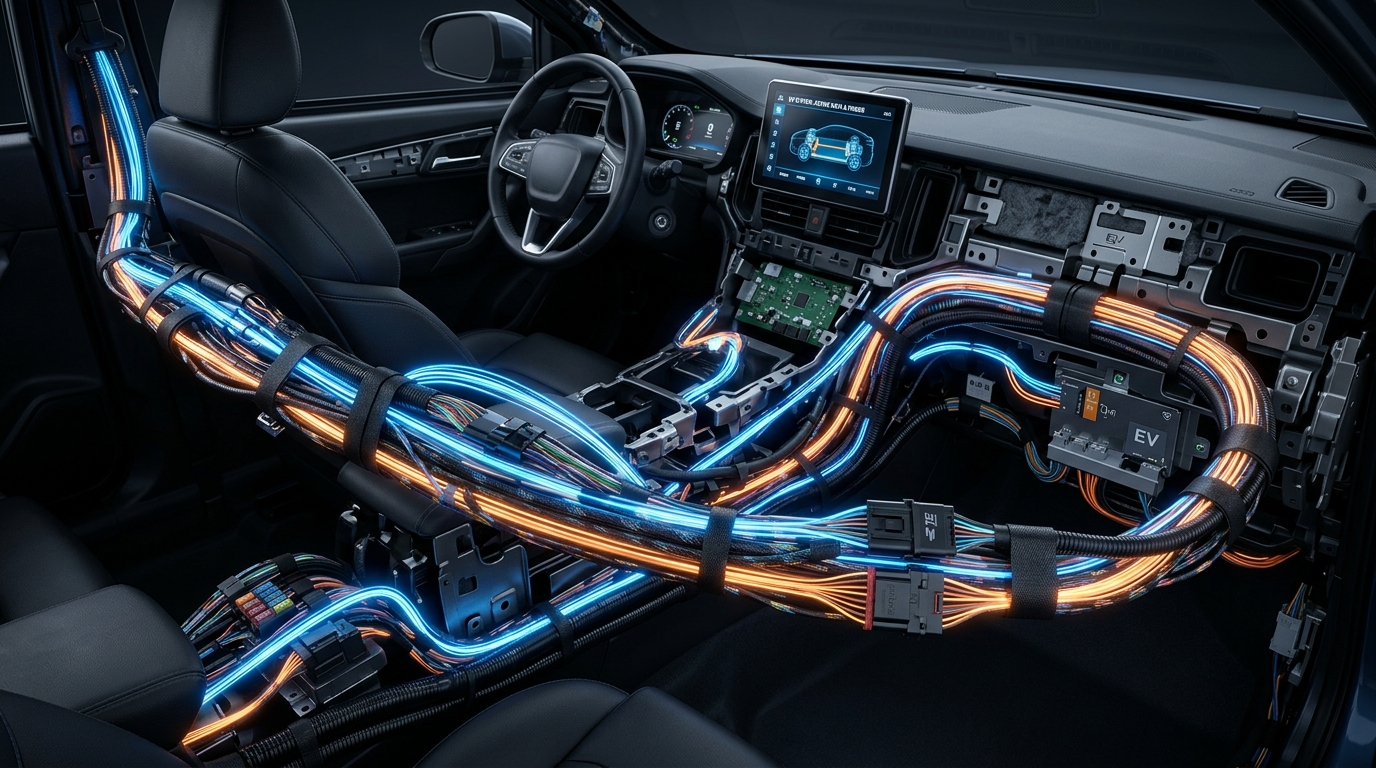

The global automotive industry is undergoing a massive transformation, driven by the rapid expansion of New Energy Vehicles (NEVs) and smart cabin technologies. At the heart of this revolution lies the automotive panel wiring harness, a critical nerve center that connects various electronic components within the vehicle's cabin. As dashboards evolve into highly complex digital interfaces, the demand for a high quality vehicle instrument panel wiring harness has never been higher.
Today's instrument panel wire harness assembly is no longer just about powering a few analog gauges. It now plays an indispensable role in advanced NEV architectures. Specifically, the integration of EV vehicle-end charging socket harnesses has become a core connection component. These modern harnesses are responsible for flawless power transmission and real-time signal interaction between the charging infrastructure, the battery management system (BMS), and the driver’s dashboard display. Ensuring that this energy and data flow is seamless, safe, and efficient requires extreme precision from an experienced automotive panel wiring harness manufacturer.
Comprehensive Breakdown of the Car Dashboard Cable Assembly
To help OEMs, Tier 1, and Tier 2 suppliers make informed sourcing decisions, it is crucial to understand the engineering complexity behind a car dashboard cable assembly.
Classification
Automotive interior wiring systems are generally classified based on their operating environment and vehicle type:
- Traditional ICE Dashboard Harnesses: Designed primarily for infotainment, HVAC controls, and analog/digital cluster signaling.
- NEV Smart Cabin Harnesses: Highly complex layouts that integrate directly with EV charging socket harnesses, high-voltage interlock loops (HVIL), and autonomous driving sensors.
- Modular Panel Harnesses: Pre-assembled subsections that allow for rapid installation on the automotive assembly line.
Features
A high quality vehicle instrument panel wiring harness must exhibit several critical characteristics:
- High Electromagnetic Compatibility (EMC): Utilizing braided shielding and twisted pair cables to prevent electromagnetic interference (EMI) between high-power EV charging circuits and sensitive dashboard microcontrollers.
- Extreme Durability: Constructed with cross-linked polyethylene (XLPE) or fluoropolymer insulation to resist abrasion and temperature fluctuations.
- Space Optimization: Engineered with ultra-thin wall cables to fit within the highly restricted confines of the vehicle dashboard without compromising mechanical strength.
Applications
The vehicle instrument panel wiring loom is central to a variety of applications, including:
- Passenger cars (both ICE and Electric Vehicles)
- Commercial heavy-duty trucks and buses
- Off-road and specialized industrial vehicles
- Customized infotainment and central console upgrades
Functions
The primary functions of these complex cable assemblies go far beyond simple connections:
- Power Distribution: Safely routing low-voltage power to displays, audio systems, and ambient lighting.
- Signal Interaction: Acting as the physical layer for CAN bus, LIN bus, and Automotive Ethernet networks, ensuring zero-latency communication between ECUs.
- EV Charging Synchronization: Transmitting crucial charging status data (voltage, battery temperature, time-to-full) from the EV vehicle-end charging socket directly to the driver's display.
Working Principle
The working principle of the instrument panel wire harness assembly relies on conductive copper pathways meticulously insulated and routed to prevent short circuits. When an EV is plugged into a charging station, the charging socket harness acts as the primary power gateway. Simultaneously, low-voltage communication wires within the dashboard harness awake the dashboard control unit. Signals are transmitted via specialized terminal contacts, allowing the driver to monitor real-time energy flow, thermal management status, and safety alerts directly on the instrument panel.
Technical Specifications & Engineering Data
When sourcing an OEM automotive interior panel wire harness, technical compliance is non-negotiable. Below are the standard engineering parameters we adhere to in our manufacturing process:
| Parameter | Specification Details |
|---|---|
| Wire Gauge / Cross Section | 0.13 mm² to 6.0 mm² (FLRY-A, FLRY-B, TXL, GXL) |
| Conductor Material | High-purity Bare Copper / Tinned Copper (OFC) |
| Insulation Material | PVC, XLPE, Silicone, TPE, FEP (RoHS/REACH Compliant) |
| Temperature Rating | -40°C to +125°C (Standard) / Up to +200°C (High-temp zones) |
| Voltage Rating | Low Voltage (12V/48V DC) / Shielded data lines |
| Connector Types | TE Connectivity, Molex, Delphi (Aptiv), Yazaki, Sumitomo, JAE, or Custom Equivalents |
| Shielding Performance | Aluminum foil + Copper braid (≥85% coverage for CAN/Data lines) |
| Testing Standards | Continuity, Short/Open circuit, Hi-Pot, Pull-force testing (USCAR-21) |
| Protection Class | IP54 to IP67 (Depending on connector and mating environment) |
Partner with a Leading Custom Car Dashboard Cable Assembly Supplier
Finding a reliable partner in the highly competitive automotive supply chain is crucial. As a premier custom wiring harness manufacturer, we specialize in bridging the gap between innovative automotive design and flawless electrical execution.
We understand the pain points of modern OEMs and Tier 1 suppliers. Whether you are developing a next-generation electric vehicle that requires seamless integration between the charging socket and the dashboard, or you need a reliable OEM automotive interior panel wire harness for an existing platform, we have the capabilities to deliver.
Why Choose Us as Your B2B Manufacturing Partner?
- ISO9001 Certified: Our state-of-the-art facility operates under strict international quality control systems, guaranteeing that every vehicle instrument panel wiring loom meets the highest automotive standards.
- Professional Design Team: Our seasoned engineers offer complete solutions, from initial CAD drawing and reverse engineering to prototyping and mass production.
- Support Custom Configuration: We tailor wire lengths, connector brands, shielding types, and routing materials specifically to your vehicle's architectural requirements.
- OEM/ODM Available: We provide robust OEM and ODM services, acting as a seamless extension of your own manufacturing capabilities.
- Accept Low-Volume Production: Unlike many large-scale factories, we offer flexible manufacturing solutions and happily accept low-volume production orders to support your R&D, prototyping, and niche market needs.
Ready to Power Your Next Automotive Project?
Do not let subpar wiring compromise your vehicle's safety or digital experience. Trust an expert custom car dashboard cable assembly supplier to provide the robust, intelligent connectivity your vehicles deserve.
Call to Action: Are you ready to optimize your supply chain with premium automotive cable assemblies? Contact our engineering team today to discuss your technical drawings, request a free sample, or get a competitive customized quote! Send your inquiry now and let us build the nervous system of your next-generation vehicles together.
