In the rapidly evolving landscape of additive manufacturing, the reliability of your equipment relies heavily on the quality of its internal components. For hardware engineers and procurement managers, finding a dependable 3D printer wiring harness is critical to eliminating machine downtime, preventing thermal degradation, and ensuring precise print quality.

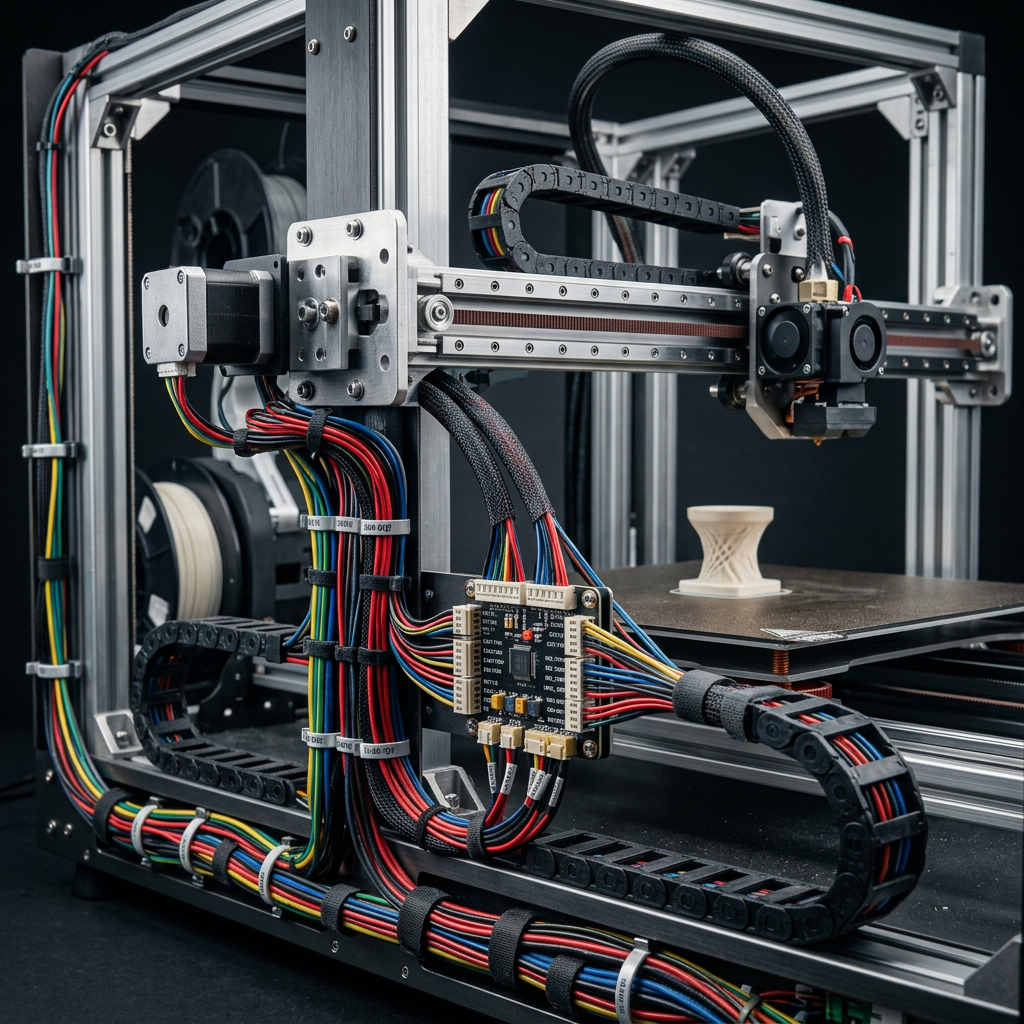

An industrial 3D printer wiring assembly is not just a bundle of wires; it is the central nervous system of the equipment. It seamlessly integrates power distribution, motion control, and sensitive data signal transmission. Operating in extremely harsh environments characterized by continuous high-frequency reciprocating motion and extreme extruder temperatures, a standard cable simply cannot survive. As a professional custom wiring harness manufacturer, we engineer robust solutions designed specifically to meet these rigorous industrial demands.
Why You Need Specialized 3D Printing Machine Internal Cables
Standard commercial wiring fails rapidly in industrial extrusion and resin printing systems. To guarantee long-term stability, an industrial 3D printing machine internal cable must be engineered with three core attributes: thermal resilience, mechanical flexibility, and electromagnetic compatibility.
High Temperature Resistant 3D Printer Harness
Extruders and heated beds in industrial 3D printers often operate at temperatures exceeding 300°C. A standard PVC cable will melt, short-circuit, or pose a severe fire hazard. Our high temperature resistant 3D printer harness is manufactured using premium fluoropolymer insulation materials such as PTFE (Teflon), FEP, or silicone rubber. These materials maintain excellent dielectric properties and physical integrity even under continuous exposure to extreme heat, ensuring safe and uninterrupted power delivery to thermistors and heating cartridges.
Flexible Drag Chain 3D Printer Cable for Constant Motion

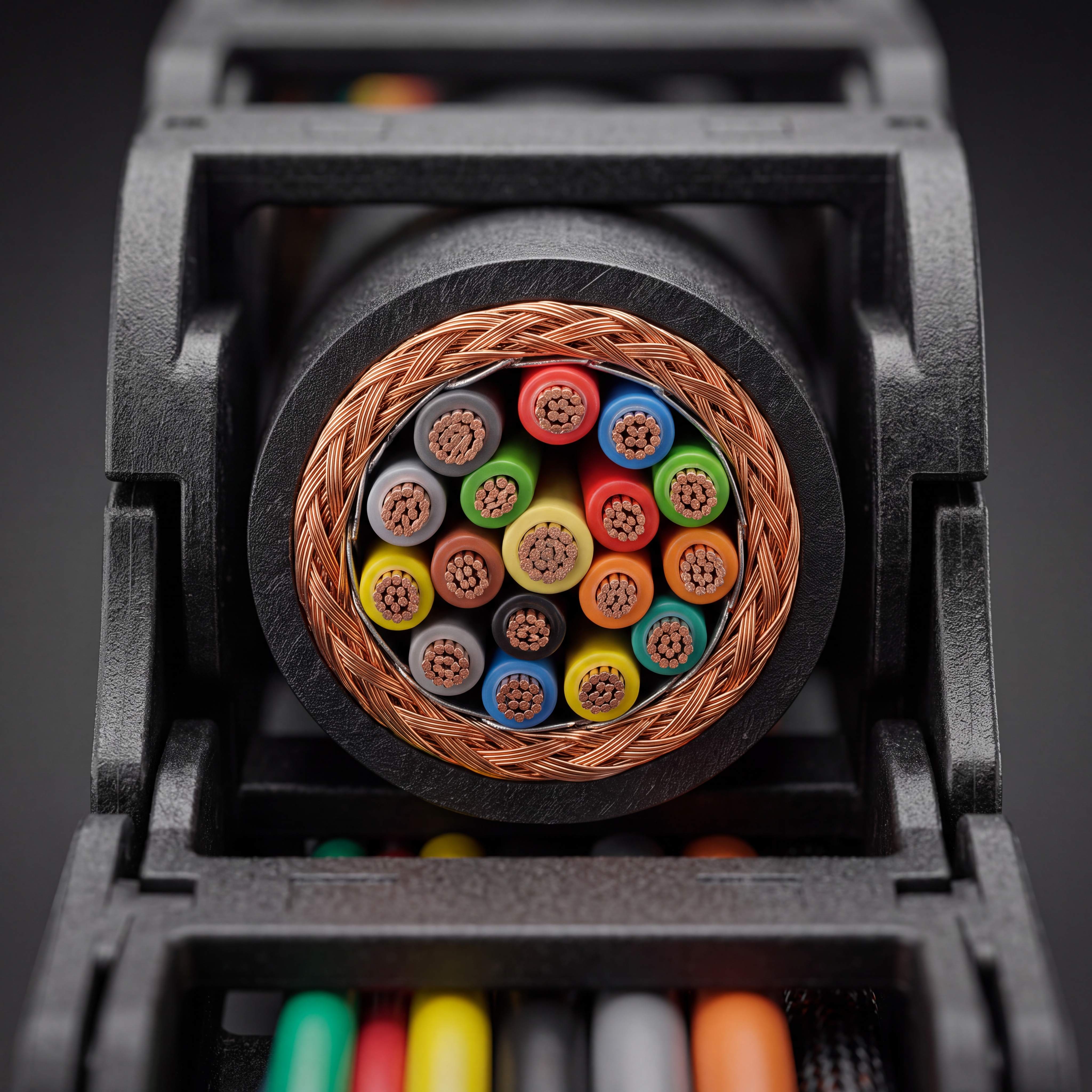

The X, Y, and Z axes of a 3D printer undergo millions of rapid, high-frequency reciprocating movements during their lifecycle. This constant bending causes copper fatigue and eventual wire breakage in standard cables. To solve this, we utilize a flexible drag chain 3D printer cable design. Featuring ultra-fine stranded bare copper or tinned copper conductors, combined with specialized mechanically tough outer jackets (like PUR or TPE), our cables are rated for over 10 million bending cycles in tight drag chain environments.
Anti-Interference 3D Printer Wiring Kit for Precise Signal
Stepper motors, limit switches, and leveling sensors require flawless signal transmission to achieve micro-millimeter precision. Industrial environments are often plagued by Electromagnetic Interference (EMI) from high-voltage power lines and motor drives. Our anti-interference 3D printer wiring kit integrates tinned copper braided shielding and aluminum foil wrapping (double shielding technology). This isolates sensitive data lines, eliminating stepper motor skipped steps and sensor false triggers caused by crosstalk.
Technical Specifications of Our 3D Printer Wiring Assembly
We understand that R&D engineers require exact specifications. Our manufacturing facility produces custom wiring harnesses that meet strict industrial tolerances. Below are the standard specifications for our industrial 3D printer wiring assembly:
Wire & Cable Specifications
| Specification Item | Description | Applications |
|---|---|---|
| Conductor Material | High-purity Oxygen-Free Copper (OFC), Tinned Copper | Power, Signal, Motor Control |
| Wire Gauge | 14 AWG to 30 AWG (Customizable) | Heaters (14-16 AWG), Sensors (24-30 AWG) |
| Insulation Material | PTFE, FEP, Silicone, TPE, PUR | High-heat zones, Dynamic drag chains |
| Temperature Rating | -60°C to +250°C (up to 300°C for peak) | Hotends, Thermistors, Heated beds |
| Shielding Type | Aluminum Foil + Tinned Copper Braid (>85% coverage) | EMI protection for encoder/sensor lines |
| Bending Cycles | > 10,000,000 cycles (Drag Chain Rated) | X/Y/Z Axis Gantry systems |
Connector & Terminal Specifications
| Component Type | Brand & Series (Equivalents available) | Pitch Size | Contact Material |
|---|---|---|---|
| Board-to-Wire | JST XH, PH, VH / Molex Micro-Fit, Mini-Fit | 2.0mm, 2.5mm, 2.54mm, 3.0mm, 4.2mm | Tin-plated / Gold-plated Phosphor Bronze |
| Power Connectors | XT60, XT90, Anderson Powerpole | N/A | Gold-plated Copper |
| Ferrules & Terminals | Insulated wire ferrules, Ring terminals | N/A | Tinned Copper |
| Housing Material | Nylon 66 (UL94V-0 Flame Retardant) | N/A | N/A |
