High-Performance Rail Transit Industrial Wiring Harness: The Neural Network of Modern Railway Systems
In the fast-evolving sector of modern rail transportation, the rail transit industrial wiring harness acts as the central neural network of the entire vehicle. It is the critical infrastructure responsible for the seamless transmission of power, complex control signals, and high-speed data. From high-speed electric multiple units (EMUs) to urban subway networks, the reliability of a railway vehicle wiring harness directly dictates the operational safety, efficiency, and longevity of the entire transit system. A meticulously engineered train wiring harness ensures that even under severe mechanical vibrations, extreme temperature fluctuations, and high electromagnetic interference, the train's electrical system remains unfailingly stable.
Classifications of Railway Equipment Wiring Harness
To meet the highly specialized demands of global rail infrastructure, a railway equipment wiring harness is typically categorized based on its functional location and operational capacity:
1. Power & Propulsion Harnesses
At the heart of the train's movement is the EMU traction system wiring harness. Designed to handle exceptionally high voltages and currents, these harnesses deliver power from the pantograph and transformers to the traction motors, ensuring efficient and safe propulsion.
2. Control & Logic Harnesses

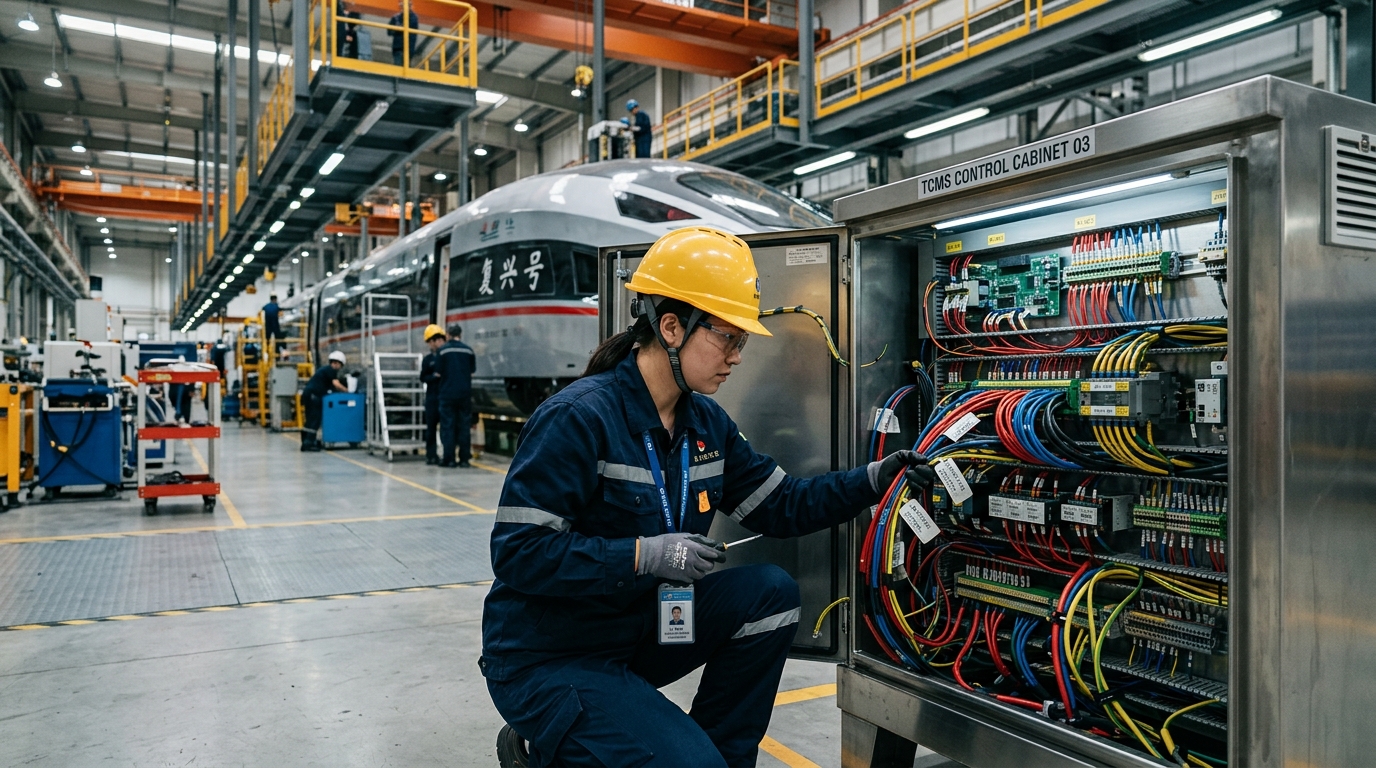

Control cabinets are the "brains" of the train. The subway control cabinet wiring harness connects relays, contactors, and PLCs, executing critical commands such as braking, door operation, and emergency stops with zero latency.
3. Signal & Data Transmission Harnesses
With the digitization of modern rail, the rail vehicle signal transmission wiring harness has become paramount. These harnesses ensure the flawless transmission of telecommunication protocols between train cars and trackside equipment, heavily shielded against electromagnetic interference (EMI).
Features & Advantages of Our Train Wiring Harness Systems
Manufacturing a dependable train wiring harness requires stringent adherence to international railway standards (such as EN 50264, EN 50306, and EN 45545-2). Our custom solutions offer unparalleled advantages for railway equipment manufacturers:
- Exceptional Flame Retardancy: Utilizing halogen-free, low-smoke (LSZH) cross-linked insulation materials to guarantee passenger safety during fire emergencies.
- Superior EMI Shielding: High-density tinned copper braiding ensures that sensitive data passing through the rail transit on-board monitoring wiring harness remains uncorrupted by the train's high-voltage environments.
- Extreme Durability & Flexibility: Designed to withstand continuous mechanical stress, high-frequency vibrations, and severe weather conditions ranging from -40°C to +125°C.
Application Scenarios in Global Rail Transit
The versatility of our engineering capabilities allows us to deploy wiring solutions across various demanding rail environments:
- Urban Metro & Light Rail: A metro wiring harness must navigate tight spaces while managing complex passenger information systems (PIS), HVAC controls, and automated door operations.
- High-Speed Rail & Intercity Trains: For rolling stock operating at speeds exceeding 300 km/h, aerodynamic vibration and constant power loads require ultra-reliable connections, specifically within the traction and brake control units.
- Heavy Freight Locomotives: Heavy haul trains rely heavily on the locomotive TCU system wiring harness (Traction Control Unit) to maintain massive torque output and synchronize power distribution across multiple locomotive engines.
Functions & Working Principles
How does a rail transit industrial wiring harness function under the hood? It operates on the principle of guided electrical conduction and signal isolation. As the operator inputs a command, low-voltage signals travel through the subway control cabinet wiring harness to the processing units. Concurrently, the rail transit on-board monitoring wiring harness continuously feeds real-time sensor data (such as bogie temperature, brake pressure, and cabin surveillance) back to the central console.
By utilizing heavy-duty industrial connectors with gold-plated pins and IP68-rated sealing, the harnesses prevent moisture ingress and oxidation, ensuring that the electrical resistance remains negligible. This precise orchestration of power and data is what keeps modern transit systems running safely on schedule.
Technical Specifications
To assist procurement managers and electrical engineers in sourcing the exact components required for their rail projects, below are the standard technical specifications for our railway harness systems:
Wire Specifications
| Parameter | Specification Details |
|---|---|
| Conductor Material | Stranded tinned copper (Class 5 or Class 6 per IEC 60228) |
| Insulation / Sheath | Halogen-free, Low-smoke cross-linked polymer (LSZH) |
| Voltage Rating | 300V / 600V / 1000V / 3000V (depending on application) |
| Temperature Range | -40°C to +125°C (Extended ranges available upon request) |
| Applicable Standards | EN 50264, EN 50306, EN 45545-2 (Fire protection on railway vehicles), RoHS |
| Shielding | Tinned copper braid (Coverage ≥ 85%) / Aluminum Mylar foil |
Connector Specifications
| Parameter | Specification Details |
|---|---|
| Connector Types | Heavy-duty modular connectors, M12/M8 industrial circular connectors, D-Sub |
| Contact Material | Copper alloy with hard gold or heavy silver plating |
| Ingress Protection | IP67 / IP68 / IP69K for external and undercarriage applications |
| Mating Cycles | > 500 mechanical mating cycles |
| Contact Resistance | ≤ 3 mΩ |
| Locking Mechanism | Bayonet lock, Threaded lock, or Heavy-duty latching systems |
Why Choose Us as Your Custom Wiring Harness Manufacturer?
Sourcing a railway vehicle wiring harness requires a partner who understands the absolute zero-margin for error in the transit industry. As a premier custom wiring harness manufacturer, we bridge the gap between complex engineering requirements and reliable, cost-effective manufacturing.
- ISO9001 Certified Quality: Our entire production facility operates under strict ISO9001 and IATF/railway industry quality management systems, ensuring complete traceability and 100% pre-shipment electrical testing.
- Comprehensive Custom Solutions: We have a highly skilled professional design team ready to co-engineer solutions with your R&D department, from initial prototyping to final mass production.
- OEM/ODM Supported: Whether you need a proprietary metro wiring harness or a standard railway equipment wiring harness, we provide full OEM/ODM services tailored to your exact schematics.
- Flexible Manufacturing: We understand the unique demands of the B2B rail market, which is why low volume production accepted. We support small-batch, high-mix orders to accommodate specialized train assemblies and maintenance retrofits.
Ready to Upgrade Your Railway Electrical Systems?
Ensure the safety, efficiency, and longevity of your rolling stock with industry-leading wiring solutions. Contact our engineering team today to discuss your technical drawings, request a customized quote, and discover why global rail transit innovators trust our manufacturing expertise.
