Custom Industrial Control Cabinet Wire Harness Manufacturer
The Ultimate Guide to Industrial Control Cabinet Wire Harness Solutions
In the complex world of modern industrial automation, the reliability of your equipment relies heavily on its internal connections. The industrial control cabinet wire harness acts as the central nervous system of any automated system, ensuring seamless power distribution, signal transmission, and data interaction. Whether you are dealing with a complex PLC system or a heavy-duty inverter, choosing the right electrical cabinet wiring harness is critical to maintaining operational stability and preventing costly downtimes.
In this comprehensive guide, we will explore the definitions, classifications, working principles, and technical specifications of control cabinet wiring harness systems, helping B2B buyers and engineers make informed sourcing decisions.
What is a Control Panel Wiring Harness?
A control panel wiring harness is a highly engineered assembly of electrical cables, wires, connectors, terminals, and protective insulation sheaths designed to interconnect various components within an industrial enclosure.
Unlike standard consumer wiring, an industrial control wiring harness for cabinet is specifically designed to withstand harsh industrial environments, including extreme temperatures, electromagnetic interference (EMI), and physical vibrations. These harnesses connect crucial components such as Programmable Logic Controllers (PLCs), contactors, relays, human-machine interfaces (HMIs), and variable frequency drives (VFDs). Their primary working principle is to accurately transmit high-voltage power to drive machinery while simultaneously routing low-voltage control signals to ensure the synchronized operation of automated components.
Types and Functionalities of Cabinet Wiring Assembly
To meet diverse engineering requirements, a cabinet wiring assembly is categorized based on its function and the specific application scenario it serves.
Classification by Function
Depending on the type of current and data they carry, the internal wiring can be divided into three main categories:
- Power Supply Harness: Designed to carry high currents and voltages. These heavy-gauge harnesses distribute main power to various contactors and drives. Safety, flame retardancy, and high thermal tolerance are paramount.
- Weak Signal Harness: These wires operate on low voltages (e.g., 24V DC) to transmit operational commands from the controller to the actuators. Precision and continuity are critical to prevent command delays.
- Shielded Data Collection Harness: Equipped with foil or braided copper shielding, these harnesses are used for sensitive data transmission (such as Ethernet, RS485, or CAN bus). The shielding prevents electromagnetic interference (EMI) from high-voltage power lines nearby, ensuring data integrity.
Classification by Application Scenario
Different industrial cabinets require specialized wiring configurations. Common applications include:

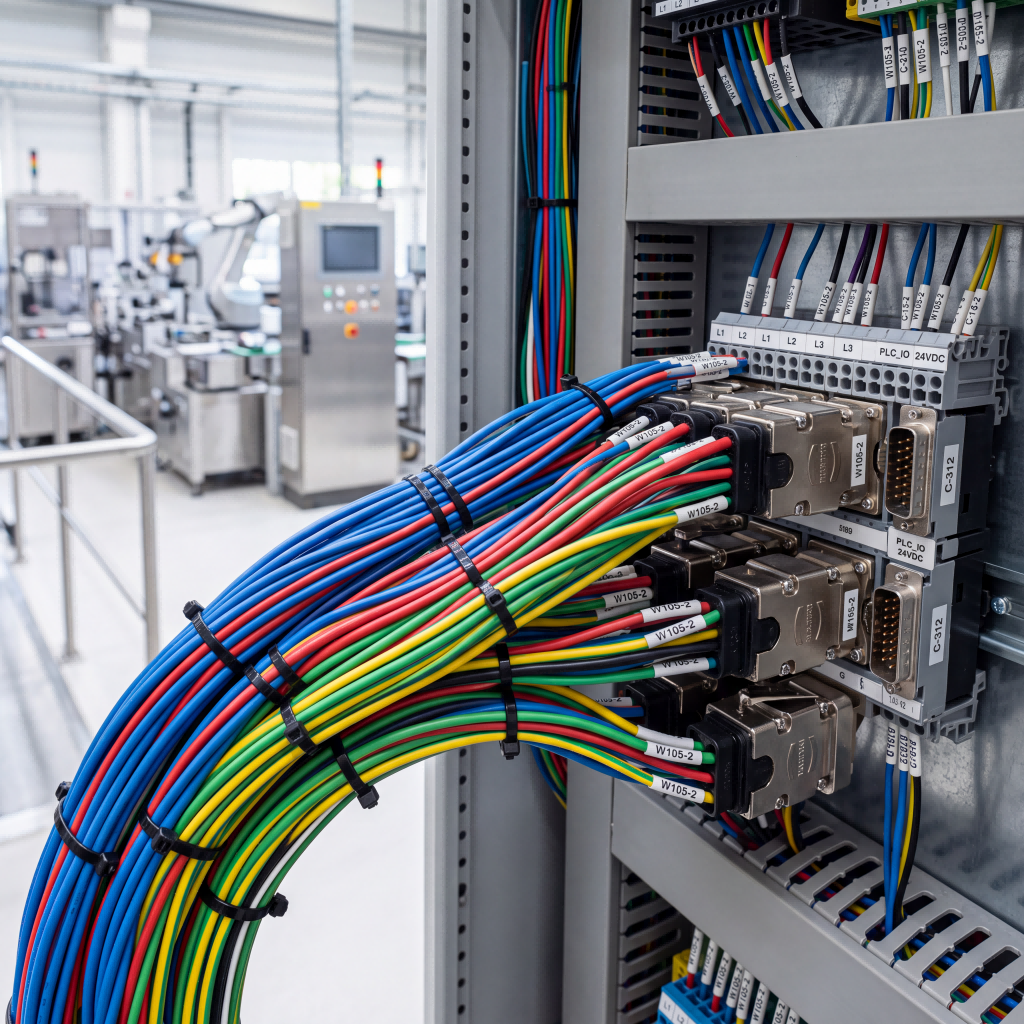

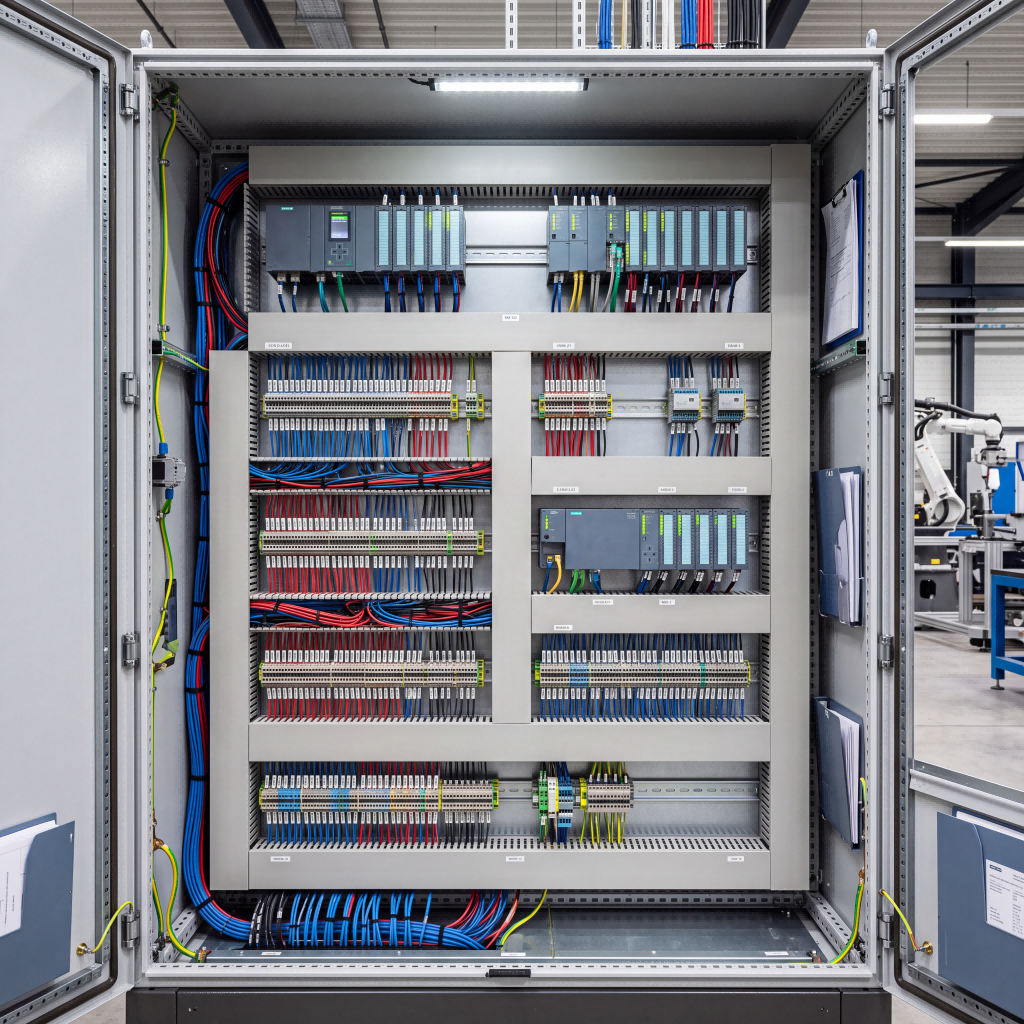

- PLC Control Cabinet Wiring Harness: The core of factory automation. These harnesses demand meticulous routing and labeling to connect input/output (I/O) modules to field devices. A well-designed PLC control cabinet wiring harness ensures rapid fault-finding and upgrades.
- New Energy Control Cabinet Wiring Harness: Used in solar, wind, and battery energy storage systems (BESS). A new energy control cabinet wiring harness must adhere to strict UL/TUV standards, handling high DC voltages safely and efficiently.
- Distribution Cabinet Internal Wiring Harness: Focuses on safe power splitting. The distribution cabinet internal wiring harness uses heavy-duty terminal blocks and thick gauge wires to manage high electrical loads safely without overheating.
- Inter-Cabinet Control Wiring Harness: Used to bridge communication and power between multiple cabinets aligned on a factory floor. The inter-cabinet control wiring harness features heavy-duty industrial plugs that allow for easy decoupling and maintenance.
Technical Specifications & Industry Standards
When designing an electrical cabinet wiring harness, adhering to international electromechanical standards is non-negotiable. Below is a comprehensive specification table detailing the components and parameters we utilize in our manufacturing process.
| Component / Feature | Technical Specifications & Options | Applications & Standards |
|---|---|---|
| Wire Gauge Range | 30 AWG to 4/0 AWG (0.05mm² to 120mm²) | From micro-signal transmission to heavy power distribution. |
| Conductor Material | Bare Copper, Tinned Copper, Silver-Plated Copper | High conductivity, corrosion resistance (UL1007, UL1015, UL1061). |
| Connector Brands | Molex, TE Connectivity, Amphenol, JST, WAGO | Industry-standard mating for PLCs, VFDs, and HMIs. |
| Terminal Types | Ring, Fork, Pin, Bootlace Ferrules, Faston Receptacles | Secure connections for Din-Rail terminal blocks and contactors. |
| Insulation & Jacket | PVC, XLPE, Teflon (PTFE), Silicone | Flame retardant (VW-1), high temperature up to 200°C. |
| EMI Shielding | Aluminum Foil, Tinned Copper Braid | Excellent for sensor data and networking cables. |
| Testing Standards | 100% Continuity, Hi-Pot (Dielectric Withstand), Pull-force | Ensures zero defects before installation in the control panel. |
| Certifications | UL, CE, RoHS, REACH, IPC/WHMA-A-620 | Global compliance for export and heavy industry usage. |
(Note: As a dedicated manufacturer, we provide tailored specifications based on your precise engineering drawings and Bill of Materials.)
Your Trusted Custom Wiring Harness Manufacturer
Finding a reliable supply chain partner is just as important as the engineering itself. As a premier custom wiring harness manufacturer, we possess the technical capabilities and manufacturing infrastructure to bring your electrical designs to life.
Whether you are an automation equipment manufacturer or a supply chain manager for a global electronics brand, we are here to streamline your production process.
Why Choose Us as Your Factory Partner?
- ISO9001 Certified Quality: Our facility operates under strict quality management systems. Every single control cabinet wiring harness undergoes rigorous automated testing, including Hi-Pot and continuity checks, guaranteeing a 100% yield rate upon delivery.
- OEM & ODM Capabilities: We do not just build to print; we engineer solutions. Our professional design team can assist in optimizing your wiring layouts, selecting cost-effective equivalent connectors, and drafting CAD/3D drawings for your approval.
- Flexible Production Lines: We understand that industrial automation projects vary in scale. That is why our factory supports customization and accommodates low volume production (High-Mix, Low-Volume manufacturing) for prototype testing, as well as scaling up to mass production seamlessly.
- Complete Solutions: From the initial distribution cabinet internal wiring harness design to the final assembly of the inter-cabinet control wiring harness, we provide end-to-end services. You receive a plug-and-play product ready for immediate installation.
Take the Next Step in Upgrading Your Control Systems
Inferior wiring leads to system failures, signal drops, and dangerous electrical hazards. Do not compromise on the "nervous system" of your industrial equipment. Partner with a factory that understands the rigorous demands of the automation, new energy, and power distribution sectors.
Are you ready to optimize your supply chain with premium, competitively priced industrial control cabinet wire harness solutions?
Contact us today! Send us your drawings, BOMs, or technical requirements, and our engineering team will provide a rapid, comprehensive quote and prototype plan. Let us build your custom complete solutions with precision and excellence.
[Call to Action Button] -> Send an Inquiry Now / Request a Free Quote
