Ultimate Guide to Aerospace Drone Cable Assembly: High-Performance UAV Wiring Solutions

The Core Interconnect System of Modern UAVs

In the rapidly evolving fields of aviation and unmanned aerial vehicles (UAVs), the aerospace drone cable assembly serves as the central nervous system of the aircraft. As drones become more sophisticated, integrating advanced avionics, high-definition optical payloads, and complex telemetry systems, the reliability of electrical interconnection becomes absolutely critical.

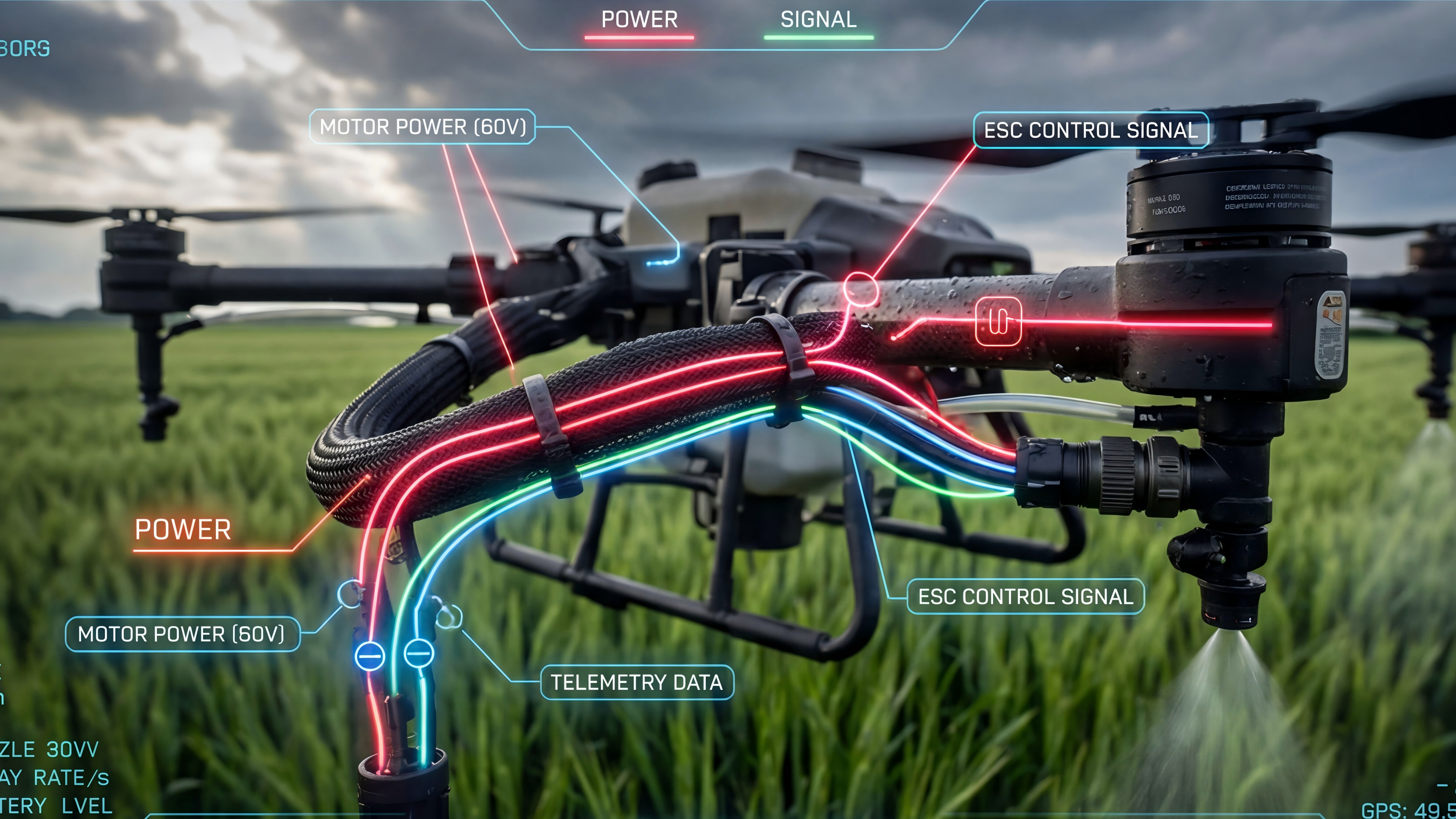

Unlike standard commercial wiring, an aerospace-grade drone cable assembly is specifically engineered and custom-developed to withstand severe operational environments. These specialized wiring harnesses ensure seamless power distribution and high-fidelity signal transmission, forming the critical bridge between the flight controller, sensors, propulsion systems, and communication modules. For engineers and UAV manufacturers, selecting a premium cable assembly is the first step toward guaranteeing mission success and flight safety.

Advanced Classifications and Technical Characteristics

To meet the rigorous demands of the aerospace industry, drone cable assemblies are categorized based on their specific functional applications and structural engineering.

Lightweight PTFE Silver-Plated Copper Wiring

Weight is the most critical constraint in aerospace engineering. Our lightweight drone harnesses utilize Polytetrafluoroethylene (PTFE) insulation combined with silver-plated copper conductors. This structural synergy not only significantly reduces the overall weight of the aircraft—thereby extending flight time and battery efficiency—but also provides exceptional conductivity and resistance to corrosive aviation fluids.

Micro D-Sub Shielded Cable Assemblies

Modern drones feature highly compact internal architectures. Micro D (MIL-DTL-83513) and Nano D connectors are extensively utilized due to their miniature footprint and high-density pin configurations. Equipped with premium EMI/RFI shielding, these micro-assemblies prevent electromagnetic interference between the high-current propulsion systems and sensitive GPS/RTK navigation modules, ensuring flawless data integrity.

High-Frequency RF Signal Transmission Harnesses

For military and industrial UAVs requiring real-time, low-latency video feeds and long-range telemetry, RF coaxial cable assemblies are indispensable. Utilizing specialized dielectric materials, these assemblies minimize insertion loss and voltage standing wave ratio (VSWR), guaranteeing stable high-frequency data links even at extreme altitudes.

Engineering Principles for Extreme Aerospace Environments

Aerospace drone cable assemblies are designed based on stringent electrical and mechanical principles to adapt to incredibly harsh conditions.

• Spatial Optimization & Wind Drag Reduction: Through meticulous 3D routing and highly flexible custom jacketing, the cables conform to the tightest fuselage spaces. Externally routed cables are aerodynamically profiled to minimize aerodynamic drag during high-speed flight.
• Vibration and Shock Resistance: UAVs endure intense high-frequency vibrations from multi-rotor motors. The assemblies utilize secure locking mechanisms, such as threaded circular connectors or screw-locked Micro D connectors, combined with strain relief boots to prevent mechanical fatigue and accidental disconnection.
• Extreme Thermal Tolerance: From scorching desert take-offs to stratospheric sub-zero temperatures, these harnesses maintain structural integrity without cracking or melting, functioning flawlessly across extreme thermal gradients.

Technical Specifications of UAV Cable Assemblies

To assist aerospace R&D engineers in rapid product matching, the core technical parameters of our custom drone cable assemblies are detailed below:

Your Trusted Source Factory for Custom Drone Wiring

As a premier OEM source factory specializing in B2B electrical interconnect solutions, we possess extensive experience in the aerospace and drone manufacturing sectors. We understand that every UAV project has unique structural and electrical demands, which is why we offer comprehensive, end-to-end customization.

• ISO9001 Certified Quality: Our state-of-the-art manufacturing facility operates under strict ISO9001 quality management systems. Every aerospace drone cable assembly undergoes rigorous automated electrical testing, continuity checks, and high-pot testing before shipment.
• Professional Design Team: Our in-house engineering experts collaborate directly with your R&D department, providing 3D CAD modeling, routing optimization, and rapid prototyping to deliver a flawless turnkey wire harness solution.
• Flexible Low MOQ & OEM Support: We support innovation. Whether you are in the initial prototyping phase requiring a low Minimum Order Quantity (Low MOQ) or scaling up for mass production, our agile production lines can accommodate your specific supply chain needs seamlessly.

Ready to elevate your drone's performance? Partner with a reliable manufacturer who understands the absolute precision required for aerospace applications. Contact our engineering team today to discuss your custom specifications, request technical drawings, or secure a rapid quotation for your next UAV project.
