The Ultimate Guide to Custom Car Horn Relay Wiring Harness: Upgrade & Protect Your Vehicle

When upgrading a vehicle's horn system—whether installing dual snail horns, air horns, or simply replacing a factory horn with a high-decibel alternative—many car owners and aftermarket mechanics face a hidden danger: switch burnout. Upgraded horns draw a significantly higher current than standard factory horns. If wired directly, this intense power surge can quickly melt or irreversibly damage the delicate steering wheel horn switch.

The ultimate solution to this problem is a high-quality Car Horn Relay Wiring Harness.

How Does a Car Horn Relay Wiring Harness Work?

The core principle of a relay wiring harness is simple yet highly effective: using a low current to control a high current.

Instead of routing the heavy electrical load directly from the battery through the steering wheel switch and then to the horn, the relay acts as an intermediary high-power switch.

1. The steering wheel horn button only sends a very small, safe electrical signal (low current) to the relay.
2. Once triggered, the electromagnetic coil inside the relay closes the circuit.
3. The relay then pulls the massive power (high current) directly from the battery and delivers it straight to the new horns.

This ensures maximum voltage reaches your horns for the loudest possible sound, while completely protecting your expensive interior steering wheel switch from electrical arcing and heat damage.

Understanding 3-Pin vs. 4-Pin Horn Relays

When designing or purchasing a custom horn relay wiring harness, you will typically encounter 3-pin and 4-pin relay configurations.

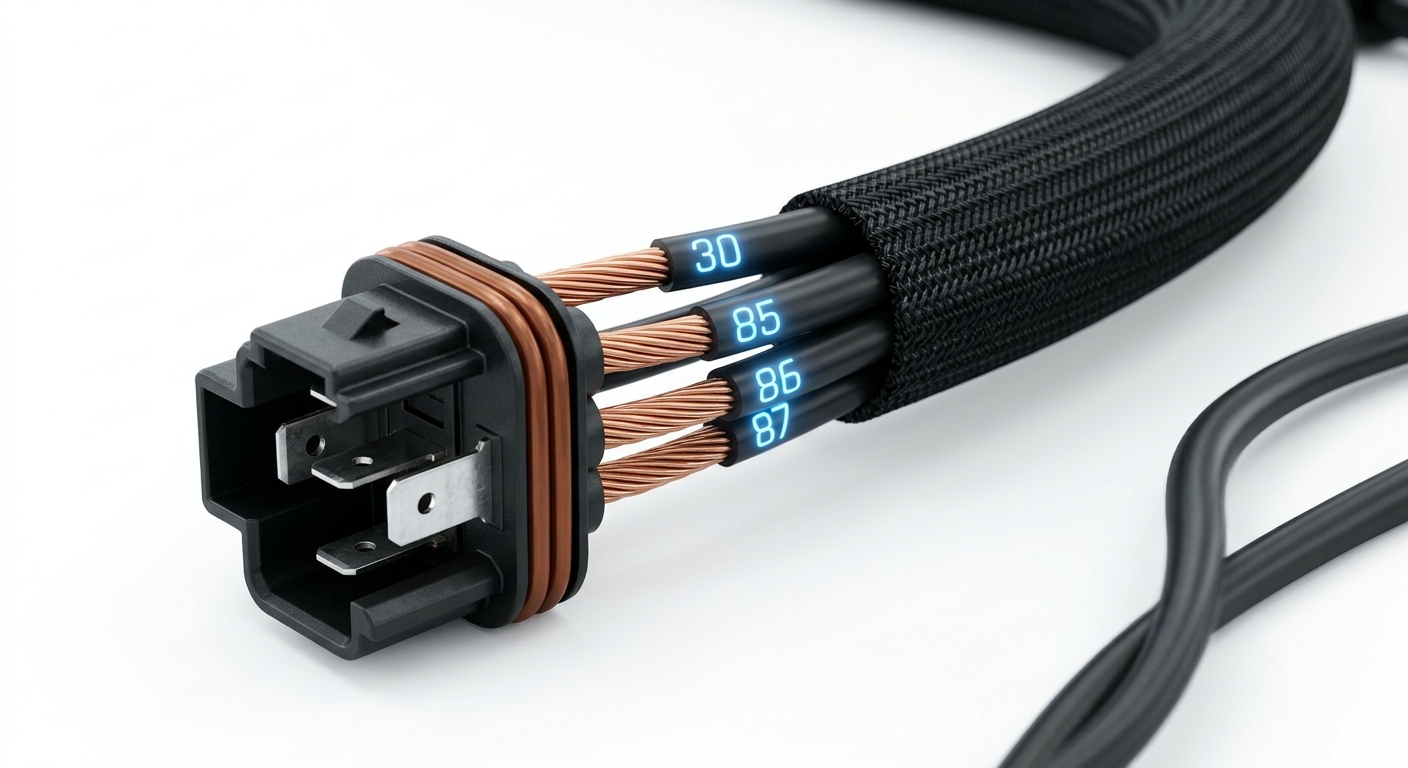

• 4-Pin Relay Wiring (The Industry Standard): This is the most common and safest configuration for aftermarket upgrades.
  • Pin 30: Connects directly to the battery's positive terminal (protected by an inline fuse).
  • Pin 85: Connects to the vehicle chassis ground.
  • Pin 86: Connects to the original horn wire (the trigger signal from the steering wheel).
  • Pin 87: Connects to the positive terminal of the newly installed horns.
• 3-Pin Relay Wiring: In a 3-pin configuration, the internal coil ground and the main power circuit are often shared. While slightly easier to install for specific legacy vehicles, it offers less flexibility than the isolated circuits of a 4-pin relay.

Technical Specifications & Parameters

For B2B buyers, distributors, and automotive engineers, the quality of the raw materials determines the safety and lifespan of the harness. We manufacture our wiring kits strictly using automotive-grade components designed for extreme engine bay environments.

Why Choose a Professional Wiring Harness Upgrade?

1. Maximum Sound Output: Factory wires are extremely thin and cause voltage drops. A dedicated thick-gauge copper harness ensures the horn receives the full 12 volts, maximizing decibel output.
2. Zero Switch Damage: Isolates the high current, preventing the steering wheel contacts from burning out.
3. Plug-and-Play Installation: Engineered with pre-crimped connectors, inline fuses, and split looms for a seamless, factory-look installation. No wire cutting is required for standard kits.

Your Trusted B2B Manufacturing Partner for Automotive Wiring Harnesses

If you are an automotive parts brand, a wholesale distributor, or an aftermarket modification specialist looking for a reliable OEM manufacturer, you are in the right place.

As a premier factory specializing in automotive electrical systems, we are proud to be ISO9001 and IATF16949 certified. This means our manufacturing processes meet the most stringent international automotive quality management standards.

Our Factory Advantages:

• Strong Customization Capabilities: Whether you need custom wire lengths, specific AWG gauges, unique OEM connectors, or branded packaging, our professional engineering design team can bring your blueprint to life.
• Flexible Small Batch Production: We understand the dynamic needs of the aftermarket industry. We support small-volume custom orders to help you test the market without massive inventory risks.
• Uncompromising Quality Control: Every single car horn relay wiring harness undergoes strict computerized continuity and load testing before leaving our facility, ensuring a 0% defect rate.

Ready to upgrade your product lineup with top-tier automotive wiring harnesses? Do not let subpar wiring ruin a great automotive product. Partner with an IATF16949 certified manufacturer today.

Contact us now to discuss your custom specifications and get a competitive B2B wholesale quote!
