The Ultimate Guide to Racing Drone Wire Harness Solutions

In the highly competitive world of First-Person View (FPV) racing, every millisecond and every gram matters. A racing drone wire harness is the central nervous system of your Unmanned Aerial Vehicle (UAV). It is meticulously engineered to connect critical components such as the battery, Electronic Speed Controller (ESC), flight controller, and video transmitter (VTX).

Unlike standard commercial drone cables, racing drone wiring faces extreme operational environments. To guarantee instantaneous power output and flawless maneuverability, these harnesses are strictly designed around four core technical demands: extreme lightweight construction, high-current carrying capacity, superior vibration resistance, and ultra-low signal latency. Choosing the right professional wire harness not only ensures peak aerodynamic performance but also prevents catastrophic mid-air electrical failures during high-G maneuvers.

Categories, Features, Scenarios, and Principles

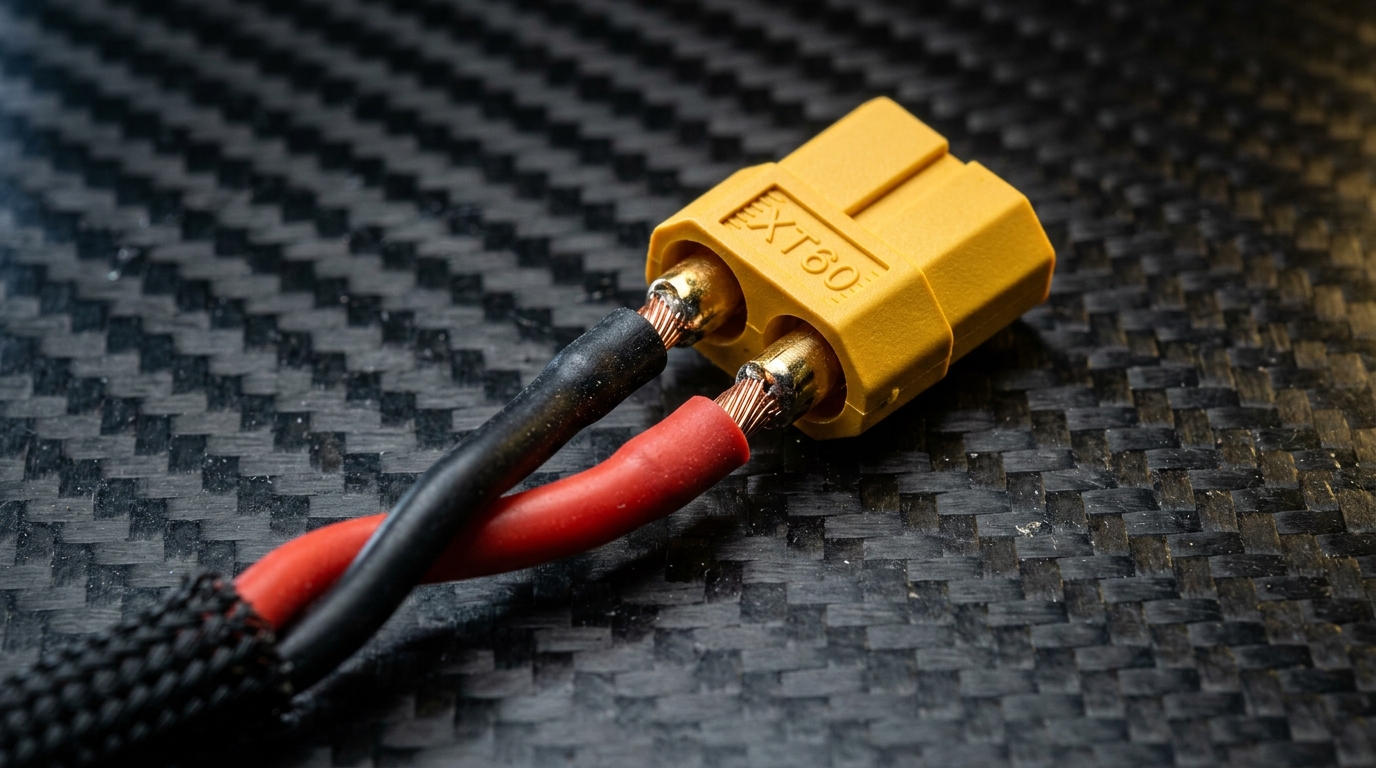

Power Wire Harnesses (Battery to ESC)

• Features: Constructed with ultra-high strand count tinned copper and premium silicone insulation. Highly flexible and capable of withstanding extreme temperatures (up to 200°C).
• Role: Acts as the primary artery for energy delivery, ensuring a continuous and stable flow of electricity from the LiPo battery to the ESCs and motors.
• Usage Scenario: Essential for the main power loop of racing drones, specifically during full-throttle punch-outs and rapid acceleration.
• Working Principle: Utilizes low-resistance electrical pathways to minimize voltage drop and heat generation when handling massive current spikes (often exceeding 100A), instantly converting electrical energy into mechanical thrust.

Flight Controller (FC) Signal Wire Harnesses

• Features: Ultra-lightweight, highly flexible, and often utilizing twisted-pair configurations to reduce electromagnetic interference (EMI).
• Role: Transmits core command signals between the radio receiver, flight controller, and ESCs.
• Usage Scenario: Used in the central avionics stack, navigating tight spaces within the carbon fiber frame without restricting airflow or adding unnecessary weight.
• Working Principle: Operates on digital protocols (like DSHOT or SBUS). By isolating signal paths and utilizing high-conductivity micro-wires, it guarantees zero-delay communication between the pilot's remote inputs and motor responses.

FPV Video Transmission (VTX) Wire Harnesses

• Features: Integrates micro-coaxial cables or heavily shielded wires with secure micro-connectors (e.g., JST-SH) to prevent signal degradation.
• Role: Connects the FPV camera to the Video Transmitter (VTX) and the On-Screen Display (OSD) chip.
• Usage Scenario: Critical for real-time video feedback, especially in complex racing tracks or freestyle environments where line-of-sight is obstructed.
• Working Principle: Shields delicate high-frequency analog or digital video signals from the massive electromagnetic noise generated by the motors and ESCs, ensuring a crisp, tear-free video feed to the pilot's goggles.

Servo Signal Wire Harnesses (For Tilt-Rotors & Payload)

• Features: Durable, wear-resistant, and optimized for repetitive mechanical movement without wire fatigue.
• Role: Delivers precise Pulse Width Modulation (PWM) signals and stable voltage to micro-servos.
• Usage Scenario: Widely used in specialized FPV setups, such as tilt-rotor racing drones, camera gimbal stabilization, or payload-dropping mechanisms.
• Working Principle: Transmits precisely timed electrical pulses. The high-flexibility insulation prevents internal copper breakage caused by the continuous rotational friction of the servo mechanisms.

Racing Drone Wire Harness Specification Data

To help hardware R&D teams and drone manufacturers select the exact specifications for their builds, we have standardized our technical parameters below.

Why Partner With Our Professional Wire Harness Factory?

Developing top-tier FPV racing drones requires reliable supply chain partners. As an ISO9001-certified wire harness manufacturer, we specialize in B2B solutions tailored strictly to the UAV and electronic engineering sectors.

• Expert Design & Engineering Team: Our in-house engineers understand the exact pain points of drone manufacturing. We offer comprehensive schematic reviews and routing optimizations to solve weight and, EMI shielding, or specialized JST pinouts, we provide bespoke OEM/ODM solutions perfectly matched to your flight controller layout.
• Flexible Low-Volume Production: We empower startup hardware teams and niche drone manufacturers by supporting small batch production and low Minimum Order Quantities (MOQ), accelerating your R&D and prototyping phases.
• Rigorous Quality Control: Every harness undergoes strict pull-force testing, continuity checks, and high-voltage resistance testing before leaving our facility, ensuring zero failure in the field.

Ready to upgrade your UAV's performance? Contact our technical sales team today for a free consultation and get a customized quote for your racing drone wire harness project!
