The Ultimate Guide to Custom Trailer Wiring Harnesses: Reliable Manufacturing for Global B2B Buyers
When towing heavy loads, the physical hitch is only half the equation. The true lifeline between a tow vehicle and its trailer is the custom trailer wiring harness. Acting as the "blood vessels and nervous system" of the towing setup, a high-quality wiring harness ensures that power, lighting signals, and braking commands are transmitted synchronously and safely.
For automotive engineers, aftermarket distributors, and procurement managers, sourcing the right trailer wire harness is critical. In this comprehensive guide, we will explore the working principles of trailer wiring, decode the differences between standard pin connectors, and explain why partnering with an IATF16949-certified manufacturer is your best choice for OEM and custom projects.
How Does a Trailer Wiring Harness Work? The Principle of Signal Transmission
A trailer wiring harness is an intricate assembly of electrical cables, connectors, and terminals designed to bridge the electrical system of a towing vehicle with that of a trailer.
Its primary working principle relies on synchronized signal transmission. When the driver of the tow vehicle applies the brakes, activates the turn signals, or turns on the headlights, electrical currents travel from the vehicle's fuse box, through the harness, and directly to the trailer's corresponding lights and electronic brake controllers. This instant synchronization is vital for road safety, ensuring that drivers behind the trailer can anticipate the towing vehicle's movements.
Premium custom trailer wiring harnesses are engineered to prevent voltage drops, resist moisture, and withstand the constant vibrations of the road, ensuring flawless communication between both vehicles.

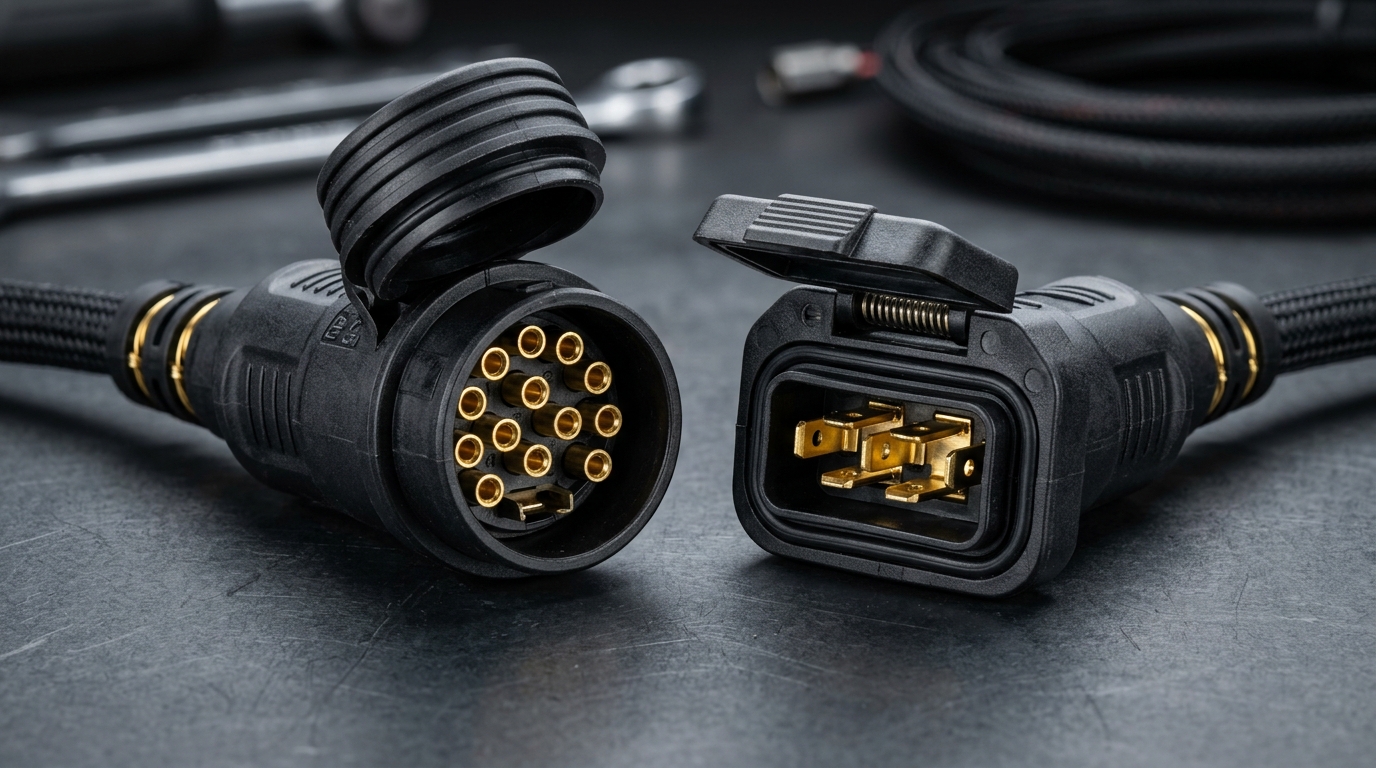

Decoding Trailer Connectors: 4-Pin, 7-Pin (US), and 13-Pin (EU)
Different regions and towing capacities require specific connector types. As an experienced wiring harness factory, we manufacture and customize the following standard configurations to meet global demands:
1. The 4-Pin Flat Connector (Basic Lighting)
The 4-way flat connector is the most common standard for light-duty towing (such as small boat trailers or utility trailers). It controls the essential lighting functions:
- Ground wire (White)
- Tail/Running lights (Brown)
- Left turn/Brake light (Yellow)
- Right turn/Brake light (Green)
- Use Case: Basic, lightweight trailers without independent electric brakes.
2. The 7-Pin Blade Connector (US Standard)
Widely used in North America for heavy-duty towing (RVs, horse trailers, and large boat trailers), the 7-way blade connector adds significant functionality. Alongside the basic lighting, it includes:
- Electric trailer brakes (Blue)
- 12V Auxiliary power (Black - charges the trailer battery)
- Reverse lights (Purple/Yellow)
- Use Case: Commercial and recreational towing requiring auxiliary power and advanced braking control.
3. The 13-Pin Round Connector (European Standard)
The standard for European vehicles, the 13-pin connector separates lighting and power circuits to comply with strict EU road safety regulations. It provides dual auxiliary power lines, separated brake and turn signals, and dedicated rear fog light integration.
- Use Case: Caravans and heavy trailers in the European market requiring comprehensive electrical synchronization and waterproof locking mechanisms.
Technical Specifications & Material Standards
To guarantee durability in harsh outdoor environments, our custom trailer wiring harnesses are built using industrial-grade materials. Below are the standard technical specifications we offer, which can be fully tailored to your OEM requirements.
Table 1: Wire Gauge Specifications & Applications
| Wire Color Code | Function | Recommended Wire Gauge (AWG / mm²) | Material Standard |
|---|---|---|---|
| White | Ground / Earth | 10-12 AWG (3.0 - 5.0 mm²) | Pure Bare Copper (OFC) |
| Blue | Electric Brakes | 12-14 AWG (2.0 - 3.0 mm²) | Pure Bare Copper (OFC) |
| Black / Red | 12V Auxiliary Power | 10-12 AWG (3.0 - 5.0 mm²) | Pure Bare Copper (OFC) |
| Brown/Yellow/Green | Tail, Turn & Brake Lights | 14-16 AWG (1.25 - 2.0 mm²) | Pure Bare Copper (OFC) |
Table 2: Connector & Housing Specifications
| Component | Technical Specification | Benefit (FAB) |
|---|---|---|
| Housing Material | High-Impact Nylon / PA66 / PVC | Withstands extreme impacts and resists road chemicals. |
| Terminals | Tin-Plated Brass or Copper Alloy | Prevents corrosion and ensures high electrical conductivity. |
| Waterproof Rating | IP65 / IP67 Equivalent | Sealed against heavy rain, mud, and snow. |
| Temperature Range | -40°C to +105°C (-40°F to 221°F) | Remains flexible in freezing winters; resists melting in summer heat. |
| Insulation | TXL / GXL / GPT Automotive Cable | Excellent dielectric strength and flame retardancy. |
Why Choose Us as Your Custom Trailer Wiring Harness Manufacturer?
Sourcing electrical components demands absolute reliability. As a professional automotive wire harness factory, we provide robust manufacturing solutions tailored to global B2B buyers. Here is what sets us apart:

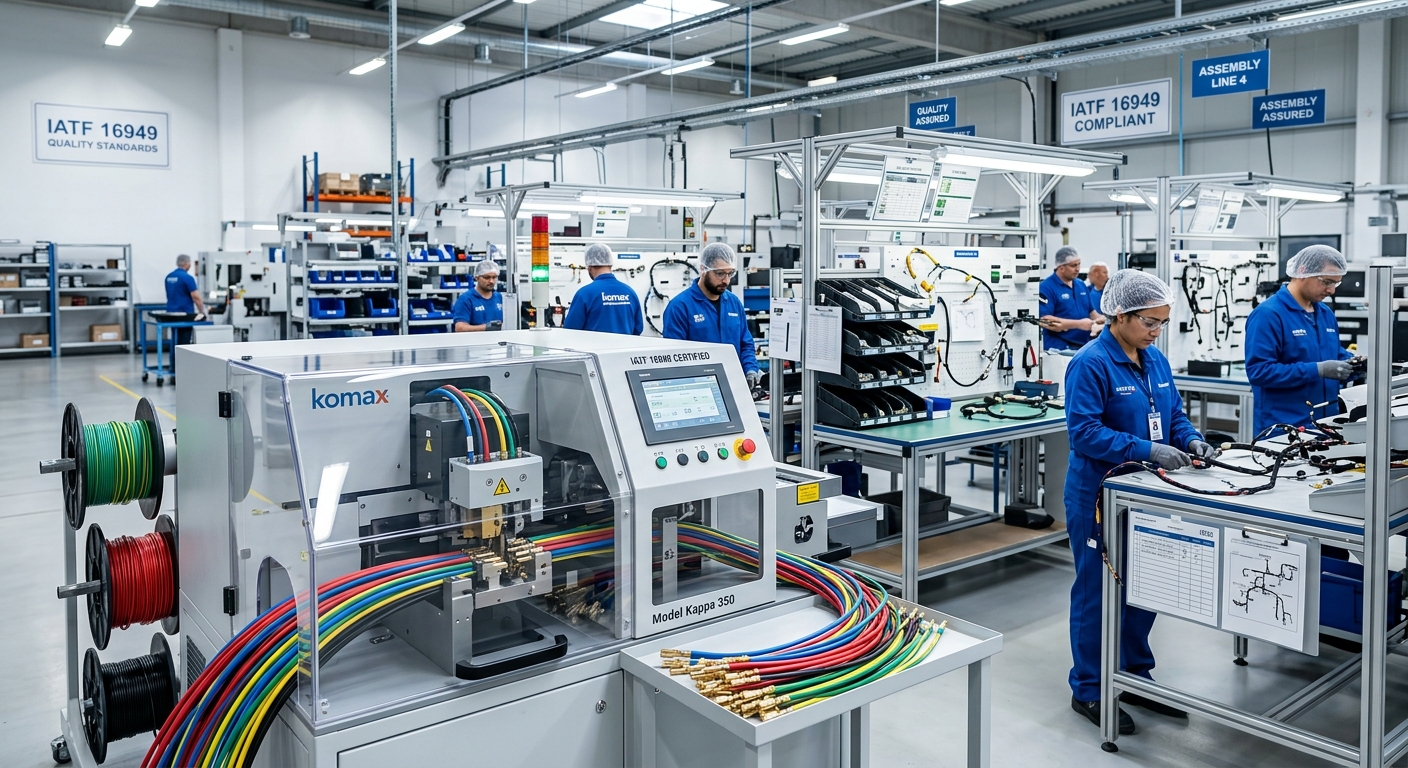

- IATF16949 & ISO9001 Certified: Quality is not just a promise; it is certified. Our production facility strictly adheres to international automotive quality management standards (IATF16949 and ISO9001), ensuring a 100% testing rate before shipment.
- Expert Customization: Need a unique length, specific loom protection (corrugated tube or braided sleeve), or non-standard pinouts? Our professional R&D and design team will turn your CAD drawings or concepts into reality.
- Flexible Low MOQ Supported: We understand that testing a new market or developing a niche product requires flexibility. We gladly support small batch production (Low MOQ) to help our partners minimize inventory risks while securing premium OEM quality.
- End-to-End Solutions: From tooling design and wire processing to final assembly and global logistics, we offer a seamless one-stop purchasing experience.
Partner With Us Today (CTA)
Don't let a subpar wiring harness compromise the safety and reputation of your automotive products. Upgrade your supply chain with a factory that understands the precise "nerves and blood vessels" of trailer towing.
Ready to start your project? Send us your specifications, drawings, or OEM samples today! [Contact Our Engineering Team Now] to get a fast, competitive quote and discover how our custom trailer wiring harnesses can drive your business forward.
