The Ultimate Guide to Drone Sprayer Cable Assemblies: Powering Precision Agriculture
The agricultural drone market is experiencing exponential growth, revolutionizing modern farming through precision crop spraying, seeding, and monitoring. However, behind every successful autonomous flight and precise pesticide application lies a critical, yet often overlooked, circulatory system: the drone sprayer cable assembly.
Operating in some of the most unforgiving environments, agricultural drones are constantly exposed to corrosive chemicals, intense UV radiation, heavy moisture, and extreme vibrations. As a professional custom wiring harness manufacturer, we understand that a single point of failure in power or signal transmission can lead to catastrophic crashes or significant crop damage. In this comprehensive guide, we will explore the core functions, technical specifications, and manufacturing standards of high-performance agricultural drone wiring harnesses, and explain why partnering with an expert factory is vital for your UAV's reliability.
How It Works: The Working Principle of Drone Cable Assemblies

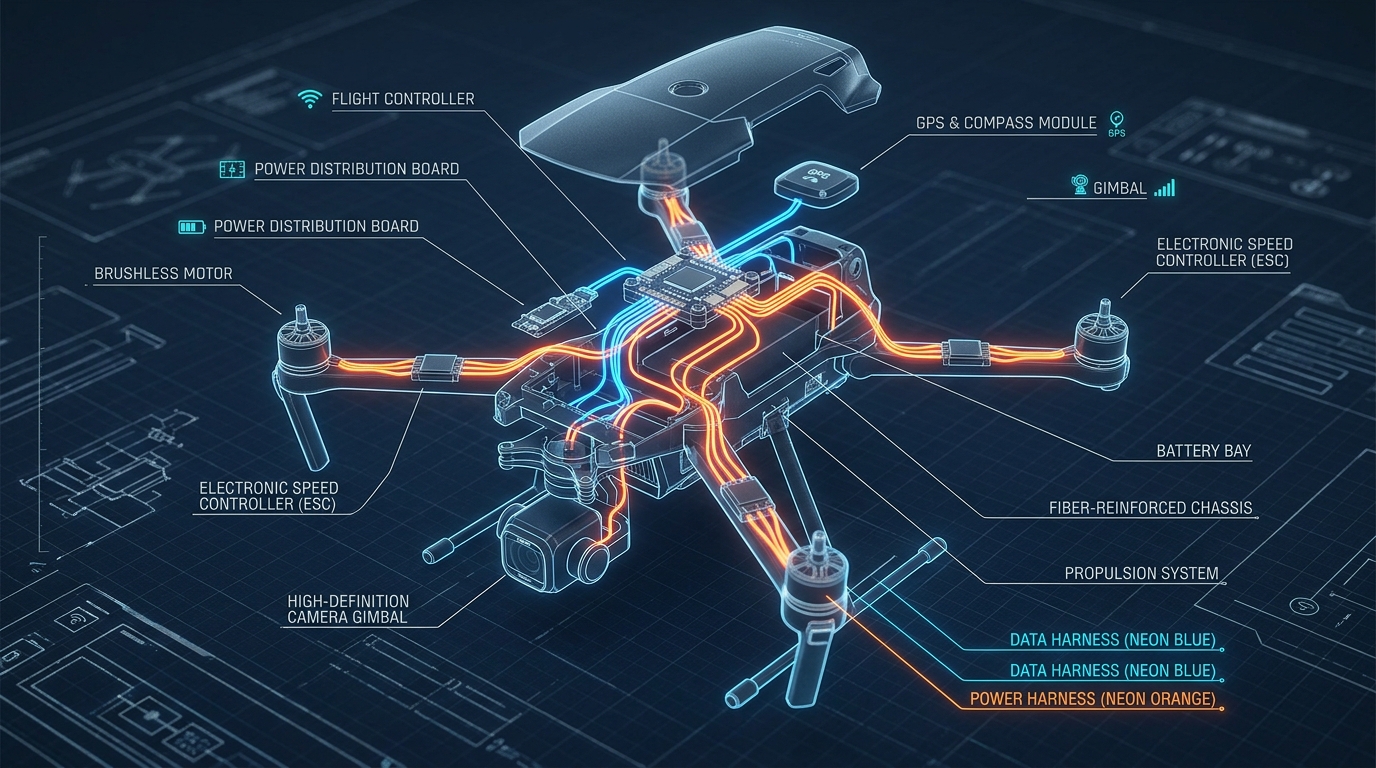

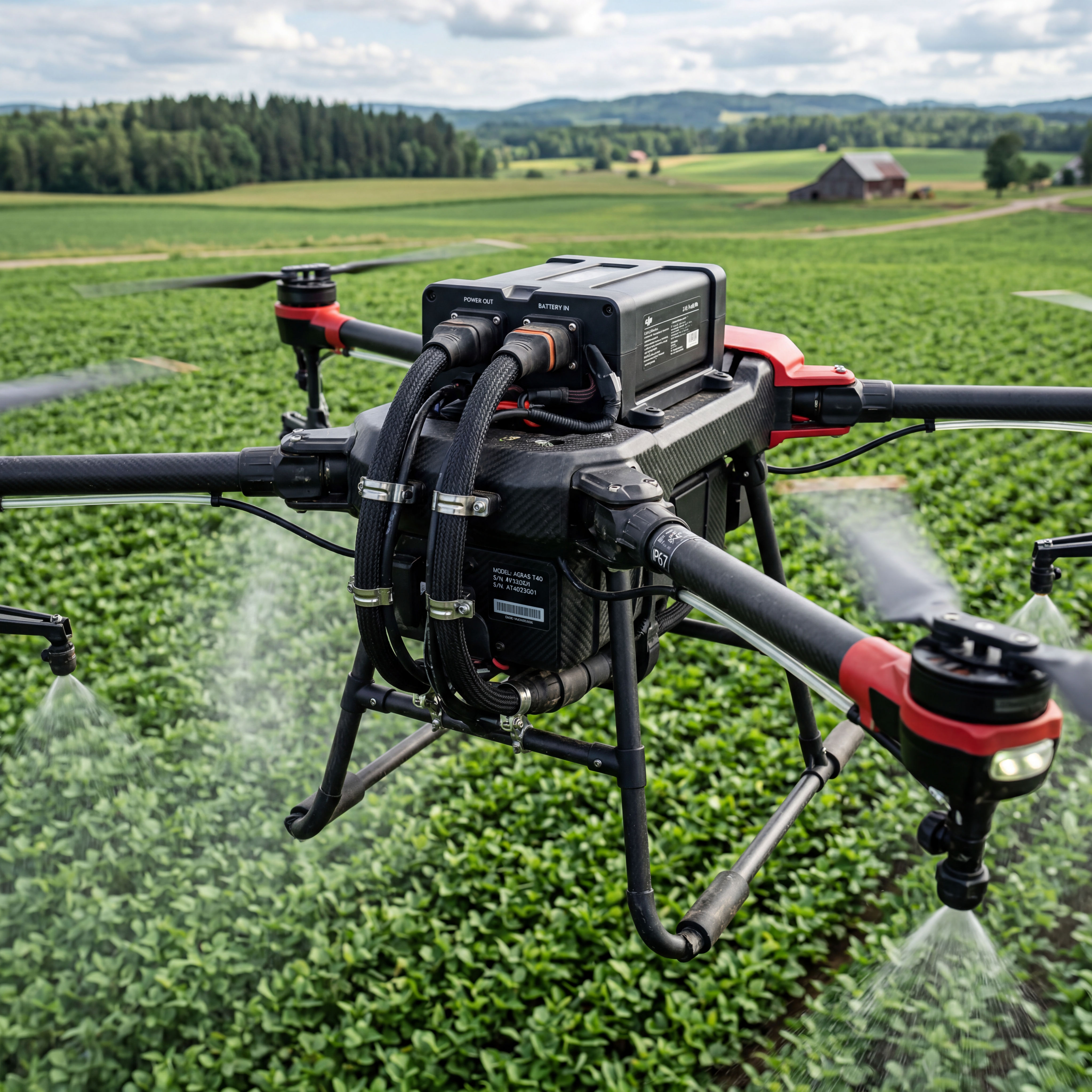

The working principle of a drone sprayer cable assembly revolves around the flawless distribution of high-current power and sensitive data. The harness acts as a vital bridge between the high-capacity LiPo/Li-ion batteries, the flight controller, the Electronic Speed Controllers (ESCs), the brushless motors, and the payload systems (water pumps and flow sensors).
When the drone operates, the heavy-duty drone cables must handle immense electrical loads (often exceeding 100-200 Amps during takeoff and maneuvering) without overheating or voltage drops. Simultaneously, the signal cables transmit real-time telemetry data—such as pump speed, liquid level, and GPS coordinates—back to the flight controller. Any electromagnetic interference (EMI) or power fluctuation can disrupt the telemetry, making robust insulation, shielding, and secure locking connectors absolutely essential.
Classification of Agricultural Drone Wiring Harnesses
To meet the complex architecture of modern spray drones, we categorize our custom cable assemblies into several specific types based on their function:
Main Power Distribution Cables
These are the thickest cables in the system, designed to connect the main battery packs to the power distribution board (PDB) and ESCs. They utilize high-strand-count silicone wire to ensure maximum flexibility and current-carrying capacity.
Pump and Radar Control Cables
Specifically engineered for the payload, these cables connect the liquid pumps, flow meters, and terrain-following radars to the flight controller. They require precise signal integrity to ensure accurate pesticide spraying rates.
Motor Phase Cables
Connecting the ESCs to the powerful brushless motors, these cables must endure continuous high-frequency vibrations and extreme heat generated during heavy payload flights.
Sensor and Telemetry Wiring
Lightweight, multi-core shielded cables that link GPS modules, RTK antennas, and collision-avoidance sensors. EMI shielding is a critical requirement here to prevent interference from the main power lines.
Key Features of Our Drone Sprayer Cable Assemblies
When manufacturing wiring solutions for agricultural UAVs, we engineer our products to solve the most pressing pain points faced by drone designers and operators:

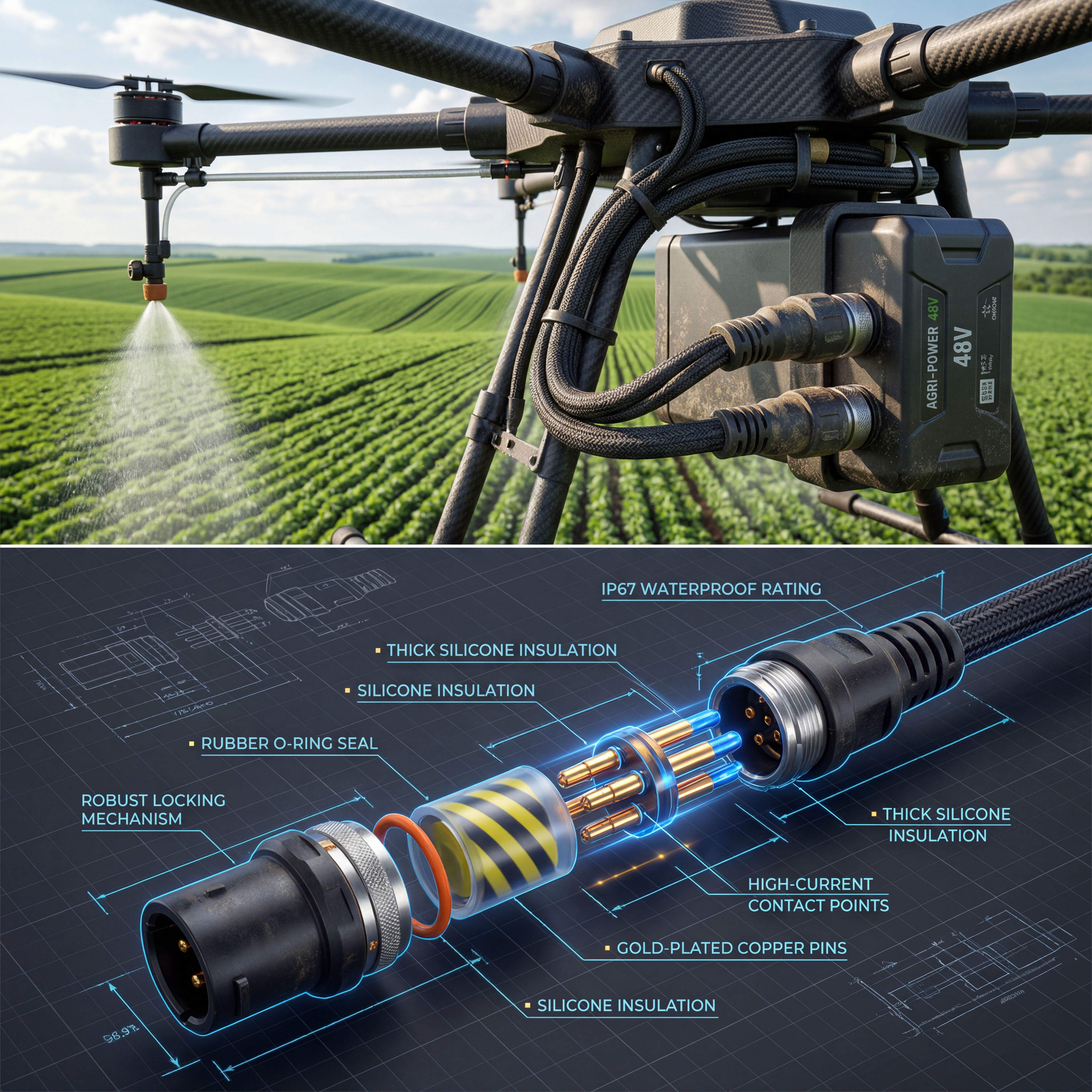

- Ultimate Waterproofing & Corrosion Resistance: We utilize waterproof drone connectors (IP67/IP68 rated) and specially formulated cable jackets (such as TPU or Teflon) that withstand exposure to harsh liquid fertilizers, herbicides, and rain.
- High-Current Handling Capacity: By employing ultra-pure tinned copper and gold-plated high-amp connectors (e.g., AS150U, QS90), our assemblies prevent connector melting and minimize voltage drop under heavy loads.
- Vibration Proof & Secure Locking: Agricultural drones vibrate intensely. Our connectors feature anti-spark designs and secure locking mechanisms to prevent accidental disconnections mid-flight.
- Superior EMI/RFI Shielding: We incorporate advanced braided copper shielding in our signal cables to guarantee noise-free data transmission, ensuring stable flight control and precise radar functioning.
- Extreme Temperature Tolerance: From freezing morning dew to scorching summer fields, our silicone and Teflon insulated cables maintain flexibility and integrity from -60°C to +200°C.
Applications & Functions in the Field
Our heavy-duty drone cables are the backbone of various precision agriculture applications:
- Liquid Crop Spraying: Guaranteeing stable power to high-pressure diaphragm pumps and atomizing nozzles for even chemical distribution.
- Granular Spreading: Powering the high-torque motors of fertilizer spreaders and seeders.
- Field Mapping & Surveying: Ensuring uninterrupted power and data transfer for multispectral cameras and LiDAR systems.
Technical Specifications
As an industry-leading manufacturer, we adhere to strict industrial standards. Below are the standard specifications for our custom drone wiring solutions, fully customizable to your specific engineering requirements.
Wire Specifications
| Feature | Specification Details |
|---|---|
| Main Power Wire Gauge | 6 AWG, 8 AWG, 10 AWG, 12 AWG (depending on payload) |
| Signal/Sensor Wire Gauge | 20 AWG, 22 AWG, 24 AWG, 26 AWG |
| Conductor Material | High-purity Oxygen-Free Copper (OFC), Tinned Copper |
| Insulation Material | High-temp Silicone, TPU, PTFE (Teflon), PVC |
| Temperature Rating | -60°C to +200°C (Silicone) / -40°C to +105°C (TPU) |
| Voltage Rating | 300V / 600V (Customizable for high-voltage systems) |
| Shielding (Signal) | Tinned copper braid + Aluminum foil (Double Shielded) |
Connector Specifications
| Feature | Specification Details |
|---|---|
| Power Connectors | AS150U, AS150, QS90, XT90, XT90-S (Anti-spark), XT60 |
| Signal Connectors | JST, Molex, waterproof aviation plugs (M8, M12) |
| Waterproof Rating | IP65, IP67, IP68 (Epoxy potted / Overmolded) |
| Contact Material | Gold-plated brass / Copper alloy |
| Housing Material | High-temperature Nylon (PA66), PBT, Aluminum alloy |
| Mating Cycles | > 1,000 cycles (Heavy-duty grade) |
