Spiral Spring Wire Harness Solutions: High-Performance Retractable Cabling for Dynamic Applications
In high-duty industrial, commercial vehicular, and specialized robotic operations, dynamic motion is the single greatest threat to electrical reliability. Conventional straight cable assemblies exposed to continuous flexing, extending, and twisting quickly succumb to conductor fatigue, internal short circuits, and outer sheath degradation. For procurement managers and system design engineers, these repetitive failures mean costly machine downtime, safety liabilities, and skyrocketing maintenance costs.
The definitive engineering answer is the Spiral Spring Wire Harness. Engineered specifically to absorb continuous mechanical extension and contraction while retaining structural elasticity, a Retractable Spring Coiled Wire Harness delivers clean, snag-free cable management in demanding moving environments.
As a leading Custom Spiral spring wire harness manufacturer, we combine advanced polymer extrusion, precision thermal-forming technology, and strict quality control to deliver high-performance coiled assemblies engineered to your exact operational parameters.
Working Principle of the Retractable Spring Coiled Wire Harness
The operational stability of a coiled wire harness lies in physical memory retention and torsional stress distribution. Unlike standard wiring harnesses that bend along a localized focal point, a spiral coiled harness distributes dynamic mechanical loads across its entire helical geometry.
- Helical Stress Distribution: When pulled, the spiral loops undergo torsional deflection rather than direct tensile strain. This geometry prevents the internal copper conductors from elongating or snapping under tension.
- Thermal Memory Setting: High-grade coils are produced via specialized heat-treatment. The raw conductors and polymer jacket are wound onto precision mandrels and cured under controlled thermal conditions. This molecular re-orientation locks in a permanent "elastic memory," enabling the harness to return consistently to its compressed state without sagging or permanent deformation.
- Snag-Free Cable Management: By contracting immediately when tension releases, the coiled assembly eliminates loose hanging wire loops, drastically reducing mechanical entanglement risks with neighboring moving components.
Industry Classifications & Specialized Applications
Dynamic movement profiles vary drastically across industries. We design and manufacture application-specific coiled assemblies tailored to electrical loads, environmental extremes, and mechanical duty cycles.
1. Automotive & Commercial Transport: Trailer Spiral Spring Wire Harness
In commercial transportation, articulated linkages experience brutal weather, constant vibration, road debris, and chemical exposure.
- Core Solutions: Heavy-duty Trailer Spiral Spring Wire Harness assemblies for truck-to-trailer, tractor-semi-trailer, and commercial towing hookups.
- Specialized Use: EBS/ABS braking control lines, 7-pin/13-pin lighting interconnects, dynamic articulating joints, and reversing camera systems.
- Key Advantages: Resistant to grease, road salts, low-temperature cracking (-40°C), and continuous roadway oscillations.
2. Industrial Automation & Robotics
Modern automated manufacturing facilities require continuous-duty power and data transmission along multi-axis paths.

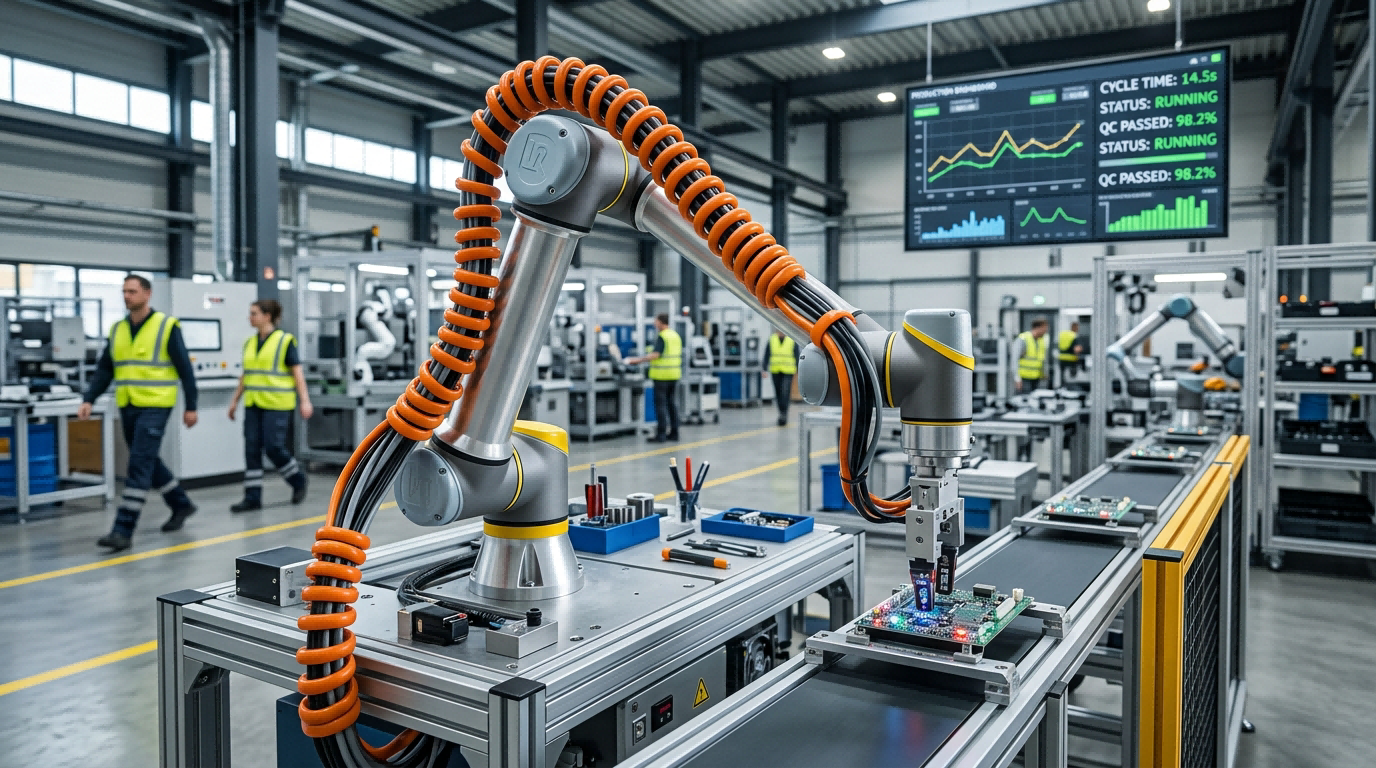

- Core Solutions: High-flex Retractable Spring Coiled Wire Harness for Cartesian robots, linear guide rails, CNC machining tables, automated pick-and-place equipment, and overhead gantry cranes.
- Key Advantages: High extension-to-retraction ratios (up to 1:4 or 1:5), space-saving footprints, zero cable track (drag chain) wear, and superior electromagnetic compatibility (EMC) shielding against servo interference.
3. Special Equipment & Extreme Environments
Critical mission profiles demand assemblies that never fail under unpredictable environmental stressors.
- Medical Systems: Mobile surgical arms, dental chairs, and diagnostic imaging equipment requiring bio-compatible, easy-to-sanitize, aesthetic coiled harnesses.
- Telescopic & Marine Equipment: Retractable communications towers, dynamic crane booms, and marine dock handling systems subjected to heavy UV exposure, saltwater corrosion, and high humidity.
Material Engineering: TPU / PUR vs. Standard Jacket
The outer jacket dictates the mechanical life of any dynamic coil. While conventional PVC harnesses are cost-effective for static indoor use, dynamic industrial applications demand a TPU PUR Jacket Spiral Spring Harness.
| Feature / Property | PVC (Standard) | TPU / PUR (Thermoplastic Polyurethane) |
|---|---|---|
| Spring Back Memory | Poor to Moderate; tends to deform | Exceptional; permanent coil retention |
| Abrasion Resistance | Low; wears out in dynamic friction | Outstanding; withstands drag, scrape & tear |
| Flex Life Cycles | < 100,000 cycles | > 2,000,000 to 10,000,000 dynamic cycles |
| Low-Temp Flexibility | Becomes brittle below 0°C | Flexible down to -40°C (-40°F) |
| Oil & Chemical Resistance | Vulnerable to fuels, grease & solvents | Impervious to oils, lubricants, acids & alkalis |
| Weather / UV Resistance | Moderate | Excellent; anti-aging, hydrolysis-resistant |
By employing pure polyether- or polyester-based TPU, our engineers guarantee maximum rebound force, preventing the loose coil droop that ruins machinery and compromises signal integrity.
Technical Specifications & Engineering Capabilities
Every harness is engineered around our clients' mechanical dimensions and electrical parameters.
| Parameter | Standard Range / Specification | Custom Engineering Options |
|---|---|---|
| Conductor Size | 28 AWG to 10 AWG (0.08 mm² - 6.0 mm²) | Custom hybrid configurations (Power + Signal) |
| Conductor Material | High-purity Bare Oxygen-Free Copper, Tinned Copper | Silver-plated copper, high-tensile alloy copper |
| Core Count | 1 Core to 36 Cores | Twisted pairs, co-axial cores, fiber optic hybrids |
| Outer Sheath Material | Flame-Retardant TPU, PUR, TPE, Matt/Glossy | Halogen-free (LSZH), medical-grade silicone |
| Coil Outer Diameter (OD) | 10 mm to 100 mm | Scaled to customer clearance limits |
| Retraction Ratio | Standard 1:3 | High-extension design up to 1:5 |
| Operating Temperature | -40°C to +90°C (-40°F to +194°F) | High-temperature ratings up to +125°C |
| Shielding Options | Spiral bare/tinned copper shield, aluminum foil | High-coverage tinned copper braid (>85% coverage) |
| Connector Integration | Overmolded M8/M12, Deutsch, Amphenol, RJ45 | Custom tooling, raw stripped/tinned ends |
| Certifications | ISO9001, CE, RoHS, REACH, UL Recognized style | Custom component UL trace certifications |
Why Choose Us as Your Custom Spiral Spring Wire Harness Manufacturer?
Navigating the transition from an engineering concept to a mass-produced, field-proven cable assembly demands an experienced manufacturing partner. We bridge the gap between design engineering and high-volume, defect-free production.
ISO9001 Certified Manufacturing Excellence
Our factory operations adhere strictly to ISO9001 quality management standards. Every single coiled wire harness undergoes rigorous production controls:
- High-voltage spark testing
- Conductor resistance verification
- 100% pin-to-pin continuity mapping

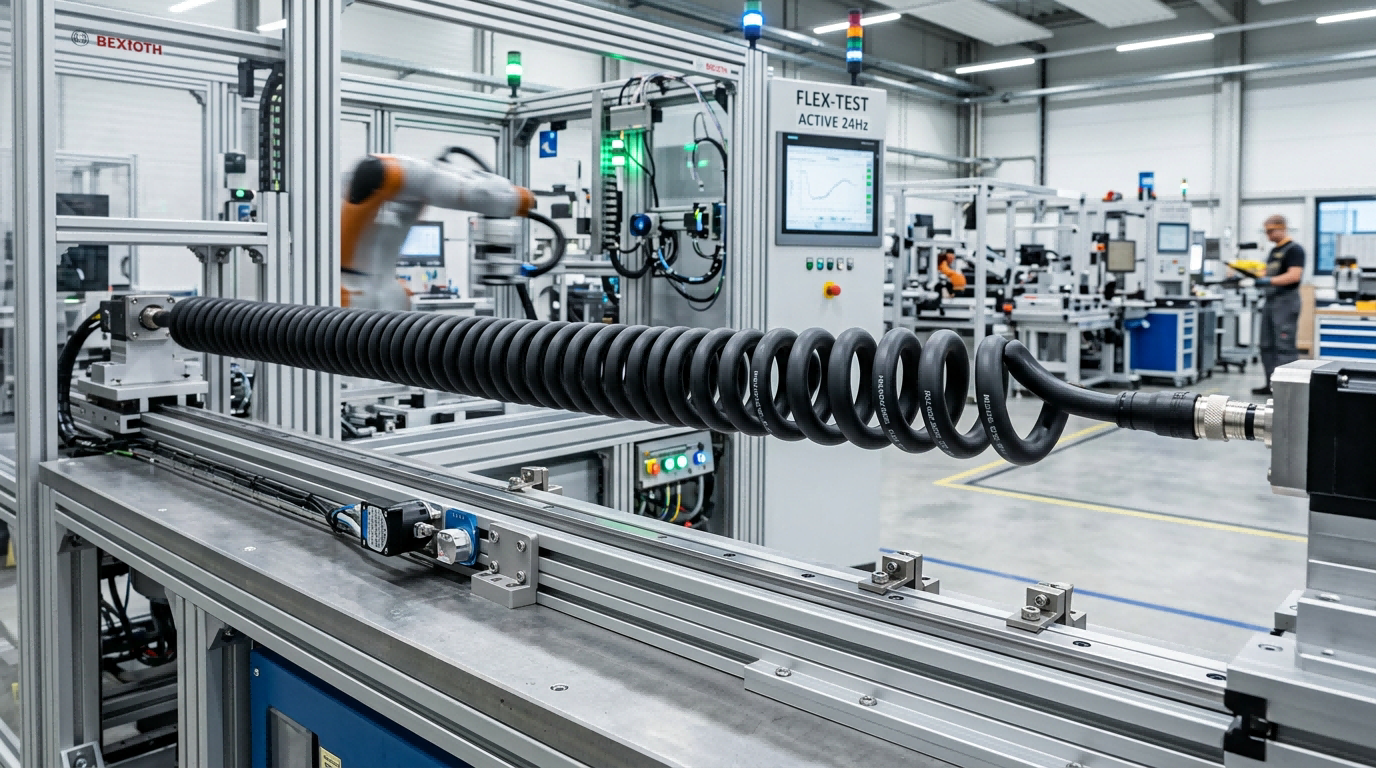

- Automated dynamic tensile rebound and cycle fatigue testing
Dedicated OEM/ODM Engineering Support
Do not let wiring be an afterthought in your equipment design. Our professional design team works directly with your engineers from initial 3D CAD modeling and prototype review to production tooling and end-to-end electrical schematics. We tailor tail lengths, tangential/radial exits, coil loops, and connector overmolding to fit your exact housing footprint.
Low MOQ Acceptable for Agile Prototyping
We recognize that advanced industrial, medical, and robotics development requires agile validation. We maintain a flexible manufacturing policy with Low MOQ acceptable, allowing you to order small test batches to validate mechanical fit, rebound rate, and signal integrity before scaling up to mass production.
Turnkey Custom Solutions
Whether you require specialized multi-conductor hybrid cabling (integrating pneumatic lines with shielded sensor cores) or ruggedized Trailer Spiral Spring Wire Harness assemblies complete with IP68 waterproof molded connectors, our end-to-end custom solutions shorten your supply chain and accelerate your time-to-market.
Request Your Custom Coiled Harness Prototype Today
Eliminate dynamic cable failure from your systems. Partner with a specialized Custom Spiral spring wire harness manufacturer that understands flex life dynamics, material science, and global delivery schedules.
Contact Our Engineering Team Today:
- Submit your technical drawings (CAD / PDF / Wire Schematics)
- Request a 24-hour engineering assessment & quotation
- Fast prototyping and global sampling available
