The Ultimate Guide to Spiral Cable Assembly: Engineering, Applications, and Custom Solutions

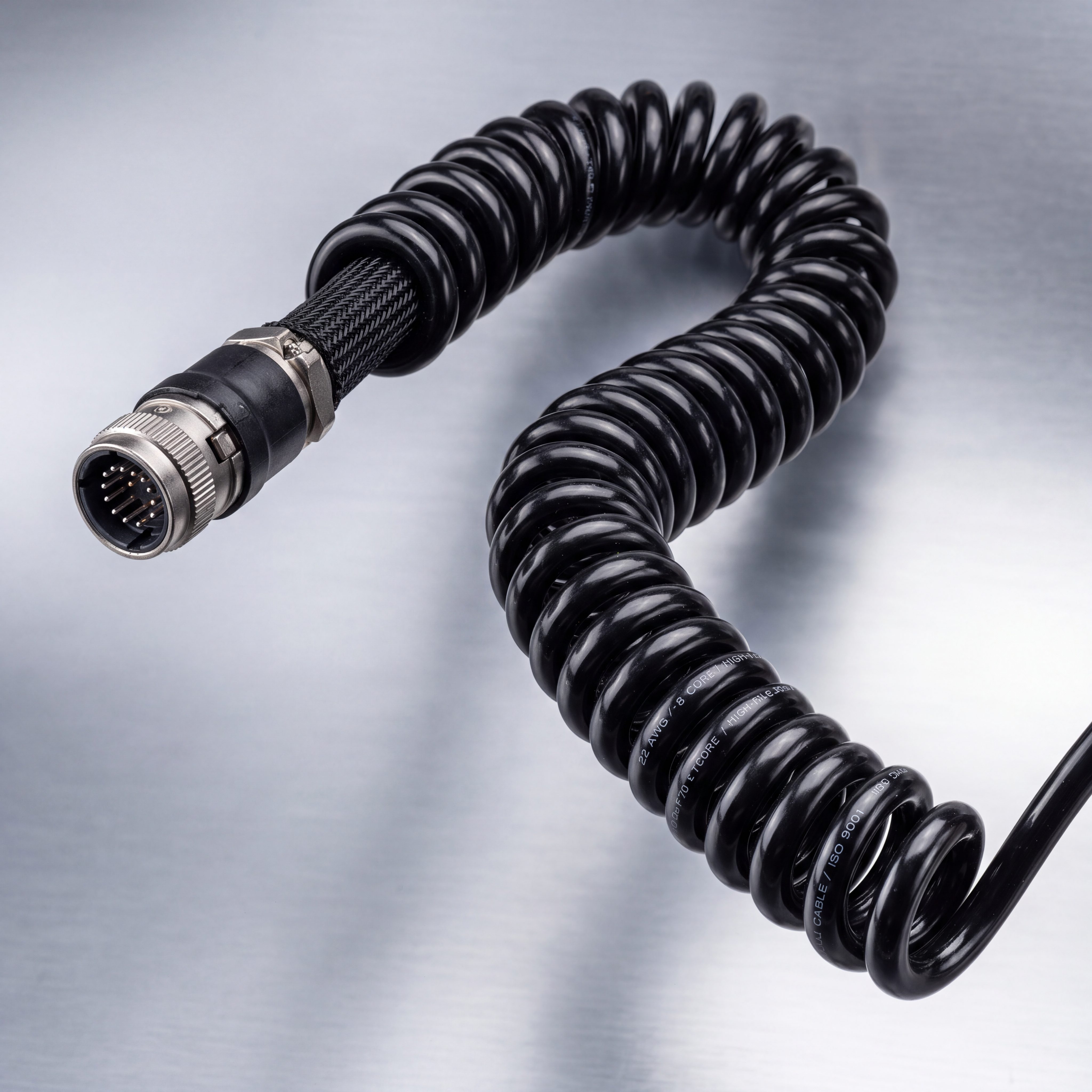

In the fast-paced world of industrial manufacturing and complex machinery, reliable connectivity is paramount. A spiral cable assembly—also widely known as a coiled cable assembly or curly cable assembly—is specifically engineered for environments that demand frequent extension, retraction, and multidirectional movement.

Unlike standard linear cables that can easily tangle, drag, or snap under continuous mechanical stress, a spring cable assembly leverages the elastic memory of its specially formulated outer jacket. This unique structural design allows the cable to stretch to several times its resting length and immediately return to its original coiled state, ensuring long-term durability and spatial efficiency in demanding B2B applications.

How Does a Retractable Spiral Cable Work?

The fundamental working principle of a retractable spiral cable lies in its advanced extrusion and thermal forming process. During manufacturing, the straight cable is tightly wound around a heated mandrel. Through precise temperature control and curing, the jacket material "memorizes" this coiled shape.

This mechanical coil acts like a physical spring. When pulling force is applied, the coils expand, absorbing the mechanical stress rather than transferring it to the internal copper conductors. Once the force is released, the inherent elasticity of the polymer jacket retracts the cable, effectively preventing looping, tangling, and accidental tripping hazards in dynamic industrial spaces.

Comprehensive Classification of Coiled Cable Assemblies

To meet diverse engineering requirements, coiled cables are categorized based on their jacketing materials and functional configurations.

1. Classification by Jacket Material

The choice of outer material dictates the cable's lifespan, chemical resistance, and recoil strength.

• PUR (Polyurethane): A multi core PUR spiral cable represents the pinnacle of coiled cable technology. PUR offers exceptional mechanical memory, superior abrasion resistance, and excellent performance in low temperatures. It is highly resistant to oils, microbes, and hydrolysis.
• TPU (Thermoplastic Polyurethane): A TPU retractable spring wire provides outstanding elasticity and flexibility. It bridges the gap between rubber and plastics, offering immense durability against harsh environmental factors.
• PU (General Polyurethane): A standard PU jacket spiral cable is widely used across various commercial applications, offering a great balance between cost-effectiveness and reliable spring memory.
• PVC (Polyvinyl Chloride) & PA (Polyamide): Generally used for light-duty, static, or budget-sensitive applications where extreme retraction cycles are not mandatory.

2. Classification by Function and Core Count

• Power Transmission: An industrial retractable coiled power cable is designed with thicker gauges to handle high voltage and current for heavy machinery. A prime example is the heavy-duty PUR coiled power cable used in mobile automated guided vehicles (AGVs).
• Data & Signal Bus: These cables, such as a coiled USB C cable assembly, are engineered for flawless data transmission. They often feature twisted pairs and shielding.
• Core Configurations: Depending on the electrical requirements, these assemblies can be customized into 2-core, 4-core, multi-core, or standardized pin configurations like 7-pin and 13-pin layouts.

Technical Specifications

When sourcing a cable for your project, evaluating the precise technical parameters is crucial. Below is a standard specification table for our premium industrial-grade coiled cables.

Key B2B Applications for Spring Cable Assemblies

Our engineered solutions are trusted by procurement managers and R&D engineers across four critical sectors:

1. Automotive Industry

In modern vehicles, steering wheels require constant rotation without breaking the electrical connection for airbags and controls. A specialized clock spring spiral cable harness is utilized here, designed to withstand millions of twisting cycles without conductor fatigue or rupture.

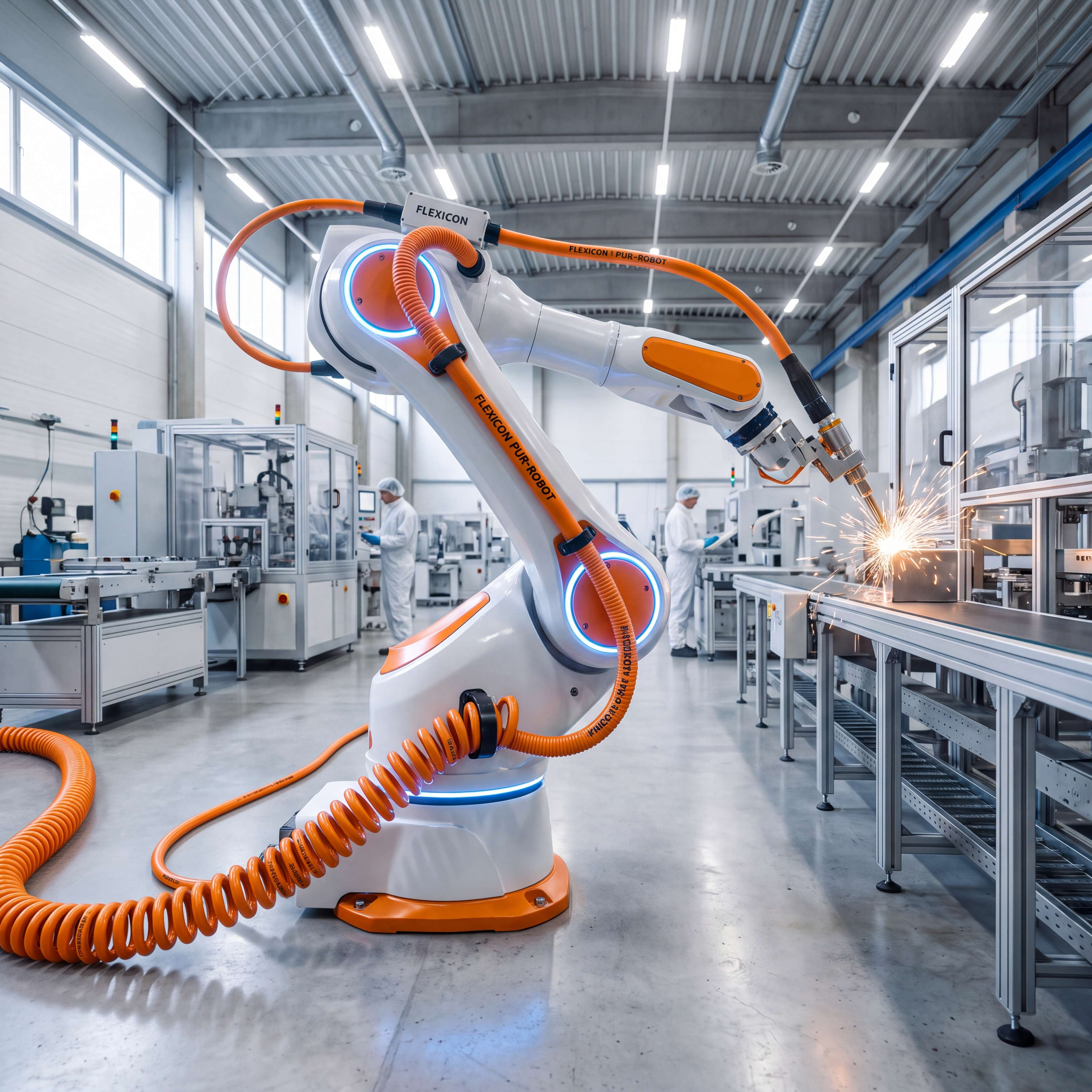

2. Industrial Automation & CNC Machining

Factory floors are dynamic. A CNC MPG spiral cable (Manual Pulse Generator cable) allows operators to move around the machine safely while controlling the axes. Similarly, mobile robots and lifting platforms rely on these cables to supply power and signals without the risk of the cable dragging on the floor and causing a tripping hazard.

3. Construction Machinery & Commercial Transport

Heavy transport vehicles face brutal environmental conditions. The connection between a truck and its trailer is a critical safety point. Using a 7 pin trailer spiral cable ensures reliable transmission for lighting and signals. Furthermore, an ABS EBS coiled truck cable guarantees that the anti-lock and electronic braking systems communicate flawlessly, regardless of sharp turns or extreme weather. For standard towing, a heavy-duty trailer coiled cable with 7 pin plug is the industry standard for secure, plug-and-play connectivity.

4. Medical & Healthcare Equipment

In operating rooms and diagnostic centers, space is at a premium. Medical carts, handheld diagnostic tools, and movable patient beds utilize specialized coiled cables to maintain stable connections in tight spaces while ensuring easy cleaning and sterilization.

Why Choose Us as Your Custom Spiral Cable Assembly Manufacturer?

Finding a reliable B2B supplier is more than just about cost; it is about engineering capability, quality assurance, and supply chain reliability. As a leading custom spiral cable assembly manufacturer, we are dedicated to resolving your most complex connectivity challenges.

• ISO9001 Certified Quality: Every cable we produce adheres to strict international quality management standards, ensuring 100% testing for continuity, insulation resistance, and stretch memory before shipment.
• Comprehensive OEM/ODM Services: Whether you need a unique coiled USB C cable assembly for consumer electronics or a highly specific spiral cable with M12 connector for industrial sensors, our professional design team can draft, prototype, and manufacture exactly to your blueprints.
• Low Volume & High Mix Support: We understand that R&D projects and specialized equipment require flexibility. We proudly support low-volume prototyping and small batch orders to help you test the market without massive inventory risks.
• End-to-End Solutions: From material selection (PUR vs. TPU) to connector molding and final assembly, we provide a complete one-stop solution, saving procurement managers time and reducing multi-vendor friction.

Ready to upgrade your equipment's connectivity? Don't let subpar cables compromise your machinery's performance. Contact our engineering team today for technical consultation, detailed CAD drawings, and a rapid quotation for your custom coiled cable project. Let us power your next innovation with unwavering reliability.
