Ultimate Guide to the Custom Automotive X-Link Adapter Module Wiring Harness: Seamless Electrical Integration
The modern automotive industry is undergoing a massive transformation. With the rapid evolution of automotive electrification, intelligent driving systems, and advanced aftermarket retrofits, vehicle architectures are becoming increasingly complex. In this highly sophisticated network of sensors, control units, and power systems, the Custom Automotive X-Link Adapter Module Wiring Harness emerges as the critical lifeline.
Whether you are an automotive engineer designing a next-generation electric vehicle (EV) powertrain or a procurement manager sourcing reliable electrical bridges for aftermarket modifications, understanding the intricacies of the X-Link adapter module wiring harness is essential for ensuring flawless signal transmission and power connectivity.

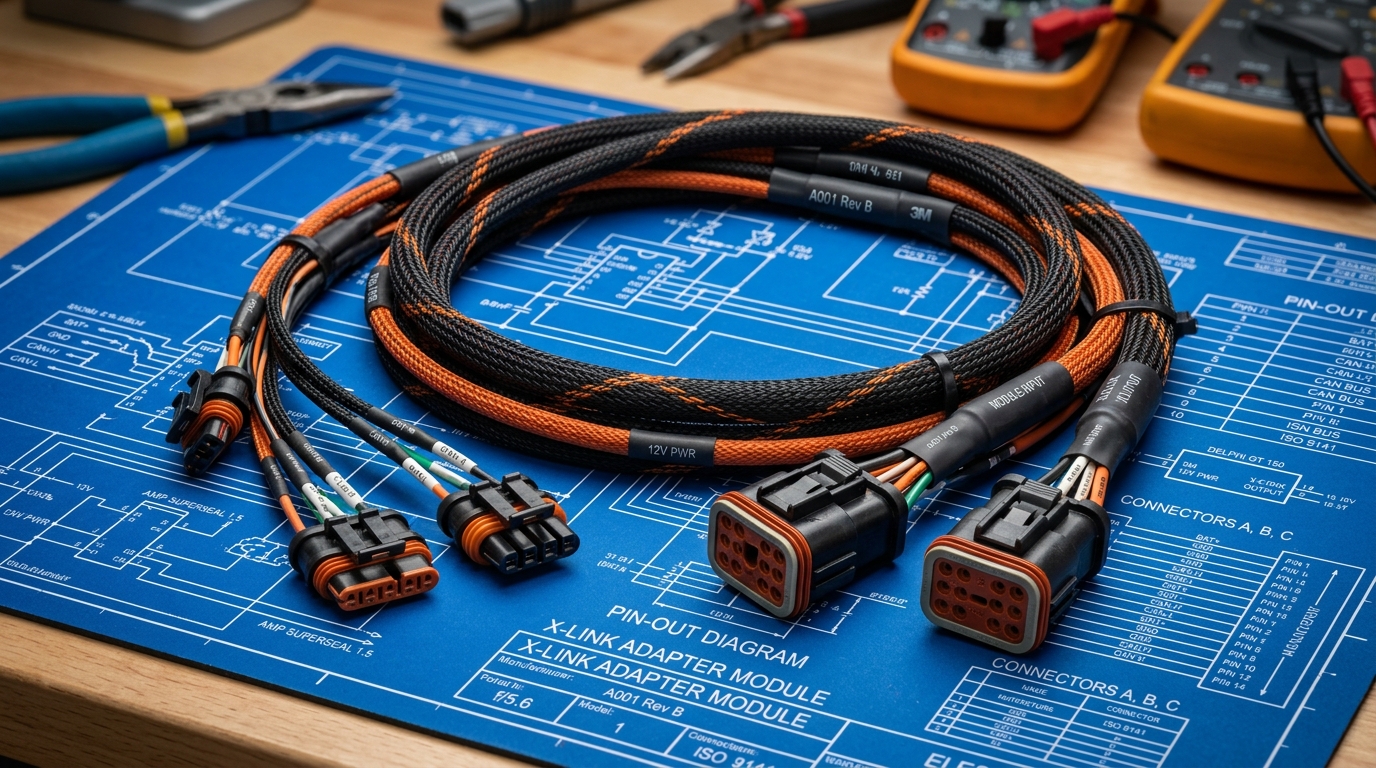

What is an Automotive X-Link Adapter Module Wiring Harness?
An X-Link Adapter Module Wiring Harness is a specialized, highly engineered electrical assembly designed to bridge the gap between disparate vehicle subsystems. It acts as the physical layer for module-to-module communication, ensuring that complex data protocols (such as CAN Bus, LIN Bus, or Automotive Ethernet) and power distribution lines are securely and accurately routed from one electronic control unit (ECU) to another.
Classifications of X-Link Adapter Harnesses
To meet diverse engineering requirements, X-Link adapter harnesses are generally classified into three main categories:
- Data & Signal Focused X-Links: Utilizing twisted-pair cables with advanced EMI (Electromagnetic Interference) shielding, these harnesses are dedicated to high-speed data transmission for ADAS (Advanced Driver Assistance Systems) and infotainment systems.
- Power Distribution X-Links: Built with heavy-duty copper wires, these adapters manage high-current power transfer between the battery management system (BMS) and secondary auxiliary modules.
- Hybrid X-Link Adapters: The most versatile option, combining both low-voltage signal transmission wires and high-current power delivery lines within a single, space-saving connector housing.
Core Features and Vital Roles in Vehicle Architecture
Why do Tier-1 suppliers and aftermarket specialists insist on high-grade custom X-Link adapters? The answer lies in their uncompromised features:
- Flawless Signal Integrity: Custom engineered with shielded cables to prevent crosstalk and EMI, ensuring that critical sensor data reaches the ECU without delay or distortion.
- Extreme Environmental Resilience: Encased in cross-linked polyethylene (XLPE) or corrugated high-temp tubing, these harnesses withstand engine bay heat, corrosive automotive fluids, and severe mechanical vibration.

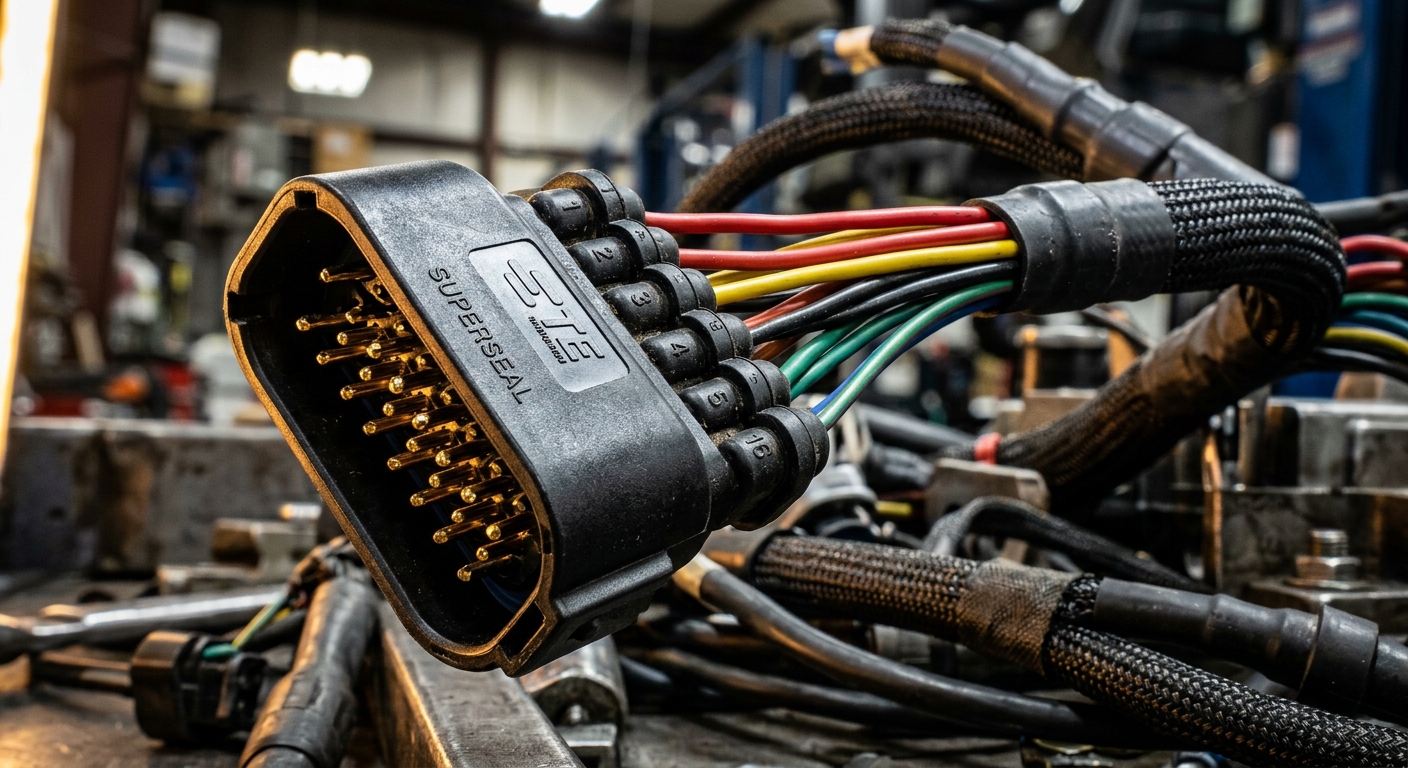

- Plug-and-Play Precision: Designed with OEM-grade connectors (such as TE Connectivity, Molex, or Delphi), they provide an audible "click" upon locking, guaranteeing terminal retention and reducing assembly line time.
Working Principles: Bridging the Electrical Divide
At its core, the working principle of the X-Link adapter module wiring harness revolves around pin-to-pin mapping and impedance matching.
When a modern vehicle is upgraded with a new digital module, the existing factory harness often lacks the correct terminal configuration. The X-Link adapter acts as a universal translator. It takes the power, ground, and data signals from the chassis harness, mechanically reorganizes the pinout through a meticulously designed junction, and delivers the exact voltage and logic levels required by the newly integrated module. By utilizing precise wire gauges and terminal platings (such as gold or tin), it minimizes voltage drop and contact resistance.
Common Application Scenarios
The versatility of a custom automotive X-Link adapter module wiring harness makes it indispensable across various automotive sectors:
- Engine Swaps and ECU Upgrades: Allowing aftermarket ECUs to interface seamlessly with factory engine sensors.
- Lighting System Retrofits: Adapting factory halogen wiring to smart LED matrix headlights without triggering dashboard error codes.

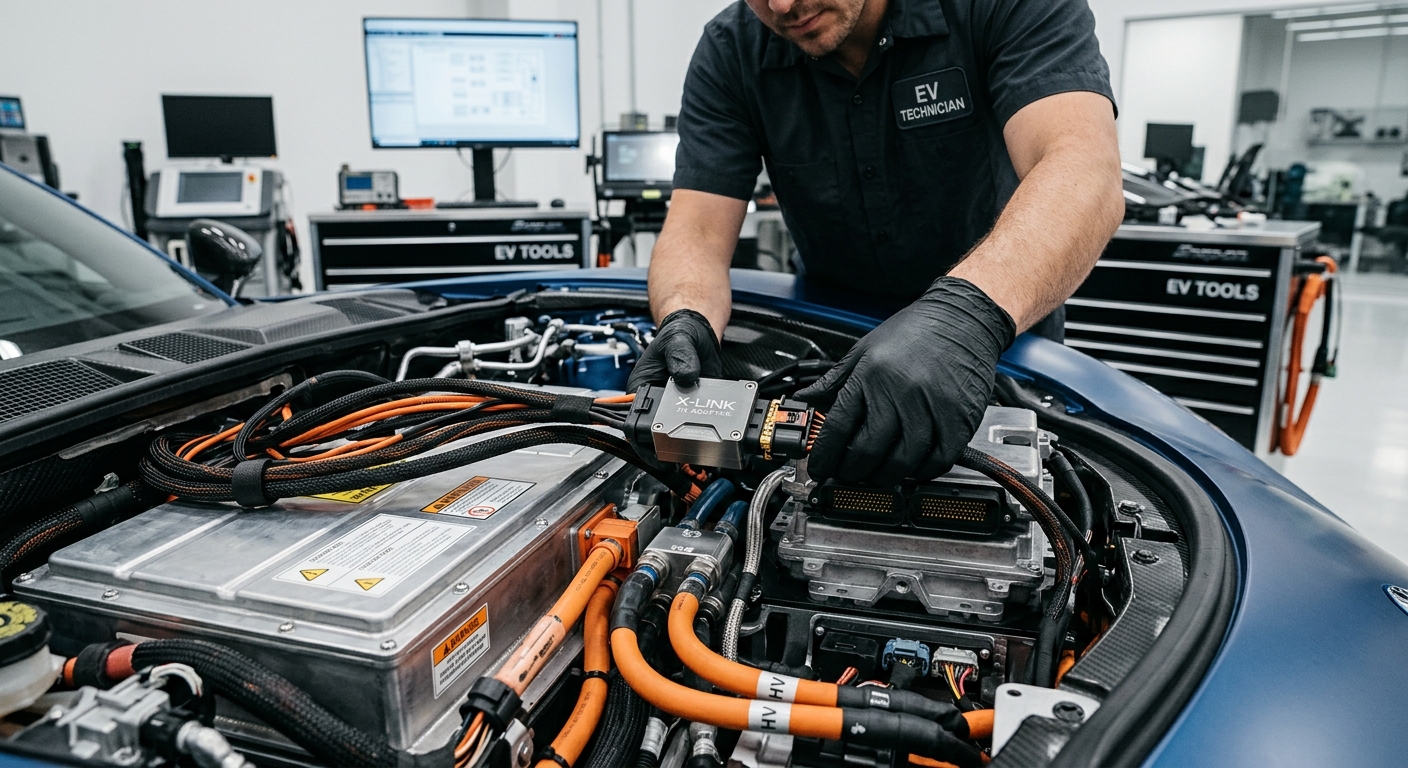

- EV Battery Management: Connecting auxiliary cooling modules to the main high-voltage distribution network safely.
- Telematics and Fleet Tracking: Intercepting CAN Bus signals safely to install GPS and fleet management modules without splicing factory wires.
Technical Specifications
When dealing with automotive electrical engineering, precision is non-negotiable. Below is a standard specification matrix for our custom X-Link adapter module wiring harnesses. As a source manufacturer, all parameters can be tailored to your specific blueprint.
| Specification Parameter | Standard / Customization Range |
|---|---|
| Wire Gauge Standard | 16 AWG to 28 AWG (TXLF, FLRY-B, AVSS standards available) |
| Connector Brands | TE Connectivity, Molex, Delphi, Yazaki, Sumitomo, or Custom |
| Terminal Plating | Tin-plated, Silver-plated, or Gold-plated (for high-speed data) |
| Operating Voltage | 12V / 24V / 48V DC |
| Current Rating | 1A to 30A (depending on AWG and terminal selection) |
| Temperature Range | -40°C to +125°C (up to +150°C for engine bay applications) |
| Shielding Material | Braided copper shield, aluminum foil, or twisted pairs |
| Insulation/Jacket | PVC, XLPE, TPE, Corrugated Tube, Braided Sleeving |
| IP Rating (Connectors) | IP67 / IP69K (Fully waterproof and dustproof options) |
Your Trusted Partner in Automotive Wiring Solutions
As a premier OEM/ODM manufacturer with over a decade of expertise in automotive wiring solutions, we understand that off-the-shelf products rarely meet the exacting demands of modern automotive engineering. We don't just assemble wires; we engineer reliable electrical arteries.
- Unmatched Quality Assurance: Our manufacturing facilities strictly operate under ISO9001 and IATF16949 automotive quality management systems. Every custom automotive X-Link adapter module wiring harness undergoes rigorous 100% computerized continuity, voltage drop, and pull-force testing before shipment.
- Flexible Manufacturing (Low MOQ): We know that custom engineering often starts with prototyping. We proudly support Low Minimum Order Quantities (Low MOQ) for R&D phases and can rapidly scale up for mass production.
- Expert Design Team: Struggling with complex pinouts or space constraints? Our in-house engineering team provides end-to-end design assistance, from CAD drawing generation to connector sourcing and 3D prototyping.
Ready to Elevate Your Automotive Electrical Architecture?
Do not let substandard wiring compromise your automotive systems. Partner with a factory that speaks your technical language and understands your commercial needs.
Contact us today to discuss your Custom Automotive X-Link Adapter Module Wiring Harness project. Send us your drawings or specifications, and our engineering team will provide a comprehensive quote and DFM (Design for Manufacturing) analysis within 24 hours!
