The Ultimate Guide to High-Performance Spring Cable Assemblies: Materials, Specs, and Custom Solutions

In the fast-paced world of industrial automation and transportation, standard straight cables often fall short in dynamic, moving applications. Tangling, snagging, and premature wear are common pain points for engineers and procurement managers. This is where a precision-engineered spring cable assembly becomes the ultimate problem solver.

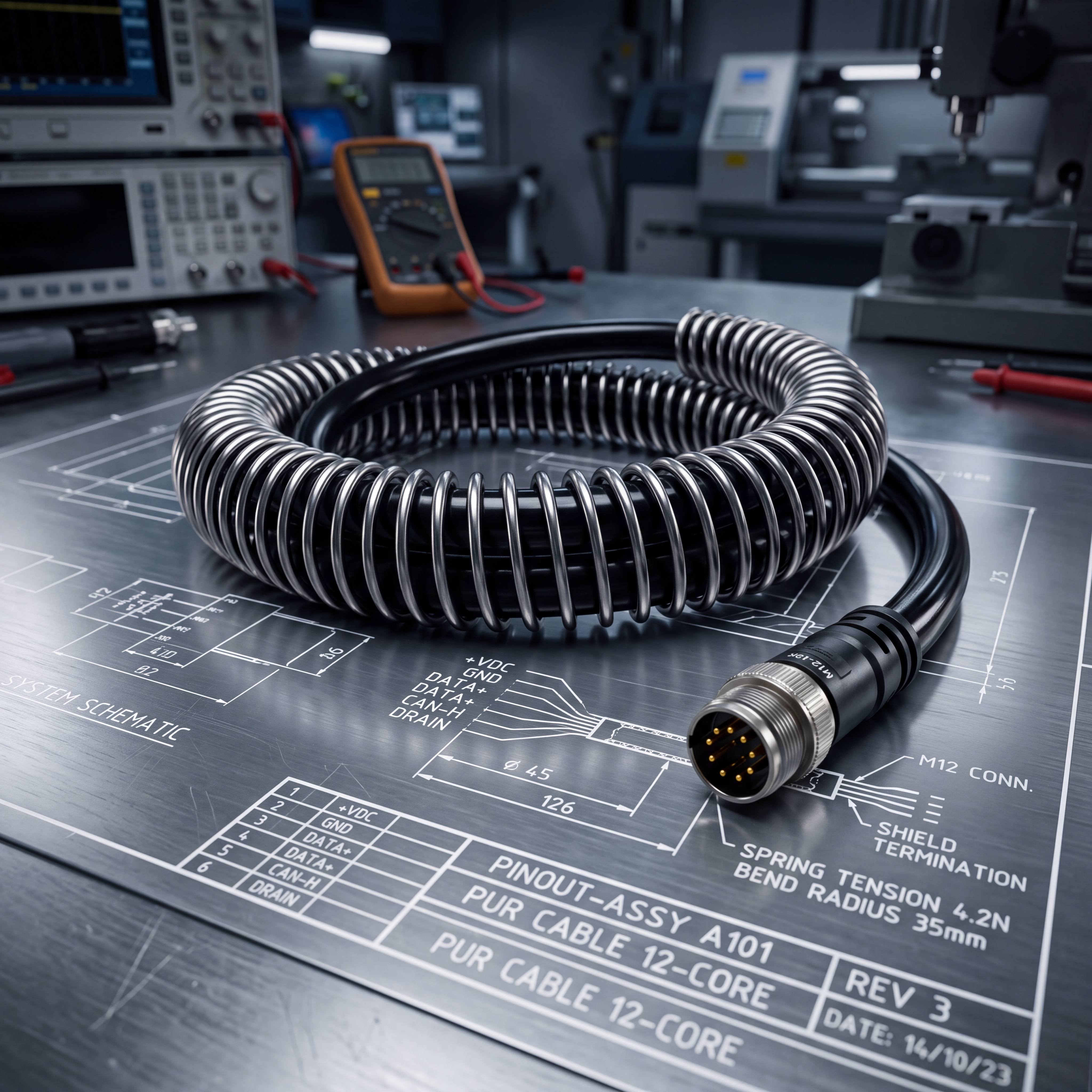

Also known as coiled cords or spiral cables, a retractable spring cable assembly is specifically designed for reciprocating dynamic movements. But how exactly does it work? The core working principle relies entirely on the remarkable elastic memory of its extruded outer jacket material. During the manufacturing process, the straight cable is coiled around a mandrel and heat-set. This thermal memory allows the cable to stretch up to four or five times its resting length under mechanical tension, and seamlessly, automatically recoil to its original, tightly coiled state the moment the pulling force is released. This built-in elasticity ensures uninterrupted power, data, and signal transmission without the spatial clutter of excess wiring.

Choosing the Right Jacket Material for Your Custom Spring Wire Harness

The longevity and recoil strength of a custom spring wire harness depend heavily on the compound used for its outer sheath. As a specialized manufacturer, we primarily utilize three main categories of materials, each tailored to specific operational environments and budgets:

1. PUR (Polyurethane / TPU) – The Industrial Benchmark

PUR is the undisputed king of coiled cables. A PUR shielded spring cable assembly offers exceptional mechanical toughness and the highest level of elastic memory. It is highly resistant to mineral oils, greases, coolants, and harsh UV radiation. Furthermore, PUR maintains its flexibility even in extreme sub-zero temperatures, making it the premier choice for demanding outdoor and indoor industrial applications.

2. Neoprene (Polychloroprene) – Rugged & Chemical Resistant

When unparalleled spring force and mechanical strength are required, Neoprene is the material of choice. It boasts excellent resistance to ozone, weather, and a wide array of harsh chemicals. Neoprene coiled cables are frequently deployed in heavy-duty sectors like metallurgy, construction machinery, and specialized military applications where the cable is subjected to severe physical stress.

3. PVC (Polyvinyl Chloride) – Cost-Effective for Light Duty

For indoor, static, or low-cycle applications where extreme stretching is not constantly required, PVC offers a highly cost-effective solution. While its elastic memory and chemical resistance do not match PUR or Neoprene, PVC is perfectly adequate for medical equipment, retail point-of-sale systems, and light commercial devices.

Technical Specifications & Design Parameters

To help engineers and procurement teams source the exact product for their project, below is a comprehensive technical overview of our customizable parameters.

Diverse Applications of Retractable Spring Cable Assemblies

Our engineering team designs tailored solutions that seamlessly integrate into three major demanding sectors:

Industrial Automation

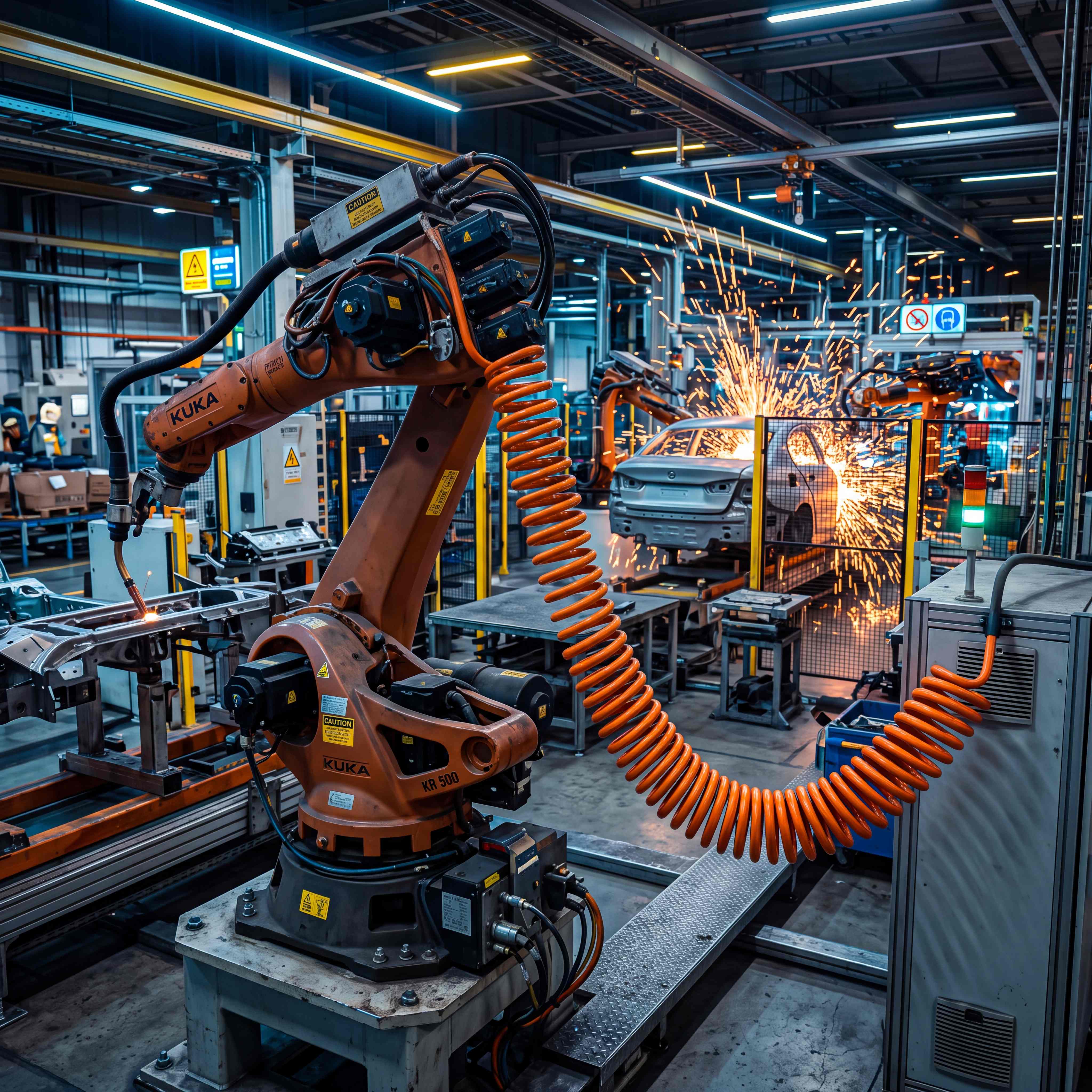

In the era of Industry 4.0, reliable connectivity in motion is non-negotiable. We manufacture the ultimate heavy duty spring cable for industrial robot systems, ensuring multi-axis robotic arms can twist and reach without cable fatigue. Our products are also widely used in CNC machine handwheels, gantry cranes, hoist control pendants, and Automated Guided Vehicles (AGVs), providing millions of continuous flex cycles.

Automotive & Commercial Transportation

Safety and durability are paramount on the road. A heavy-duty trailer spring cable assembly is critical for transmitting power to ABS (Anti-lock Braking System) and EBS (Electronic Braking System) on commercial trucks and semi-trailers. Additionally, we provide coiled wiring solutions for in-vehicle retractable charging systems, tailgate lifts, and the rapidly growing sector of EV battery swapping cabinets.

Special & Extreme Scenarios

For niche applications requiring specialized protection, we engineer the waterproof retractable spring cable with IP67/IP68 rated molded connectors, perfect for marine equipment, offshore drilling rigs, and damp environments. Other special applications include ultra-clean, particle-free cables for semiconductor cleanrooms, sterile coiled cables for medical imaging (X-ray/MRI machines), and rugged cables for construction machinery remote controls.

Your Trusted Custom Spring Cable Assembly Manufacturer

Finding the right interconnect solution can make or break your product's performance in the field. As a premier custom spring cable assembly manufacturer, we do more than just supply cables; we provide end-to-end engineering solutions.

• ISO9001 Certified Quality: Every inch of cable and every connector is manufactured and tested under strict ISO9001 quality management systems, ensuring zero-defect delivery.
• Comprehensive OEM/ODM Services: Whether you need a specific PUR mixture, complex shielding, or custom connector molding, our full-stack OEM/ODM capabilities have you covered.
• Professional Design Team: Our in-house engineers work directly with your R&D team to calculate the exact coil diameter, wire gauge, and stretch ratio required for your specific dynamic application.
• Low MOQ & Fast Prototyping: We understand the iterative nature of engineering. That is why we offer small batch production runs and rapid prototyping to help you test your designs without massive upfront inventory costs.

Stop letting cable failures disrupt your dynamic equipment. Partner with a manufacturer that understands the science of stretch and recoil.

Ready to upgrade your connectivity? Contact our engineering team today to request a free sample, discuss your technical drawings, or get a competitive quote for your custom spring cable assembly project.
