Ultimate Guide to Robot Arm Spring Wire Harness: High-Flex Solutions for Industrial Automation

In the fast-paced world of industrial manufacturing, the reliability of dynamic power and signal transmission is the lifeline of automated robotic systems. Traditional straight cables often struggle with multi-axis movements, leading to severe pain points such as cable dragging, tangling, and mechanical interference. This is where a high-quality robot arm spring wire harness becomes essential.

Engineered for extreme flexibility and resilience, an industrial robot arm spring cable acts as the core flexible component for dynamic routing. By maintaining constant tension and adapting to complex multi-directional motions, a retractable robot arm coiled harness eliminates cable slack, prevents premature wear, and ensures uninterrupted data and power flow. Whether you are an automation engineer upgrading an assembly line or a supply chain manager sourcing durable components, choosing the right robot arm spring wire harness is critical for minimizing downtime and maximizing production efficiency.

Working Principle and Technical Classification

Understanding the mechanics behind a robot arm spiral cable assembly is vital for B2B buyers looking for precise technical matches. The fundamental working principle relies on the mechanical memory of its specially extruded outer sheath and optimized conductor stranding. When a robotic arm extends or rotates, the harness stretches to accommodate the motion; when the arm retracts, the built-in restoring force instantly pulls the cable back to its original helical shape. This continuous expansion and contraction effectively manage mechanical tension without compromising the internal copper cores.

To meet diverse industrial demands, we categorize our products based on functionality and construction:

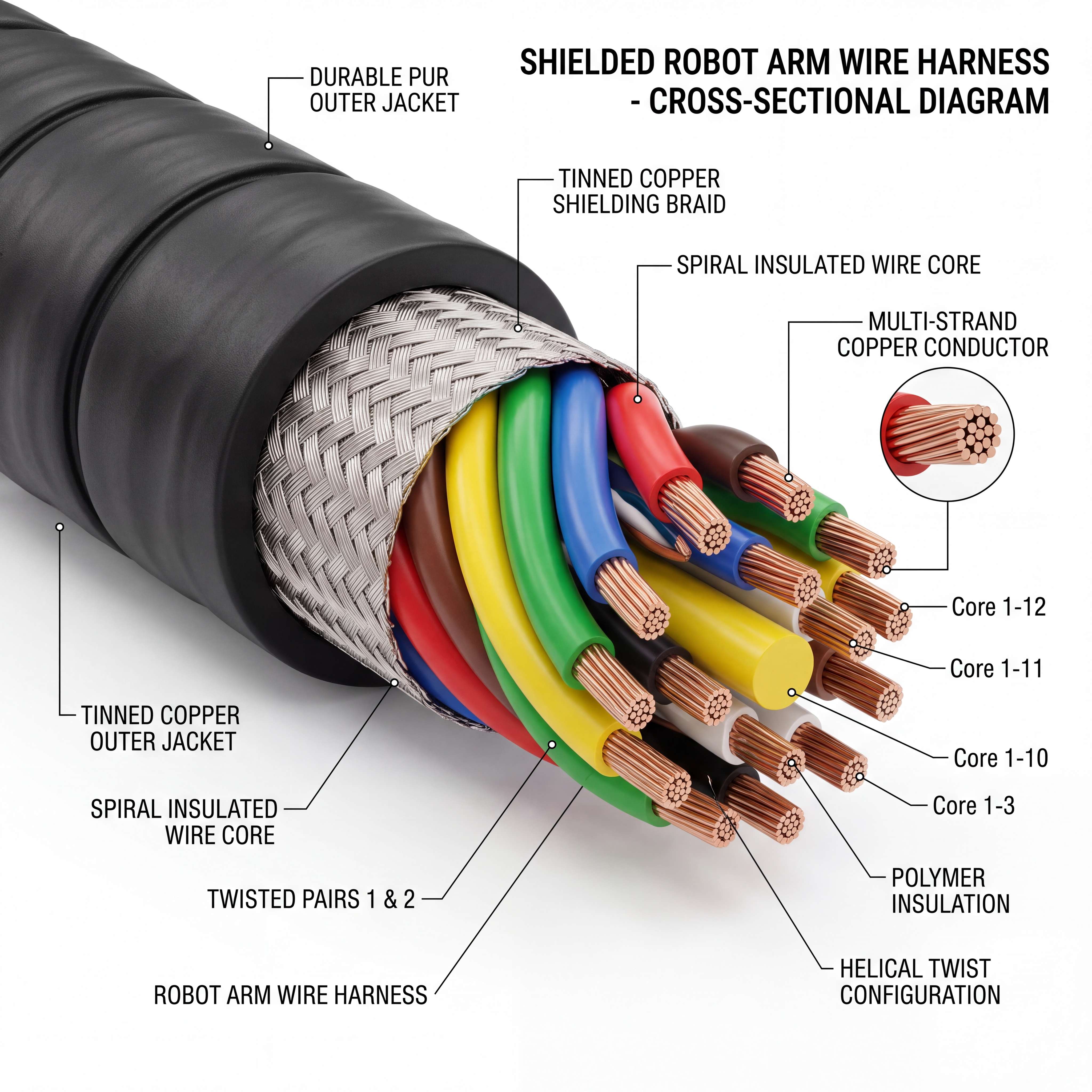

• By Shielding Capability: A shielded robot arm spiral wire harness utilizes tinned copper braiding to block Electromagnetic Interference (EMI) and Radio Frequency Interference (RFI), crucial for precise servo motor control and high-speed sensor data transmission.
• By Outer Sheath Material: The PUR jacket robot arm coiled cable is the gold standard, offering exceptional resistance to oil, abrasion, hydrolysis, and harsh chemicals found in heavy industrial environments.
• By Structural Design: Options range from heavy-duty spiral assemblies for base axes to ultra-compact robot arm curly wire harness designs tailored for end-of-arm tooling (EOAT).

Technical Specifications & Standard Parameters

B2B procurement requires transparent, standard-compliant data. As a leading manufacturer, we ensure our industrial robot arm spring cable series meets rigorous global automation standards. Below is the technical specification matrix for our standard and customizable harnesses.

Core Features and Typical Application Scenarios

A high flex robot arm spring harness is not just a standard cable; it is an engineered solution designed to eliminate routing bottlenecks in complex automated machinery. The primary features include space-saving compactness, exceptional recoil memory, tear resistance, and zero-interference signal integrity.

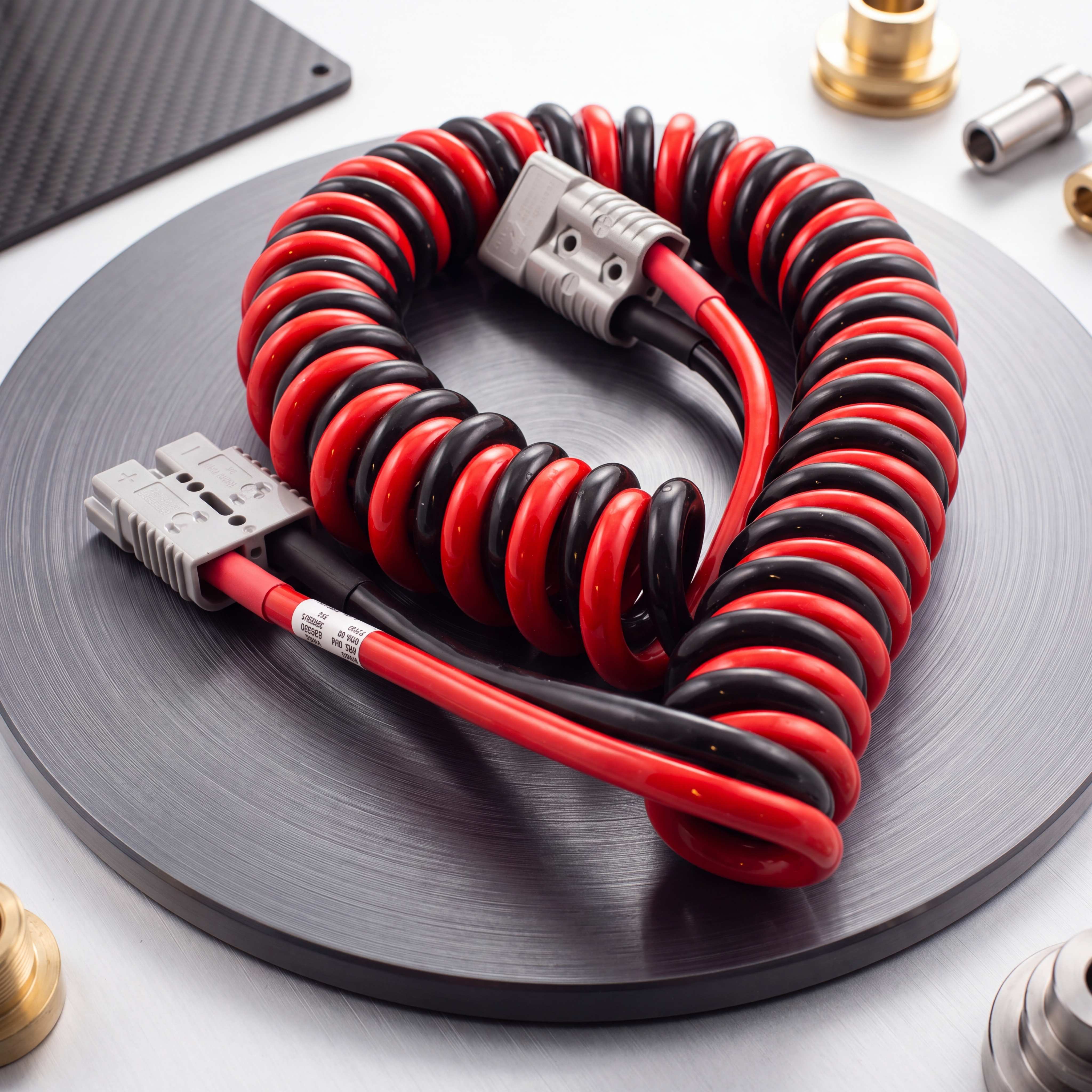

By integrating a retractable robot arm coiled harness, engineers can significantly reduce the footprint of cable management systems. These highly specialized harnesses are indispensable in the following critical applications:

• 6-axis industrial robots: Ensuring flawless dynamic routing across articulating joints without structural fatigue.
• Cobot end-effectors: Providing lightweight, reliable power and data to grippers, vision systems, and sensors on collaborative robots using a compact robot arm curly wire harness.
• 3C assembly/car welding wiring: Delivering stable servo power and shielding against high-voltage welding interference with a shielded robot arm spiral wire harness.
• Medical/heavy-duty AGV joint routing: Facilitating space-saving, highly durable connections for the steering and lifting mechanisms of Automated Guided Vehicles.

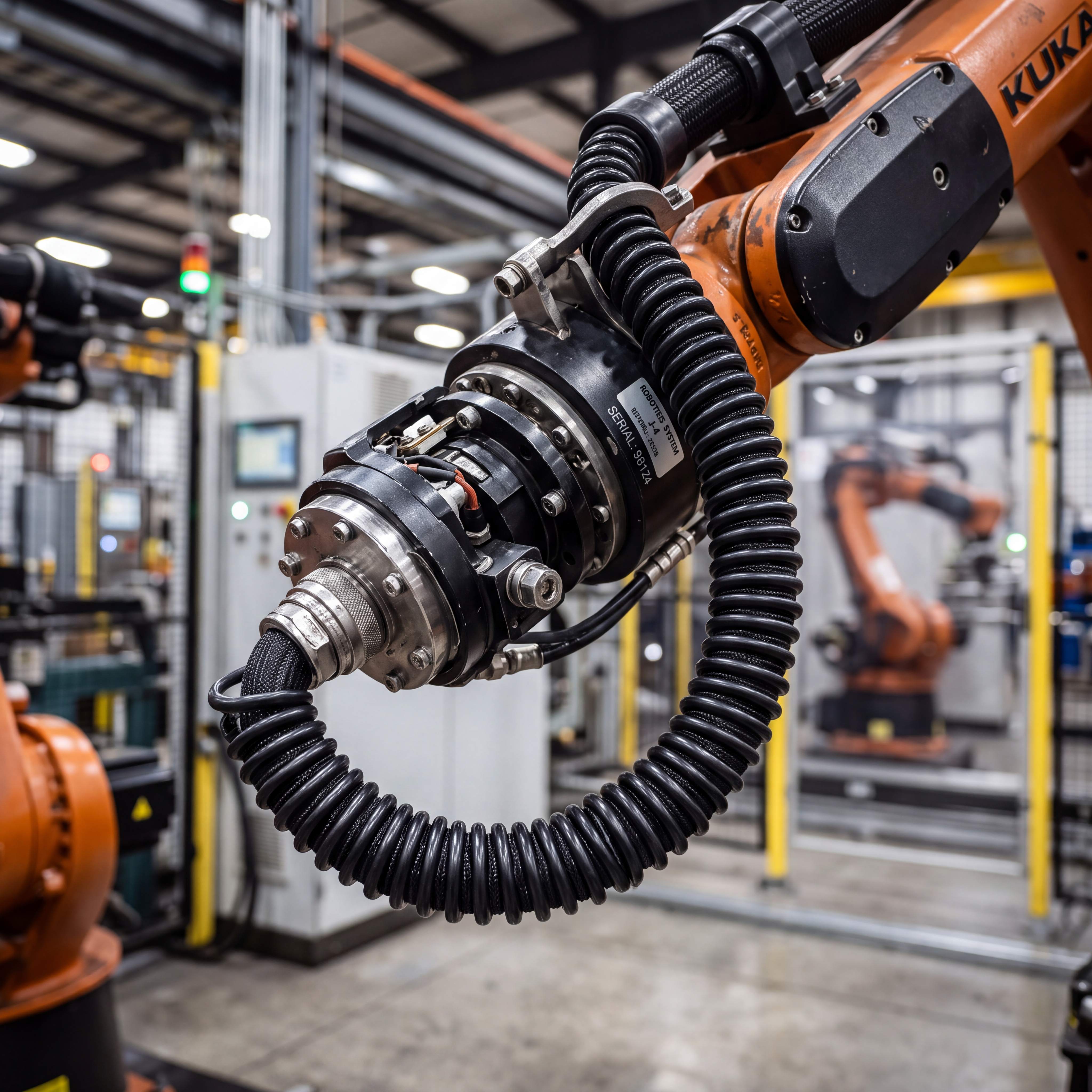

• Gantry robots/lifting equipment dynamic power & data transmission: Managing long-stroke vertical and horizontal movements smoothly with an industrial-grade robot arm spiral cable assembly.

Your Trusted Source Factory for Custom Automation Wiring

When sourcing critical components like a robot arm spring wire harness, partnering with a proven, certified source factory is the key to supply chain stability and product longevity. We do more than just manufacture cables; we engineer total connectivity solutions tailored to your exact robotic kinematics.

Why Choose Us as Your B2B Partner?

• Source Factory Advantage: Direct manufacturing ensures competitive pricing and stringent quality control without middleman markups.
• ISO9001 Certified: Every industrial robot arm spring cable is produced under strict ISO9001 quality management systems, guaranteeing consistency and reliability.
• Custom OEM/ODM Services: Need a specific PUR jacket robot arm coiled cable with unique connectors or composite cores (power + signal + air hose)? Our professional design team will create a bespoke solution within days.
• Low MOQ & Fast Turnaround: We support agile manufacturing, offering low Minimum Order Quantities (MOQ) for prototyping and R&D phases, alongside rapid scaling for mass production.
• Total Solutions: From 3D routing design consultation to final electrical testing, we deliver end-to-end service for your robotic automation projects.

Stop letting cable failures disrupt your automation systems. Upgrade to our superior robot arm spring wire harness solutions today.

Ready to optimize your robotic performance? Contact our engineering team now with your specifications, and let us provide you with a fast, free quote and comprehensive technical drawings. Send your inquiry today and secure the best B2B pricing!
