Ultimate Guide to Custom Coiled Cable Assemblies: Engineering Reliable Dynamic Connections

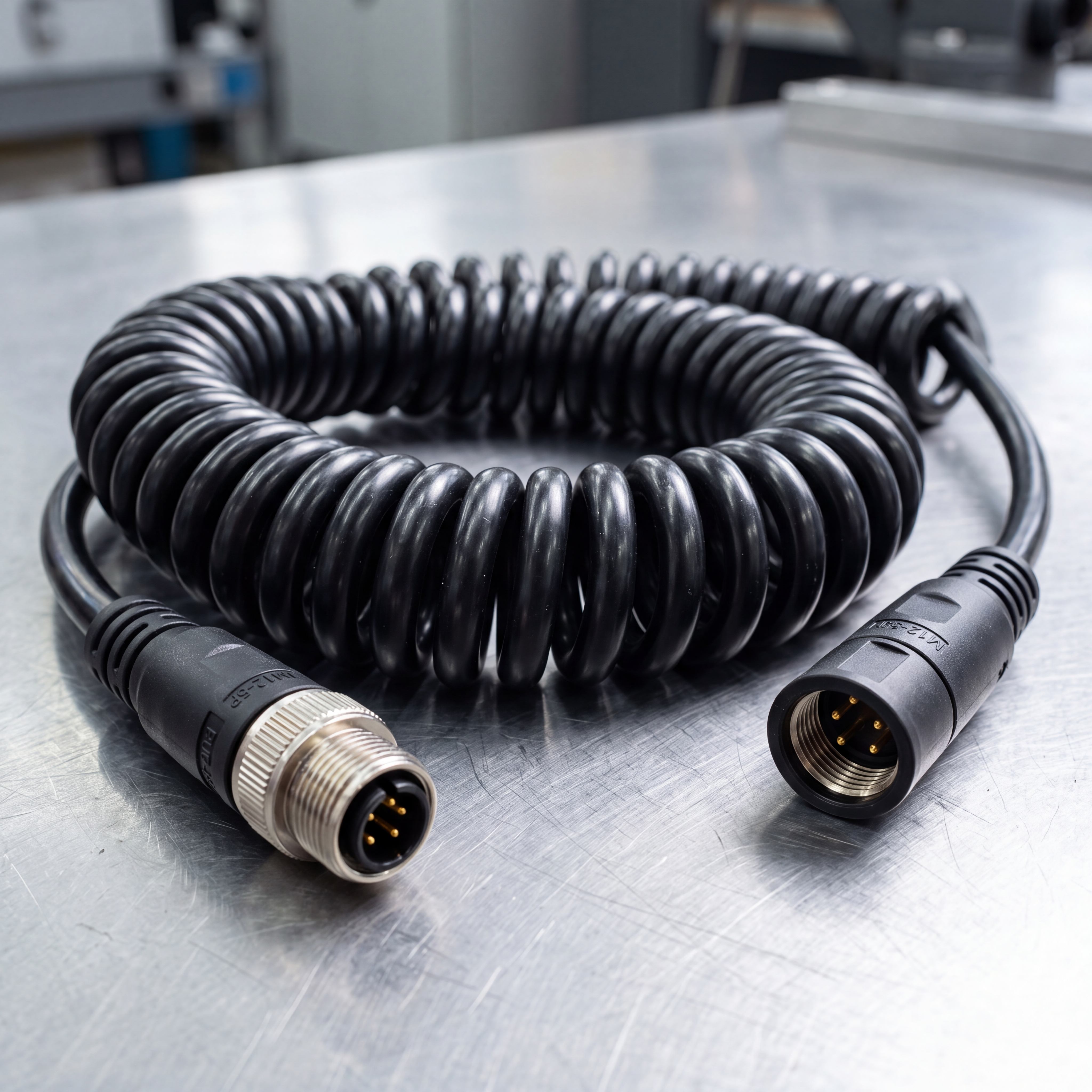

In the demanding world of modern engineering, dynamic equipment requires robust electrical connections that can withstand constant extension and retraction without compromising signal or power integrity. A coiled cable assembly, frequently referred to as a retractile cable assembly or spring cable assembly, is the ultimate engineering solution for these dynamic mobile applications. Designed with intrinsic structural memory, a retractable cable assembly acts like a spring, expanding when pulled and returning to its compact original shape when released. As a leading custom coiled cable assembly manufacturer, we engineer these advanced wire harnesses to eliminate tangles, reduce mechanical stress, and ensure long-lasting performance for B2B procurement managers and engineers worldwide seeking top-tier dynamic connectivity solutions.
Classification & Materials: Built for Extreme Environments
The longevity and performance of a high flexibility coiled cable depend heavily on its jacket material and internal structural design. We select premium raw materials to ensure our products withstand harsh industrial environments, offering exceptional resistance to oil, abrasion, flame, and UV radiation.
- PUR (Polyurethane): The gold standard for a PUR jacket coiled cable assembly. It offers excellent mechanical strength, high restoring force, and a broad operating temperature range (-40℃ to 105℃), making it ideal for continuous flexing in outdoor or rugged settings.
- TPU (Thermoplastic Polyurethane): Delivers superior elasticity, chemical resistance, and exceptional durability for both power and data transmission.
- PVC (Polyvinyl Chloride): A cost-effective solution for light-duty indoor applications where extreme mechanical stress is not a primary factor.
- Shielding Configurations: For environments with heavy Electromagnetic Interference (EMI), we design the optimal shielded retractile cord. Utilizing tinned copper braiding or aluminum foil, these shielded solutions guarantee pristine data transmission for critical diagnostic and automated equipment.
Specifications
Below are the standard technical parameters for our highly customizable coiled solutions:
| Specification Parameter | Technical Range / Material Options |
|---|---|
| Conductor Material | Bare Copper, Tinned Copper, Oxygen-Free Copper (OFC) |
| Wire Gauge (AWG) | 30 AWG to 2 AWG (Customizable based on power/signal needs) |
| Jacket Material | PUR, TPU, TPE, PVC (RoHS & REACH Compliant) |
| Coil Diameter (OD) | 10mm to 100mm+ (Engineered to specific requirements) |
| Extended Length | Up to 4 to 5 times the retracted length |
| Operating Temperature | -40°C to +105°C (Depending on jacket material) |
| Voltage Rating | 30V, 300V, 600V, 1000V |
| Shielding Options | Unshielded, Tinned Copper Braid, Aluminum Mylar Foil |
| Connector Types | M8/M12, USB, RJ45, Aviation Plugs, Custom Terminals |
Working Principle & Applications
The functional principle of a spring cable assembly lies in its specialized extrusion and thermomechanical curing process, which locks the polymer jacket into a permanent helical shape. This allows the harness to absorb mechanical tension, making a custom coiled cord highly sought after across diverse industrial sectors:
- Industrial Automation & Robotics: In automated production lines and robotic arms, continuous multi-axis movement demands a high flexibility coiled cable. It ensures flawless high-frequency power and signal transmission without the risk of wire fatigue or entanglement.

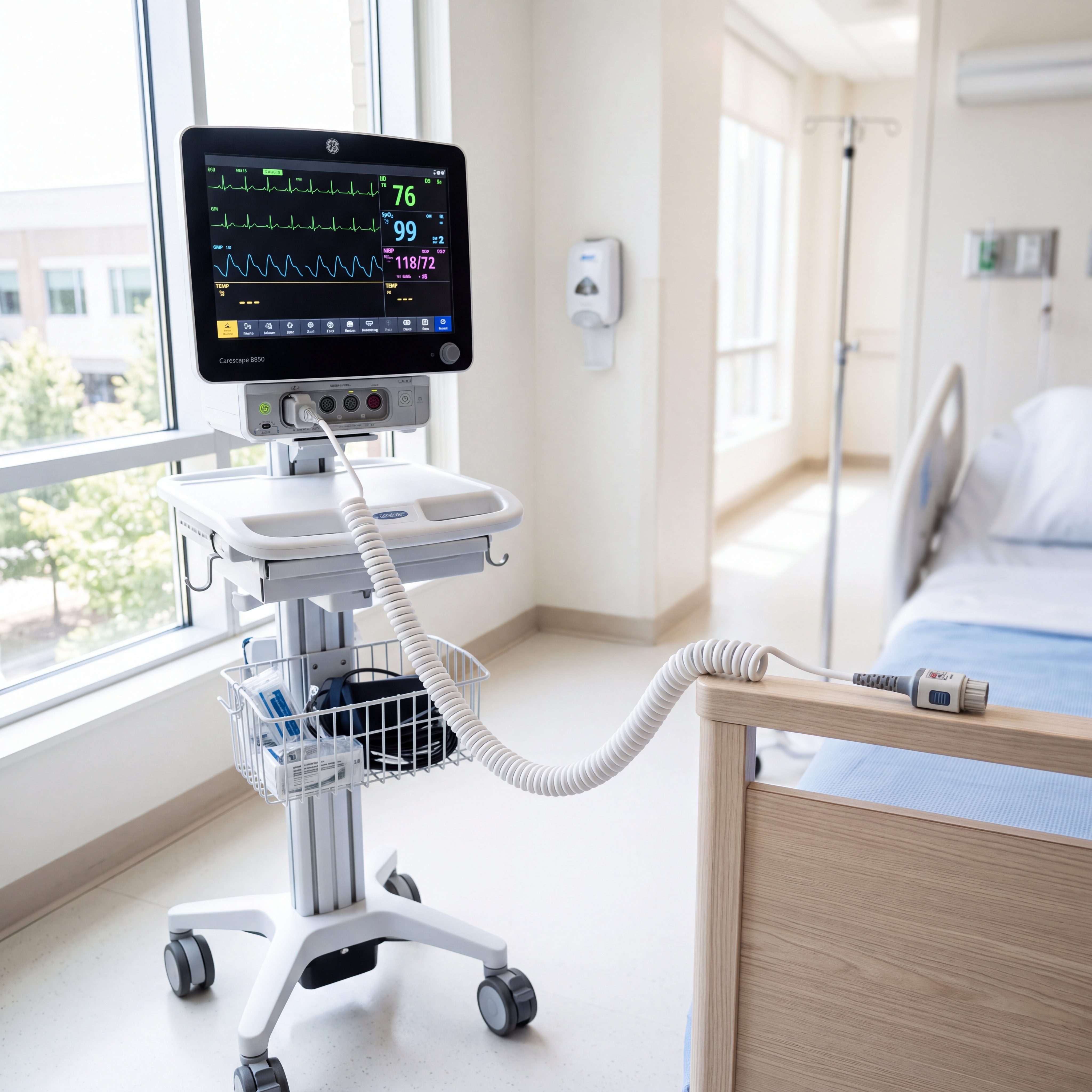

- Medical Equipment: Precision and hygiene are paramount. A custom medical coiled cable assembly is widely utilized in mobile diagnostic carts, patient monitoring systems, and defibrillators, offering space-saving, highly sanitized electrical connections with shielded data protection.
- Automotive & Transportation: From heavy-duty commercial trucks to trailer hitch connections, an automotive coiled cable provides resilient multi-core control under severe weather, aggressive vibration, and constant physical stretching.
- Consumer Electronics & Heavy-Duty Tools: A rugged coiled power cable assembly is essential for portable power tools, industrial handheld devices, and specialized USB telecommunications equipment, providing rapid deployment and instant retraction.
Why Choose Us: Your Trusted Manufacturing Partner
Navigating complex engineering requirements requires a factory with proven capabilities. As a professional custom coiled cable assembly manufacturer, we bridge the gap between Chinese manufacturing excellence and global engineering demands.
- Certified Quality: We operate under strict ISO9001 quality management systems, ensuring every custom coiled cord meets rigorous international standards.
- Full OEM/ODM Support: Whether you need a standard retractile cable assembly or a highly complex mixed-signal hybrid harness, our professional design team provides comprehensive solutions from rapid prototyping to mass production.
- Low MOQ & Flexibility: We understand the dynamic nature of project development. We proudly support low Minimum Order Quantities (small batch production) to assist B2B buyers and R&D managers in testing and validating their designs without heavy upfront inventory risks.
- End-to-End Solutions: From raw cable extrusion to customized connector overmolding, we deliver ready-to-use plug-and-play assemblies tailored exactly to your equipment's blueprint.
Call to Action
Upgrade your dynamic equipment with premium coiled connectivity. Contact our engineering team today to discuss your project requirements, request technical drawings, and receive a competitive quote. Let us build the perfect coiled cable assembly for your next innovation!
