Premium Automotive Spring Wire Harness | Custom Manufacturer & Complete Solutions
In the highly demanding field of modern vehicle engineering, ensuring uninterrupted electrical transmission between moving parts is a critical challenge. An Automotive spring wire harness is specifically engineered for dynamic, retractable environments inside and outside the vehicle. By bridging the gap between components experiencing relative displacement, these specialized harnesses guarantee stable power and signal transmission, whether it is for trailer connections, power sliding doors, or telescoping equipment.
Working Principle: The Science of High Resilience

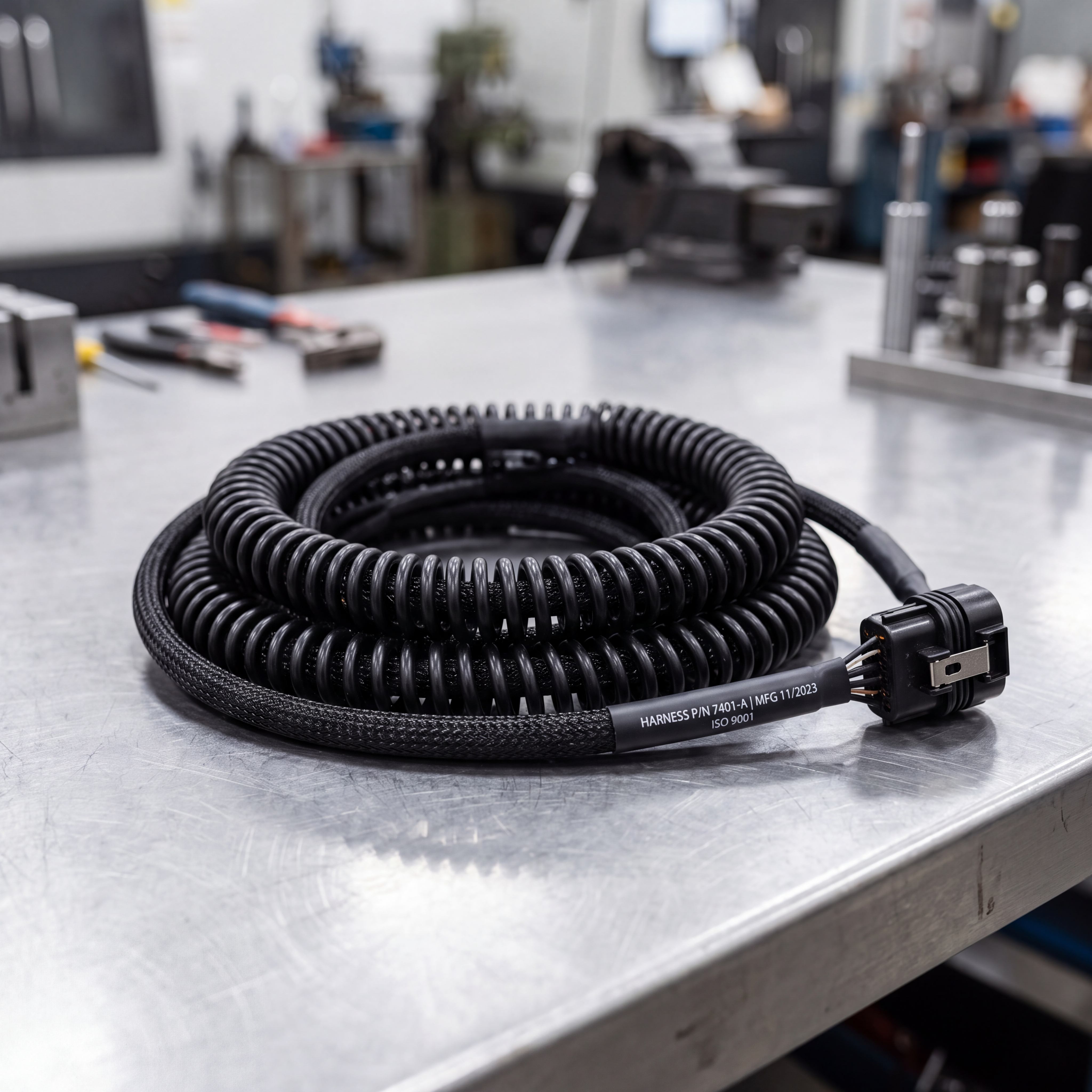

The superior performance of an Automotive coil cord harness relies on its unique structural memory and material physics. Through precise thermal processing and advanced extrusion techniques, the straight cable is transformed into a highly resilient spiral structure. This geometry acts as a mechanical spring, effectively absorbing pulling tension and vibration.
When extended, the coils distribute mechanical stress evenly, preventing inner wire fracture. Once the tension is released, the excellent shape memory of the outer jacket ensures the cable instantly retracts to its compact original state. This mechanism provides exceptional bending resistance and fatigue tolerance, making it ideal for the complex and harsh working conditions of modern vehicles.
Classifications of Automotive Spiral Cables
To meet diverse engineering requirements, a Retractable automotive spiral cable assembly can be classified based on its structural configuration and core application:
By Core Configuration
- Low-Core Count: Typically 5-core or 7-core automotive spring harness, widely used in standard light-duty trailers for basic lighting and signal transmission.
- High-Core Count: 15-core or customized multi-core assemblies designed for heavy-duty semi-trailers, integrating reversing cameras, ABS sensors, and complex diagnostic signaling.
By Application Environment
- External Heavy-Duty Series: Utilizing robust outer jackets designed to withstand extreme weather, oil, and UV exposure.
- Internal Cabin Series: Prioritizing flexibility, flame retardance, and space-saving tight-coil designs for vehicle interiors.
Technical Specifications
Our engineering team ensures that every harness meets stringent automotive industry standards. Below are the primary technical parameters of our standard and customizable configurations:
| Parameter Category | Specification Details |
|---|---|
| Core Options | 5-core, 7-core, 15-core (Custom configurations available) |
| Nominal Cross-Section | 0.5mm² ~ 2.5mm² per conductor |
| Outer Jacket Material | Premium PUR (Polyurethane) / High-grade PVC |
| Voltage Rating | 12V / 24V DC Systems |
| Operating Temperature | -40°C to +85°C (Extreme weather resistant) |
| Key Characteristics | High resilience, exceptional bending resistance, anti-abrasion, oil/chemical resistant |
| Coil Expansion Ratio | Up to 1:4 (Resting length vs. Maximum extended length) |
Features & Application Scenarios
The versatility of our PUR jacket automotive retractable wiring harness makes it an indispensable component across a wide array of automotive applications.
1. Trailer & Semi-Trailer Connectivity

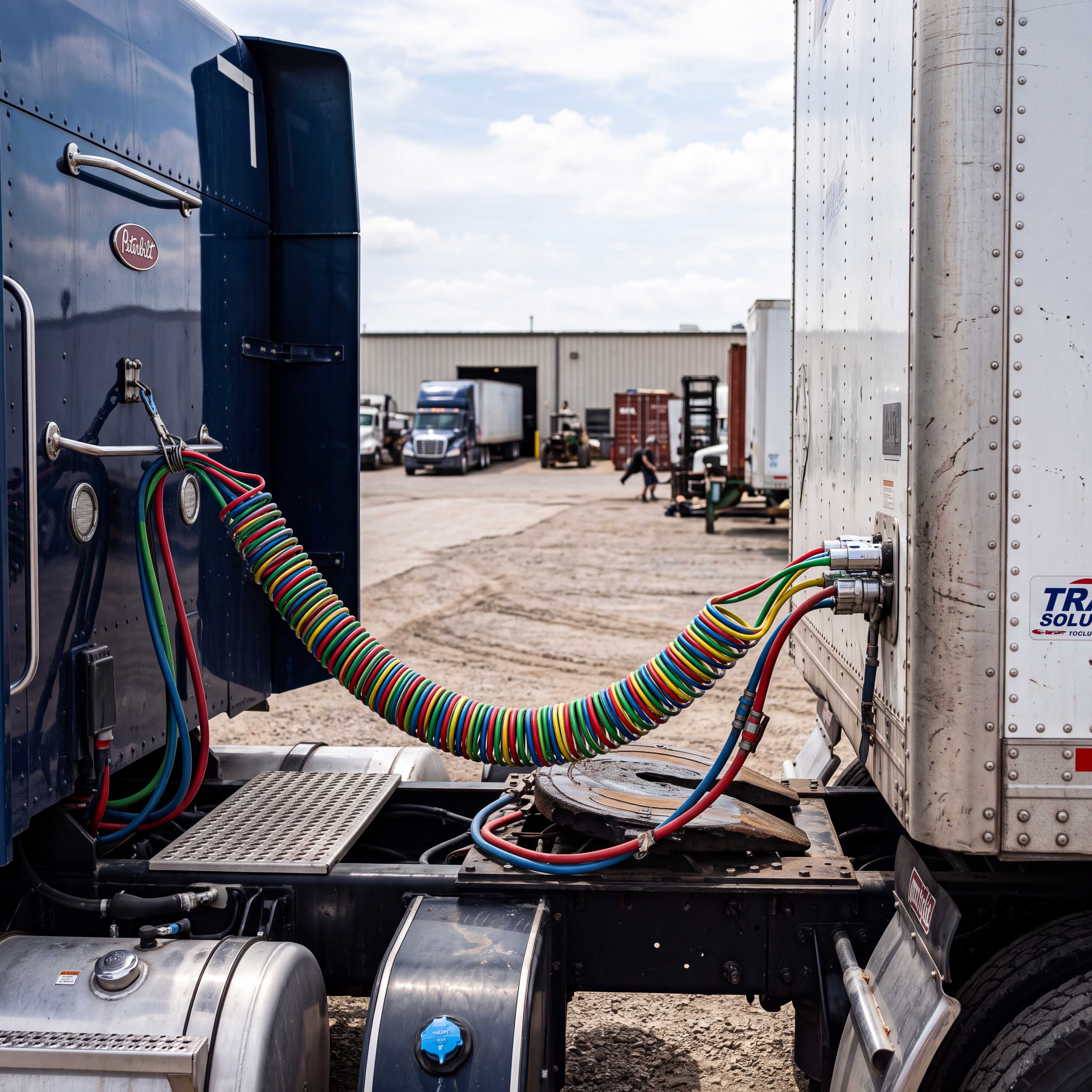

The Trailer spring wire harness is essential for towing safety. Connecting the towing vehicle to the trailer, it handles the transmission of brake lights, turn signals, and advanced reversing camera feeds. The robust PUR jacket resists road debris, grease, and extreme temperature fluctuations, ensuring zero signal drop during sharp turns and heavy braking.
2. Vehicular Moving Parts
Modern vehicles incorporate numerous automated moving parts requiring dynamic electrification. Our harnesses perfectly resolve the relative displacement wiring issues found in:
- Power Sliding Doors: Maintaining consistent power to locks and sensors during opening and closing cycles.
- Adjustable Power Seats & Windows: Providing strain-relief wiring in compact spaces.
- Telescopic Lighting & Lift Systems: Supplying uninterrupted power to deployable emergency vehicle lighting.
3. Special Vehicles & Custom Modifications
For off-road vehicles, recreational vehicles (RVs), construction machinery, and custom hot rod modifications, standard wiring is often insufficient. Our highly durable retractable cables adapt to aggressive vibrations and structural extensions, keeping the power grid intact under demanding off-road or industrial conditions.
Why Choose Us: Your Trusted Custom Manufacturer
As a leading Custom manufacturer of automotive wiring solutions, we understand the rigorous demands of global B2B automotive parts buyers, system engineers, and supply chain managers.
- ISO9001 Certified Quality: Our factory operates under strict ISO9001 quality management systems, ensuring defect-free manufacturing and consistent product excellence.
- Comprehensive OEM & ODM Services: Backed by a professional design team, we provide full-cycle engineering solutions—from CAD blueprinting and prototyping to final mass production.
- Flexible Manufacturing Capabilities: Whether you require low volume production for a specialized hot rod project or a massive bulk order for a commercial fleet, we scale our production lines to meet your exact lead times and volume requirements.
- Custom Tailoring: We customize core counts, jacket materials, coil diameters, and tail lengths to perfectly match your specific engineering blueprints.
Call to Action
Upgrade your automotive electrical systems with wiring solutions built for maximum durability and dynamic performance. Partner with a manufacturer that understands technical precision and commercial reliability.
Ready to streamline your supply chain? Contact our engineering team today to discuss your OEM/ODM requirements, request technical datasheets, or get a competitive quote for your next bulk order.
