The Ultimate B2B Buyer's Guide to Trailer Spiral Power Cables: Applications, Specs, and Custom Solutions

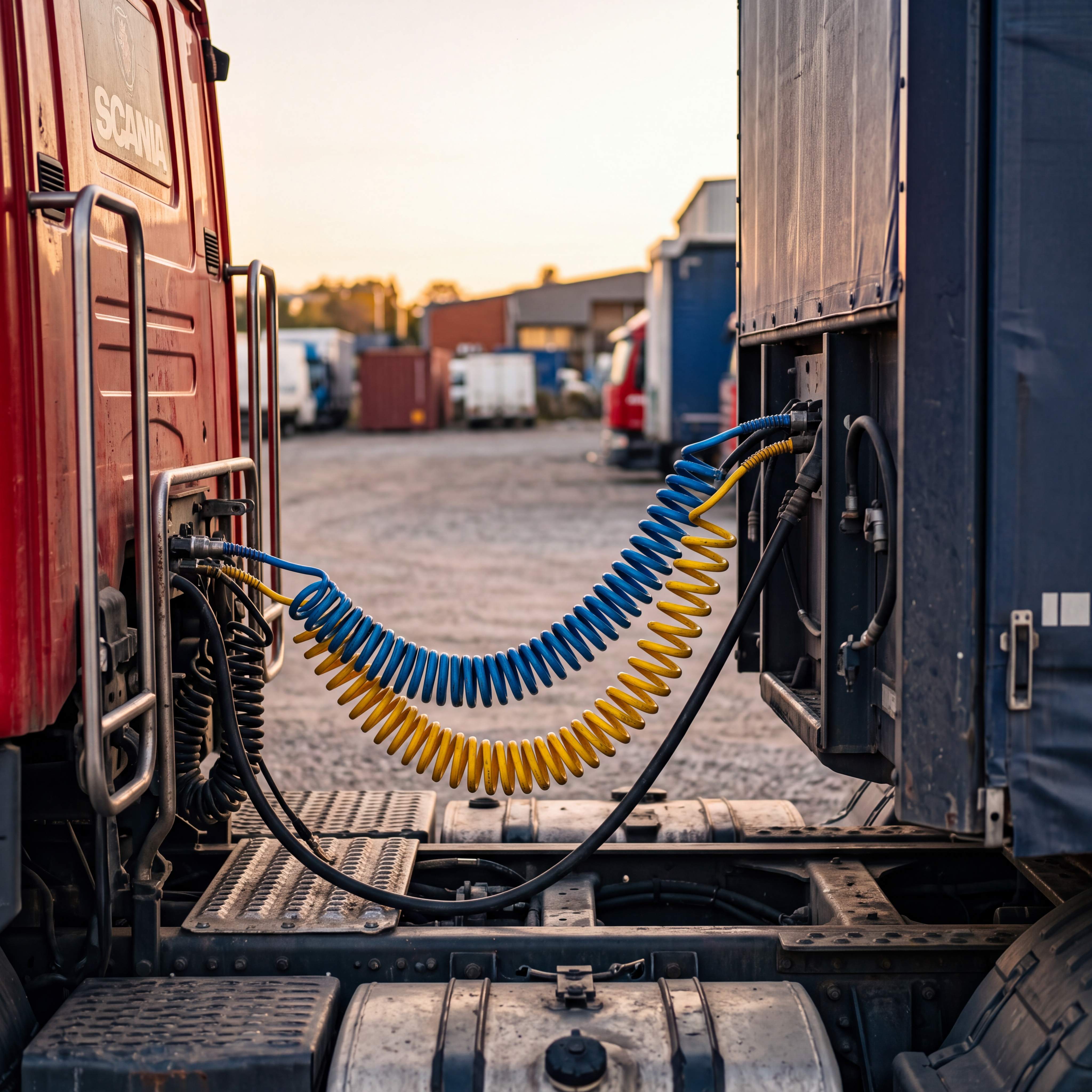

In the fast-paced world of commercial transportation, logistics, and heavy-duty engineering, the reliability of the electrical connection between a towing vehicle and its trailer is non-negotiable. At the heart of this critical connection lies the Trailer spiral power cable. Designed to act as a dynamic, retractable electrical bridge, this specialized wiring harness ensures the flawless transmission of power, lighting, braking, and monitoring signals under extreme road conditions.
For fleet procurement managers, engineers, and auto parts distributors, sourcing the right Trailer spiral power cable is essential to maintaining vehicle safety and compliance. This comprehensive guide will delve into how these cables work, detailed classifications, technical parameters, and how partnering with a reliable source factory can solve your supply chain challenges.
How Does a Trailer Spiral Power Cable Work?
Commercial vehicles face constant dynamic stress—sharp turns, sudden braking, and severe road vibrations. A standard straight wire would quickly tangle, drag on the road, or snap under tension. The Trailer spiral power cable solves this through its engineered helical spring structure.
Utilizing advanced memory-shape polymers like Polyurethane (PU) or HYTREL®, the cable naturally recoils to its compact form when the distance between the tractor and trailer decreases, and stretches seamlessly when turning or extending. This self-retracting mechanism prevents road drag, absorbs dynamic mechanical shocks, and ensures that vital electrical signals—from basic tail lights to complex anti-lock braking system data—are transmitted with zero interruption.

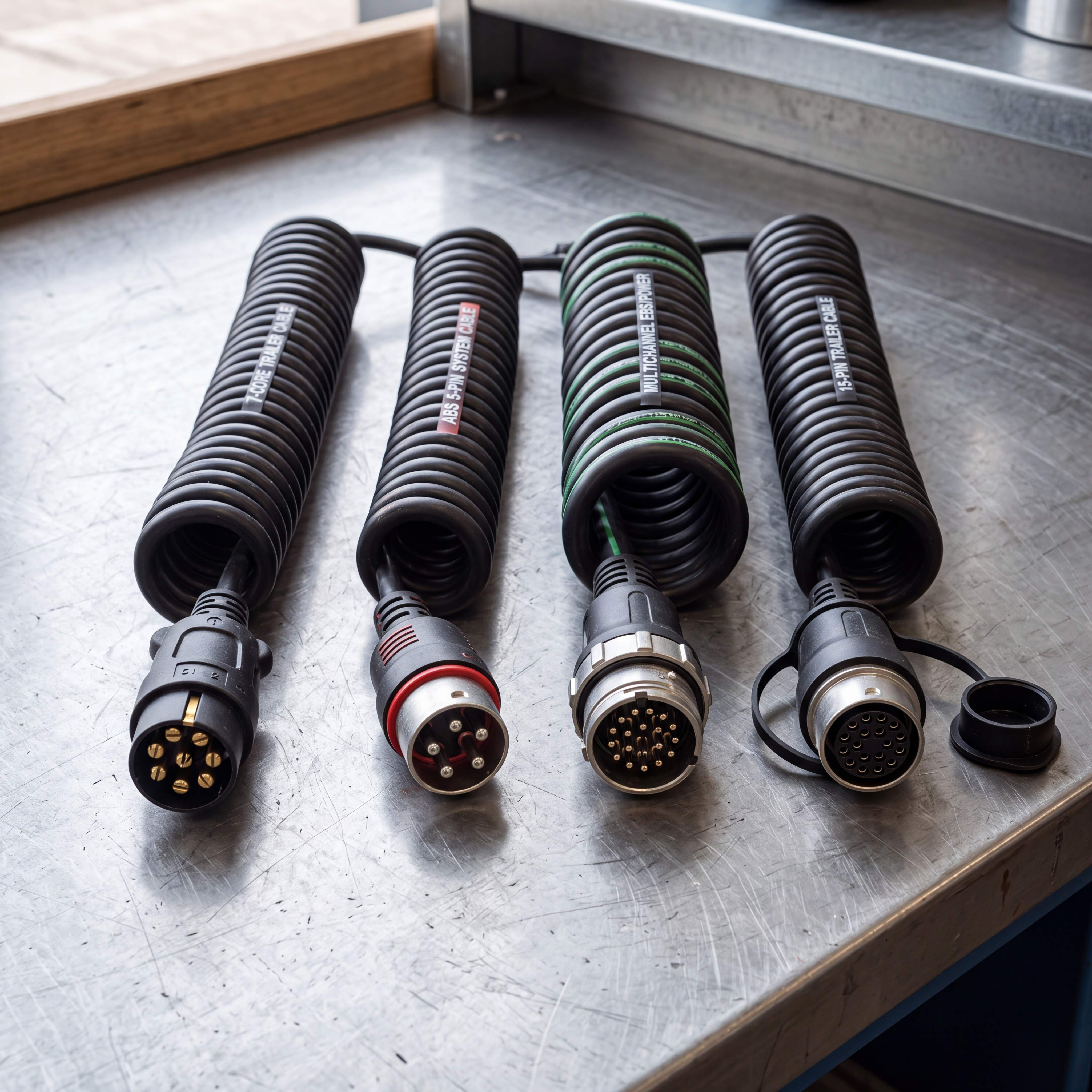

Comprehensive Classifications of Trailer Spiral Coiled Cables
Different vehicles and applications demand specific wiring configurations. Below are the four primary categories tailored to modern commercial and recreational vehicles.
1. 7 Core Standard Power Type
The 7 Core Trailer Spiral Power Cable is the industry's most universal solution, typically operating on 12V or 24V systems. Strictly adhering to ISO 1185 and ISO 4141 standards, this cable is primarily responsible for transmitting essential lighting signals, including tail lights, brake lights, indicators, and license plate illumination. Boasting an impressive working stretch range of 3.5 to 6 meters, it is the go-to standard for RVs (Recreational Vehicles), household trailers, and light commercial trucks.
2. ABS/EBS Dedicated Braking Type
When hauling hazardous chemicals or heavy cargo, braking precision is a matter of life and death. The ABS Trailer Spiral Coiled Cable and the advanced EBS Semi Trailer Spiral Connection Cable are specifically engineered for heavy-duty trucks equipped with Anti-lock and Electronic Braking Systems. Fully compliant with ISO 7638 and ADR (European Agreement concerning the International Carriage of Dangerous Goods by Road) regulations, these cables utilize a premium HYTREL® jacket. This material offers unmatched resistance to extreme temperatures, chemicals, and abrasion, ensuring high-speed, latency-free transmission of critical braking data.
3. Multi-Channel Monitoring Signal Type
As modern trucks become more technologically advanced, the need for integrated audio, video, and power transmission has surged. The Multi-Channel Monitoring Signal Type features a 4PIN/3-channel shielded design to prevent electromagnetic interference (EMI). It is highly waterproof and vibration-resistant, making it ideal for transmitting high-definition reversing camera feeds and blind-spot monitoring signals. It performs exceptionally well in harsh environments like mining sites and off-road construction zones.
4. 15-Pin Heavy-Duty Type
For specialized engineering vehicles and massive multi-axle semi-trailers, standard 7-core wiring falls short. The 15 Pin Truck Trailer Electric Spiral Wire is designed to handle multiple control circuits and larger electrical currents simultaneously. Utilizing thin-wall automotive-grade wiring, this heavy-duty cable maintains a compact outer diameter while maximizing internal conductivity. With a maximum safe stretch length of 4 meters, it safely manages complex electrical connections without the risk of voltage drop.
Technical Specifications & Core Features
To ensure maximum durability and safety, a high-quality PU Retractable Trailer Power Spring Cable must meet rigorous manufacturing standards. Below is a breakdown of the typical technical specifications you should expect from top-tier products.
| Technical Parameter | Specification Standard |
|---|---|
| Outer Jacket Material | Premium PU (Polyurethane) / HYTREL® |
| Conductor Material | High-purity oxygen-free stranded bare copper |
| Operating Voltage | 12V / 24V DC |
| Working Temperature | -40°C to +85°C (Extreme weather resistant) |
| International Standards | ISO 1185, ISO 4141, ISO 7638, ADR compliant |
| Retraction Lifespan | > 100,000 stretch-and-recoil cycles |
| Core Configurations | 7-Core, 15-Core, specialized ABS/EBS setups |
| Key Resistances | UV, Oil, Grease, Weather, and Abrasion resistant |
Core Features & Applications:
- Superior Memory Recoil: The high-grade PU/HYTREL jacket ensures the cable retains its tightly coiled shape even after years of extreme stretching.
- Weather & Chemical Resistance: Highly resistant to road salts, grease, oil, and UV degradation, making them perfect for cross-country logistics and hazardous material transport.
- Versatile Applications: Extensively used in heavy-duty commercial trucks, agricultural machinery, RV modifications, tow trucks, and mining equipment.
Your Trusted Partner: Professional Custom Trailer Spiral Power Cable Manufacturer
Sourcing electrical components for commercial fleets requires a partner that guarantees quality, compliance, and flexibility. As a Professional custom Trailer spiral power cable manufacturer, we are dedicated to bridging the gap between superior engineering and cost-effective B2B procurement.
Here is why global B2B buyers choose us as their premier supplier:
- Quality You Can Trust: We are fully ISO9001 certified, ensuring every batch of cables undergoes stringent quality control, electrical testing, and stress-cycle assessments.
- Tailored to Your Needs: We strictly Support Customization/OEM/ODM. Whether you need specific cable lengths, custom pin configurations, or branded connectors, our factory can manufacture exactly to your blueprints.
- Flexible Procurement: We understand inventory management. That is why we offer a Low MOQ supported policy, allowing wholesalers, distributors, and engineering teams to order what they need without locking up excess capital.
- Engineering Excellence: Our Professional design team is ready to assist you with technical drawings and prototype development, Providing end-to-end solutions from raw material selection to final mass production.
Upgrade Your Supply Chain Today
Don't let subpar wiring compromise the safety and efficiency of your vehicles. Whether you are looking to bulk order the standard 7 Core Trailer Spiral Power Cable or need a bespoke ABS Trailer Spiral Coiled Cable for your customized fleet, we have the manufacturing muscle to deliver.
Ready to get a competitive quote? Contact our engineering sales team today to request product samples, technical datasheets, and custom pricing. Let us drive your business forward with world-class electrical connections.
