Ultimate Guide to Automotive NTC Temperature Sensor Wiring Harness: Specs, Applications, and Custom Solutions

As the automotive industry rapidly shifts towards electrification, thermal management has become the backbone of vehicle safety and performance. At the heart of this critical system is the automotive NTC temperature sensor wiring harness. For automotive engineers, procurement managers, and tier-one suppliers, selecting a highly reliable, precise, and durable temperature sensor harness is non-negotiable.

In this comprehensive guide, we will explore the working principles, core technical specifications like the industry-standard 10K 3950, primary EV applications, and why partnering with an IATF16949-certified factory is crucial to accelerating your Time-to-Market.

What is an Automotive NTC Temperature Sensor Wiring Harness?

An automotive NTC (Negative Temperature Coefficient) temperature sensor wiring harness is a high-precision electronic assembly designed to monitor and regulate temperatures within vehicle subsystems. The working principle of an NTC thermistor is straightforward yet highly effective: its electrical resistance decreases as the ambient temperature increases.

By processing this variable resistance, the vehicle's onboard computer can calculate real-time temperatures with extreme accuracy. When integrated into a robust wiring harness—engineered with high-temperature resistant cables, specialized connectors, and waterproof sealing—the NTC sensor guarantees uninterrupted data transmission even in harsh automotive environments characterized by severe vibrations, moisture, and extreme thermal cycling.

Critical Applications in New Energy Vehicles (EVs)

In New Energy Vehicles (NEVs) and hybrid platforms, temperature monitoring is directly tied to safety and efficiency. Our automotive NTC temperature sensor wire harnesses are pivotal in three major systems:

Battery Management Systems (BMS)

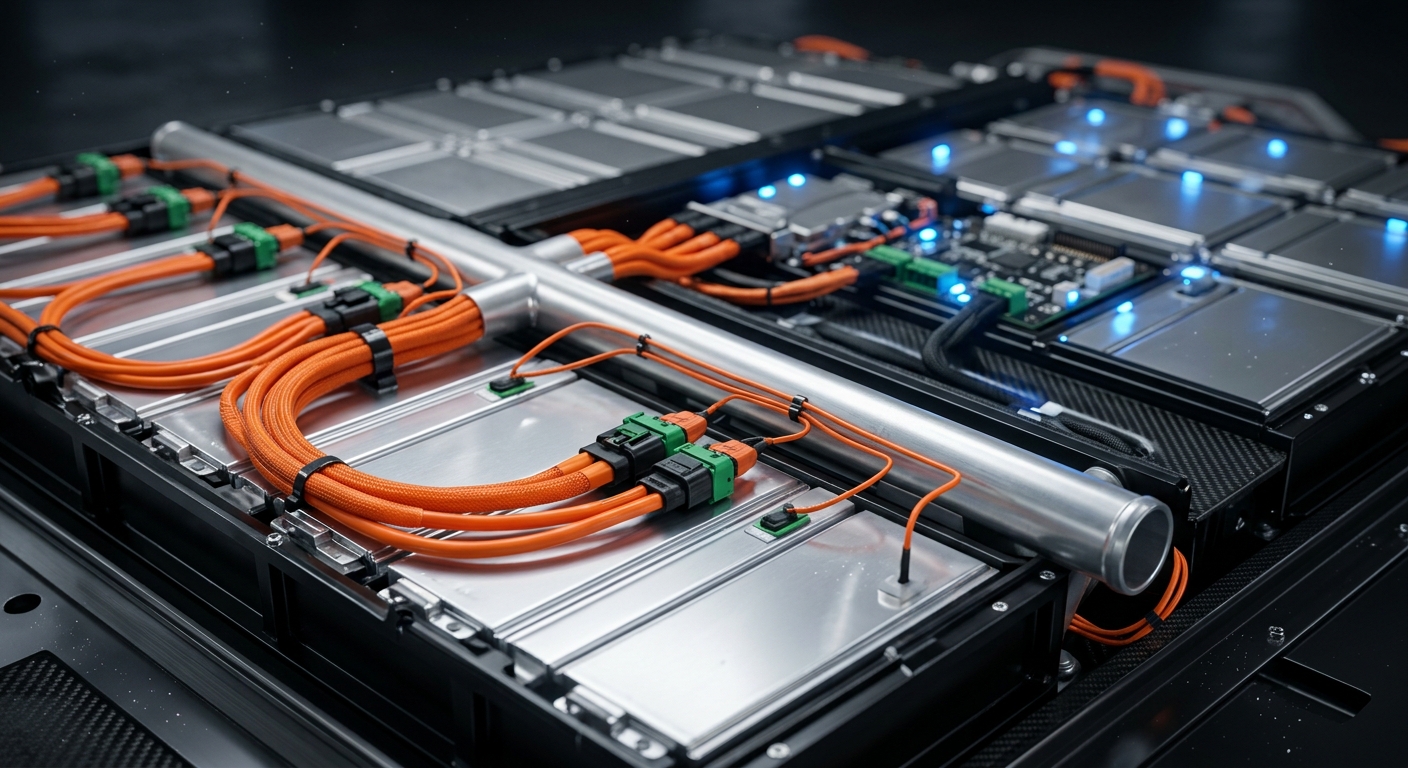

The EV battery pack is the most expensive and sensitive component of an electric vehicle. NTC sensors are strategically placed across battery modules to provide real-time temperature feedback. This continuous monitoring is vital to prevent thermal runaway, optimize charging rates, and maximize battery lifespan. Fast response times ensure that the BMS can engage cooling systems instantly when abnormal temperature spikes occur.

Drive Motors

Electric drive motors operate under high loads and generate significant heat. Our temperature sensor harnesses are embedded within the motor stator or housing to monitor operating temperatures. This prevents demagnetization of permanent magnets and protects insulation materials from thermal degradation, ensuring the motor operates at peak efficiency.

Electronic Control Units (MCU/Inverters)

The Motor Control Unit (MCU) and inverters are responsible for high-power energy conversion, generating substantial thermal stress on IGBT or SiC power modules. NTC sensors deliver precise thermal data to the control board, enabling dynamic power derating when necessary, thereby protecting the core electronic components from overheating failures.

Deep Dive into Specifications: Why is the 10K 3950 Standard?

While NTC sensors come in various specifications, the 10K 3950 NTC thermistor is the gold standard for automotive applications.

• 10K (Nominal Resistance): This refers to a base resistance of 10 kilo-ohms at a standard room temperature of 25°C. It provides an optimal balance, ensuring signals are strong enough to resist electromagnetic interference (EMI) commonly found in EVs.
• 3950 (B-Value): The B-value (Beta value) represents the material constant of the thermistor, indicating the steepness of the resistance-temperature curve. A B-value of 3950K guarantees excellent sensitivity and linear accuracy within the crucial operating range of -40°C to +150°C.

This specific configuration delivers the highest level of stability, tight tolerance (often ±1%), and long-term reliability required by stringent automotive engineering standards.

Key Classifications of NTC Temperature Sensors

Depending on the mounting environment and application, automotive NTC sensor harnesses are classified into several structural types:

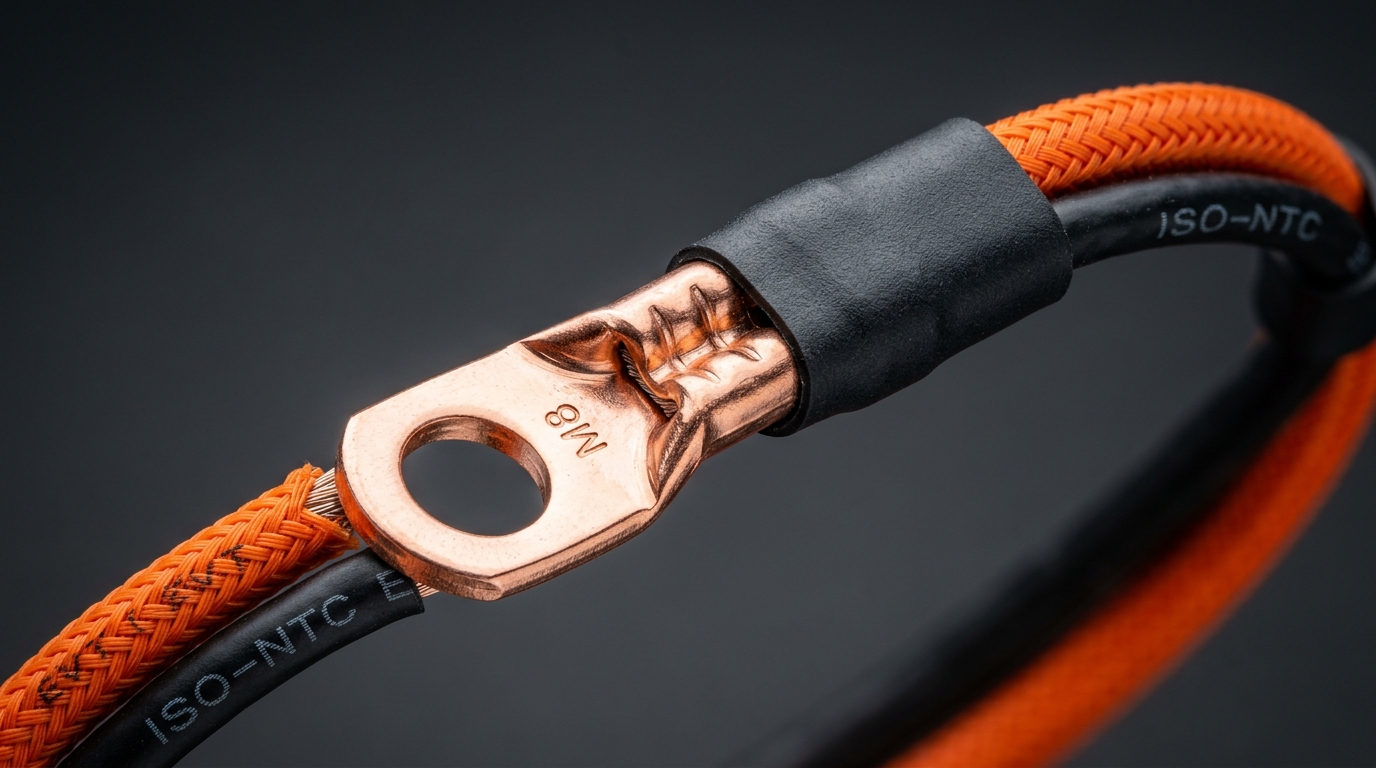

1. Ring Lug / Terminal Type: Features a metal mounting hole (e.g., M3, M4) for direct screw-down installation on motor housings or battery terminals. Offers excellent thermal conductivity.
2. Epoxy Coated Type: Compact and highly sensitive. Often used in tight spaces within circuit boards or enclosed modules.
3. Metal Tube / Probe Type: Encased in stainless steel, copper, or aluminum shells. Ideal for harsh environments, coolants, or HVAC systems due to outstanding waterproof and corrosion-resistant properties.

Why Partner with an IATF16949 Certified Wire Harness Manufacturer?

Sourcing automotive cable assemblies is not just about buying a part; it’s about mitigating supply chain risks and ensuring uncompromising safety. As a leading professional wire harness manufacturer, we bring unparalleled advantages to your procurement strategy:

• IATF16949 Certified Quality: Automotive quality is ingrained in our DNA. Operating under the strict IATF16949 quality management system, we ensure 100% traceability, PPAP compliance, and rigorous zero-defect quality control from raw materials to final assembly.
• Professional Design Team: Our seasoned R&D engineers collaborate directly with your technical team. We provide full support from 2D/3D CAD drawings to material selection, ensuring the harness perfectly fits your structural and electrical requirements.
• Flexible Customization & Small Batch Support: We understand that modern automotive innovation requires agility. Whether you need a highly complex custom OEM/ODM design for a prototype EV or a specialized harness with custom connectors and shielding, we fully support low Minimum Order Quantities (MOQ) and small batch runs to accelerate your testing and production phases.

Contact Us for Your Custom Automotive Harness Solutions

Don't let inferior thermal management compromise your next-generation automotive project. Whether you need standard 10K 3950 NTC sensor harnesses or fully bespoke wiring solutions for your BMS, motor, or electronic controls, we have the manufacturing muscle and engineering expertise to deliver.

Ready to upgrade your vehicle's thermal sensing capabilities? Send us your technical drawings or project requirements today. Our engineering team will provide a comprehensive technical assessment and a highly competitive quote within 24 hours. Contact us now to secure your reliable automotive supply chain partner!
