Ultimate Guide to Anti-Spark 130A High Current Drone Wiring Harnesses for Heavy-Lift UAVs
In the rapidly evolving world of commercial UAVs, heavy-lift agricultural and industrial drones require massive power systems to support their payload capacities. However, when operators plug in high-capacity, high-voltage battery packs, they frequently encounter a terrifying and destructive phenomenon: electrical arcing, commonly known as "sparking."
This sudden spike in electrical current not only degrades connector pins over time but can also instantly fry expensive Electronic Speed Controllers (ESCs), damage batteries, and pose severe safety hazards to operators in remote field environments. The ultimate solution to this critical industry pain point is the Anti-Spark 130A High Current Drone Wiring Harness—a meticulously engineered heavy-lift drone power cable designed to deliver continuous power safely, even in the harshest conditions.
The Working Principle: How Anti-Spark Technology Eliminates Electrical Arcing
To understand the value of an agricultural drone anti-spark harness, we must first look at the science of electrical arcing. When a high-voltage drone battery is connected to an ESC, the massive internal capacitors within the ESC demand an instantaneous rush of current. Because standard connectors bridge the gap instantaneously, the high voltage jumps the shrinking air gap just milliseconds before physical contact is made, generating a 3000°C mini-lightning bolt (the spark).

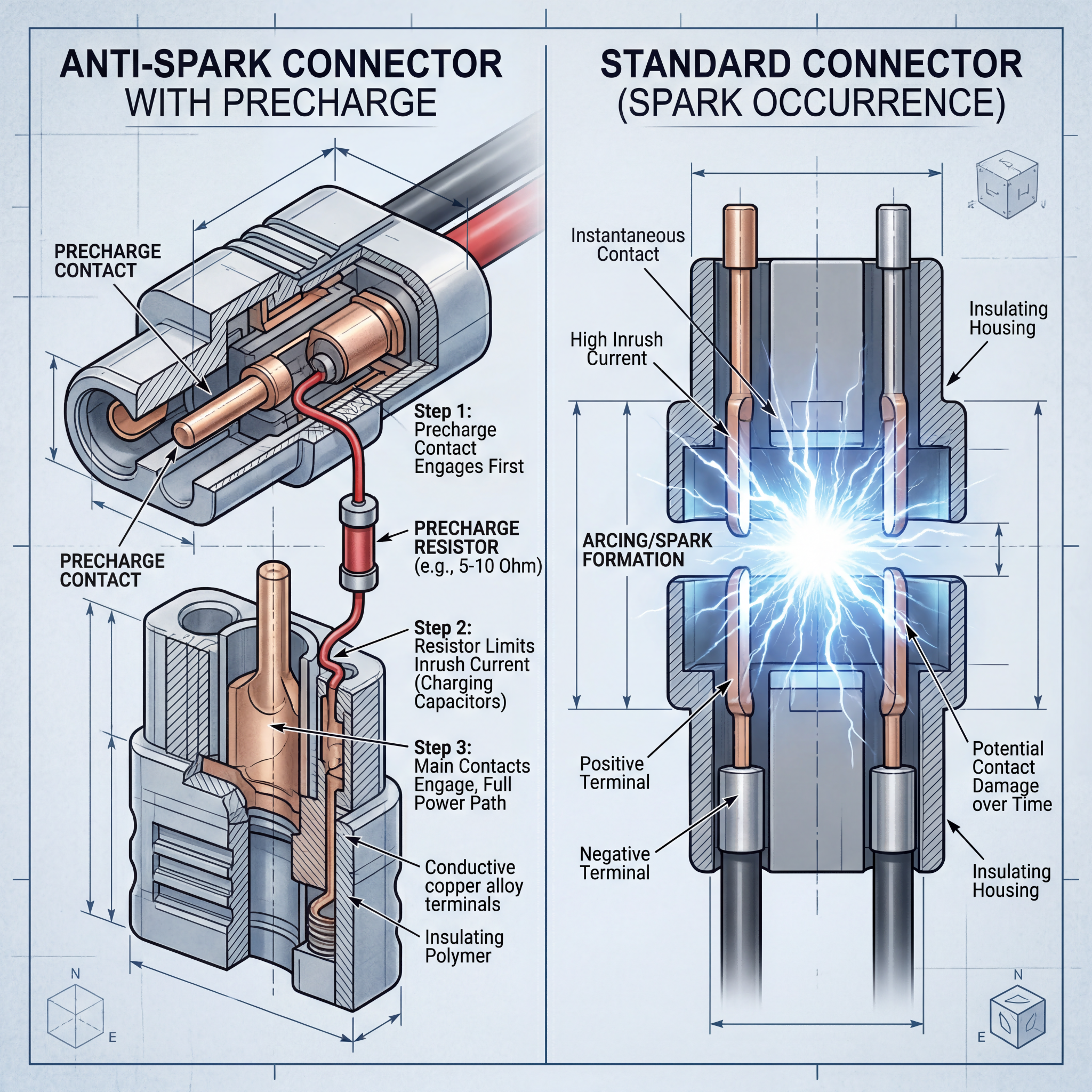

How does the anti-spark mechanism work? Anti-Spark connectors integrate a specialized precharge circuit. At the tip of the positive connector, there is a two-stage mating system equipped with a built-in precharge resistor (typically a few ohms).
- Stage 1 (Precharge): As you insert the plug, the tip makes contact first. The current is forced to flow through the resistor, which acts as a bottleneck, slowly and safely filling the ESC capacitors over a fraction of a second without generating any sparks.
- Stage 2 (Full Connection): As the plug is pushed all the way in, the main metal housings bypass the resistor, allowing the full 130A continuous current to flow seamlessly with zero resistance.
Core Features of the 130A Drone Connector Wiring
Our heavy-lift drone power cables are engineered to meet the extreme demands of modern UAV operations.
- Exceptional Power Delivery: Rated for a true 130A continuous current and capable of handling peak burst currents well over 200A, perfect for high-discharge rate multi-rotor systems.
- Premium Conductor Material: Constructed with ultra-fine, pure copper tinned wires encapsulated in high-grade AWG silicone wire. This ensures maximum flexibility, zero oxidation, and minimal voltage drop.
- Extreme Environmental Resilience: Designed for field operations. The silicone jacket and robust connector housings offer outstanding heat resistance, remaining flexible in freezing temperatures and stable in extreme heat.
- Enhanced Safety Functions: Beyond protecting the drone's critical electronic components from power surges, it dramatically extends the lifespan of the battery connectors, reducing the need for field maintenance.
Classifications & Application Scenarios
Depending on the specific UAV architecture, our 130A drone connector wiring can be adapted for various applications:
1. Agricultural Plant Protection Drones
Agricultural drones operate in unforgiving environments filled with pesticide mist, high humidity, and dust. The agricultural drone anti-spark harness is designed with superior sealing and robust strain relief to withstand daily battery swaps in muddy, wet fields, ensuring continuous spraying operations without electrical failures.
2. Heavy-Lift Cargo & Delivery UAVs
For logistics drones carrying 50kg+ payloads over long distances, power failure is not an option. These harnesses utilize heavy-duty AWG silicone wire (such as 8 AWG or 10 AWG) to sustain prolonged high continuous current without overheating, maximizing flight time and safety.
3. Industrial Mapping & Inspection Drones
Used in mining, powerline inspection, and search-and-rescue, these drones require stable power free from electromagnetic interference (EMI). Our precision-crimped and soldered connections guarantee a flawless high-discharge rate power supply.
Technical Specifications
To assist UAV R&D engineers and procurement managers, below is the detailed technical specification table for our standard 130A anti-spark heavy-lift drone power cable.
| Specification Parameter | Technical Details |
|---|---|
| Connector Type | AS150 / QS8 (Anti-Spark integration) |
| Wire Gauge | 8 AWG / 10 AWG Premium Silicone Wire |
| Conductor Material | High-strand-count Tinned Oxygen-Free Copper |
| Continuous Current | 130A |
| Peak Burst Current | 200A+ (for 10 seconds) |
| Voltage Rating | DC 500V Max |
| Temperature Resistance | -60°C to +200°C |
| Insulation Material | High-Temperature Resistant Silicone |
| Contact Resistance | < 0.3 mΩ |
| Precharge Resistor Value | 5.6Ω (Customizable) |
Your Trusted Drone Wiring Harness Factory & Solution Provider
When specifying critical power delivery components for commercial UAVs, partnering with a reliable manufacturer is paramount. We are a professional wiring harness factory with deep expertise in drone power solutions.
Why choose us as your B2B supply chain partner?
- Strict Quality Control: We are a fully ISO9001 certified manufacturing facility. Every anti-spark harness undergoes rigorous high-voltage, conductivity, and tensile strength testing before leaving the factory line.
- OEM/ODM Customization: Our professional design team and experienced R&D engineers can customize wire lengths, connector combinations, splitters, and shielding based on your drone's specific architectural requirements.
- Flexible Manufacturing: We understand the iterative nature of drone development. That is why we proudly support low-volume production for prototyping and testing, scaling seamlessly to mass production when your product hits the market.
- Direct Factory Pricing: By cutting out the middleman, we provide high-end, heavy-lift drone power cables at highly competitive B2B prices.
Ready to upgrade your drone's power system and eliminate electrical arcing for good? Do not let a cheap connector compromise a $20,000 heavy-lift drone. Contact our professional engineering team today to discuss your specific requirements, request technical blueprints, or order custom prototypes of the Anti-Spark 130A High Current Drone Wiring Harness.
Contact Us Now for a Custom Quote & Free Consultation
