The Ultimate Guide to Automotive Energy Storage Wiring Harnesses: Features, Specs, and Custom Solutions

The rapid evolution of electric vehicles (EVs) and advanced automotive energy storage systems has driven the demand for highly reliable, safe, and efficient power transmission components. At the heart of these systems lies a mission-critical component: the automotive energy storage wiring harness.

Whether you are an R&D engineer designing a new Battery Management System (BMS) or a purchasing manager sourcing reliable tier-tier suppliers, understanding the technical nuances of these harnesses is vital. In this comprehensive guide, we will explore the core features, classifications, specifications, and working principles of energy storage wiring harnesses, and explain why partnering with an IATF16949 certified wiring harness manufacturer is crucial for your project's success.

What is an Automotive Energy Storage Wiring Harness?

An automotive energy storage wiring harness functions as the central nervous system of an electric vehicle's power bank. It is a highly engineered assembly of high-voltage cables, signal wires, connectors, and protective sleeves. Its primary role is to safely connect the battery cells, battery modules, BMS, and the inverter, ensuring seamless power transmission and accurate data communication under extreme automotive environments.

Core Features of High-Quality EV Energy Storage Harnesses

Unlike standard automotive cables, energy storage harnesses must withstand rigorous operational demands. Premium harnesses share several distinctive features:

• Exceptional High-Voltage Resistance: Capable of handling hundreds to thousands of volts without breakdown, ensuring the safety of the entire EV power train.
• Superior Thermal Stability: Utilizing advanced insulation materials like Cross-linked Polyethylene (XLPE) or silicone, these cables maintain flexibility and conductivity in extreme temperatures ranging from -40°C to +150°C.
• Robust EMI/RFI Shielding: High-voltage transmission generates significant Electromagnetic Interference (EMI). High-quality harnesses incorporate braided copper shielding and aluminum foil to prevent signal disruption to the vehicle's sensitive electronic control units.
• High Mechanical Durability: Designed to resist abrasion, vibration, and chemical exposure (such as battery acid and coolants) throughout the vehicle's lifespan.

Main Classifications of Automotive Energy Storage Wiring Harnesses

Depending on their function within the EV ecosystem, these assemblies can be broadly categorized into two types:

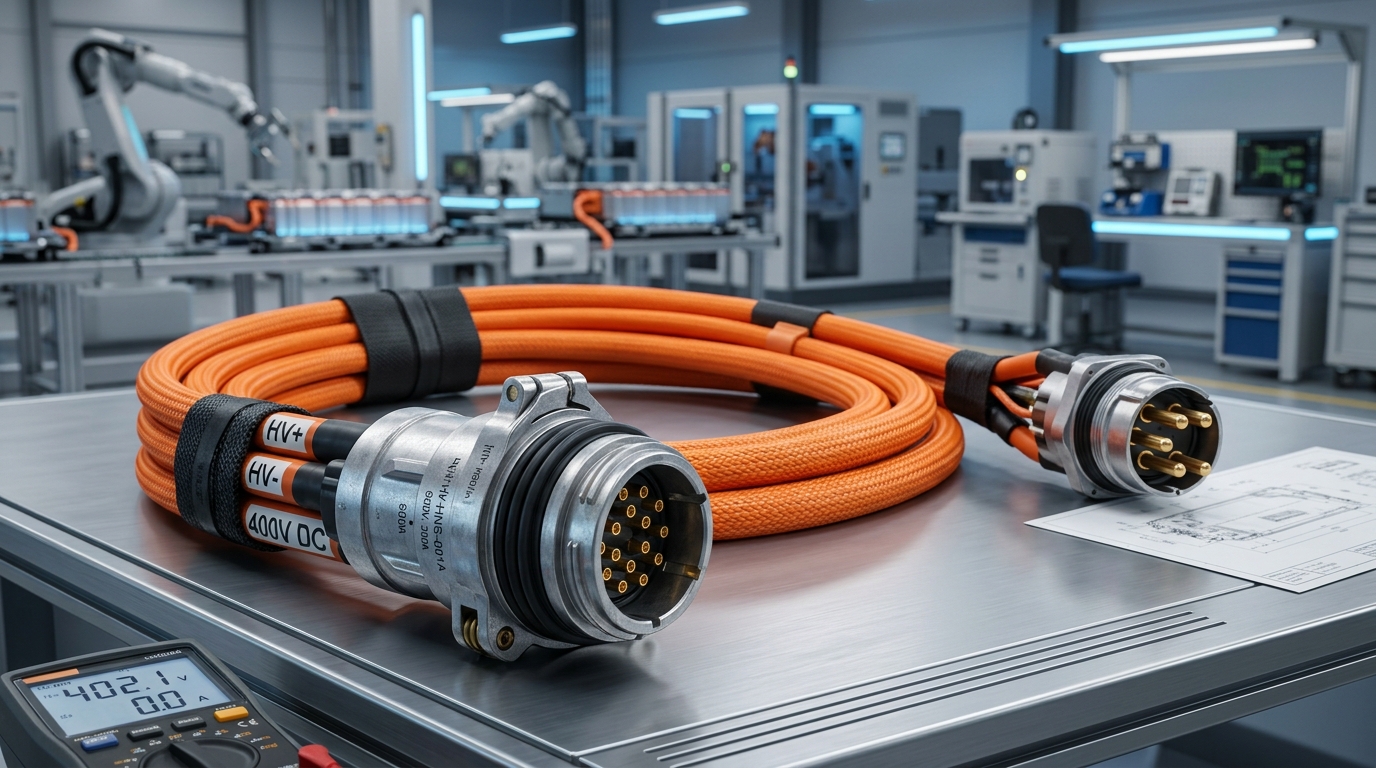

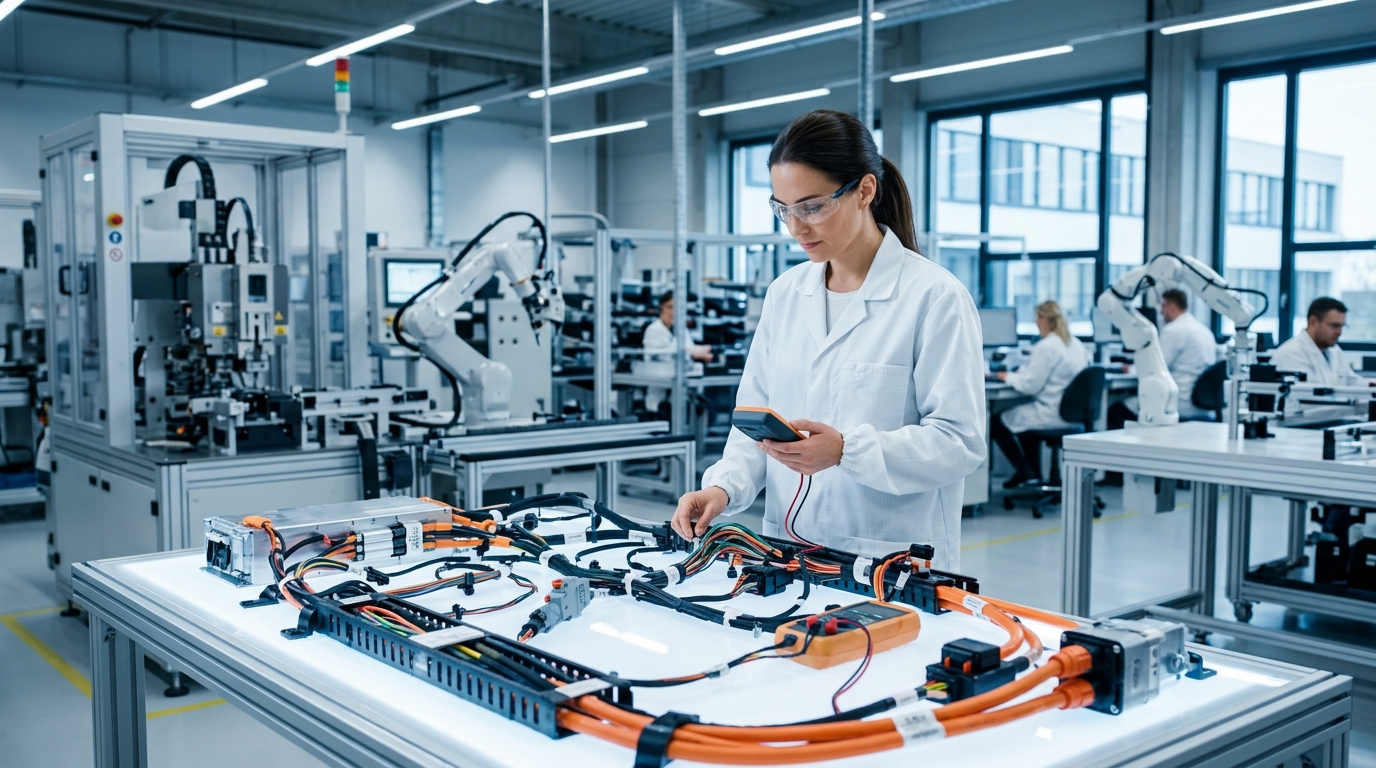

1. High-Voltage (HV) Power Harnesses: Recognizable by their bright orange outer jackets (a global safety standard), these thick cables transmit the main propulsion power between the battery pack, inverter, and electric motor.
2. Low-Voltage (LV) Signal & BMS Harnesses: These are thinner multi-core assemblies responsible for monitoring battery health. They transmit crucial data regarding voltage, temperature, and State of Charge (SOC) from individual battery cells to the Battery Management System.

Key Specifications and Technical Parameters

When engineering or sourcing a custom energy storage cable assembly, precise specifications are non-negotiable. Common parameters include:

• Conductor Cross-Section (Size): Ranging from 2.5mm² to 120mm² (or equivalent AWG sizes) depending on the required current-carrying capacity.
• Voltage Rating: Standard ratings include 600V, 1000V, and up to 1500V DC for advanced fast-charging architectures.
• Temperature Rating: Typically rated for -40°C to 125°C or 150°C.
• Ingress Protection (IP) Rating: Connectors and mating parts must achieve at least IP67 or IP6k9k to ensure complete waterproofing and dustproofing.
• Compliance Standards: Must adhere to international standards such as LV216, ISO 19642, and UL certifications.

How Does the Energy Storage Wiring Harness Work?

The operational principle of the harness involves a synchronized dual-action process.

First, the power circuit relies on low-resistance oxygen-free copper or aluminum conductors to transfer high-current DC power from the battery modules to the power conversion units with minimal thermal loss. Simultaneously, the communication circuit (BMS harness) continuously polls the sensors attached to the battery cells. It feeds real-time thermal and voltage data back to the central processor. If an anomaly (like overheating or voltage drop) is detected, the system can instantly trigger the high-voltage contactors to isolate the battery, preventing thermal runaway and ensuring passenger safety.

Why Choose an IATF16949 Certified Manufacturer for Your Custom Needs?

The complex nature of EV battery systems means that an off-the-shelf product rarely fits all. As a professional wiring harness factory, we bridge the gap between innovative engineering concepts and flawless mass production. Here is how our robust capabilities translate into your competitive advantage:

1. Automotive-Grade Quality (IATF16949 Certified)

Quality is not just a promise; it is deeply embedded in our manufacturing DNA. Operating under the stringent IATF16949 quality management system, we guarantee a zero-defect approach. From raw material inspection to automated crimping and 100% high-voltage testing, our harnesses provide you with absolute peace of mind and full traceability.

2. Expert Design Team & Turnkey Solutions

Struggling with complex routing spaces or thermal management issues in your battery pack? Our dedicated in-house R&D and engineering team speaks your language. We offer comprehensive one-stop solutions, including 3D routing design, component selection, prototype development, and DFM (Design for Manufacturing) analysis, significantly accelerating your time-to-market.

3. Highly Flexible Production: From Customization to Small Batches

We understand the agile nature of EV development. Unlike rigid traditional manufacturers, we proudly support custom designs and small-batch production runs. Whether you need 50 pieces for rigorous R&D testing or 50,000 pieces for full-scale assembly, our flexible manufacturing lines are tailored to scale with your project's lifecycle, lowering your inventory risks and upfront costs.

Partner With Us Today

Your cutting-edge automotive energy storage system deserves a wiring harness that matches its innovation. Let our factory be your reliable "24/7 manufacturing partner."

Ready to optimize your EV battery wiring solutions? [Contact our engineering team today] for a technical consultation, customized quotes, and rapid prototyping services. Let's power the future of e-mobility together.
