FEP Ignition Wire Harness for Gas Stoves: The Ultimate Engineering Guide

In the competitive landscape of home appliance manufacturing, the reliability of a gas stove hinges on one of its smallest components: the ignition system. For procurement managers and appliance engineers, sourcing the right gas stove ignition needle cable is not just a matter of functionality—it is a critical safety and durability requirement.

As standard PVC wiring continuously fails under the brutal conditions of modern kitchens, the FEP ignition wire harness has emerged as the undisputed gold standard. In this comprehensive guide, we will explore the extreme working environments of gas appliances, delve into the material science behind FEP Teflon insulation, and explain why partnering with a certified custom wire harness manufacturer like YCABLE is the smartest move for your supply chain.

The Brutal Reality of Gas Stove Environments

To understand why specialized wiring is necessary, we must first analyze the operating environment inside a gas stove. Standard cables are simply not equipped to handle the "Triple Threat" found in commercial and residential kitchens.

1. Extreme Thermal Cycling

The interior of a gas stove is subjected to intense and fluctuating heat. Burner bases can easily reach temperatures exceeding 150°C (302°F) during prolonged cooking sessions. Traditional insulation materials melt, deform, or become brittle over time, leading to catastrophic short circuits.

2. Instantaneous High-Voltage Pulses

Gas ignition is not a low-voltage operation. To create the spark necessary to ignite the gas-air mixture safely, the ignition module generates a high-voltage pulse ranging from 10kV to 20kV in milliseconds. If the wire’s dielectric strength is insufficient, the spark will leak through the insulation, causing a misfire.

3. Corrosive Oil, Grease, and Moisture

Kitchens are volatile chemical environments. Cooking oils, grease vapors, cleaning chemicals, and boiling moisture constantly seep into the stove’s internal cavity. These substances rapidly degrade conventional rubber or plastic wiring.

The Material Science: Why FEP is Indispensable

FEP (Fluorinated Ethylene Propylene), commonly known under the Teflon family, is an advanced fluoroplastic that offers unmatched physical and electrical properties. By using a high voltage Teflon wire assembly, manufacturers directly address the pain points of gas stove ignition systems.

Here is how FEP transforms appliance safety and longevity, utilizing the Feature-Advantage-Benefit (FAB) breakdown:

• Feature (Thermal Resistance): FEP boasts a continuous operating temperature range of -60°C to +200°C.
  • Advantage: It will not melt or degrade when routed near burner heads.
  • Benefit: Eliminates the risk of heat-induced wire failure, ensuring zero fire hazards and passing strict CE/CSA safety certifications effortlessly.
• Feature (Superior Dielectric Strength): FEP has exceptional electrical insulation properties, capable of withstanding voltage spikes up to 25kV.
  • Advantage: Prevents electrical breakdown and arc leakage during the intense pulse ignition phase.
  • Benefit: Guarantees a 100% first-time ignition rate, providing the end-user with a seamless and premium cooking experience.
• Feature (Chemical Inertness): FEP is inherently non-stick and highly resistant to oils, acids, and moisture.
  • Advantage: Grease and moisture cannot penetrate or degrade the cable jacket.
  • Benefit: Drastically reduces warranty claims and aftermarket repair costs, protecting your brand's reputation for durability.

Specification of the FEP wire

1. Wire specifications: Commonly used PTFE wire models include UL1332, UL10086, AF200, etc. AWG wire gauge is usually between 18AWG and 24AWG.
2. Voltage withstand levels: 10KV, 15KV, 20KV, 25KV (ignition lines usually require 15KV or above).
3. Temperature resistance level: 200 ℃.
4. Outer diameter of wire (O.D): According to the pressure resistance requirements, the outer diameter is usually thicker, between 1.5mm and 3.0mm.

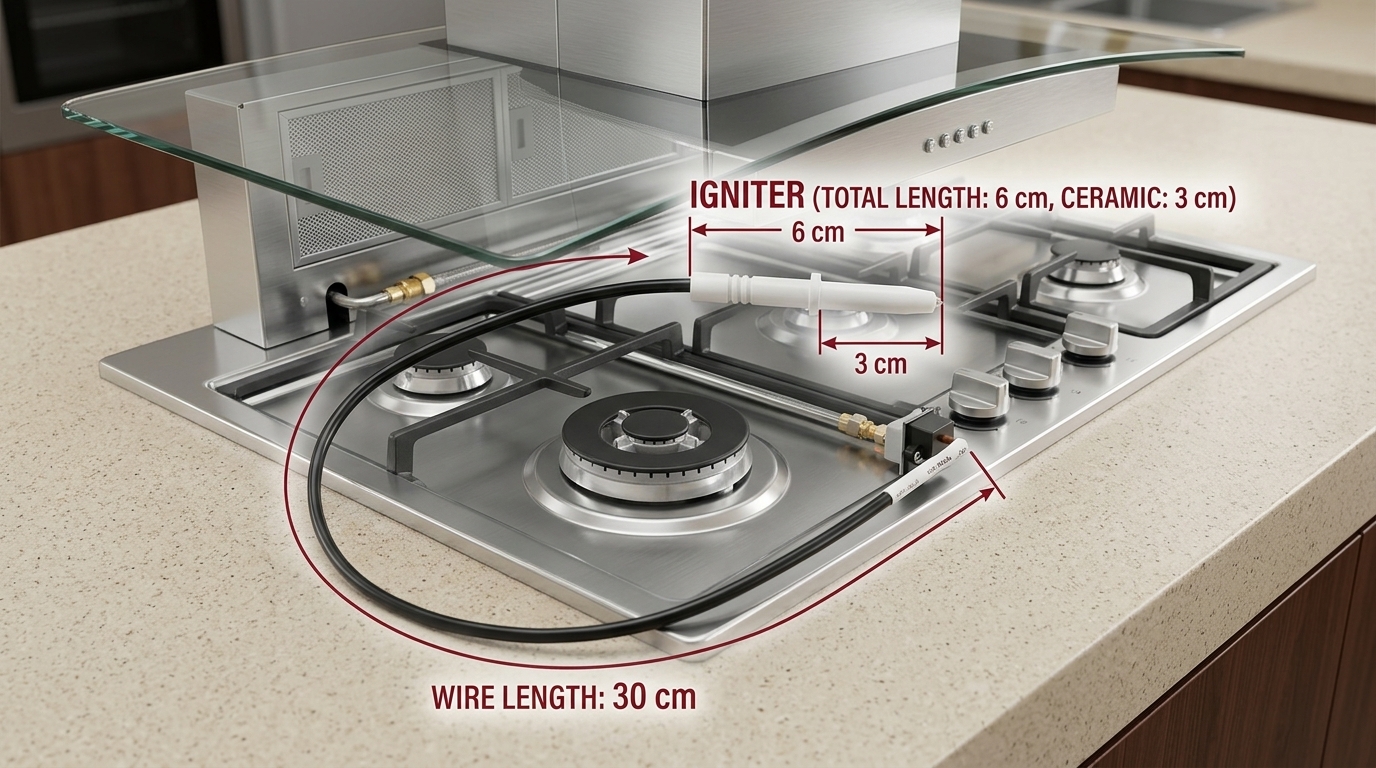

5. Length: Customized according to the internal structure of the stove (e.g. ranging from 200mm to 1500mm).

How Top Global Appliance Brands Utilize High Voltage Teflon Assemblies

Leading European and North American appliance giants have long abandoned standard wiring for their ignition systems. By standardizing FEP ignition wire harnesses, top-tier brands have achieved remarkable reductions in field failure rates.

For instance, premium built-in hobs and commercial ranges exclusively specify Teflon-coated ignition needle cables. This not only ensures rapid, click-to-ignite responsiveness but also complies with stringent international appliance safety directives (such as IEC 60335). When your brand adopts the same aerospace-grade FEP materials, you instantly elevate your product's market positioning and reliability metrics.

Partner with YCABLE: Your Expert Custom Wire Harness Manufacturer

While understanding the material is vital, sourcing it from a reliable partner is what truly streamlines your supply chain. As a premier custom wire harness manufacturer, YCABLE specializes in engineering and producing high-performance ignition wiring solutions tailored strictly to your appliance specifications.

Why Leading Brands Trust YCABLE:

• UL & ISO9001 Certified: Quality is not just a promise; it's a certified process. Our facilities operate under strict ISO9001 quality management systems, and our FEP wires meet rigorous UL standards, ensuring smooth international market entry for your gas stoves.
• Custom Engineering & Prototyping: Gas stoves come in various designs. Our professional R&D team provides comprehensive OEM/ODM services. From wire length and AWG specifications to custom terminal crimping matching specific ignition needles, we deliver precise, ready-to-install assemblies.
• A True One-Stop Solution: YCABLE doesn't just sell wires; we provide end-to-end supply chain solutions. With robust manufacturing capacity, strict quality control (including high-voltage breakdown testing), and competitive direct-from-factory pricing, we optimize both your product quality and your bottom line.

Upgrade Your Ignition Systems Today

Do not let inferior wiring compromise your high-end gas appliances. Upgrade to YCABLE’s gas stove ignition needle cables and give your customers the durability and safety they demand.

Ready to enhance your appliance’s performance? Contact the YCABLE engineering team today to discuss your project requirements, request free samples, or get a custom competitive quote. Let us be the reliable connection your brand needs.
