The Ultimate Guide to Custom Teflon (PTFE) Wire Harnesses for Aerospace and Military Electronics

In the high-stakes realms of aerospace engineering and military defense, component failure is simply not an option. Modern avionics, missile guidance systems, and military-grade communication arrays operate in some of the most unforgiving environments on the planet. At the heart of these complex systems lies a critical, yet often overlooked component: the Teflon (PTFE) wire harness.

For engineers and procurement managers sourcing custom cable assemblies, understanding the specific material advantages of Polytetrafluoroethylene (PTFE)—commonly known by the brand name Teflon—is paramount. In this guide, we dive deep into why PTFE wire harnesses are the undisputed gold standard for mission-critical applications and how partnering with a specialized, direct-from-factory manufacturer can streamline your R&D process.

Why Aerospace and Defense Rely on PTFE Wiring

Standard PVC or XLPE wiring solutions degrade rapidly when exposed to the extreme variables of flight and combat. Teflon (PTFE) stands apart due to its unique fluoropolymer molecular structure, offering three non-negotiable benefits for aerospace and military electronics.

1. Extreme Temperature Resistance (Thermal Stability)

Military vehicles and aircraft experience drastic thermal cycling. A jet soaring at high altitudes may face ambient temperatures of -60°C, while the wiring routed near the engine bay must endure blistering heat.

• Unmatched Range: PTFE wire harnesses maintain complete structural and electrical integrity across a staggering temperature range, typically from -90°C up to +260°C.
• Fire Safety: PTFE is inherently flame-retardant. It resists melting or dripping and produces minimal smoke when exposed to direct flame, meeting stringent aviation safety protocols.

2. Ultra-Lightweight Construction for Payload Optimization

In aerospace design, every gram matters. Heavy wiring adds to fuel consumption and limits payload capacity.

• High Dielectric Strength: PTFE possesses exceptionally high dielectric strength, meaning it provides superior electrical insulation even when applied in incredibly thin layers.

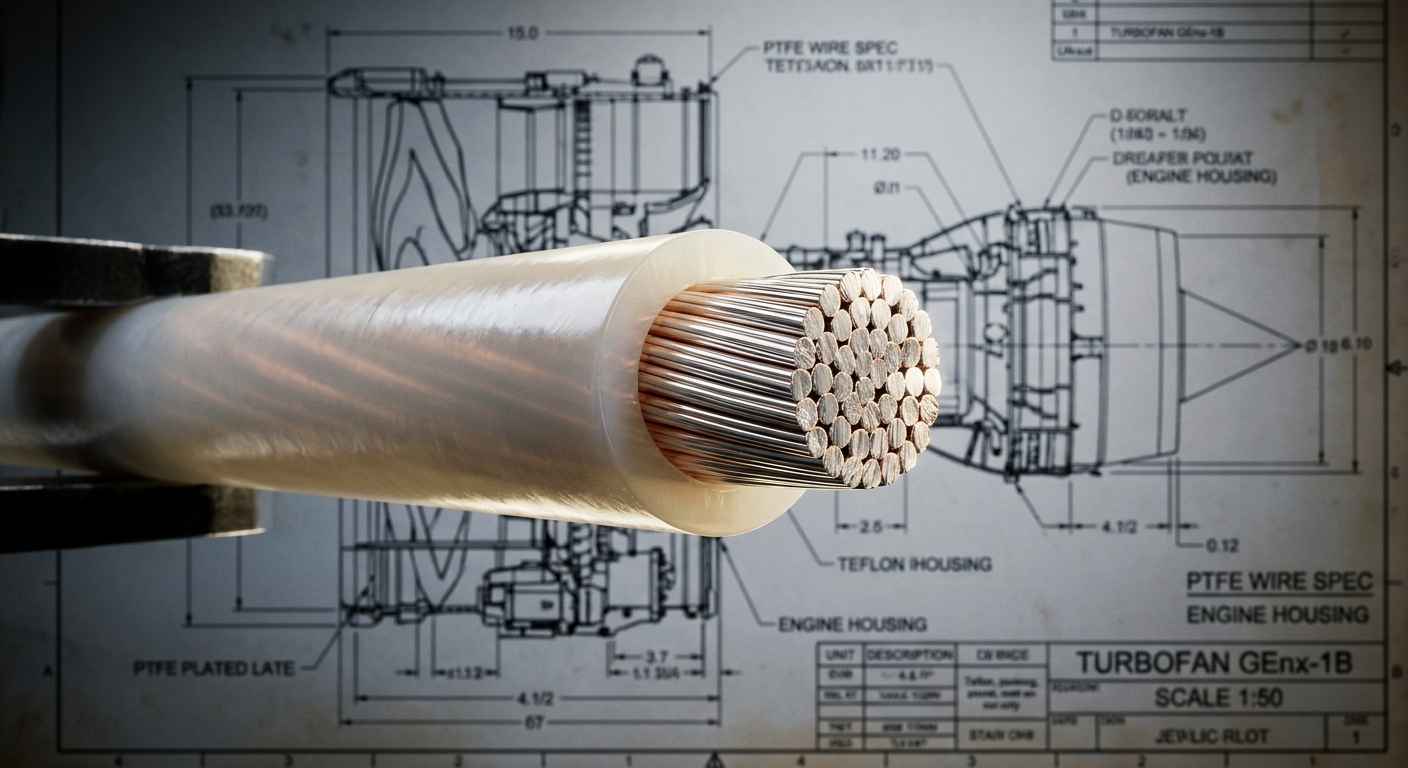

• Space & Weight Reduction: By utilizing thin-wall PTFE extruded over silver-plated or nickel-plated copper conductors, engineers can achieve up to a 30% reduction in weight and volume compared to traditional wiring, without sacrificing voltage capacity.

3. Superior High-Frequency Signal Integrity (Low Attenuation)

Modern military electronics rely on ultra-fast, high-frequency data transmission for radar, targeting systems, and secure communications.

• Low Dielectric Constant (Dk): PTFE boasts one of the lowest dielectric constants of any solid plastic (approx. 2.1).
• Zero Signal Loss: This unique property minimizes high-frequency signal attenuation, ensuring that mission-critical data is transmitted instantly and accurately, free from electromagnetic interference (EMI) degradation.

Navigating MIL-SPEC and Aerospace Wiring Standards

Designing a wire harness for these sectors goes beyond simply choosing the right material. It requires strict adherence to industry and military standards, such as AS22759 (formerly MIL-W-22759) for fluoropolymer-insulated copper wires.

A compliant Teflon wire harness must account for:

• Vibration and continuous flexing resistance.
• Chemical resistance against aviation fuels, hydraulic fluids, and harsh cleaning solvents.
• Precise shielding techniques to combat cross-talk in densely packed electronic bays.

Understanding these rigorous engineering constraints requires more than just a production line—it requires a dedicated engineering partnership.

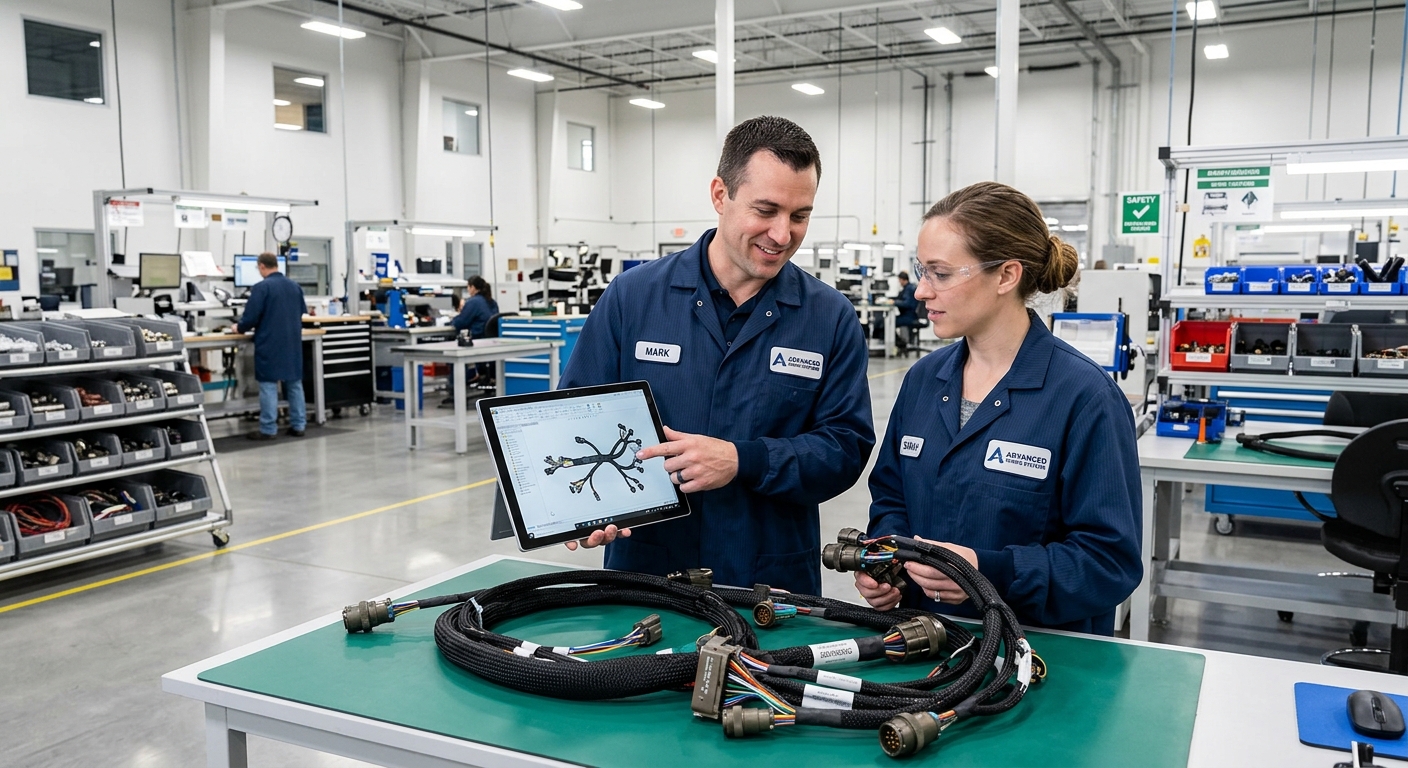

The Direct Factory Advantage: In-House Design & Custom Engineering

As a specialized wire harness factory focusing heavily on Teflon and high-temperature cable assemblies, we don't just manufacture; we engineer solutions. Sourcing directly from the factory eliminates the middleman, ensuring tight quality control and direct communication with technical experts.

Our in-house design team works closely with your aerospace and military engineers to customize every aspect of the wire harness:

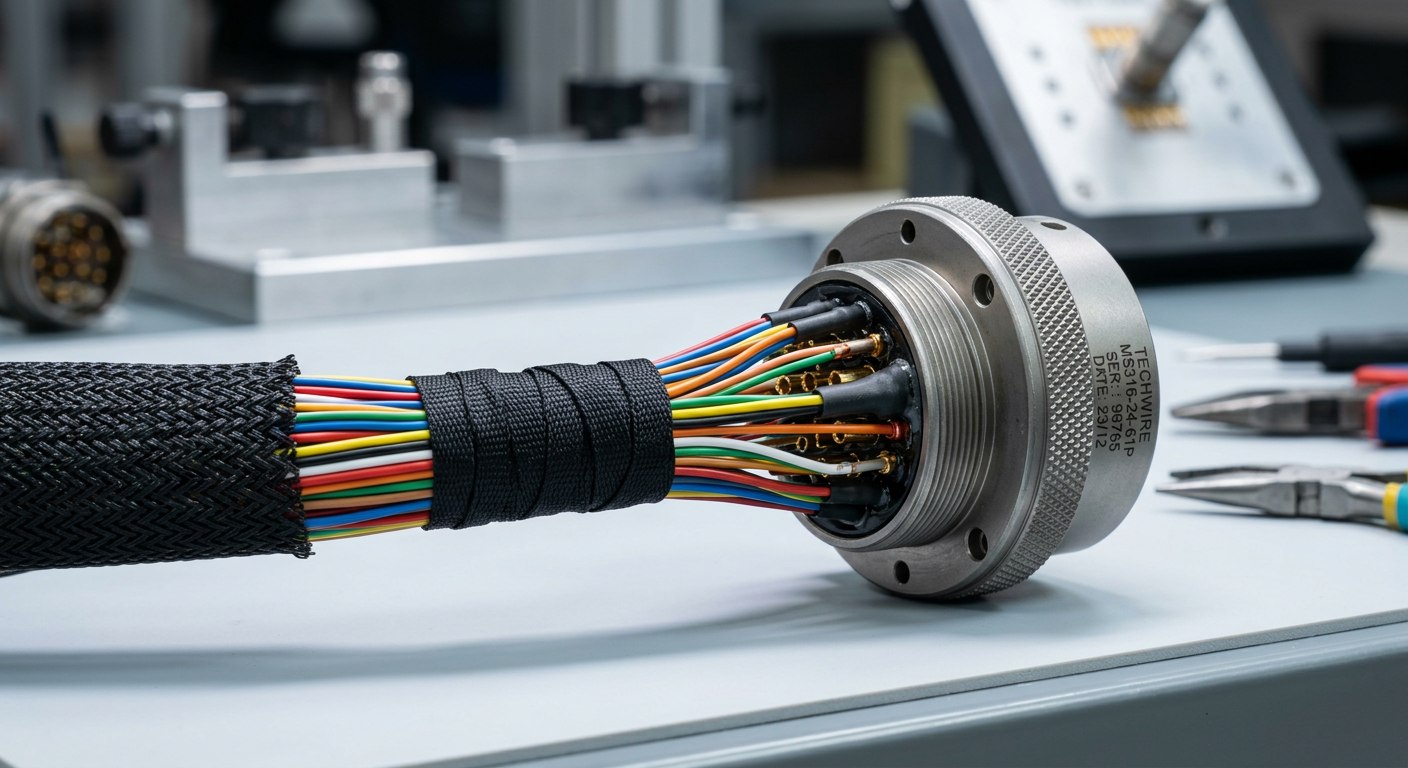

• Custom Shielding & Overmolding: Tailored EMI/RFI shielding configurations and robust overmolding for extreme strain relief.
• Precise Routing Design: 3D CAD modeling to ensure the harness fits perfectly within tight avionic compartments.
• Material Selection: Guiding you through the exact specifications of silver-plated vs. nickel-plated conductors based on your thermal and conductivity requirements.

Bridging the Gap in R&D: Why Low MOQ Matters for Prototyping

One of the biggest pain points in aerospace and defense engineering is the prototyping phase. R&D cycles require rigorous field testing, iterative design changes, and compliance certifications. Large contract manufacturers often demand massive Minimum Order Quantities (MOQs), which drains R&D budgets and stalls innovation.

We understand the specific needs of high-tech development. That is why we fully support small batch production and low MOQ orders.

Whether you need 10 custom prototype harnesses for an experimental drone or 100 units for a low-rate initial production (LRIP) military contract, our agile manufacturing line is built to support you. We provide the same elite level of engineering support, rigorous testing, and quality assurance for a small prototyping batch as we do for full-scale mass production.

Secure Your Supply Chain with a Trusted Harness Partner

When deploying systems where failure is not an option, ensure your electronics are connected by precision-engineered Teflon (PTFE) wire harnesses. By partnering with our factory, you gain access to decades of manufacturing expertise, a dedicated in-house design team, and the flexibility of small-batch prototyping.

Ready to bring your aerospace or military electronics project to life? Contact our engineering team today to discuss your technical specifications, request a quote, or schedule your low MOQ prototype run. Let us build the reliable connections that power your innovation.
