The Ultimate Guide to Teflon Wire Harnesses: Applications, Advantages, and Custom Solutions

In modern engineering, the reliability of your equipment is only as strong as its weakest link. In extreme environments, that weak link is often standard electrical wiring. When standard PVC or silicone cables melt, degrade, or fail under pressure, the result is costly equipment downtime, safety hazards, and damaged brand reputation.

Enter the Teflon wire harness. Known scientifically as fluoropolymer cable assemblies (including PTFE, FEP, and PFA), these robust interconnect solutions are designed to survive where others fail. In this guide, we will explore the critical applications of a PTFE cable assembly, deeply analyze its material advantages, and explain why upgrading to high-performance wiring is a necessary investment for advanced manufacturing.

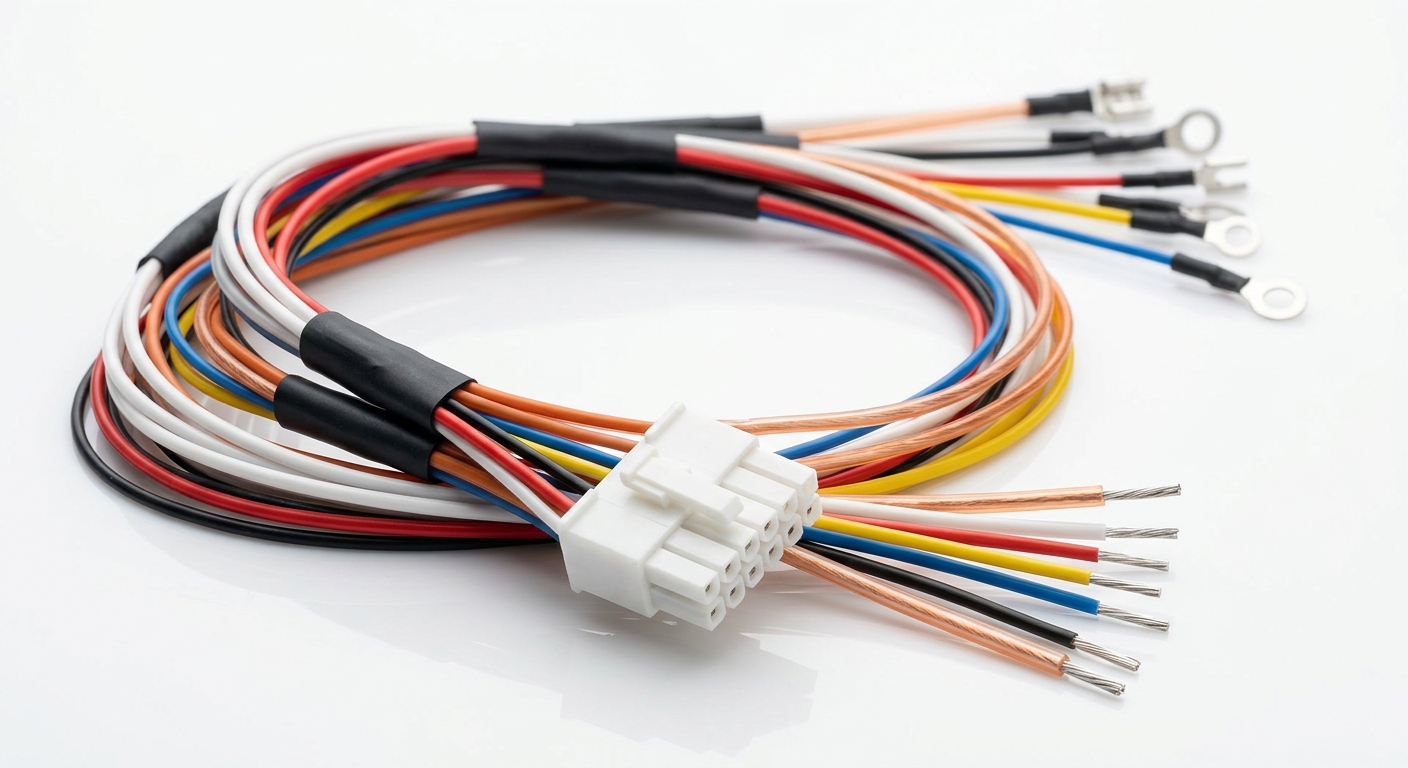

What is a Teflon (PTFE/FEP/PFA) Wire Harness?

A Teflon wire harness is an organized grouping of wires or cables insulated with fluoropolymer materials. While "Teflon™" is a registered trademark of Chemours (formerly DuPont), the industry frequently uses the specific chemical acronyms:

• PTFE (Polytetrafluoroethylene): Offers the highest heat resistance and lowest friction.
• FEP (Fluorinated Ethylene Propylene): Highly flexible and easily extrudable.
• PFA (Perfluoroalkoxy): Combines the heat resistance of PTFE with the flexibility of FEP.

These extreme environment wiring solutions are specifically customized to transmit power and data flawlessly under severe mechanical, thermal, and chemical stress.



Why Choose PTFE Over Traditional Wiring? (Core Advantages)

To understand why engineers specify a custom PTFE wire harness, we must look beyond basic conductivity and examine the material's unique physical and chemical properties.



Extreme Temperature Resistance (-200°C to +260°C)

Standard cables begin to melt at 105°C and become brittle in freezing conditions. PTFE insulation, however, maintains its structural integrity continuously up to +260°C (500°F) and remains flexible down to -200°C.

• Business Value: Drastically reduces the risk of thermal failure and electrical shorts in heat-generating equipment, lowering warranty claims and maintenance costs.



Unmatched Chemical & Corrosion Resistance

PTFE is virtually inert. It resists aggressive industrial chemicals, acids, alkalis, and aerospace fuels (like Skydrol).

• Business Value: Ensures long-term operational stability in harsh chemical processing plants or automotive engine bays, preventing premature wire degradation.



Superior High-Frequency Signal Integrity

Teflon possesses an exceptionally low dielectric constant (around 2.1) and low dissipation factor.

• Business Value: This makes Teflon coaxial cables ideal for high-speed data transmission and RF (Radio Frequency) communication, ensuring zero signal loss in critical radar or 5G systems. Furthermore, its excellent insulation allows the wire jackets to be manufactured extremely thin, saving critical space and weight.



Critical Applications: Where High-Temperature Wire Harnesses are Essential

A high temperature wire harness is not a generic commodity; it is a critical safety and performance component across highly regulated industries.



Automotive & EV (O2 Sensors & BMS)

In internal combustion engines, components like Oxygen (O2) and NOx sensors sit directly on the exhaust system, facing temperatures exceeding 250°C. Only a PTFE cable assembly can survive here. Furthermore, in the Electric Vehicle (EV) sector, Teflon wiring is increasingly used in Battery Management Systems (BMS) and PTC heater modules, where thin-wall insulation and fire resistance (UL 94 V-0) are mandatory.



Medical Devices (Endoscopes & Autoclaves)

The medical industry demands biocompatibility and sterilization resilience. Medical grade cable assemblies using Teflon are standard in surgical equipment. Since PTFE can withstand thousands of cycles in high-pressure, high-temperature steam autoclaves without degrading, it is the only choice for reusable medical devices. Additionally, the ultra-low friction of FEP/PTFE makes it the perfect jacket material for delicate, high-density endoscope cables navigating through the human body.



Aerospace & Defense (Mil-Spec & Lightweighting)

In aviation, SWaP (Size, Weight, and Power) optimization is everything. Aerospace wire harnesses utilize extreme thin-wall PTFE to shave hundreds of pounds off an aircraft while meeting stringent Mil-Spec standards. They withstand the severe temperature fluctuations of high-altitude flight and the corrosive nature of aviation fuels.



Industrial Automation & 3D Printing

In the industrial sector, custom FEP wiring is vital for hot runner systems in injection molding and industrial heater cartridges. For professional 3D printers, the extruder (hotend) operates continuously at 300°C; utilizing Teflon thermistor and heater wire harnesses guarantees continuous, safe printing operations without fire hazards.



PTFE vs. PVC vs. Silicone: Making the Right Engineering Choice

When calculating the Total Cost of Ownership (TCO) of a product, choosing the right material is vital:

• PVC: Cheap and ubiquitous, but melts above 105°C and releases toxic halogen gas when burned. Unsuitable for industrial high-temp applications.
• Silicone: Great flexibility and good heat resistance (up to 200°C), but it has poor cut-through resistance and swells when exposed to oils or fuels.
• PTFE/Teflon: The ultimate choice for harsh environments. While the initial material cost is higher, it offers unparalleled mechanical toughness, supreme heat resistance, and total chemical immunity, guaranteeing the longest lifecycle.

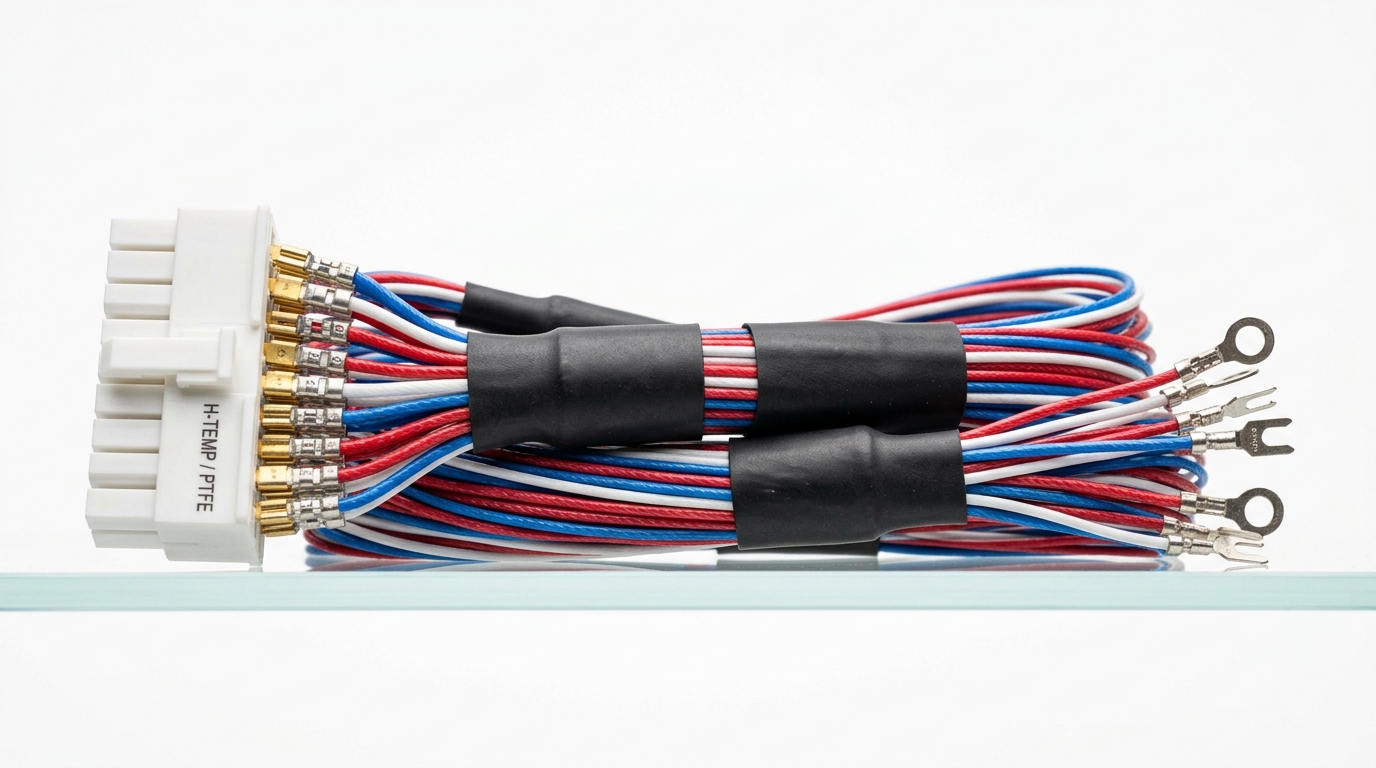

Partner with a Reliable Custom PTFE Cable Assembly Manufacturer

Off-the-shelf cables rarely meet the complex geometric and thermal requirements of modern engineering projects. Designing an effective Teflon wire harness requires precision wire cutting, specialized stripping techniques (due to PTFE's toughness), and high-temperature terminal crimping.

By partnering with an experienced OEM manufacturer, you gain access to customized solutions—from selecting the exact UL-rated wire (e.g., UL1199, UL1332) to integrating high-temp heat shrink tubing and EMI shielding braids.



Get Your Custom Wire Harness Solution Today

Don't let inferior wiring compromise your high-end equipment. Whether you are designing the next generation of EV sensors, life-saving medical devices, or robust aerospace communication systems, our engineering team is ready to assist you.

Ready to upgrade your equipment's reliability? Contact us today to discuss your project specifications. We offer free engineering consultations and rapid prototyping for all custom Teflon wire harness and PTFE cable assembly projects.
