The Ultimate Guide to Custom Car Door Wiring Harnesses: Engineering Reliable Automotive Connectivity
In the intricate anatomy of modern vehicles, a custom car door wiring harness functions as the essential network of nerves and blood vessels of the car door. Just as blood vessels deliver vital energy and nerves transmit sensory information to the brain, the door wiring assembly distributes electrical power to motors while relaying precise digital signals from control modules and sensors.
As automotive technologies evolve—integrating blind-spot monitoring, premium acoustics, and automated latch systems—the demand for highly specialized, robust custom automotive wiring solutions has never been greater. This comprehensive guide explores the engineering, specifications, and manufacturing excellence behind premium door panel wiring assemblies.
Types of Custom Car Door Wiring Harnesses
Modern vehicles require distinct wiring configurations based on their trim levels and functional requirements. A professional automotive wire harness manufacturer typically categorizes door panel wiring assemblies into several critical subsystems:
1. Power Window and Lock Harnesses
The most fundamental assemblies, designed with higher gauge wires to handle the current spikes required by DC motors in window regulators and electromagnetic door lock actuators.
2. Audio and Entertainment Wiring Assemblies
Engineered with twisted-pair cables and specialized shielding to prevent electromagnetic interference (EMI). These harnesses ensure high-fidelity audio transmission from the central infotainment system to door-mounted tweeters, mid-range speakers, and subwoofers.
3. Advanced Driver Assistance Systems (ADAS) Harnesses
Built for high-speed data transmission. These harnesses connect blind-spot monitoring radars, side-view camera systems, and proximity sensors, utilizing high-grade coaxial or FAKRA cables to ensure zero-latency signal delivery.
4. Fully Integrated OEM Auto Wire Harnesses
A comprehensive, all-in-one assembly that integrates power, audio, ADAS, and ambient lighting into a single, modular trunk. This reduces assembly time on the OEM production line and minimizes the risk of installation errors.
Key Features & Advantages
Designing a wire harness for a car door is fundamentally different from designing one for a static dashboard. The door is a highly dynamic environment.
- Extreme Flex Life: Wires passing through the door jamb (A-pillar to door) must withstand hundreds of thousands of bending cycles. We utilize ultra-flexible, fine-stranded copper conductors to prevent metal fatigue and wire breakage.
- Superior Environmental Protection: Car doors are exposed to moisture, varying temperatures, and vibrations. Our harnesses feature IP67/IP69K sealed connectors, specialized automotive-grade tape (e.g., Tesa fleece), and rubber grommets to ensure absolute waterproof and dustproof performance.
- Optimized Space Utilization: Through advanced 3D routing design, custom harnesses are engineered with precise branching lengths to fit perfectly within the confined space of modern aerodynamic door panels, preventing rattles and chafing against moving window tracks.
Common Application Scenarios
Our custom automotive wiring solutions are engineered to serve diverse sectors within the automotive industry:
- OEM Vehicle Manufacturing: Delivering thousands of highly standardized, defect-free door panel wiring assemblies for passenger cars, SUVs, and commercial trucks directly to OEM assembly lines.
- Aftermarket Restorations and Upgrades: Providing customized harnesses for automotive modification shops installing premium aftermarket audio systems, custom ambient lighting, or retrofitting power windows into classic vehicles.
- Specialty and Heavy-Duty Vehicles: Supplying ruggedized wire harnesses for RVs, armored vehicles, and emergency response fleets where failure is not an option.
Core Functions & Roles
Returning to our biological metaphor, the car door wiring harness acts as both the cardiovascular and nervous system of the door:
- Power Distribution (Blood Vessels): Safely routes 12V or 24V power from the vehicle's main battery to high-draw components like window motors, heated mirror elements, and puddle lights without voltage drop or overheating.
- Signal Transmission (Nerves): Transmits low-voltage digital and analog signals. When a driver presses a memory seat button or adjusts the side mirror, the harness instantly relays these commands to the Body Control Module (BCM) via CAN bus or LIN bus networks.
Technical Specifications
To meet the rigorous demands of the automotive sector, we strictly adhere to international engineering standards. Below are the core technical specifications for our custom car door harnesses.
Wire and Cable Specifications
| Specification Area | Standard Parameters / Materials | Applications |
|---|---|---|
| Conductor Material | Bare Copper, Tinned Copper (OFC) | Maximum conductivity and corrosion resistance |
| Wire Gauge (AWG) | 10 AWG to 22 AWG | 10-14 AWG for motors/heaters; 18-22 AWG for signals |
| Insulation Types | FLRY-A, FLRY-B, TXL, GXL, SXL | Thin-wall, automotive-grade cross-linked polyethylene |
| Temperature Rating | -40°C to +125°C (Class C) | Withstands extreme climate variations |
| Voltage Rating | 60V DC / 25V AC | Standard automotive low-voltage architecture |
| Shielding | Aluminum foil + Braided copper | EMI/RFI protection for audio and ADAS data cables |
Connector and Component Specifications
| Component | Standard Parameters / Materials | Characteristics |
|---|---|---|
| Connector Housing | PA66 (Nylon 66), PBT + GF20 | High impact strength, thermal stability, chemical resistant |
| Terminals | Brass, Phosphor Bronze (Tin/Gold plated) | Low contact resistance, high mating cycle endurance |
| Seals & Grommets | Silicone Rubber, EPDM | IP67 / IP69K waterproof rating for wet door cavities |
| Protective Covering | PET braided sleeve, Corrugated tube, Fleece tape | Abrasion resistance, noise reduction (anti-rattle) |
| Industry Standards | USCAR-2, SAE J1128, ISO 6722 | Ensures 100% compliance with global automotive protocols |
How It Works: The Working Principle
The operational mechanics of a door panel wiring assembly rely on seamless integration with the vehicle's main electrical architecture.
The harness begins at the inline chassis connector located in the vehicle's A-pillar or B-pillar. It travels through a protective, flexible rubber boot into the door cavity. From the main trunk, the harness diverges into meticulously measured branches (breakouts). For example, when a passenger activates the window switch, a physical circuit is closed. The harness carries this signal to the door control module, which then sends the necessary amperage through the heavier-gauge motor wires to engage the window regulator. Simultaneously, the CAN bus communication lines constantly monitor the door latch status, sending real-time data to the dashboard instrument cluster.
Why Choose Us for Your Custom Automotive Wiring Solutions
Sourcing the right OEM auto wire harness requires a partner who understands the critical balance between electrical engineering, mechanical durability, and cost-efficiency. Here is why global automotive engineers and procurement managers trust us:
- ISO9001 & IATF16949 Certified: Quality is not just a promise; it is embedded in our processes. Our manufacturing facility operates under the strict guidelines of IATF16949, ensuring automotive-grade zero-defect production, rigorous PPAP documentation, and complete traceability.
- Professional Design & Engineering Team: We do more than just build to print. Our expert engineers offer DFM (Design for Manufacturability) support, assisting with wire gauge selection, connector cross-referencing, and 3D harness routing to optimize your customized solutions.
- Flexible Low MOQ & Small Batch Production: Unlike traditional mega-manufacturers that demand massive volumes, we proudly support small batch production and low Minimum Order Quantities (MOQ). This agility is perfect for custom car builders, EV startups, and aftermarket modification developers needing high-quality prototypes or limited production runs.

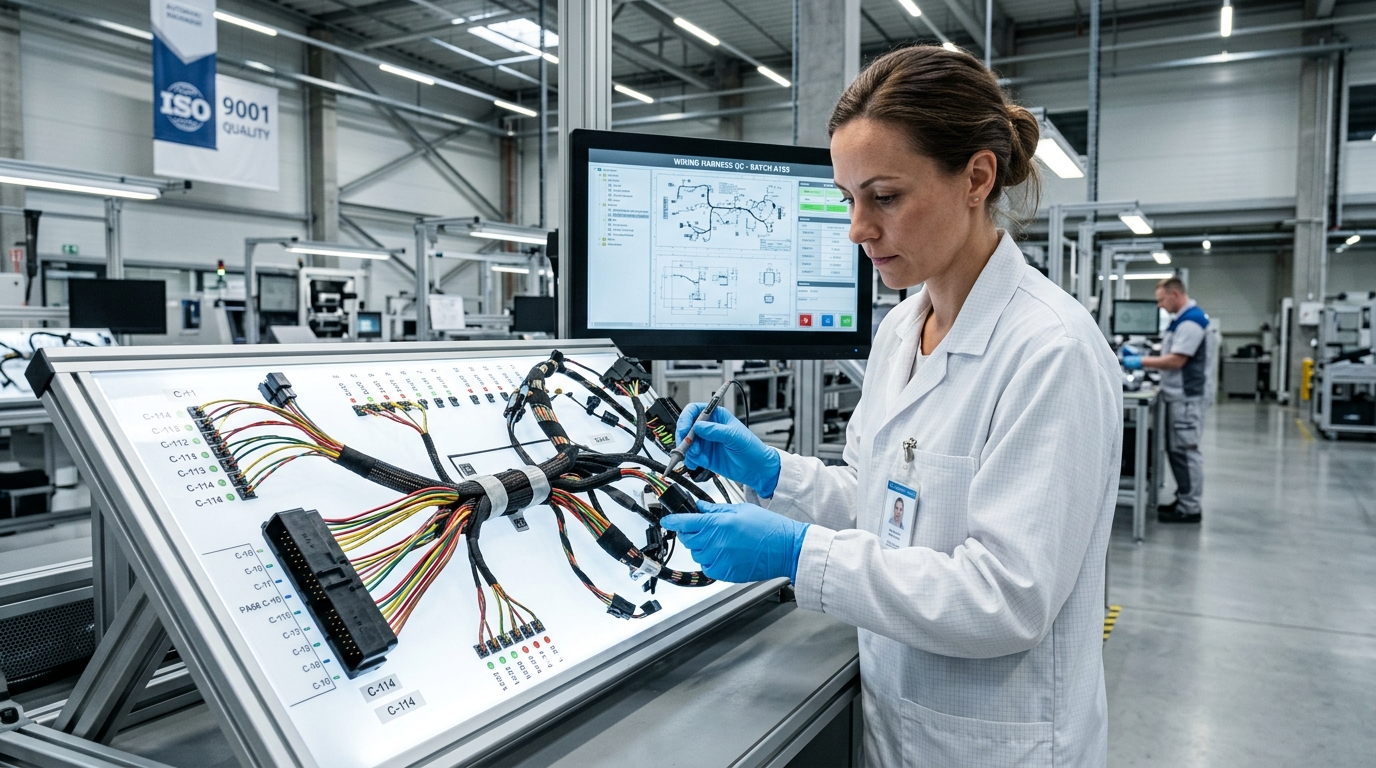

- Comprehensive Testing: Every custom car door wiring harness undergoes 100% rigorous testing before leaving our facility, including continuity tests, pull-force terminal testing, high-voltage dielectric testing, and simulated bending fatigue tests.
Ready to streamline your vehicle's electrical architecture? Contact our engineering team today to discuss your specifications and get a custom quote for your tailored door panel wiring assembly.
