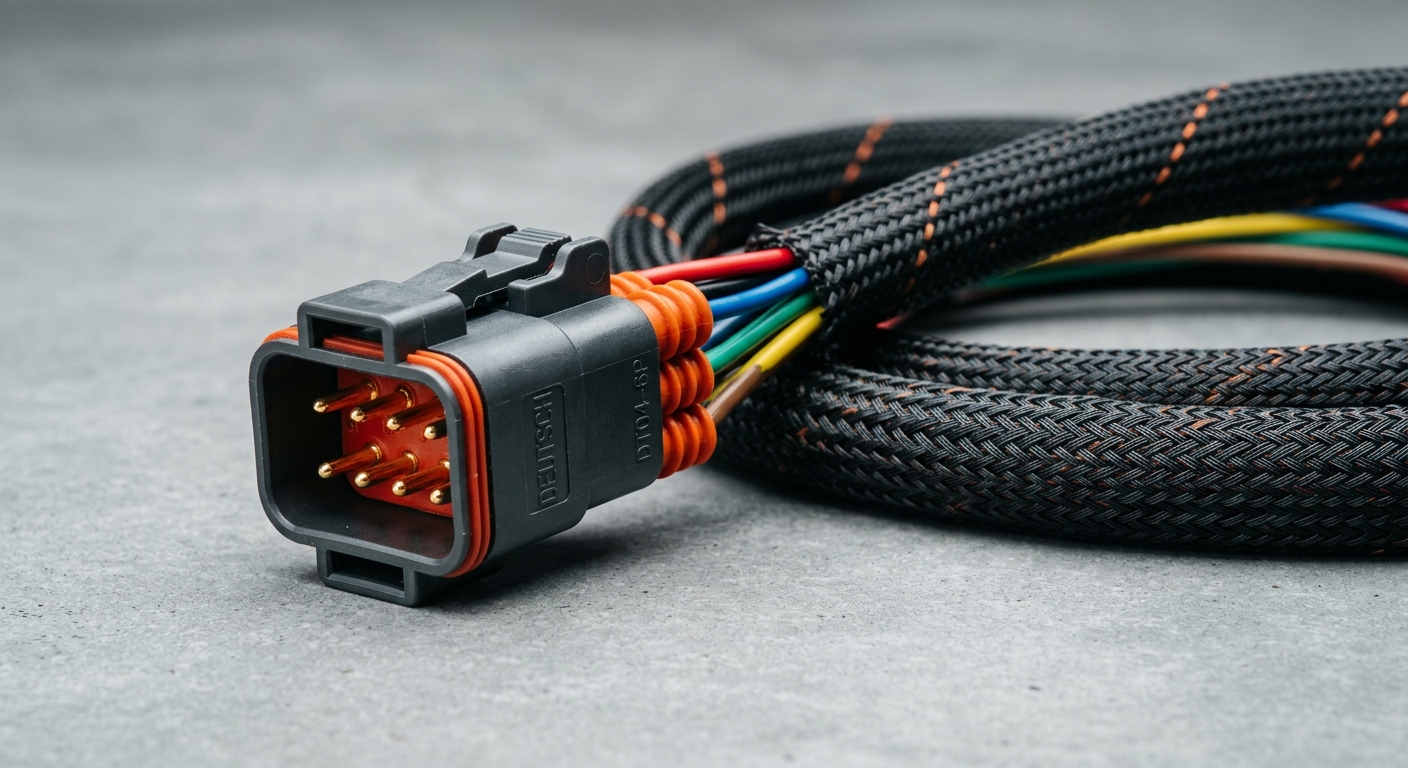

Ultimate Guide: Custom DT Connector Automotive Wiring Harness Solutions for Extreme Environments

When upgrading an off-road 4x4, modifying a heavy-duty truck, or manufacturing agricultural machinery, the electrical system is often the most vulnerable component. Extreme vibrations, moisture, dirt, and high temperatures can easily cause standard electrical connections to fail, leading to costly downtime or dangerous malfunctions.

To overcome these harsh conditions, a custom DT connector automotive wiring harness is the ultimate solution. Engineered for rugged performance, these harnesses ensure seamless power and signal transmission when you need it most. In this comprehensive guide, we will explore the classifications, features, working principles, and applications of these vital components, and explain why choosing a professional custom manufacturer is crucial for your project's success.

1. Classification of DT Connector Wiring Harnesses

Custom DT connector automotive wiring harnesses can be categorized based on their structural configuration and application requirements:

• By Pin Count: Ranging from 2-pin to 12-pin configurations (e.g., DT04-2P, DT06-2S). 2-pin to 4-pin harnesses are commonly used for auxiliary lighting (like LED light bars), while 6-pin to 12-pin configurations are utilized for complex sensor networks and electronic control units (ECUs).
• By Application:
  • Lighting Harnesses: Optimized for high-current loads, typically featuring built-in relays and fuses.
  • Sensor Harnesses: Engineered with shielded cables to prevent electromagnetic interference (EMI).
  • Power Distribution Harnesses: Designed for heavy-duty main power routing in large vehicles.

2. Key Features of Custom DT Wiring Harnesses

Why do off-road enthusiasts and heavy machinery manufacturers insist on DT connectors? The answer lies in their exceptional features:

• Superior Environmental Sealing: Equipped with silicone wire seals and interface seals, providing IP67/IP68 waterproof and dustproof ratings.
• Vibration Resistance: The integrated wedgelocks ensure secure contact alignment, preventing accidental disconnections even under severe mechanical shock.
• High Durability: The rugged thermoplastic housing operates flawlessly in extreme temperatures ranging from -55°C to +125°C.
• Ease of Maintenance: The "click" mating mechanism allows for quick assembly and disassembly, making field repairs highly efficient.

3. Working Principle

The reliability of a custom DT connector automotive wiring harness relies on its internal mechanics. The system uses a solid or stamped and formed copper alloy contact that is crimped to the wire. Once inserted into the thermoplastic housing, a secondary wedgelock is snapped into place.

This wedgelock guarantees that the terminals remain locked in position. When the male (receptacle) and female (plug) connectors are mated, the silicone seal is compressed, creating a completely airtight and watertight barrier around the electrical connection. This mechanism ensures zero voltage drop and prevents corrosion from compromising the signal integrity.

4. Application Scenarios & Functions

These custom wiring solutions are engineered specifically for environments where failure is not an option:

• Off-Road & 4x4 Tuning: Used for connecting high-power LED light bars, winches, and dual-battery systems. They protect the electrical circuits from water crossings, mud, and intense trail vibrations.
• Heavy-Duty Commercial Trucks: Essential for engine diagnostics, transmission controls, and trailer connections, ensuring long-haul reliability.
• Agricultural & Construction Machinery: Tractors, excavators, and harvesters operate in heavy dust and chemical environments. These harnesses protect critical sensor data (like hydraulic pressure and GPS modules) from environmental contamination.

5. Specifications & Technical Parameters

To meet automotive industry standards, our custom harnesses are built with premium materials. Below are the standard specifications we offer for customization:

6. Why Choose Us as Your Custom Wiring Harness Manufacturer?

Sourcing the right electrical components can be challenging, especially when standard off-the-shelf products don't fit your specific vehicle blueprints. As a premier automotive wire harness manufacturer, we provide unparalleled B2B services tailored to your exact needs.

• Certified Quality: We have proudly passed ISO9001 and IATF16949 quality system certifications, meaning every harness that leaves our factory meets the strictest global automotive manufacturing standards.
• Low MOQ & Small Batch Production: We understand that custom vehicle builders and aftermarket tuners may not need thousands of units. We proudly support Low MOQ orders to help you test the market without massive inventory risks.
• Professional Design Team: Don't have a final blueprint? No problem. Our professional design team offers full engineering support to help you develop the perfect custom solutions from concept to mass production.
• 100% Customization: From wire lengths, specific color coding, and label printing, to complex multi-branch harness routing, we build it exactly the way you want it.

Let's Build Your Custom Solution Today

Don't let poor electrical connections compromise the quality of your heavy-duty machinery or off-road vehicles. Upgrade to a premium custom DT connector automotive wiring harness and guarantee your clients the reliability they deserve.

Ready to start your project? Whether you need a small batch of custom harnesses or a comprehensive electrical system design, we are here to help. Contact our engineering team today to submit your requirements, request a free sample, or get a competitive quote within 24 hours!
