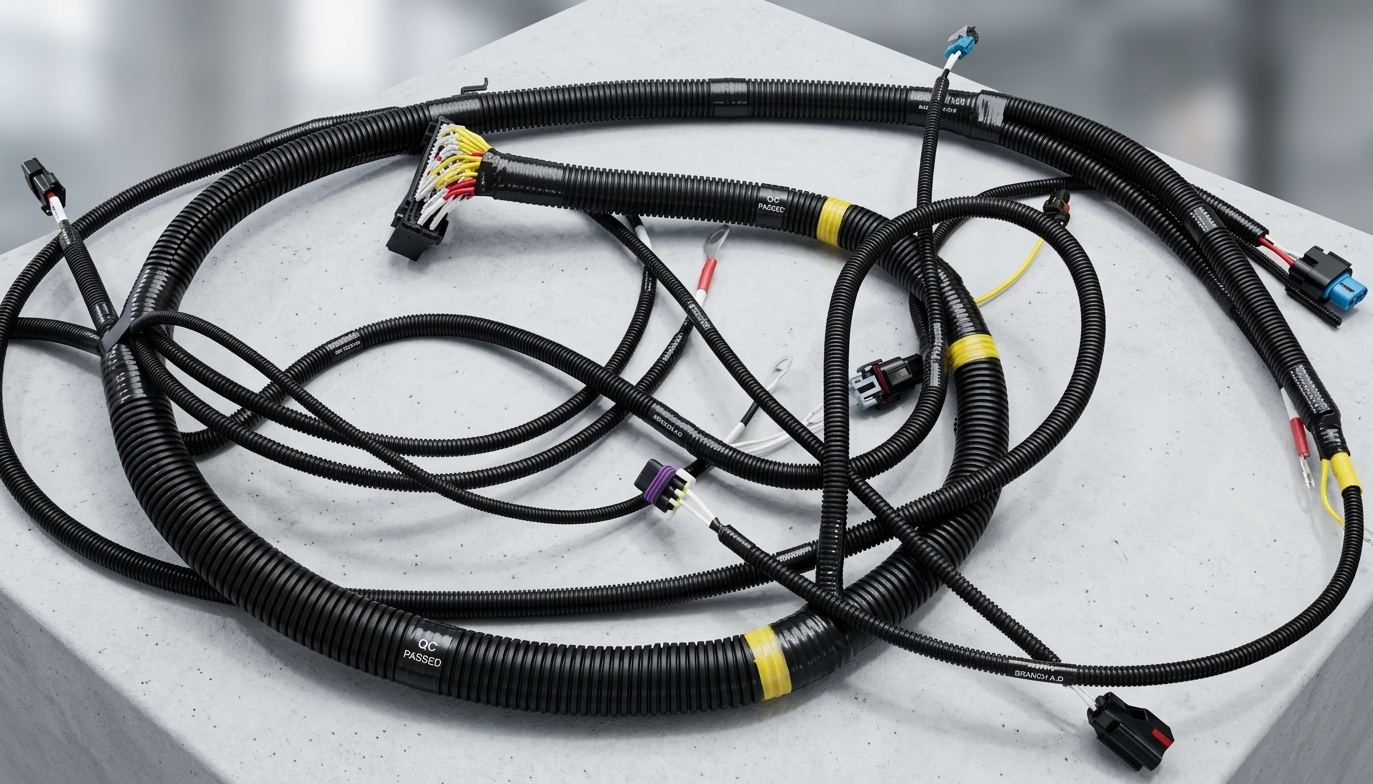

The Ultimate Guide to Custom Engine Wiring Harnesses: The Neural Network of Your Powertrain

In modern automotive engineering, the engine does not operate in isolation. It requires flawless, real-time communication to deliver peak performance, fuel efficiency, and emissions control. If the engine block is the mechanical heart of a vehicle, the custom engine wiring harness is its vital "neural network."

Whether in a traditional Internal Combustion Engine (ICE) or the fuel-driven component of a Hybrid Electric Vehicle (HEV), the engine harness transmits critical power and data between the Engine Control Unit (ECU), sensors, and actuators. A single point of failure in this neural network can lead to catastrophic engine misfires or complete stalling.

Core Classifications of Engine Wiring Harnesses

Not all wiring systems are created equal. As a professional wire harness factory, we engineer different harnesses based on their specific location and function within the engine bay:

1. Main Engine Harness: The central nervous system connecting the ECU to the fuse box and major powertrain zones.
2. Ignition Coil Harness: Delivers high-voltage signals precisely to the spark plugs, critical for timing and combustion efficiency.
3. Fuel Injector Harness: Controls the pulse width and timing of the fuel injectors, directly impacting fuel economy and power output.
4. Sensor Harness: Connects critical monitoring devices (Oxygen sensors, Mass Air Flow sensors, Knock sensors) back to the ECU for real-time engine mapping adjustments.

Essential Features for Extreme Environments

The engine bay is one of the most hostile environments for any electrical component. To survive, a high-quality OEM engine harness must possess the following features:

• Extreme Temperature Resistance: Must withstand radiant heat from exhaust manifolds and engine blocks, often requiring operating tolerances from -40°C to +150°C (or up to 200°C for specific high-performance applications).
• Superior Vibration Tolerance: Engines generate high-frequency vibrations. Harnesses must be routed and secured with automotive-grade looming and strain reliefs to prevent chafing and wire fatigue.
• Chemical & Fluid Defiance: Wires and connectors must be impervious to engine oil, coolant, brake fluid, and road salt.
• Electromagnetic Interference (EMI) Shielding: In hybrid vehicles and modern high-tech ICE platforms, shielding is mandatory to prevent high-voltage systems from corrupting low-voltage sensor data.

Wide-Ranging Applications

Our precision-engineered wiring solutions cater to a diverse range of B2B clients:

• OEM Automotive Manufacturers: Supplying bulk, standardized harnesses for assembly line production.
• Hybrid Vehicle Powertrains: Specialized harnesses connecting the combustion engine seamlessly with the hybrid control architecture.
• Aftermarket Tuning & Racing: Custom setups tailored for standalone ECUs (e.g., MoTeC, Haltech) where performance and weight reduction are paramount.
• Heavy-Duty & Commercial Vehicles: Ruggedized harnesses designed for diesel engines in trucks and agricultural machinery, demanding maximum durability.

Key Functions & Working Principles

How exactly does this "neural network" function? The working principle of an engine wiring harness relies on a closed-loop control system:

1. Data Acquisition: Sensors (Camshaft position, Coolant temp, MAP) generate analog or digital signals. The harness transports these micro-volt signals to the ECU without degradation or interference.
2. Processing & Decision: The ECU processes this data in milliseconds, calculating the exact air-fuel ratio and ignition timing required.
3. Actuation Execution: The ECU sends command pulses back through the harness to actuators (fuel injectors, electronic throttle bodies, ignition coils) to execute the mechanical action.

To guarantee this microsecond-level accuracy, the physical specifications of the harness must be flawless.

Technical Specifications Table

Below are the standard and customizable engineering parameters we offer to meet strict automotive industry standards:

Why Choose Us: Your Tailored Engine Wiring Harness Partner

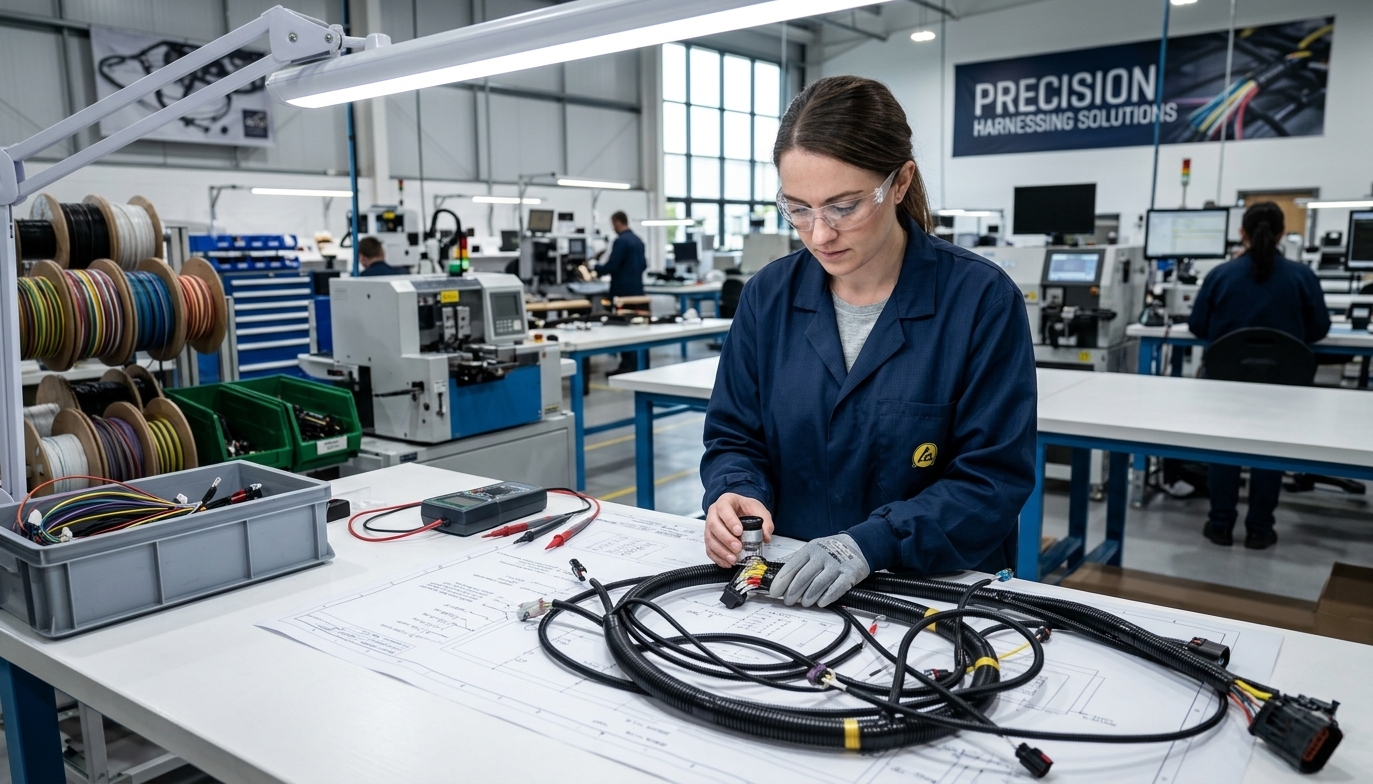

Building an engine harness that won't fail under pressure requires more than just wire and crimps; it requires systemic engineering excellence. As an ISO9001 & IATF16949 certified manufacturer, we implement zero-defect quality control across our entire production line, from automated ultrasonic wire splicing to 100% computerized continuity and pull-force testing.

We understand that every B2B client has unique demands. Whether you are a boutique hypercar builder or a large-scale heavy-machinery producer, we support customization to match your exact spatial and electrical requirements. Unlike many large-scale factories with rigid constraints, we proudly support small batch production (Low MOQ), allowing aftermarket tuners and R&D departments to prototype and scale without massive upfront inventory risks.

Backed by a professional design team utilizing advanced CAD and 3D routing software, we do more than just build to print. We provide tailored engine wiring harness solutions, optimizing wire routing, selecting the most cost-effective yet durable materials, and ensuring your powertrain's neural network functions flawlessly for the lifespan of the vehicle.

Connect With Our Engineering Team Today

Don't let subpar wiring compromise your automotive manufacturing or tuning projects. Partner with a leading automotive wire harness manufacturer dedicated to quality, flexibility, and engineering precision.

Ready to upgrade your powertrain's reliability? Contact us today to share your blueprints, and let our experts provide a rapid, competitive quote for your custom engine wiring harness needs. Send us your inquiry now and secure the highest standard of automotive connectivity.
