The Ultimate Guide to Custom EV High Voltage Wire Harnesses: Engineering for Safety and Performance

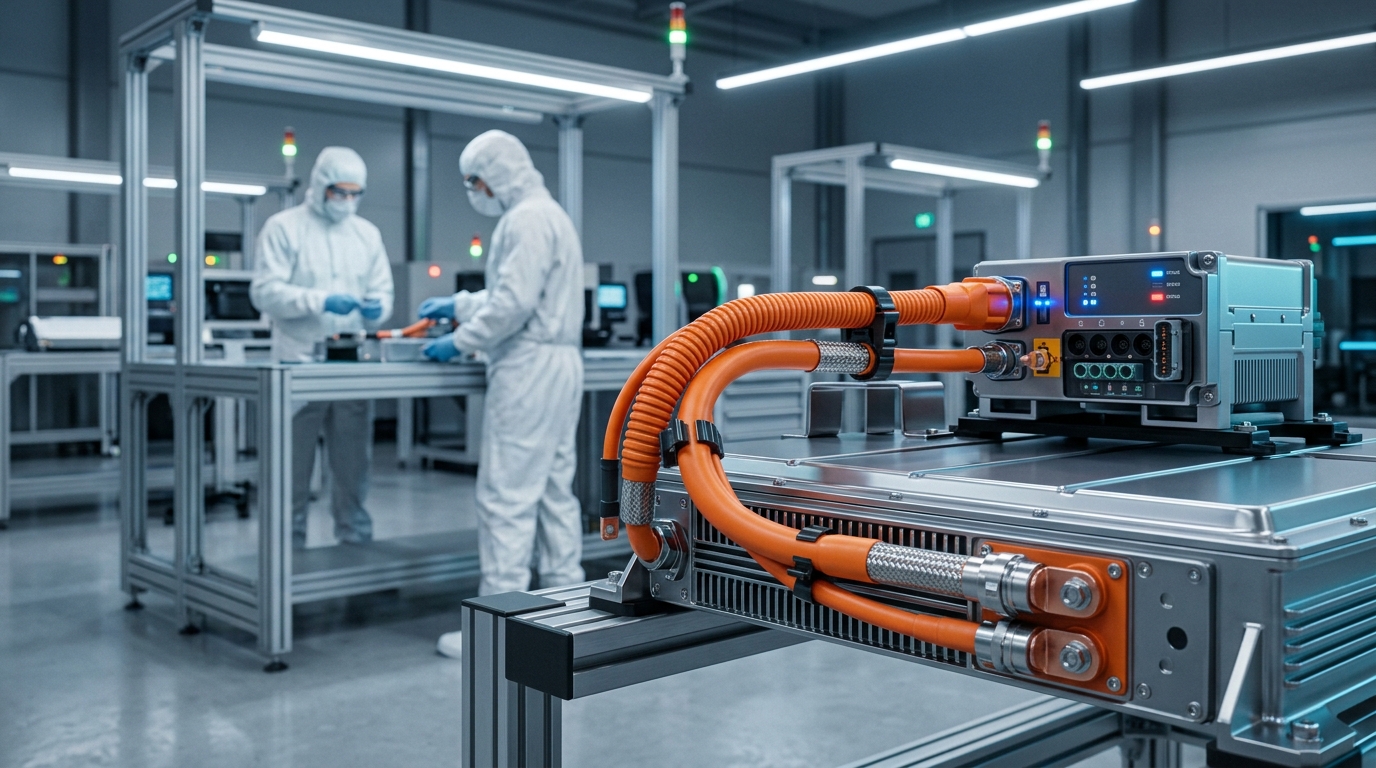

As the global automotive industry rapidly transitions toward New Energy Vehicles (NEVs), the demand for highly reliable electrical architecture has never been greater. If the battery pack is the heart of an electric vehicle, the High Voltage (HV) Wire Harness is its main arterial system. Connecting critical components like the power battery, motor controller (inverter), and onboard charger, these harnesses must withstand extreme conditions while transmitting massive amounts of power safely.
For B2B buyers, automotive engineers, and Tier-1 suppliers, choosing the right wire harness manufacturer is not just a matter of cost—it is a critical safety and compliance decision. In this guide, we dive deep into the technical intricacies of NEV high-voltage harnesses and explain how our custom-engineered, IATF16949-certified solutions can accelerate your vehicle development.
Uncompromising Technical Standards: The Anatomy of an EV High-Voltage Harness
Unlike traditional 12V automotive wiring, EV high-voltage systems typically operate at 300V to 800V DC (and increasingly up to 1000V in modern fast-charging architectures). This exponential increase in voltage requires a completely different engineering approach to insulation, shielding, and connector mating.

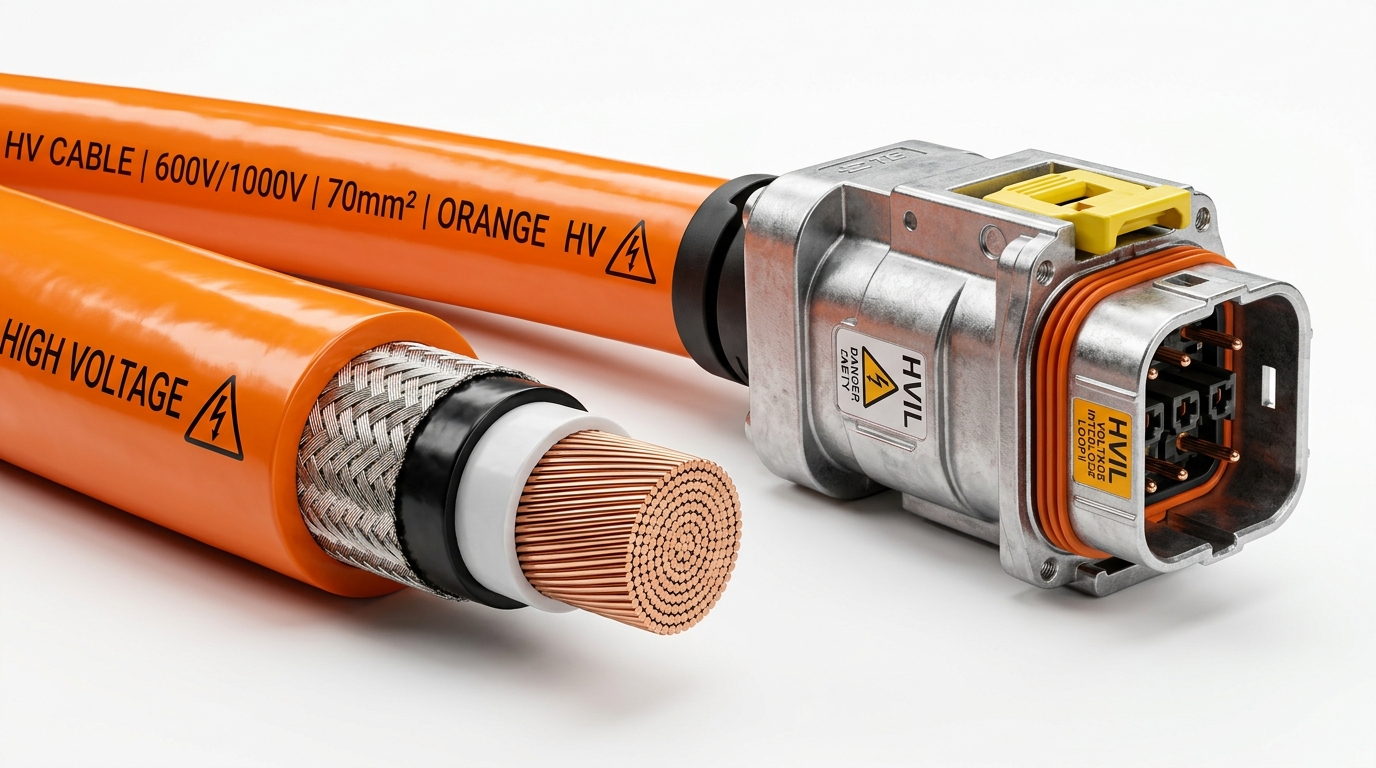

1. Superior Insulation & The Standard Orange Jacket
High-voltage transmission generates significant heat. Our HV cables utilize advanced Cross-Linked Polyethylene (XLPE) or highly flexible silicone rubber insulation. Crucially, all HV harnesses are clad in an industry-standard bright orange warning jacket. This is a mandatory visual safety feature that instantly alerts technicians and first responders to the presence of lethal high-voltage hazards.
2. Advanced EMI/EMC Shielding
The rapid switching of high-voltage currents between the battery and the motor controller generates intense Electromagnetic Interference (EMI). Without proper shielding, this interference can disrupt the vehicle's low-voltage sensors and autonomous driving systems. Our harnesses employ multi-layered shielding (tinned copper braiding combined with aluminum foil) to guarantee signal integrity and electromagnetic compatibility (EMC) across the entire vehicle.
Core Technical Specifications
To give you a clear understanding of our manufacturing capabilities, here are the standard specifications we offer for our custom EV high-voltage wire harnesses. (Note: All parameters can be fully customized based on your specific system architecture).
| Feature / Component | Technical Specification | Engineering Advantage & Buyer Benefit (FAB) |
|---|---|---|
| Voltage Rating | 300V - 1000V DC | Safely handles modern fast-charging protocols and high-power motor drives without degradation. |
| Current Capacity | 10A up to 500A+ | Optimizes power delivery for both auxiliary systems and main traction motors. |
| Cable Insulation | XLPE / Silicone Rubber | Provides exceptional thermal resistance (-40°C to +150°C) and tight-radius flexibility for complex chassis routing. |
| EMI Shielding | Braided Tinned Copper + Aluminum Foil | Delivers >60dB shielding effectiveness, protecting sensitive onboard electronics from signal disruption. |
| Connector Specs | IP67 / IP6K9K Rated (TE, Amphenol, Delphi standards) | Ensures waterproof, dustproof, and vibration-resistant connections with built-in High Voltage Interlock Loop (HVIL) safety mechanisms. |
| Outer Sheath | Flame-retardant Bright Orange PVC/Silicone | Meets strict automotive safety standards for high-voltage identification and abrasion resistance. |
Why Partner With Us? Manufacturing Excellence Meets Flexibility
In the highly competitive EV market, "good enough" is a recipe for catastrophic failure. High-voltage systems require a zero-defect tolerance. Here is how our manufacturing facility ensures world-class quality while supporting your agile development needs.
Automotive-Grade Quality: IATF16949 & ISO9001 Certified
Our factory operates under the strict guidelines of IATF16949 and ISO9001 quality management systems. But what does this mean for your supply chain? It means that every high-voltage cable, every crimped terminal, and every HV connector is subjected to rigorous PPAP (Production Part Approval Process) standards. We implement automated pull-force testing, high-voltage dielectric withstand testing, and continuity checks to ensure zero-defect reliability, effectively eliminating the risks of thermal runaway or electrical shorts.
Professional In-House Design & Customization
We don't just assemble wires; we engineer solutions. Our dedicated team of automotive electrical engineers can work directly from your CAD drawings or help you design a harness from scratch. Whether you are routing cables for a compact electric sports car or designing heavy-duty harnesses for an electric commercial truck, we optimize wire gauges, shielding layers, and connector orientations to save weight, reduce costs, and improve assembly efficiency.
Low Volume & Prototype Support (Flexible MOQ)
We understand a major pain point for EV startups and specialized vehicle manufacturers: large legacy factories often reject low-volume orders. We champion innovation by offering flexible Minimum Order Quantities (MOQ). Whether you need 10 prototype sets for your R&D lab, an initial batch of 500 units for pilot production, or tens of thousands for mass-market scaling, our production lines are uniquely designed to scale with your business seamlessly.
Power Up Your Next EV Project
Don't let inferior wiring compromise the performance and safety of your New Energy Vehicles. Partner with a factory that speaks the language of automotive engineering and understands the critical demands of high-voltage architecture.
Ready to accelerate your development? Contact our engineering team today to discuss your technical requirements, request a free project evaluation, or get a rapid quote for custom prototypes.
