High-Performance Car Seat Heating Wire Harness: The Ultimate OEM & Custom Manufacturing Guide

In the competitive landscape of automotive manufacturing, passenger thermal comfort is no longer a luxury—it is a standard expectation. At the core of this comfort lies the car seat heating wire harness, a critical automotive electrical component that demands absolute reliability, rapid response, and stringent safety standards.

Whether you are an automotive OEM, a Tier 1 supplier, or an aftermarket brand, selecting the right automotive heating elements and wire harness manufacturer is crucial. This comprehensive guide breaks down the core technologies, material advantages, and engineering specifications of our premium seat heating solutions, designed to meet the rigorous demands of the global automotive industry.

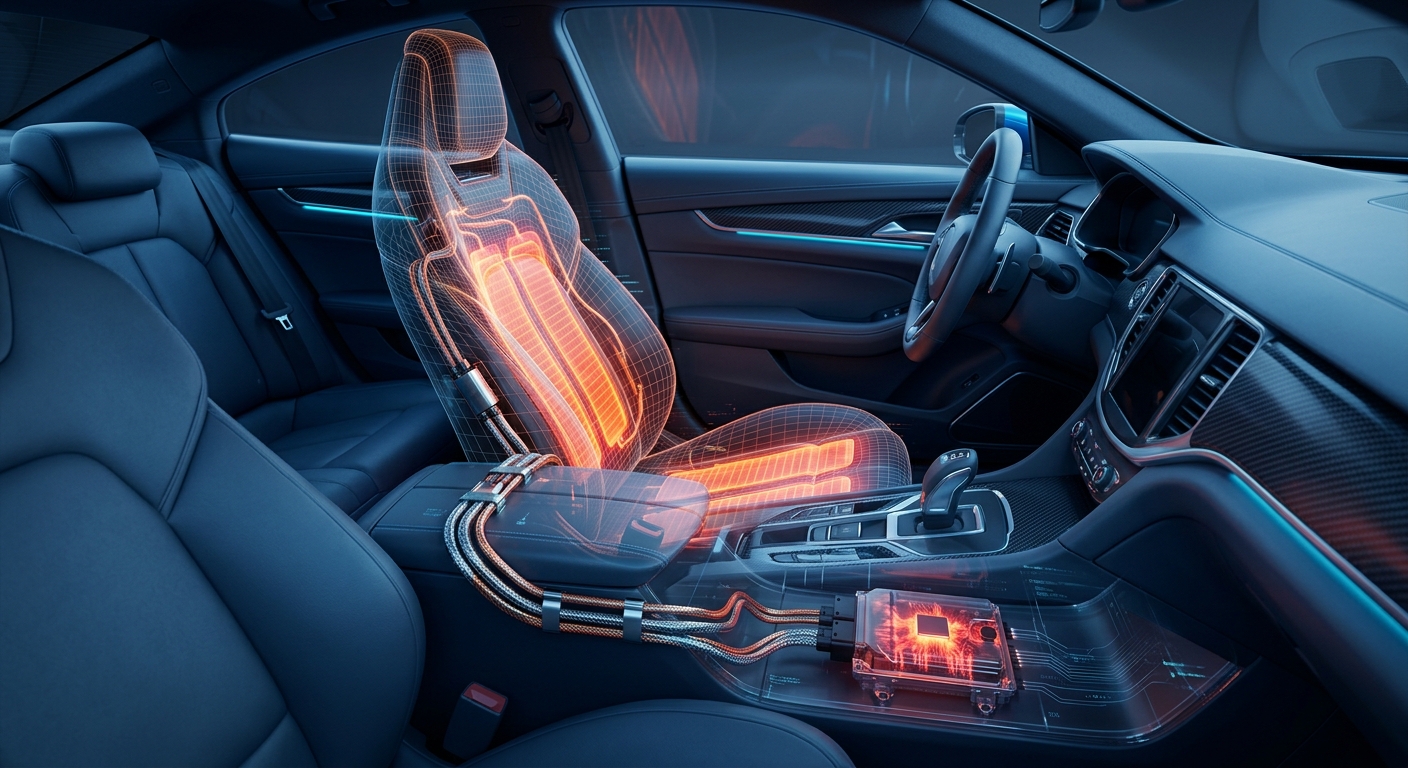

How Car Seat Heating Elements Work: Engineering Thermal Comfort

The principle behind a car seat heating wire harness is based on Joule heating. When the vehicle's electrical system supplies a controlled electrical current through the conductive heating elements, electrical energy is efficiently converted into thermal energy.

However, achieving the perfect balance of heat requires precision engineering. By utilizing the Feature-Advantage-Benefit (FAB) approach, our heating wire harnesses are engineered to deliver:

• Feature: Optimized cold state resistance of 0.8~6Ω combined with an efficient 25W power output per seat.
• Advantage: Prevents electrical system overloads while ensuring maximum energy conversion.
• Benefit: Delivers a rapid heat-up time of just 3 to 5 minutes, significantly reducing passenger waiting time in freezing climates while maintaining a safe, ergonomic target temperature of 30-45℃.

Core Materials for Heating Elements: Matching Your Project Needs

The performance, durability, and cost-effectiveness of a seat heater heavily depend on the core heating material. As a professional custom seat heater manufacturer, we offer versatile solutions tailored to your specific application.

1. Nickel-Chromium (NiCr) Alloy

NiCr wire is the traditional industry standard for automotive heating elements. It offers excellent oxidation resistance and long-term durability at high temperatures. It is highly cost-effective and provides a stable, reliable heat output, making it ideal for mass-market automotive applications.

2. Carbon Fiber

Carbon fiber heating pads represent a significant upgrade in automotive seating. Unlike traditional series-circuit metal wires, carbon fiber operates on a parallel circuit matrix. This means if one fiber is punctured or damaged by a sharp object, the rest of the pad continues to function safely. Furthermore, carbon fiber is highly flexible, ensuring it does not degrade the ergonomic comfort of the car seat.

3. Graphene Technology

Graphene is the frontier of thermal management technology. It provides ultra-fast heating times and unprecedented temperature uniformity. Due to its superior thermal conductivity, a graphene heating element eliminates hot spots entirely, delivering a luxurious, gentle, and evenly distributed warmth suited for high-end luxury vehicles and premium EV (Electric Vehicle) models.

Advanced Insulation Materials: Silicone vs. FEP

The wire harness is only as safe as its insulation. To withstand the harsh automotive interior environment—which involves constant physical compression, temperature fluctuations, and potential moisture exposure—we utilize industry-leading insulation materials:

• Silicone Insulation: Known for its extreme flexibility and high-temperature tolerance. Silicone cables prevent the wire harness from becoming brittle in sub-zero temperatures, ensuring long-lasting mechanical durability inside the seat cushion.
• FEP (Fluorinated Ethylene Propylene): FEP offers exceptional dielectric strength and chemical resistance. Its ultra-thin wall capability allows for a more compact and lightweight wire harness assembly without compromising electrical safety, which is particularly beneficial for weight-sensitive EV applications.

Technical Specifications (Specs Table)

Below are the standard technical specifications of our seat heating wire harness solutions. Note: All parameters can be fully customized by our professional R&D engineering team to match your specific vehicle architecture.

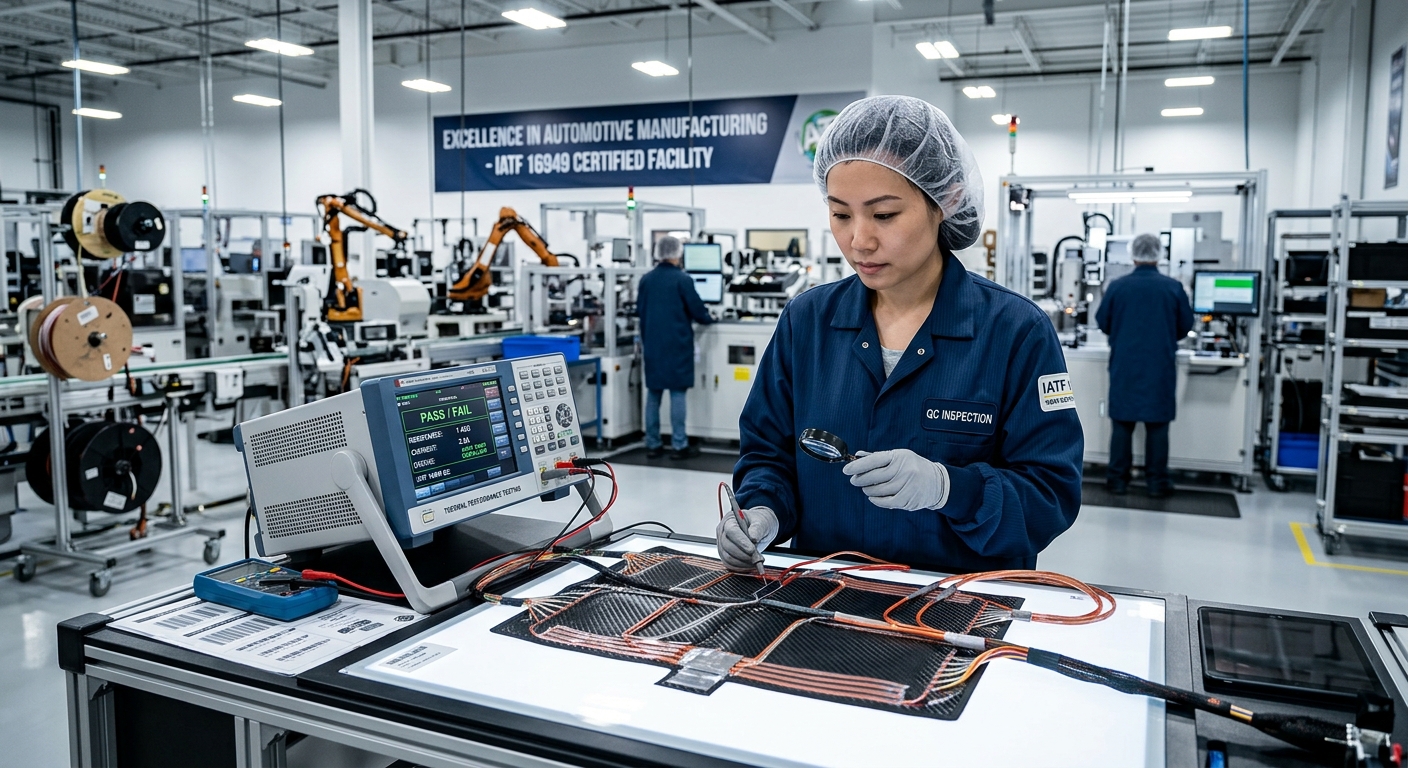

Why Partner with Us? Your IATF16949 Certified Manufacturer

Sourcing a car seat heating wire harness requires partnering with a facility that understands automotive compliance from the ground up. Here is why global buyers trust our manufacturing capabilities:

1. IATF16949 & ISO9001 Certified Quality: We operate under the strictest quality management systems mandated by the global automotive industry. IATF16949 certification ensures defect prevention, reduction of variation, and continuous improvement in our supply chain.
2. Professional R&D & Design Team: We don't just manufacture; we co-engineer. Our design team works directly with your schematics to develop custom routing, optimize resistance, and select the right connector assemblies for your specific seats.
3. Low MOQ & Small Batch Support: We understand that custom automotive projects, prototyping, and niche vehicle production require flexibility. Unlike rigid mega-factories, we proudly support small batch production and low Minimum Order Quantities (MOQ) to help you scale at your own pace.
4. End-to-End Customization: From wire lengths and specific connector housings (e.g., TE, Delphi, Yazaki) to specific heating profiles, our production lines are agile and ready to meet your exact blueprint.

Get Your Custom Automotive Wiring Solution Today

Don't compromise on automotive safety and passenger comfort. Partner with an IATF16949-certified automotive wire harness manufacturer that delivers precision, durability, and scalable manufacturing solutions.

Ready to upgrade your vehicle's thermal management system? Contact our engineering team today to discuss your technical specifications, request a prototype, or get a competitive quote for your custom small-batch or high-volume orders.
