The Ultimate Guide to Custom Automotive Diagnostic Wire Harnesses
In the era of modern smart vehicles, electronic control systems are becoming increasingly complex. To ensure seamless communication between a vehicle's Electronic Control Units (ECUs) and external diagnostic tools, high-performance wiring solutions are non-negotiable. Custom automotive diagnostic wire harnesses serve as the critical bridge in this process, ensuring accurate data transmission, fault code reading, and system recalibration.
For automotive engineers and global purchasing directors, selecting a reliable manufacturing partner for these precision components is critical to vehicle safety and maintenance efficiency.
What is an Automotive Diagnostic Wire Harness?
An automotive diagnostic wire harness is a specialized assembly of electrical cables, terminals, and connectors designed to link a vehicle’s onboard computer network (such as the CAN bus or LIN bus) to external diagnostic equipment.
Working Principle

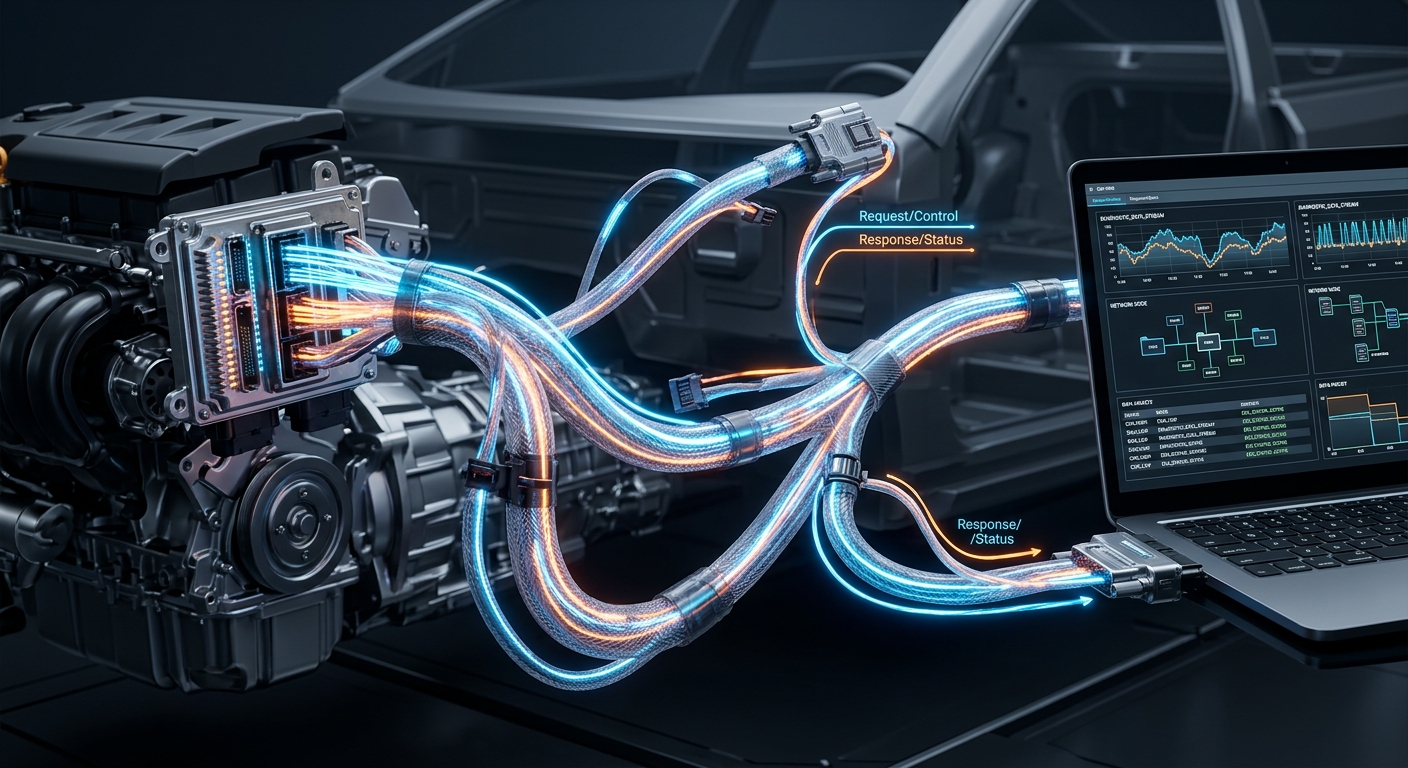

The core working principle relies on stable electrical signal transmission. When a diagnostic scanner is plugged into the vehicle's diagnostic port (like an OBD-II port), the diagnostic wire harness acts as the physical layer of the communication protocol. It continuously feeds real-time voltage signals and digital data from the engine, transmission, and ABS systems to the scanner without signal attenuation or electromagnetic interference (EMI).
Classifications and Key Features
Depending on the application, diagnostic wire harnesses can be categorized into several main types:
- Standard OBD-II Harnesses: Primarily used for passenger vehicles, adhering to the 16-pin OBD2 standard for universal emissions and fault code diagnostics.
- Heavy-Duty Commercial Harnesses: Designed for trucks, buses, and heavy machinery. These usually feature 6-pin or 9-pin round connectors (such as J1939 or J1708 protocols) to withstand severe vibrations and harsh environments.
- Specialized OEM Interface Cables: Customized pin-outs and proprietary connector designs tailored for specific automotive manufacturers.
Key Features:
- Exceptional Durability: Engineered to withstand extreme temperatures, mechanical abrasion, and exposure to automotive fluids (oil, coolant, brake fluid).
- Signal Integrity: Shielded cable designs to prevent EMI, ensuring zero data loss during critical software flashing or ECU tuning.
- Plug-and-Play Precision: Precisely molded connectors that guarantee seamless mating cycles and vibration-proof locking mechanisms.
Technical Specifications
To meet stringent automotive industry standards, our custom automotive diagnostic wire harnesses are manufactured using premium-grade materials. Below are the standard specifications available for customization.
Wire and Cable Specifications
| Specification Item | Parameter / Material Details |
|---|---|
| Wire Gauge (AWG) | 16 AWG to 26 AWG (Customizable based on current/data needs) |
| Conductor Material | Bare Copper, Tinned Copper (High conductivity) |
| Insulation Material | PVC, XLPE, Teflon (PTFE), Silicone |
| Temperature Rating | -40°C to +125°C (Up to +200°C for special engine bay applications) |
| Shielding Type | Aluminum Foil Shielding, Braided Copper Shielding (For high EMI zones) |
| Voltage Rating | 12V / 24V / 300V (Depending on standard or EV requirements) |
| Standards Compliance | UL, SAE J1128, ISO 6722 |
Connector and Terminal Specifications
| Specification Item | Parameter / Material Details |
|---|---|
| Housing Material | PA66, PBT, ABS (High impact resistance, flame retardant UL94-V0) |
| Terminal Material | Brass, Phosphor Bronze, Beryllium Copper |
| Plating Options | Tin-plated, Gold-plated (For enhanced anti-corrosion and conductivity) |
| Connector Types | OBD-II (16-Pin), J1939 (9-Pin), J1708 (6-Pin), Customized OEM Plugs |
| Mating Cycles | > 10,000 cycles (Heavy-duty diagnostic plug standards) |
| IP Rating | IP65 to IP69K (Depending on cabin or under-hood application) |
Why Choose Us as Your Trusted Manufacturing Partner?
Finding a manufacturer that balances premium quality with flexible manufacturing can be challenging. As a leading automotive wire harness factory, we provide end-to-end solutions tailored to your exact engineering requirements.
1. IATF16949 & ISO9001 Certified Quality

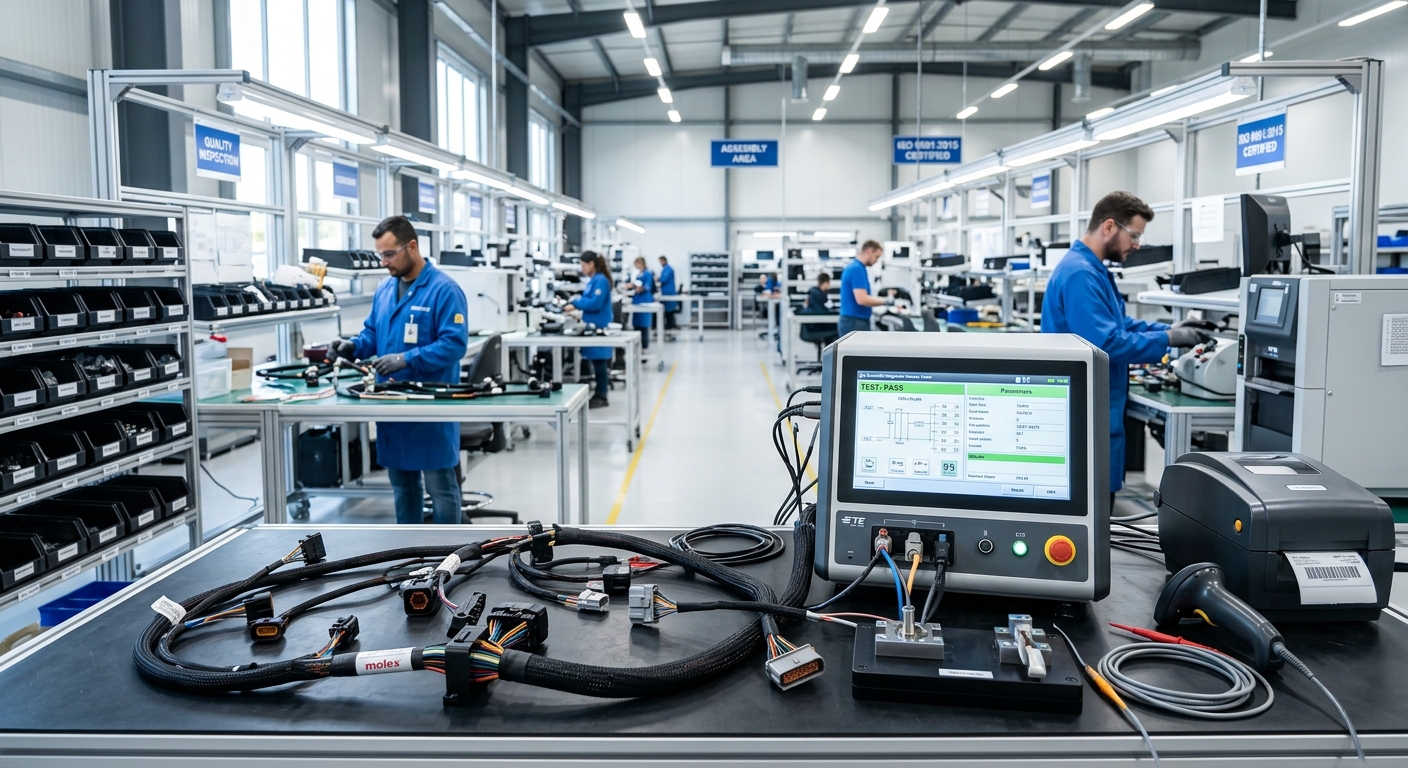

Quality is the lifeline of automotive parts. Our factory operates under strict IATF16949 and ISO9001 quality management systems. From raw material inspection to 100% automated continuity and high-voltage testing before shipment, we ensure zero-defect manufacturing.
2. Expert In-House Design Team
You don't just get a manufacturer; you get an engineering partner. Our professional design team offers comprehensive OEM/ODM services, including CAD drawing, 3D modeling, and prototype development, helping you turn a concept into a mass-produced reality efficiently.
3. Flexible Customization and Small Batch Production
Unlike rigid traditional factories, we understand that niche automotive diagnostic tools often require agile supply chains. We highly support made-to-order requests and small-batch production runs, empowering you to test the market without massive inventory pressure.
4. Rich Experience with Global Top Brands
Trust is built on proven success. We have years of rich experience providing reliable wire harness solutions and OEM manufacturing for global tier-1 brands and platforms, including Deutsch, HONDA, Volvo, Benz, Mercedes, DAF, and BMW. We know the exact tolerances, material requirements, and engineering languages these world-class brands demand.
Get Your Custom Wire Harness Solution Today
Whether you are developing next-generation diagnostic scanners, heavy-duty truck telematics, or specialized aftermarket tuning tools, our custom automotive diagnostic wire harnesses are engineered to deliver flawless performance.
Ready to start your project? Send us your technical drawings, specifications, or even a rough concept today. Our engineering team will provide a comprehensive DFM (Design for Manufacturing) analysis and a competitive quote within 24 hours.
