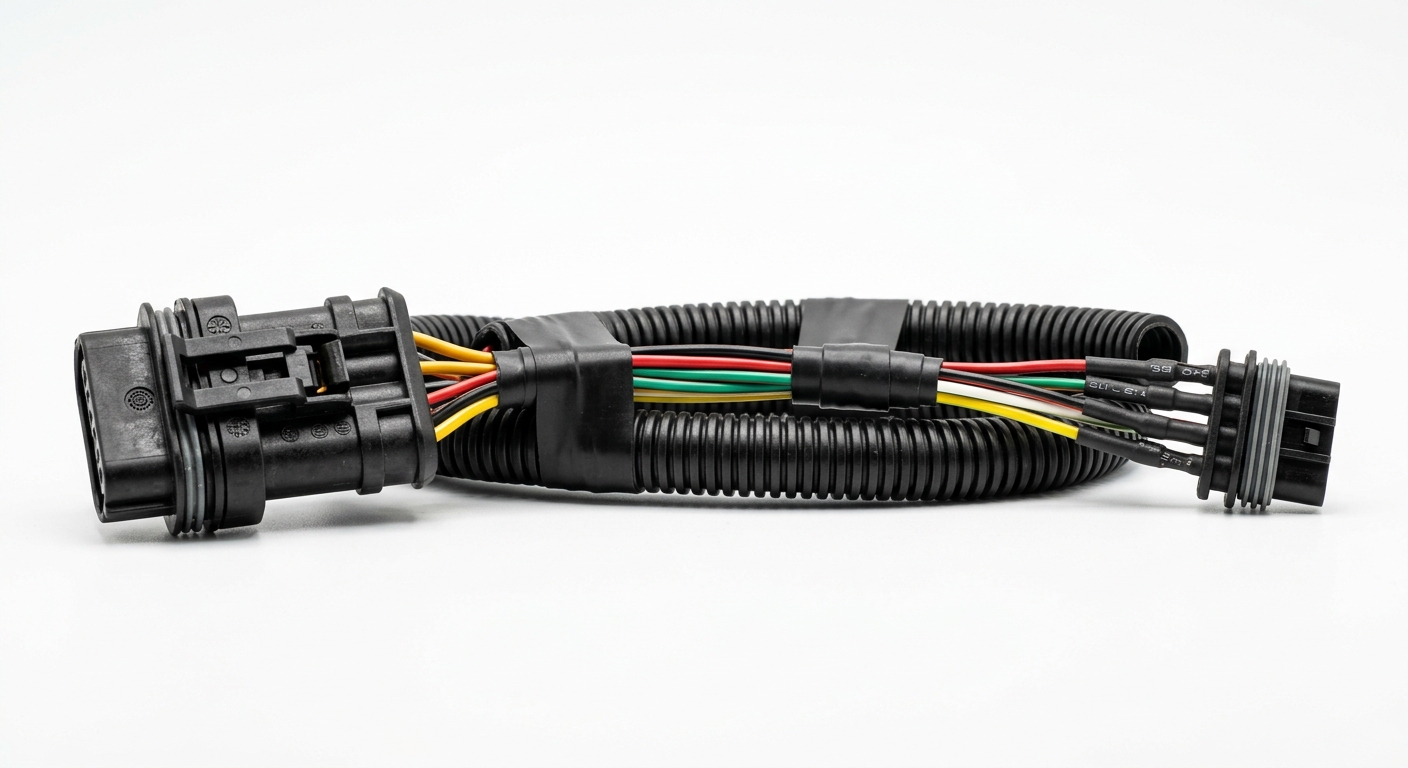

The Ultimate Guide to Automotive Pressure Sensor Wire Harnesses: Ensuring Precision ECU Communication

In modern automotive engineering, precise data collection is the cornerstone of vehicle performance, safety, and efficiency. At the heart of this data network is the automotive pressure sensor wire harness. Acting as the vital neural pathway between critical sensors and the Engine Control Unit (ECU), these harnesses are responsible for transmitting power and relaying highly sensitive pressure data in real-time.

For engineers and automotive buyers, sourcing a reliable, high-quality pressure sensor wiring harness is non-negotiable. A failing harness can lead to erratic ECU readings, system misfires, or complete thermal management failure.

Core Functions: The Critical Link in Powertrain and Thermal Management

The primary function of a pressure sensor wire harness is twofold: delivering stable operating voltage to the sensor and transmitting flawless analog or digital signals back to the ECU. This continuous feedback loop is what allows a vehicle's computer to make microsecond adjustments.

These harnesses play an indispensable role in supporting both traditional combustion powertrains and advanced electric vehicle (EV) thermal management systems by transmitting specific data, including:

• Fuel Rail Pressure Data: Ensures the ECU precisely calculates fuel injection timing and quantity, directly impacting engine performance and emissions.
• A/C System Pressure: Monitors the refrigerant pressure within the air conditioning lines, preventing compressor damage and optimizing cabin climate control.
• EV Battery Pack Internal Pressure: In modern electric vehicles, monitoring the internal pressure of the battery pack is a critical safety feature to prevent thermal runaway and optimize the battery's thermal management system.

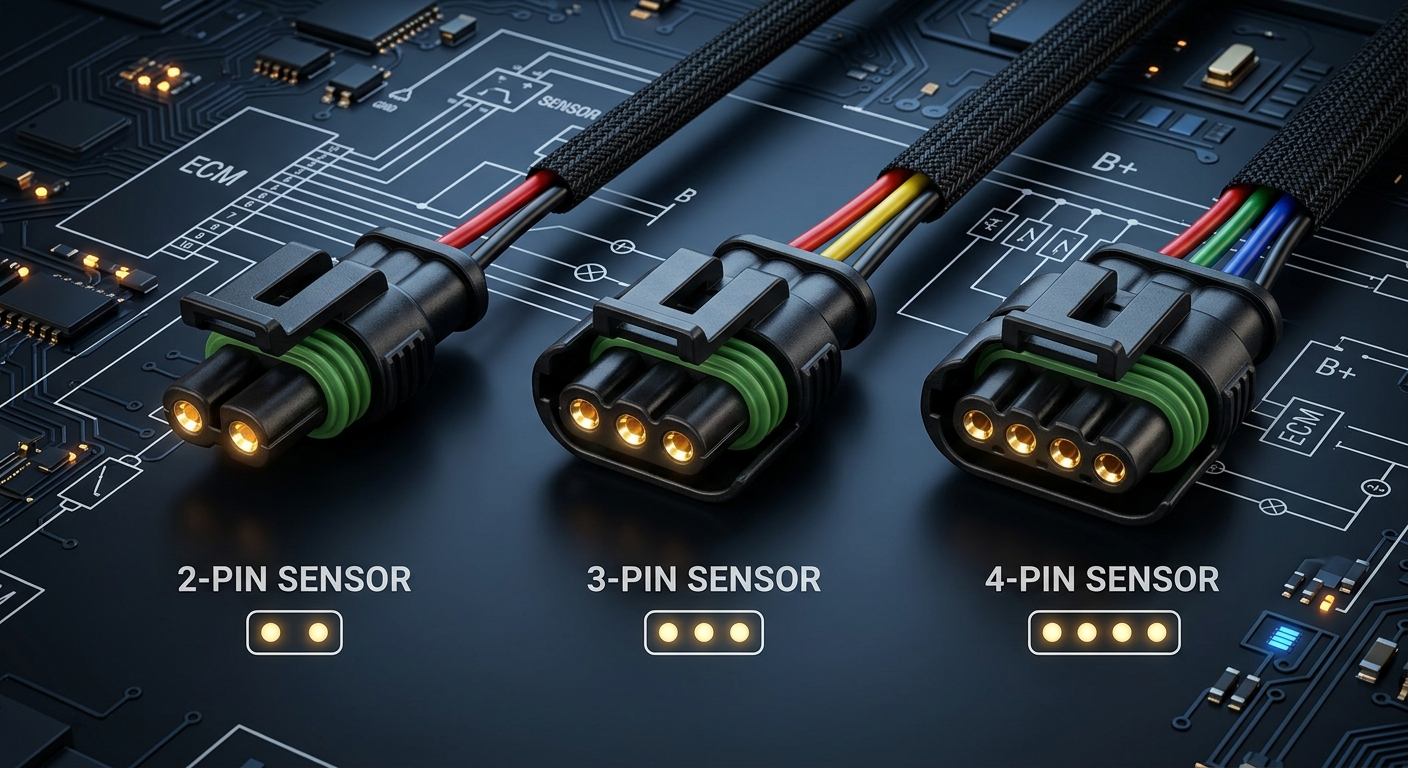

Classification of Pressure Sensor Wiring Harnesses

Depending on the specific application, sensor type, and required signal complexity, automotive pressure sensor wire harnesses are strictly categorized into three standard configurations:

1. Two-Wire Systems (Two-Wire Harness)

Typically used for basic pressure switches rather than continuous monitoring sensors. One wire supplies the operating voltage (or ground), and the second wire returns the signal to the ECU when a specific pressure threshold is reached (e.g., a simple low oil pressure warning switch).

2. Three-Wire Systems (Three-Wire Harness)

This is the most common configuration for linear voltage output pressure sensors, such as A/C pressure transducers and fuel rail pressure sensors.

• Wire 1: 5V Reference Power Supply (VCC) from the ECU.
• Wire 2: Sensor Ground.
• Wire 3: Signal Output (Variable voltage based on measured pressure, typically ranging from 0.5V to 4.5V).

3. Four-Wire Systems (Four-Wire Harness)

Reserved for highly integrated, multi-function sensors, such as T-MAP (Temperature and Manifold Absolute Pressure) sensors.

• Wire 1: 5V Reference Power Supply.
• Wire 2: Ground.
• Wire 3: Pressure Signal Output.
• Wire 4: Temperature Signal Output. This configuration allows the ECU to process multiple atmospheric and fluid dynamics through a single robust harness connection.

Technical Specifications and Working Principle

When a pressure sensor detects a change in physical pressure—whether it is hydraulic fluid, A/C refrigerant, or battery casing gas—its internal strain gauge or piezoelectric element changes resistance. The sensor wire harness facilitates the transmission of this altered voltage drop back to the ECU.

To maintain signal integrity in harsh automotive environments, premium wire harnesses must feature:

• Superior EMI/RFI Shielding: Preventing electromagnetic interference from spark plugs or EV high-voltage cables from corrupting the low-voltage sensor signal.
• Extreme Temperature Resistance: Utilizing cross-linked polyethylene (XLPE) or Teflon insulation to withstand under-hood temperatures ranging from -40°C to +125°C (or higher).
• IP67/IP69K Waterproof Connectors: Ensuring dust, moisture, and road salts cannot penetrate the terminals and cause corrosion or short circuits.

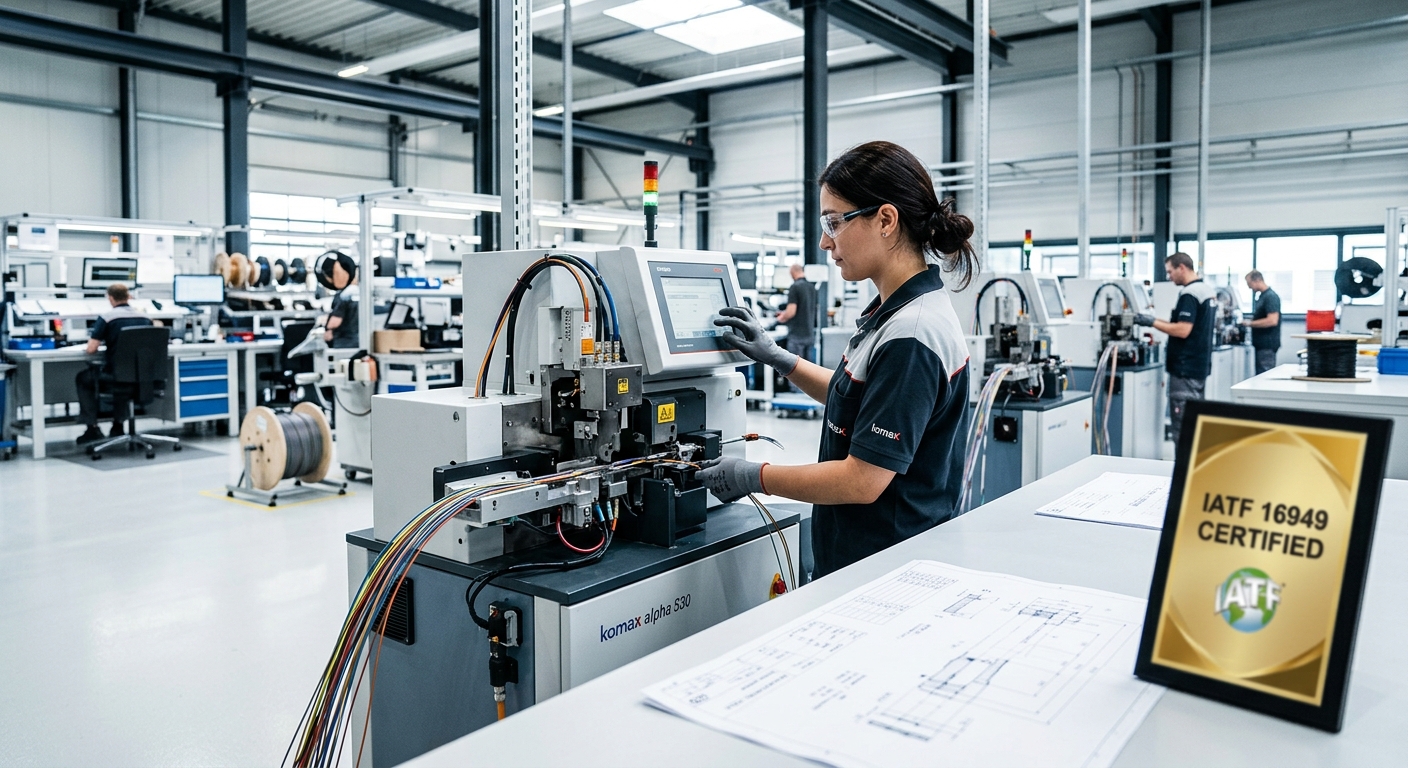

Why Choose Our IATF16949 Certified Wire Harness Factory?

When sourcing automotive wiring solutions, the manufacturer's quality control system directly dictates the reliability of your end product. As a professional automotive wire harness factory, we provide uncompromising quality backed by industry-leading credentials.

IATF16949 Automotive Quality Management Certification

Our manufacturing processes are strictly governed by the IATF16949 quality system. From raw material selection to final electrical testing, every pressure sensor harness is manufactured to zero-defect tolerances, ensuring OEM-level reliability and safety.

Professional Design Team for Custom Solutions

We don't just assemble wires; we engineer solutions. Our dedicated R&D and professional design team can collaborate directly with your engineers to develop custom sensor wiring harnesses tailored to your specific ECU pinouts, routing paths, and thermal requirements.

Flexible Manufacturing: Customization & Small Batch Production

Unlike rigid mega-factories, we understand the dynamic needs of the modern automotive industry. Whether you are prototyping a new EV battery thermal management system or need aftermarket replacement parts, we proudly support customization and small-batch production without compromising on commercial-grade quality.

Partner With Us for Your Automotive Wiring Solutions

Don't let a sub-standard wire harness compromise your vehicle's ECU communication and powertrain efficiency. Partner with an IATF16949-certified manufacturer that understands the critical nature of automotive electronics.

Ready to upgrade your automotive systems? Contact our engineering team today for a free consultation, custom design support, or a competitive quote on your next small or large batch order!
