The Ultimate Guide to Agricultural Drone Wire Harness Solutions

The rapid advancement of precision agriculture has transformed the way modern farming operates. At the heart of this revolution are agricultural drones, which perform critical tasks ranging from crop spraying and seed spreading to multispectral mapping. However, unlike standard consumer drones, these industrial flying machines operate in some of the most unforgiving environments on the planet. To guarantee flight safety, operational efficiency, and longevity, the internal nervous system of these machines—the agricultural drone wire harness—must be engineered to perfection.

In this comprehensive guide, we will explore the technical intricacies of heavy-duty drone wiring, addressing the specific challenges of wild high-humidity environments, pesticide corrosion, and intense mechanical vibration. Whether you are an R&D engineer designing the next generation of crop dusters or a procurement manager seeking a reliable supply chain, understanding these wiring solutions is paramount.

What is an Agricultural Drone Wire Harness?

An agricultural drone wire harness is a highly specialized assembly of electrical cables, wires, connectors, and protective sheathing designed specifically for Unmanned Aerial Vehicles (UAVs) used in farming. It serves as the vital link that transmits high-current power from the batteries to the Electronic Speed Controllers (ESCs) and motors, while simultaneously relaying sensitive data and control signals to the flight controller, GPS modules, radar systems, and payload pumps.

Unlike consumer electronics, agricultural drones are essentially "flying tractors." They are subjected to wild, high-humidity environments where morning dew and sudden downpours are common. Furthermore, they are continuously exposed to highly corrosive agricultural chemicals, fertilizers, and pesticides. Combined with the strong, continuous vibration generated by high-torque heavy-lift rotors, standard wiring systems would fail within hours. Therefore, a specialized agricultural drone wire harness is purpose-built to conquer these severe pain points, ensuring uninterrupted power delivery and signal integrity under extreme stress.

Classification of UAV Harness Solutions in Agriculture

To fully grasp the complexity of agricultural drone electronics, it is essential to categorize the wiring systems based on their specific functions within the aircraft. Modern UAV harness solutions are generally divided into three primary categories:

High-Current Power Harnesses

These are the heavy-duty drone wiring systems responsible for delivering power from the high-capacity LiPo/LiHV battery packs (often 12S or 14S systems) to the power distribution board (PDB), ESCs, and motors. They utilize thick gauge, high-strand-count wire to minimize resistance and prevent overheating during maximum thrust operations.

Signal and Data Harnesses

These cables form the communication network of the drone. They connect the flight controller to critical navigational and operational sensors, including RTK GPS modules, obstacle avoidance radars, flow meters, and liquid level sensors. These harnesses require robust electromagnetic interference (EMI) shielding to ensure that the high electromagnetic noise generated by the motors does not disrupt the delicate flight control signals.

Payload and Dispersal Harnesses

Specifically tailored for the agricultural application, these harnesses power and control the specialized equipment mounted on the drone. This includes the brushless water pumps for spraying pesticides, the motorized spreaders for seeds and solid fertilizers, and the high-intensity LED lighting systems for night-time farming operations.

Key Features of Heavy-Duty Drone Wiring

Designing cables for agricultural applications requires a deep understanding of the environmental hazards they will face. High-quality waterproof agricultural drone cables incorporate several distinctive features to ensure maximum reliability:

• Extreme Chemical and Corrosion Resistance: Standard PVC insulation hardens, cracks, and degrades when exposed to the aggressive chemicals found in liquid fertilizers and pesticides. Premium agricultural harnesses utilize specialized outer jackets, such as high-grade Teflon (PTFE) or chemically cross-linked elastomers, which repel corrosive substances and maintain flexibility.
• IP67/IP68 Waterproof Ratings: Because these drones operate in high-humidity agricultural microclimates and require frequent washdowns after chemical spraying, every connector and wire junction must be hermetically sealed. Potting compounds, heat-shrink tubing with internal adhesive (dual-wall), and waterproof aviation connectors are standard necessities.
• Anti-Vibration and Mechanical Durability: The massive propellers of agricultural drones generate intense, continuous low-frequency vibrations. To prevent metal fatigue and connection failure, these wire harnesses utilize ultra-flexible silicone wires with thousands of microscopic tinned copper strands. Furthermore, locking connectors with secure latching mechanisms are employed to ensure plugs never vibrate loose mid-flight.
• High-Temperature Tolerance: The continuous high-current draw during a 40kg or 50kg payload flight generates significant heat in the power cables. Specialized silicone insulation can withstand temperatures up to 200°C without melting, preventing catastrophic short circuits.

The Working Principle: Balancing Power and Signal Integrity

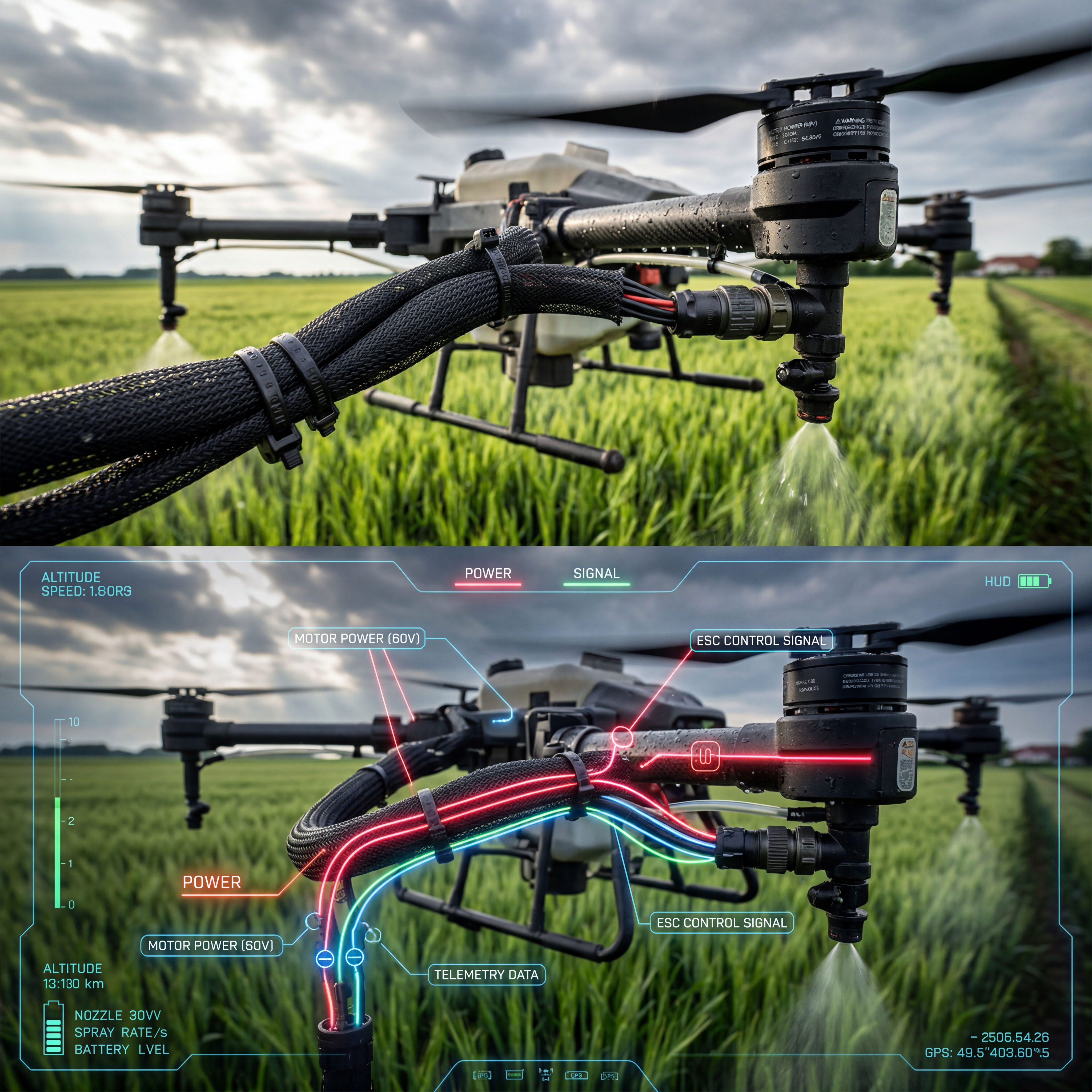

The fundamental working principle of an agricultural drone wire harness revolves around the flawless, simultaneous transmission of raw power and delicate data.

When the operator initiates a flight command, the power harness must instantly deliver a massive surge of electrical current—sometimes exceeding 100 amps per motor—from the battery to the ESCs. At the same time, the signal harness must carry micro-volt data pulses from the RTK GPS and gyroscopes to the flight controller to maintain stability.

The greatest challenge here is Electromagnetic Interference (EMI). The high-frequency switching of the ESCs and the magnetic fields of the massive brushless motors create "noise." If the signal wires are not properly shielded, this noise can corrupt the data, causing the drone to lose GPS lock or experience a "flyaway." To combat this, premium UAV harness solutions employ twisted-pair configurations and tinned copper braided shielding, creating a Faraday cage around the sensitive data lines, ensuring the drone operates perfectly even under maximum electrical load.

Comprehensive Specifications for Agricultural Drone Wiring

To assist engineers and procurement managers in selecting the right components, below are the standard technical specifications for industry-leading agricultural drone wire harnesses.

Wire Specifications

Connector Specifications

Core Applications & Functions in the Field

The reliability of a wire harness directly impacts the operational success of the drone across various agricultural applications:

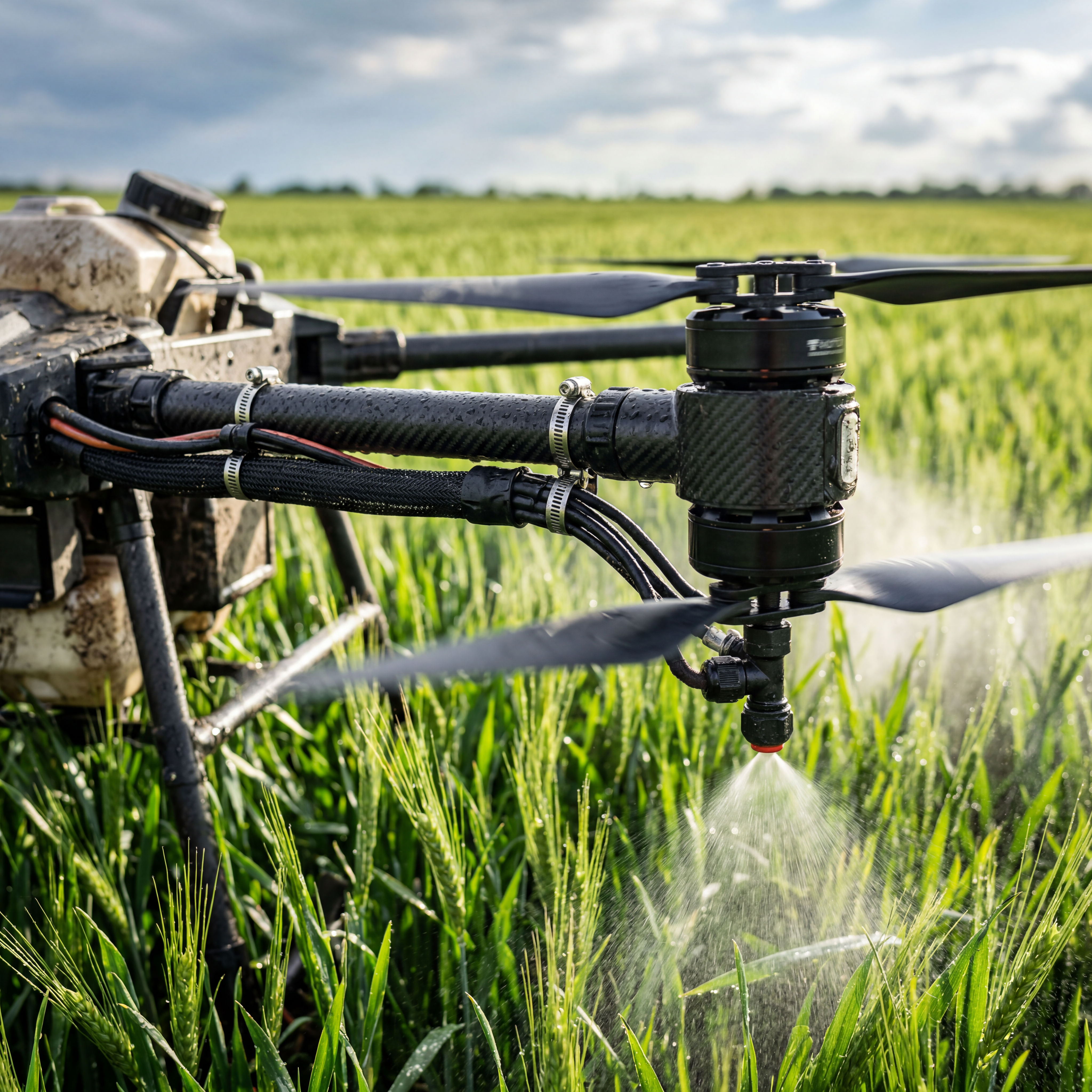

• Precision Crop Spraying: Liquid pesticides and fertilizers are heavy and corrosive. The wire harness powers the high-pressure diaphragm pumps while simultaneously relaying data from liquid level sensors. A waterproof, chemically resistant harness ensures that inevitable chemical splashes do not short-circuit the system.
• Seed and Fertilizer Spreading: For solid payload distribution, the wiring must withstand the harsh dust and particulate matter generated by the spreader motor. Anti-vibration connectors are crucial here, as the imbalance of shifting solid payloads creates intense mechanical shaking.
• Multispectral Mapping and Surveying: When scanning fields to assess crop health, the drone relies on sensitive multispectral cameras. The EMI-shielded signal wires ensure that high-resolution image data is transmitted to the onboard storage without artifacts or interference from the drone's propulsion system.

Why Choose Our Factory for Your Custom Drone Cable Assembly?

As the agricultural drone market continues to evolve, manufacturers require supply chain partners who understand the distinct engineering challenges of the industry. We are not just a supplier; we are a dedicated professional wire harness factory offering a comprehensive, one-stop solution for all your UAV connectivity needs.

• ISO9001 Certified Quality: Quality is the lifeline of aviation. Our manufacturing facility operates under strict ISO9001 quality management systems. Every wire harness undergoes rigorous testing, including continuity checks, high-voltage insulation tests, salt spray corrosion tests, and vibration simulations, guaranteeing zero-defect delivery.
• Professional Design Team: Navigating the complexities of drone architecture can be challenging. Our experienced engineering team works directly with your R&D department to design optimized routing paths, select the appropriate AWG and EMI shielding, and recommend the best waterproof connectors for your specific drone frame.
• Deep Customization Support: We understand that every drone platform is unique. Whether you need a specific length, a rare aerospace-grade connector, or a complex multi-branch harness with custom overmolding, we provide 100% customization to match your blueprints perfectly.
• Low MOQ & Small Batch Production: The drone industry thrives on innovation and rapid prototyping. Unlike traditional factories that demand massive orders, we proudly support Low Minimum Order Quantities (Low MOQ) and small batch production. We help you transition smoothly from initial R&D prototypes to small-scale pilot runs, and eventually to mass production, minimizing your upfront financial risk.
• One-Stop Solution: From raw wire extrusion and terminal crimping to final assembly and global logistics, we handle the entire process. This vertical integration ensures faster lead times, competitive pricing, and strict quality control at every step.

Ready to Elevate Your Drone's Reliability?

The success of an agricultural drone in the harsh, high-humidity, and chemically corrosive reality of modern farming relies entirely on the quality of its internal connections. Do not let subpar wiring ground your innovations or damage your brand's reputation.

Partner with a trusted, ISO9001-certified wire harness manufacturer that understands the extreme demands of agricultural UAVs. Take advantage of our professional design team, flexible customization, and low MOQ small batch production capabilities to bring your next-generation drone to market faster and safer.

Contact us today to discuss your project requirements, consult with our engineers, and request a custom quotation or a free prototype sample. Let us provide the ultimate one-stop solution for your heavy-duty drone wiring needs.
