The Ultimate Guide to Custom Drone Wiring Harnesses: Engineering the Neural Network of Modern UAVs
In the rapidly evolving landscape of Unmanned Aerial Vehicles (UAVs), aerodynamic design and high-capacity batteries often steal the spotlight. However, the true lifeline of any mission-critical drone lies hidden beneath its carbon fiber shell. A custom drone wiring harness acts as the central neural network of the aircraft, seamlessly connecting the flight controller, electronic speed controllers (ESCs), payloads, and power systems.
For drone engineers and manufacturers, relying on off-the-shelf cables is a recipe for catastrophic failure. Today's commercial drones operate in extreme environments characterized by high-frequency high-altitude vibrations, extreme temperature fluctuations, and severe electromagnetic interference (EMI). To ensure uncompromised stability and safety, investing in a professionally engineered UAV cable assembly is not just an option—it is an absolute necessity.
Decoding the UAV Cable Assembly: Categories, Features, and Applications
To understand how a drone wire manufacturer designs these critical components, we must break down the ecosystem of drone wiring into distinct functional categories.
1. Classification of Drone Wiring Harnesses
- Power Distribution Harnesses: Built to handle high-current loads without overheating. These connect the main battery to the Power Distribution Board (PDB) and ESCs. They require thick-gauge wire and high-temperature resistance.
- Signal & Data Harnesses: Responsible for transmitting micro-volt signals between the flight controller, GPS modules, LiDAR, and telemetry sensors. Signal integrity is the top priority here.
- Gimbal & Payload Cables: Engineered for extreme flexibility. These micro-coaxial cables must withstand hundreds of thousands of bending cycles as the camera gimbal rotates, all while transmitting high-speed 4K/8K video data.
2. Core Features & Functions in Drone Engineering
Modern custom UAV wiring solutions are built around the SWaP (Size, Weight, and Power) optimization principle.
- Lightweight Construction: Every gram saved translates to extended flight time. By utilizing ultra-thin PTFE (Teflon) insulation and optimized routing, we significantly reduce overall payload weight.
- EMI/RFI Shielding: Drones generate massive electromagnetic noise from their brushless motors and high-current power lines. Custom harnesses utilize tinned copper braiding and aluminum foil shielding to prevent crosstalk, ensuring GPS and flight controller signals remain pristine.
- Vibration & Abrasion Resistance: Constant motor vibration can chafe wires. Our assemblies utilize highly flexible silicon jackets and nylon braided sleeving to prevent mechanical wear and short circuits.
3. Typical Industry Application Scenarios
- Heavy-Lift Agricultural Drones: Require heavy-duty power harnesses capable of withstanding agricultural chemicals, moisture, and extreme heat.
- Industrial Inspection UAVs: Used for surveying power lines and pipelines. They demand ultimate EMI shielding to fly safely near high-voltage magnetic fields.
- Cinematography & Surveillance: Rely heavily on high-flex gimbal cables for latency-free, high-bandwidth data transmission.
The Engineering Principle: How Custom Harnesses Guarantee Stability
At a fundamental level, the working principle of a drone wiring harness is dual-fold: Power Delivery and Data Integrity.
When a drone accelerates, a massive surge of current (often exceeding 100 Amps in industrial models) flows from the battery to the ESCs. A poorly designed harness will experience voltage drops and generate excessive heat, risking mid-air failure. A custom-engineered harness uses precision-calculated AWG (American Wire Gauge) sizes and low-resistance copper strands to ensure thermal stability.
Simultaneously, the flight controller relies on I2C, SPI, and UART protocols to communicate with sensors. These signals are incredibly weak. By implementing differential pair routing and multi-layer shielding within the harness, we physically isolate the noisy power lines from the delicate signal wires, achieving flawless data transmission even under maximum motor load.
Technical Specifications: Built for Airborne Excellence
As a premier drone wire manufacturer, we customize every parameter to meet your specific R&D requirements. Below is a breakdown of our standard engineering capabilities.
| Specification Category | Parameter / Material Options | Key Engineering Advantage |
|---|---|---|
| Wire Gauge (Power) | AWG 8 to AWG 14 (High-strand-count Oxygen-Free Copper) | Handles massive current spikes; minimizes voltage drop and thermal buildup. |
| Wire Gauge (Signal) | AWG 24 to AWG 32 (Micro-coaxial / Twisted Pair) | Ultra-lightweight; ensures high-speed data transfer and saves critical space. |
| Insulation Material | Silicone Rubber, PTFE (Teflon), FEP | PTFE offers extreme temp resistance (-90°C to +260°C) and chemical durability. |
| EMI/RFI Shielding | Tinned Copper Braid, Aluminum/Mylar Foil | Blocks motor interference; guarantees GPS and telemetry signal integrity. |
| Connector Types | Micro-D, JST (GH/SH), Molex, XT60/XT90, AS150 | High-retention locking mechanisms prevent disconnection during high-G maneuvers. |
| Outer Jacketing | Nylon Braided Sleeving, Heat Shrink, PUR | Provides superior abrasion resistance against carbon fiber frame edges. |
Your Trusted Partner in Drone Manufacturing: Factory Strengths & Custom Solutions

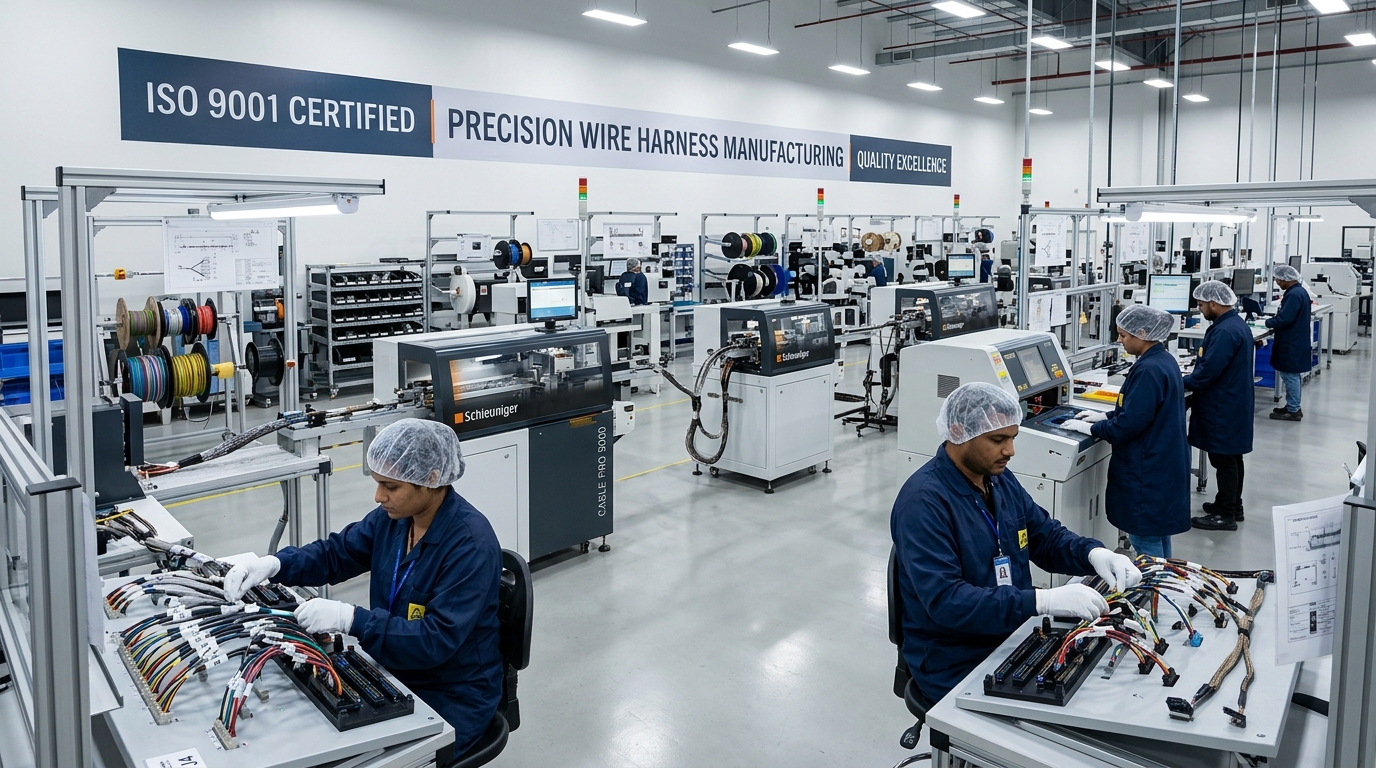

When developing a new UAV platform, your supply chain partner is just as important as your engineering team. As an ISO9001-certified direct source manufacturer of custom cable assemblies, we understand the exact pain points of drone B2B procurement.
- Elite Engineering & Design Team: We don't just manufacture; we co-design. Our engineers collaborate directly with your R&D department to optimize wire routing, connector selection, and weight reduction strategies before prototyping begins.
- Uncompromising Quality Control: Every custom drone wiring harness undergoes rigorous automated testing for continuity, insulation resistance, and dielectric withstanding voltage (hipot testing) to guarantee zero-defect delivery.
- Low Volume Production (LVP) Supported: We know that drone development requires agile iterations. Unlike rigid traditional factories, our flexible supply chain proudly supports low volume production and rapid prototyping, allowing you to test and refine your designs without massive minimum order quantities (MOQs).
- End-to-End Customization: From waterproof IP67 connectors for agricultural drones to ultra-micro lightweight cables for racing FPVs, we deliver 100% bespoke solutions tailored to your exact technical drawings.
Ready to Elevate Your Drone's Performance?
Don't let inferior wiring compromise your cutting-edge UAV design. Partner with a factory that speaks the language of aviation engineering.
Whether you need a prototype for your next-generation heavy-lift drone or a scalable manufacturing partner for commercial UAVs, we are ready to deliver.
[Call to Action] Contact our engineering team today for a free technical consultation and secure a quote for your Custom Drone Wiring Harness. Let’s build the future of flight, together.
