The Ultimate Guide to Custom NEV Sensor Wire Harnesses: Empowering Next-Gen Automotive Perception Systems
As the New Energy Vehicle (NEV) industry accelerates towards fully autonomous driving and intelligent electrification, the complexity of vehicle architecture is increasing exponentially. Modern NEVs rely on a sophisticated array of sensors—from LiDAR and millimeter-wave radar to temperature and speed sensors—to monitor their environment and internal health.
However, these advanced sensors are practically useless without a reliable conduit for data transmission. This is where the custom NEV sensor wire harness comes into play. Acting as the crucial "nerve endings" of the vehicle's perception system, high-quality sensor cables directly determine the accuracy, latency, and real-time reliability of data collected and sent to the Electronic Control Unit (ECU).
Why Sensor Wire Harnesses are the "Nerve Endings" of the NEV Architecture
In automotive electronics engineering, the reliability of a sensor is only as good as the wiring that connects it. A custom NEV sensor wire harness is not merely a bundle of copper wires; it is a highly engineered data bridge designed to eliminate signal attenuation and electromagnetic interference (EMI) in harsh operating environments.
Working Principles
The fundamental working principle of an NEV sensor wire harness is to establish a secure, low-impedance pathway between environmental/mechanical sensors and the ECU. Whether the sensor is detecting wheel speed variations or battery cell temperatures, it generates analog or digital signals. The wire harness must transmit these micro-signals flawlessly in real-time, preventing voltage drops or data corruption caused by the vehicle's high-voltage electrical architecture, thereby ensuring the ECU makes instantaneous, life-saving driving decisions.
Main Classifications of NEV Sensor Harnesses
Depending on the specific subsystem, custom NEV sensor wire harnesses can be categorized into several vital types:
- ADAS Perception Harnesses: Used for LiDAR, ultrasonic, and camera sensors, requiring high-speed data transmission protocols (e.g., Automotive Ethernet, FAKRA/HSD connectors).
- Thermal Management Harnesses: Connecting temperature and pressure sensors within the Battery Management System (BMS) and cooling loops.
- Powertrain & Chassis Harnesses: Tailored for ABS, ESC, and motor resolver sensors, demanding extreme durability and vibration resistance.
Core Features of High-Performance Custom Sensor Cables
When sourcing a custom NEV sensor wire harness, automotive engineers and procurement managers must evaluate several critical performance indicators.
- Exceptional Signal Integrity: Utilizing advanced tinned copper braiding and aluminum foil shielding to protect sensitive sensor data from EMI and RFI generated by electric motors and inverters.
- Harsh Environment Resilience: Automotive-grade cross-linked polyethylene (XLPE) or Teflon insulation ensures the harness withstands extreme temperature fluctuations, chemicals, and mechanical abrasion.
- IP-Rated Waterproofing: Connectors and housings are rigorously tested to meet IP67 or IP69K standards, guaranteeing uninterrupted performance in heavy rain or high-pressure washing conditions.
- Lightweight Optimization: Employing thin-wall wiring technologies and optimized routing designs to reduce overall vehicle weight, thereby extending the NEV's driving range.
Technical Specifications: What to Expect from OEM Solutions
To meet the rigorous demands of Tier 1 suppliers and OEM assembly lines, our custom wire harnesses are built strictly according to client blueprints and automotive engineering standards. Below is an overview of our standard customization parameters:
| Parameter Category | Available Specifications & Customization Options |
|---|---|
| Wire Gauge (AWG) | 0.13mm² to 2.5mm² (Customizable based on current/signal requirements) |
| Conductor Material | Bare Copper, Tinned Copper, Silver-Plated Copper |
| Insulation Material | XLPE, PVC, PTFE (Teflon), Silicone, PUR |
| Temperature Range | -40°C to +150°C (High-temperature options up to 200°C available) |
| Shielding Type | Tinned Copper Braid (>85% coverage), Aluminum Foil, Twisted Pair |
| Connector Brands | Original or equivalent TE Connectivity, Molex, Delphi, Aptiv, JAE |
| Waterproof Rating | IP65, IP67, IP69K (Sealed connectors and heat-shrink tubing) |
| Voltage/Current Ratings | 12V / 24V / 48V Low-voltage systems (Signal specific) |
| Compliance & Standards | RoHS, REACH, IPC/WHMA-A-620, ISO 14001, IATF16949 |
Your Reliable IATF16949 Certified Wire Harness Manufacturing Partner
Navigating the complexities of NEV engineering requires a manufacturing partner who understands both the technical nuances of automotive electronics and the supply chain demands of modern businesses.
As a source factory specializing in automotive wiring solutions, we pride ourselves on delivering uncompromising quality and flexibility.

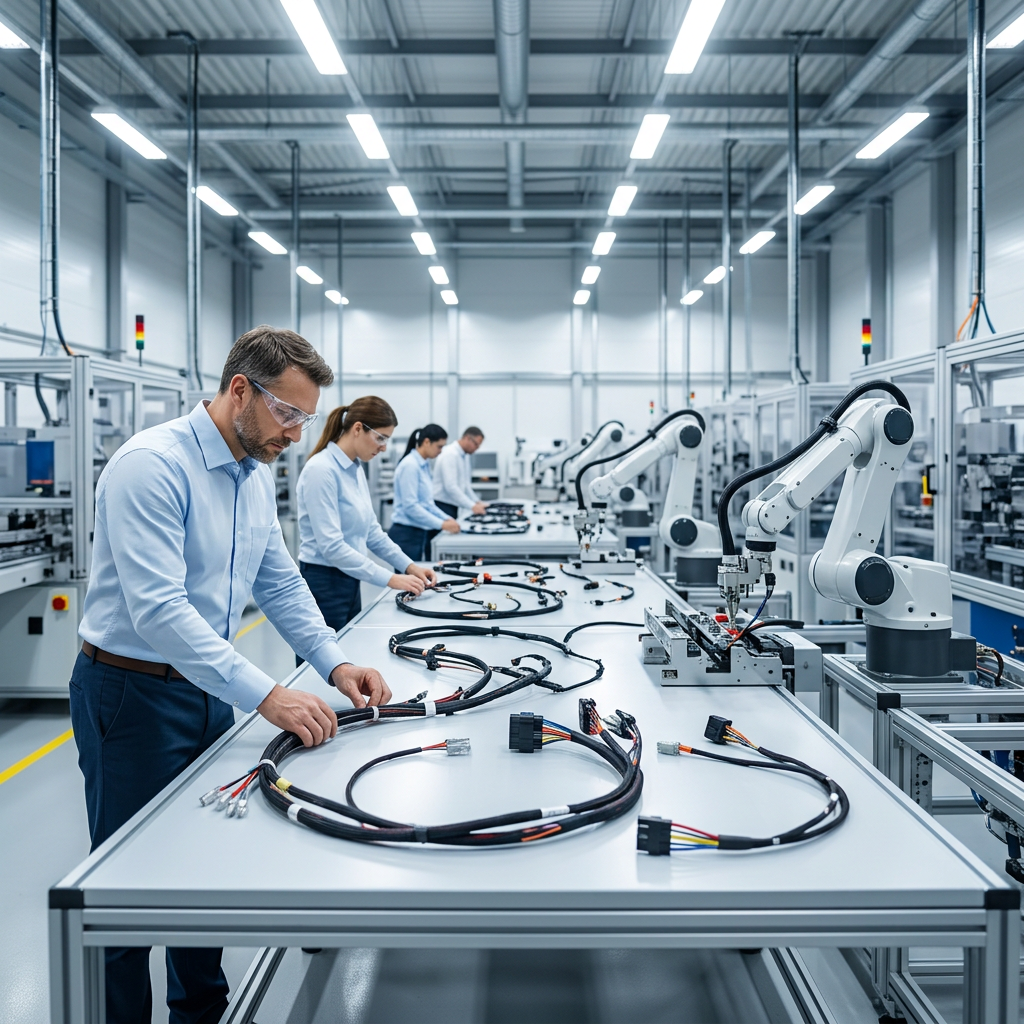

- ISO9001 & IATF16949 Certified: Our entire production process is governed by the highest automotive quality management systems. From raw material inspection to automated crimping, continuity testing, and final packaging, we ensure zero-defect manufacturing.
- Professional Design Team: We do not just build to print; we offer end-to-end solutions. Our in-house engineering team collaborates directly with your R&D department, providing DFMA (Design for Manufacturing and Assembly) feedback, reverse engineering, and prototyping services to optimize your wire harness architecture.
- Low MOQ & Agile Manufacturing: We understand that developing new electric vehicles involves iterative testing. Unlike traditional mega-factories, we strongly support Low MOQ (Minimum Order Quantity) requests, allowing you to transition smoothly from small-batch prototype runs to full-scale mass production without prohibitive upfront costs.
Ready to Optimize Your NEV Perception System?
Don't let subpar wiring become the bottleneck in your advanced autonomous or electric vehicle systems. Ensure real-time, flawless data transmission between your sensors and ECU with our engineered custom NEV sensor wire harnesses.
Contact our engineering sales team today to discuss your project requirements, request a custom quote, or schedule a rapid prototype delivery. Let us connect the future of your automotive innovations.
