The Ultimate Guide to Custom Drone Wiring Harnesses for Flight Controllers
In the rapidly evolving world of Unmanned Aerial Vehicles (UAVs), hardware reliability is non-negotiable. While high-KV motors, carbon fiber frames, and advanced flight controllers often steal the spotlight, the true nervous system of any drone lies in its wiring harness.

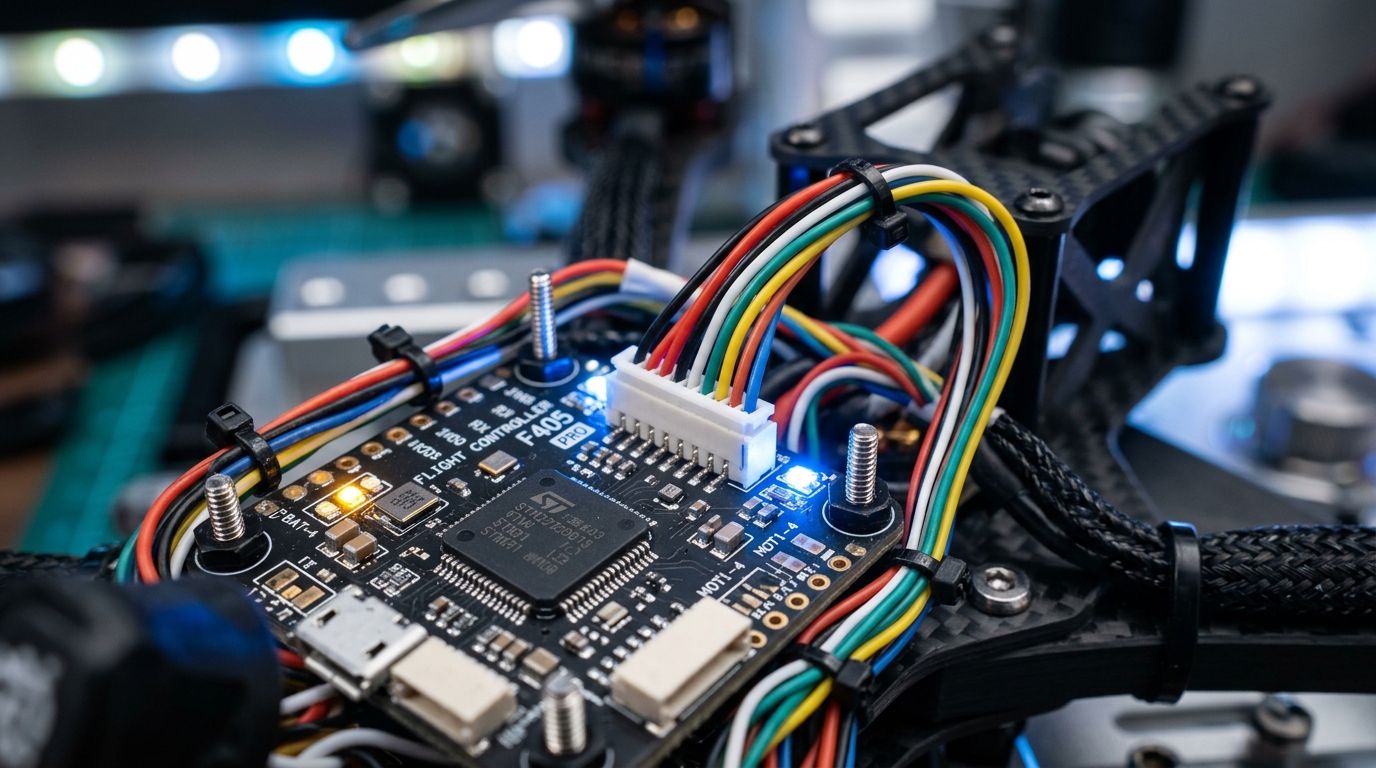

A custom drone wiring harness is the critical connecting component responsible for transmitting both power and intricate control signals across the aircraft. Whether it is routing telemetry data, synchronizing Electronic Speed Controllers (ESCs) via PWM, or ensuring GPS lock through an I2C bus, the quality of the cable assembly directly dictates flight stability and signal reliability. A single loose pin or unshielded wire can lead to catastrophic signal loss, resulting in mid-air failures. For drone manufacturers and R&D engineers, investing in high-quality, customized wiring solutions is the foundational step toward building a fail-safe UAV ecosystem.
Classifications of Custom Drone Wiring Harnesses
To build a reliable UAV, engineers must understand the specific categories of wiring required within the drone architecture. Custom flight controller harnesses generally fall into three categories:
- Power Distribution Cables: Heavy-gauge wires (usually silicone-coated) connecting the LiPo battery to the Power Distribution Board (PDB) and ESCs, handling high-current draws.
- Signal & Control Cables: Micro-cables responsible for data transmission between the flight controller, receiver (RX), telemetry modules, and GPS/Compass.
- Video & Payload Wiring: Shielded cables designed to prevent Electromagnetic Interference (EMI) while transmitting high-frequency video signals from the FPV camera to the Video Transmitter (VTX) or connecting gimbal payloads.
Core Adaptation & Compatibility: The Pixhawk Case Study
One of the most common pain points in drone manufacturing is connector mismatch and the resulting contact failures caused by high-frequency motor vibrations. Standardizing connectors is crucial.
Crucial Adaptation Example: When utilizing advanced flight controllers like the Pixhawk 2 or Pixhack, engineers frequently encounter compatibility issues with peripheral modules. These flight controllers utilize high-density, secure locking connectors. To ensure maximum reliability and avoid poor contact, it is highly recommended to use a custom GH1.25 to Dupont 2.54mm wiring harness.
The GH1.25 end provides a secure, snap-in lock on the flight controller side, which is completely immune to vibration-induced disconnections. Meanwhile, the Dupont 2.54mm end offers universal compatibility for prototyping and connecting standard legacy peripherals (like older GPS modules or telemetry radios). Using a properly crimped, customized cable for this specific bridge eliminates the "loose pin" phenomenon that plagues many DIY and commercial builds.
Key Characteristics and Application Scenarios
A professionally manufactured UAV cable assembly possesses distinct characteristics tailored for aerospace demands:
- Extreme Flexibility & Weight Reduction: Utilizing ultra-thin silicone wire insulators to save grams without compromising durability.
- High-Temperature Resistance: Crucial for wires routed near hot ESCs or heavy-lift motors.
- EMI Shielding: Foil or braided shielding is essential for data lines preventing motor noise from corrupting I2C or UART communication.
Application Scenarios:
- Agricultural Spraying Drones: Require waterproof (IP67) connectors and heavy-duty harnesses to withstand liquid exposure and high currents.
- Surveying & Mapping UAVs: Demand shielded, precision signal cables for uninterrupted RTK GPS data and high-res camera payloads.
- High-End Cinematography Drones: Rely on vibration-resistant custom cables to maintain flawless gimbal stabilization and zero-latency video transmission.
How It Works: Core Functions & Signal Transmission Protocols
The flight controller is the brain, but the wiring harness is the central nervous system. It facilitates seamless communication through various protocols:
- PWM (Pulse Width Modulation): Traditional signal routing for ESCs and servos. Demands clean, uninterrupted copper pathways.
- UART (Universal Asynchronous Receiver-Transmitter): Used for telemetry and serial communication. Requires precise pin mapping (TX to RX, RX to TX).
- I2C & CAN Bus: Utilized for smart batteries, compasses, and advanced GPS modules. These require twisted-pair cables to mitigate crosstalk and ensure data integrity over longer drone arms.
Specifications & Technical Parameters
Choosing the right wire gauge (AWG) and connector type is paramount. Below is a professional reference table for standard drone wiring specifications:
| Application / Module | Recommended Wire Gauge (AWG) | Common Connector Types | Core Features & Requirements |
|---|---|---|---|
| Main Power / Battery | 8 AWG - 12 AWG | XT60, XT90, AS150 | High current capacity, high-temp silicone, low resistance |
| ESC to Motor Power | 14 AWG - 18 AWG | Bullet Connectors (3.5mm/4mm) | Flexible routing, vibration resistant |
| Pixhawk / Pixhack FC | 28 AWG - 30 AWG | GH1.25, DF13 | Secure locking mechanism, micro-pitch for compact design |
| Peripherals (GPS/Telemetry) | 26 AWG - 28 AWG | GH1.25 to Dupont 2.54, JST-SH | Universal compatibility, easy pinning, twisted pairs |
| FPV Camera & VTX | 28 AWG - 30 AWG | Molex Picoblade, JST-GH | EMI shielding required, ultra-flexible |
Your Trusted Partner for Custom Drone Wire Assemblies

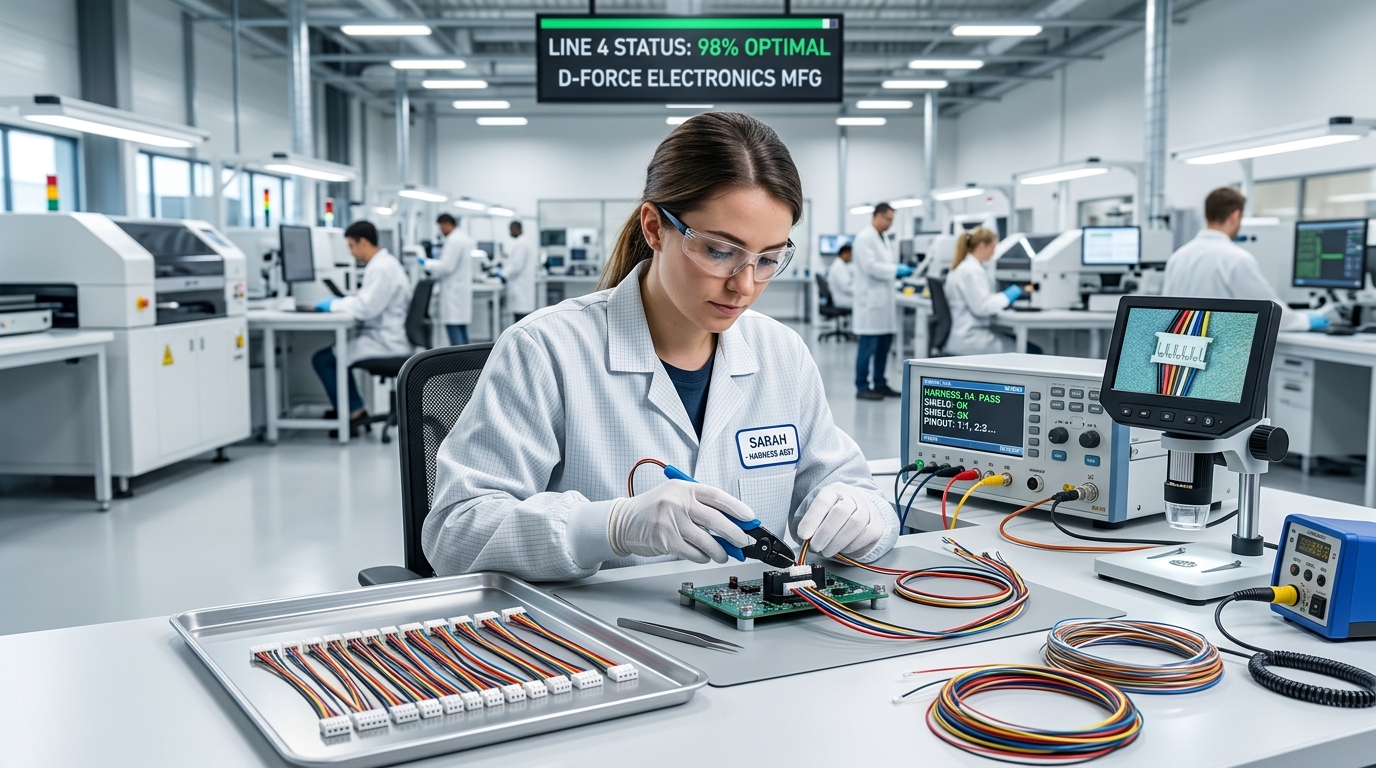

As a premier electronic manufacturing service provider specializing in UAV hardware, we understand that off-the-shelf cables rarely meet the stringent demands of professional drone engineering.
Why Choose Our Manufacturing Services?
- ISO9001 Certified Quality: Every custom drone wiring harness undergoes rigorous continuity, pull-force, and impedance testing, ensuring 100% compliance with international quality management standards.
- Professional Design Team: Our experienced engineers speak your language. From UART pinout schematics to designing complex CAN bus networks, we provide comprehensive design-for-manufacturing (DFM) support.
- Low MOQ Supported: We know that UAV prototyping requires agility. We proudly support Low Minimum Order Quantities (Low MOQ), allowing R&D teams and startups to iterate their designs without massive upfront inventory costs.
- Fully Custom Solutions: Whether you need specific lengths of silicone wire, custom braided EMI shielding, or precise GH1.25 to Dupont hybrid cables for your specific flight controller architecture, we manufacture to your exact blueprint.
Don't let a generic, poorly crimped cable compromise your next drone project.
Ready to upgrade your UAV's reliability? Contact our engineering team today for a free consultation and get a tailored quote for your custom drone wiring harness solutions!
