The Ultimate Guide to Custom New Energy Vehicle Motor Controller Wiring Harnesses
In the rapidly evolving landscape of New Energy Vehicles (NEVs), the Motor Control Unit (MCU) acts as the central brain dictating the vehicle's driving dynamics. However, even the most advanced MCU cannot function without a highly reliable circulatory and nervous system. This is exactly where the Custom New Energy Vehicle Motor Controller Wiring Harness comes into play.
As the core transmission component connecting the Power Distribution Unit (PDU) to the MCU, these custom motor controller cables are pivotal in determining the efficiency of energy conversion, the stability of power output, and the overall safety of the vehicle.
Working Principle of the MCU Wiring Harness The operation of a New Energy Vehicle relies heavily on seamless electrical transmission. High-voltage power flows from the battery pack into the PDU, which is then routed to the MCU via the EV high voltage harness. The MCU inverts this Direct Current (DC) into Alternating Current (AC) to drive the traction motor. During this high-stakes process, the wiring harness must endure massive electrical loads with zero margin for error. Simultaneously, the low-voltage communication harness transmits real-time control signals (such as throttle position and CAN bus data) from the vehicle's main control unit to the MCU, ensuring precise acceleration, regenerative braking, and diagnostic feedback. Without a premium, perfectly shielded custom wiring solution, the entire powertrain would be susceptible to electromagnetic interference (EMI), voltage drops, or thermal failure.
Classification and Key Features of Motor Controller Wiring Harnesses
To achieve optimal performance, NEV motor controller wiring systems are meticulously divided into two main categories, each serving a distinct and critical function.
1. High-Voltage (HV) Harnesses

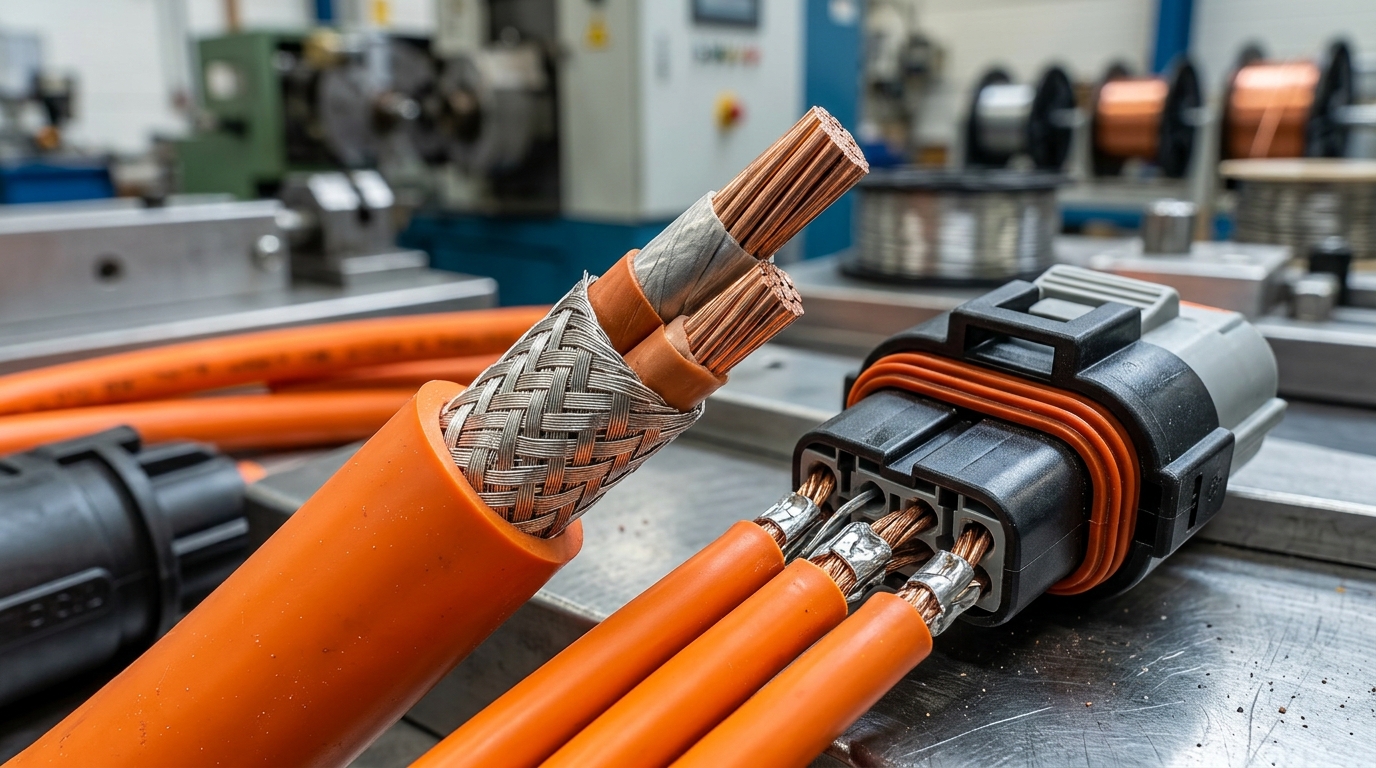

The high-voltage harness is the heavy-duty pipeline of the EV powertrain, universally identifiable by its bright orange outer jacket.
- Core Characteristics: Manufactured with thick cross-sectional areas (often ranging from 16mm² to 50mm² or more) to handle currents exceeding 300A and voltages up to 1000V. They feature multi-layered insulation and robust copper or aluminum shielding.
- Primary Function: To facilitate bulk energy transfer with minimal power loss.
- Application Scenarios: Directly connecting the battery/PDU to the motor controller, and subsequently transmitting the three-phase AC power from the MCU to the electric motor. Safety, thermal management, and Electromagnetic Compatibility (EMC) are the top priorities here.
2. Low-Voltage (LV) Harnesses
While smaller in diameter, the low-voltage harness is equally vital, acting as the nervous system for data and command transmission.
- Core Characteristics: Composed of numerous thin-gauge wires, typically bundled tightly and protected by corrugated tubes, braided sleeves, or specialized tapes. They require stringent anti-interference capabilities.
- Primary Function: To deliver precise control signals, sensor data, and low-voltage power (typically 12V or 24V) to the MCU's internal logic boards.
- Application Scenarios: Integrating the MCU with the vehicle's CAN bus system, resolver sensors, and thermal management sensors. They ensure that the driver's inputs are instantly translated into mechanical motion.
Technical Specifications for Custom Motor Controller Cables
When engineering a custom motor controller cable, strict adherence to automotive standards is non-negotiable. Below is a comprehensive overview of the technical specifications we offer for our NEV wiring harness assemblies:
| Category | Parameter | Specification / Details |
|---|---|---|
| Wire Specifications | Wire Gauge / Cross-Section | HV: 16mm², 25mm², 35mm², 50mm² (Customizable) LV: 0.35mm² - 2.5mm² |
| Conductor Material | High-purity Oxygen-Free Copper (OFC), Tinned Copper | |
| Insulation Material | XLPE (Cross-linked Polyethylene), Silicone Rubber, TPE | |
| Temperature Resistance | -40°C to +125°C / +150°C (Up to +200°C for Silicone) | |
| Voltage Rating | HV: 600V / 1000V / 1500V DC LV: 60V DC | |
| Shielding Performance | Aluminum foil + Tinned copper braid (EMC compliant, >85% coverage) | |
| Connector Specs | Brand Compatibility | TE Connectivity, Amphenol, Delphi, Molex, Kostal, or OEM Equivalents |
| Ingress Protection (IP Rating) | IP67, IP68, IP6K9K (Highly waterproof and dustproof) | |
| Mating Cycles | > 500 cycles (High durability for maintenance and testing) | |
| Locking Mechanism | CPA (Connector Position Assurance) equipped, HVIL (High Voltage Interlock Loop) integrated | |
| Compliance | Quality Standards | RoHS, REACH, UL, ISO 19642, LV216 |
Your Trusted Custom EV Wiring Harness Manufacturing Partner
As a specialized supplier serving global New Energy Vehicle OEMs, Tier 1, and Tier 2 motor controller manufacturers, we understand that supply chain reliability is just as important as product quality. We are not just a vendor; we are your strategic engineering partner.
- Certified Manufacturing Excellence: Our state-of-the-art factory operates strictly under ISO9001 and IATF16949 automotive quality management systems. Every wire harness undergoes rigorous automated testing, including high-voltage insulation tests, continuity tests, and pull-force mechanical testing.
- Flexible Customization & Low MOQ: We recognize the fast-paced nature of EV R&D. Whether you are in the prototyping phase requiring small-batch production or ready for mass assembly, we support deep customization with flexible, low Minimum Order Quantities (MOQ).
- Expert Design Team: Our in-house engineering team works closely with your R&D department to co-design and optimize your custom motor controller cables, ensuring flawless routing, thermal efficiency, and EMC compliance.
- One-Stop Solution: From initial CAD drafting, 3D routing simulation, and component sourcing, to final assembly and global logistics, we provide a seamless, end-to-end wiring solution.
Ready to Power Your Next-Generation EV?
Don't let subpar wiring bottleneck your motor controller's true potential. Partner with a manufacturer that guarantees safety, precision, and scalability.
Contact us today to speak with our technical experts, request a free sample, or get a competitive quote for your custom NEV motor controller wiring harness project!
