Custom NEV Battery High Voltage Wiring Harness: The Energy Artery of Modern EVs
The rapid evolution of New Energy Vehicles (NEVs) is pushing the boundaries of power transmission. As the automotive industry aggressively transitions from traditional 400V platforms to cutting-edge 800V high-voltage fast-charging architectures, the demand for robust, highly efficient power delivery systems has never been greater.
At the very core of this electrical revolution lies the NEV battery high voltage wiring harness—the indispensable "energy artery" that dictates the safety, efficiency, and performance of the entire electric vehicle.
What is an EV High Voltage Wiring Harness?
Unlike traditional low-voltage automotive wiring, the EV high voltage cable assembly is engineered to carry massive amounts of direct current (DC) and alternating current (AC) power. Operating under extreme electrical and thermal stress, these harnesses form the critical link between the vehicle's high-voltage battery pack and its peripheral high-power components.
Critical Role in the Power Distribution Unit (PDU)
The Power Distribution Unit (PDU) acts as the central command center for high-voltage energy. The PDU harness must flawlessly transmit power from the main battery pack to the PDU, which then intelligently distributes this energy to the onboard charger (OBC), DC-DC converter, e-compressor, and PTC heater. Any compromise in this high-voltage connection can lead to severe voltage drops, electromagnetic interference (EMI) issues, or catastrophic thermal runaways.
Classifications and Application Scenarios
To meet the complex packaging and electrical routing demands of modern electric vehicles, high voltage wiring harnesses are strictly categorized based on their application scenarios.
1. Battery Pack Internal Harnesses
These cables connect individual battery modules within the main pack. They must be highly flexible to accommodate tight bending radii and heavily shielded to prevent internal cross-talk.
Cell-to-Cell and Module-to-Module Connections
Operating within a highly confined space, these harnesses require advanced insulation materials like Silicone or XLPE (Cross-linked Polyethylene) to withstand localized thermal hotspots during hyper-fast charging cycles.
2. Battery to PDU and Motor Controller Cables
These are the primary power lines of the vehicle. They are typically thick, multi-stranded copper or aluminum cables (often ranging from 35mm² to 95mm²), designed to handle peak currents exceeding 300A during rapid acceleration or regenerative braking.
3. DC Fast Charging Harnesses
Connecting the vehicle's charging port to the battery system, these harnesses are specifically engineered to endure the extreme thermal loads generated by 350kW+ DC fast chargers. They often incorporate active liquid-cooling designs in high-end applications.
Core Features of Our OEM High Voltage Automotive Cables
When sourcing a custom EV high voltage cable, engineering teams must prioritize safety, durability, and compliance. Our tailored solutions offer industry-leading features:
- Next-Gen 800V Architecture Compatibility: Fully rated for up to 1500V DC, ensuring future-proof performance for hyper-fast charging systems.

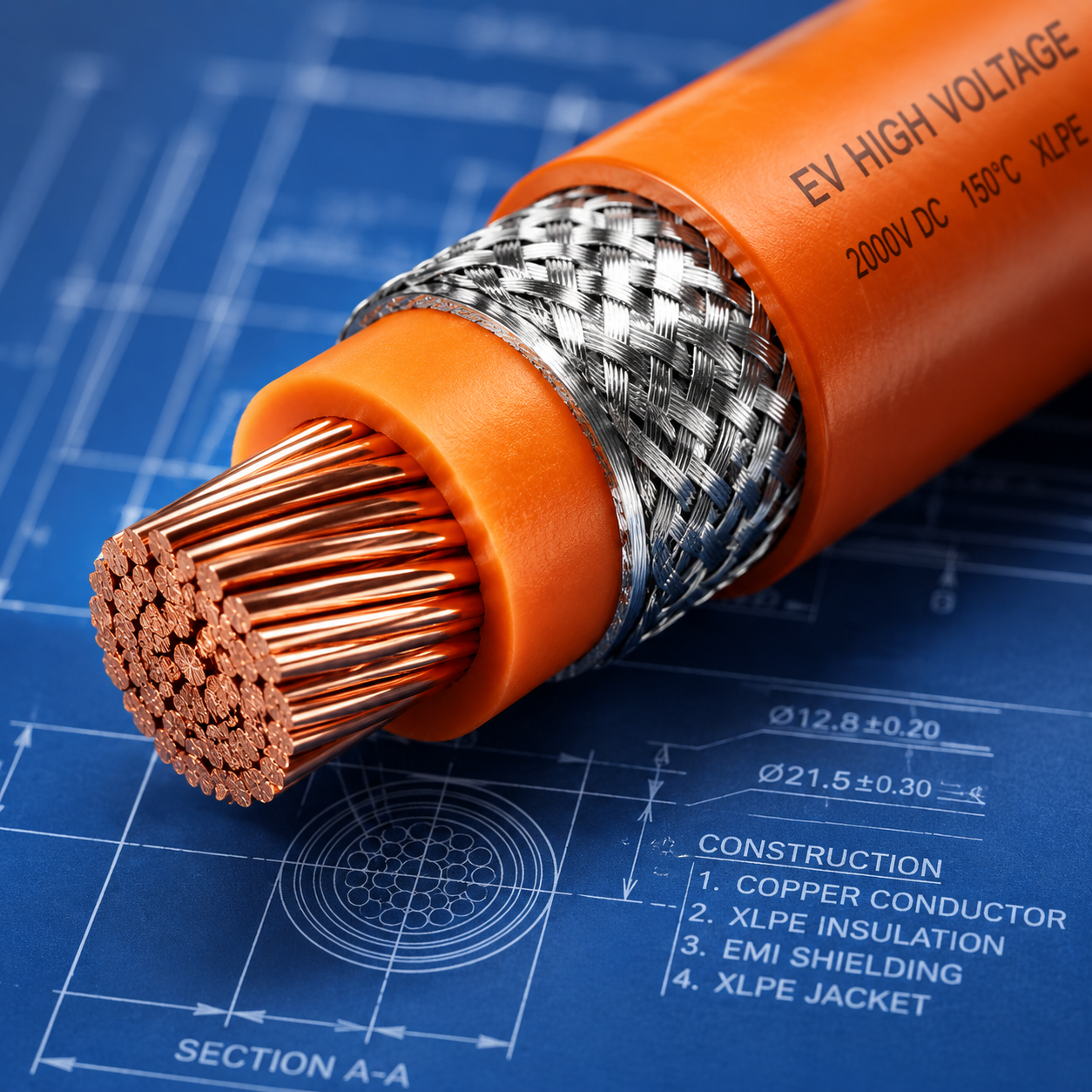

- Superior EMI/RFI Shielding: Utilizing a dual-layer shielding design (braided tinned copper + aluminum foil) to guarantee 360-degree electromagnetic compatibility (EMC), protecting sensitive automotive electronics from high-frequency noise.
- Extreme Thermal Resilience: Engineered with premium XLPE and Silicone insulation, offering an operational temperature range of -40°C to +150°C and excellent resistance to automotive fluids, battery acids, and abrasion.
- High-Flexibility Stranding: Constructed with ultra-fine oxygen-free copper wire strands, enabling a superior bending radius for complex spatial routing within compact EV chassis.
Technical Specifications for Custom EV High Voltage Cables
As a premier manufacturer, we provide exact engineering matches based on your specific platform requirements. Below are the standard specifications for our customizable high-voltage assemblies:
| Technical Parameter | Specification Range / Details |
|---|---|
| Voltage Rating | 600V DC / 1000V DC / 1500V DC (Customizable for 800V platforms) |
| Current Capacity | 10A to 400A+ (Depending on cross-sectional area and cooling) |
| Wire Cross-Section | 2.5mm², 4mm², 16mm², 25mm², 35mm², 50mm², 70mm², 95mm², 120mm² |
| Insulation Material | XLPE (Cross-Linked Polyethylene), Silicone Rubber (Orange per EV standards) |
| Temperature Range | -40°C to +125°C (XLPE) / -40°C to +150°C (Silicone) |
| Shielding Type | Tinned copper braid (>85% coverage) + Aluminum Mylar foil (360° EMI protection) |
| Conductor Material | Class 5 / Class 6 Ultra-flexible Oxygen-Free Bare Copper (OFC) |
| Connector Integration | Compatible with TE Connectivity, Amphenol, Rosenberger, or custom OEM equivalents |
| Compliance Standards | ISO 6722, LV 216, QC/T 1037, RoHS, REACH |
Why Choose Us as Your Custom NEV Cable Assembly Partner?
In the highly regulated automotive sector, supplier reliability is just as critical as product quality. As an elite wiring harness factory, we bridge the gap between complex engineering requirements and scalable manufacturing.
Certified Manufacturing Excellence

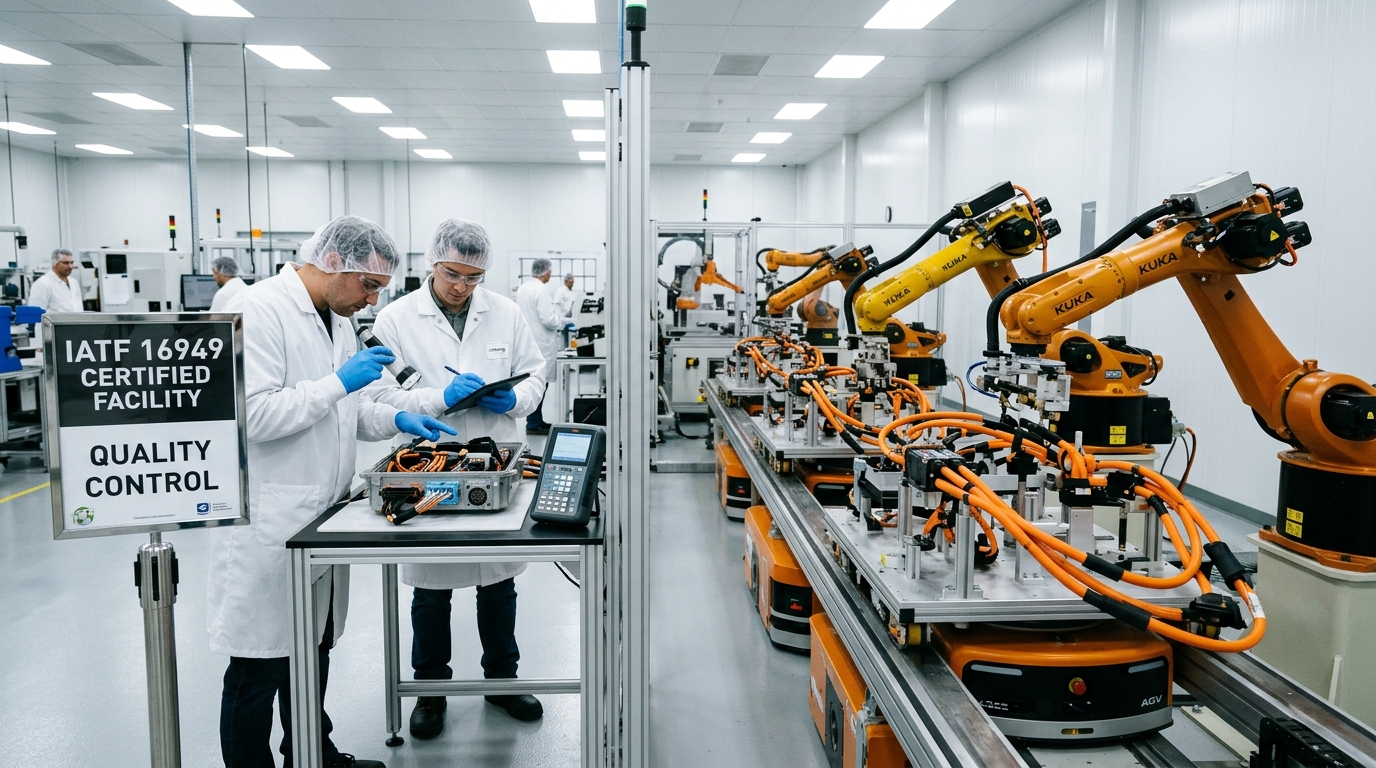

We operate under strict ISO9001 and IATF16949 quality management systems. Every custom EV high voltage cable undergoes rigorous end-of-line testing, including high-voltage dielectric withstand tests (Hi-Pot), continuity testing, and pull-force mechanical verification to ensure zero-defect delivery.
Flexible Customization & Low MOQ Support
We understand that automotive R&D requires agility. Unlike traditional Tier 1 mega-suppliers who demand massive volume commitments, our agile manufacturing lines fully support low-volume production and low Minimum Order Quantities (MOQ). Whether you are building 50 prototype vehicles or scaling up to 50,000 production units, we scale with you.
End-to-End Engineering Support
Our professional design team does more than just build to print. We offer comprehensive engineering solutions, from initial 3D routing simulation and connector selection to DFM (Design for Manufacturing) optimization, helping your engineering team reduce weight, lower costs, and accelerate time-to-market.
Get Your Custom EV Wiring Solution Today
Do not let sub-standard power delivery bottleneck your next-generation electric vehicle. Partner with a proven factory that understands the rigorous demands of EV engineering.
Contact our automotive engineering team today to discuss your specific PDU harness and NEV battery wiring harness requirements. Send us your drawings or technical specifications, and let us provide you with a tailored, IATF16949-certified high-voltage solution.
